Toyota Matrix
2008-01 → 2014-06 · chassis AZE14#,ZRE142 · catalogue 152460 · United States
Supported model
Data version 2014-12
Rear Axle Shaft & Hub
27 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04437A | Boot Kit, Rear Drive Shaft, RH |
| 04437B | Boot Kit, Rear Drive Shaft, LH |
| 04437C | Boot Kit, Rear Drive Shaft Inboard Joint, RH |
| 04437D | Boot Kit, Rear Drive Shaft Inboard Joint, LH |
| 41336C | Cover, Dust(FOR REAR DRIVE SHAFT) |
| 42311N | Nut(FOR REAR AXLE SHAFT RH) |
| 42311U | Bolt, Hub(FOR REAR AXLE RH) |
| 42312B | Nut(FOR REAR AXLE SHAFT LH) |
| 42312E | Bolt, Hub(FOR REAR AXLE LH) |

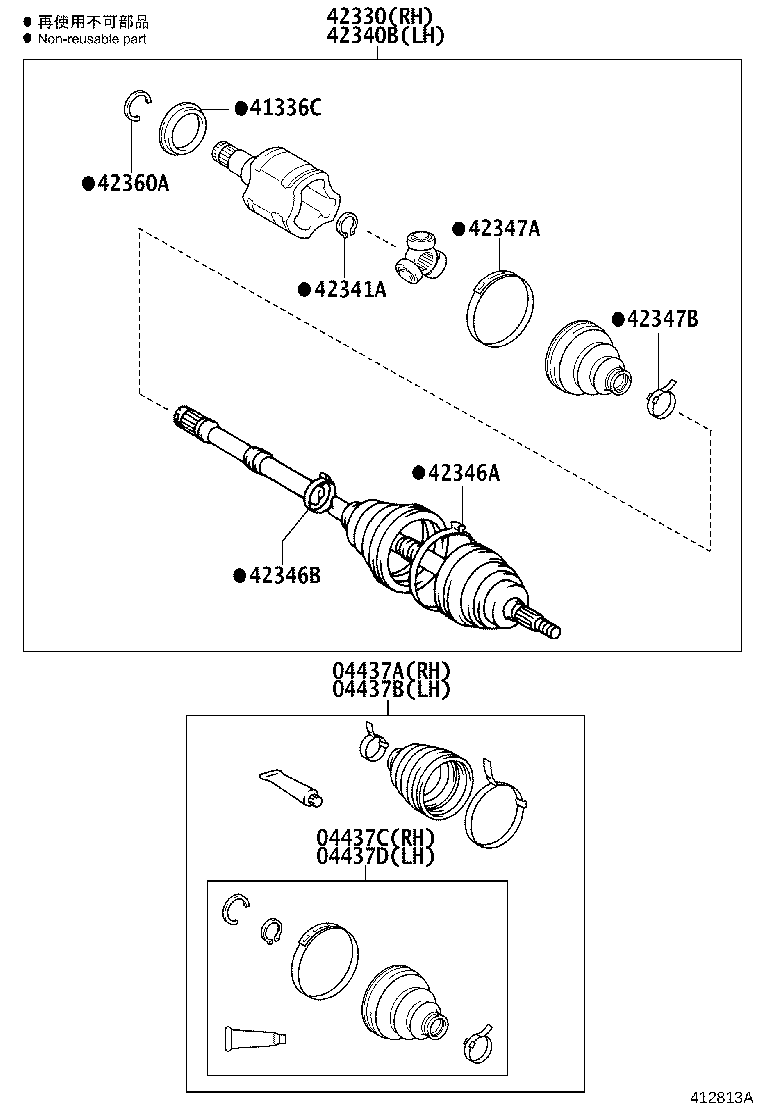

| 42330 | Shaft Assy, Rear Drive, RH |
| 42340B | Shaft Assy, Rear Drive, LH |
| 42341A | Ring, Snap (FOR REAR DRIVE SHAFT) |
| 42346A | Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT) |
| 42346B | Clamp, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT) |
| 42347A | Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) |
| 42347B | Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) |
| 42360A | Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT) |
| 42410 | Hub & Bearing Assy, Rear Axle, RH |
| 42421E | Bolt (FOR REAR AXLE BEARING CASE RH) |
| 42422A | Bolt (FOR REAR AXLE BEARING CASE LH) |
| 42431 | Disc, Rear |
| 42440 | Hub & Bearing Assy, Rear Axle, LH |
| 42450A | Hub & Bearing Assy, Rear Axle, RH |
| 42450B | Hub & Bearing Assy, Rear Axle, LH |
| 42451A | Deflector, Rear Wheel Bearing Dust, NO.1 RH |
| 42451B | Deflector, Rear Wheel Bearing Dust, NO.1 LH |
| 42491 | Plug, Shoe Adjusting Hole (FOR PARKING BRAKE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
