Toyota Matrix

2008-01 → 2014-06 · chassis AZE14#,ZRE142 · catalogue 152460 · United States

Supported model Data version 2014-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

9 part groups · 2 illustrations

Illustrations

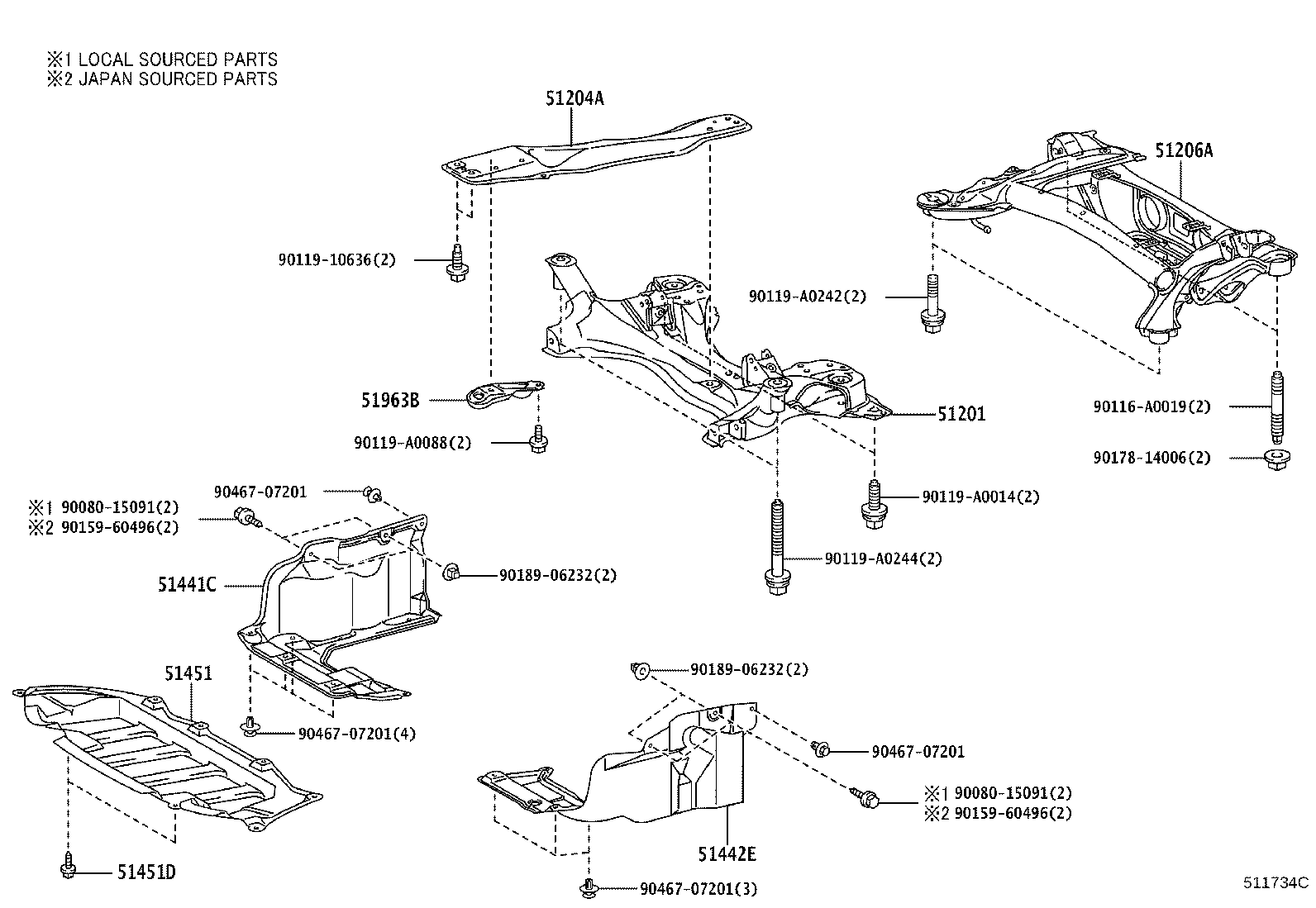

Figure 511733D 511733D 2008-01 → — Figure 511734C 511734C 2008-01 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51204A Member Sub-assy, Engine Mounting, Center
51206A Member Sub-assy, Rear Suspension
51227B Damper, Front Suspension Member Dynamic
51441C Cover, Engine Under, RH
51442E Cover, Engine Under, NO.2
51451 Cover, Engine Under, NO.4 RH
51451D Screw, NO.1
51963B Hook, Transport, Front RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
