Toyota Matrix

2008-01 → 2014-06 · chassis AZE14#,ZRE142 · catalogue 152460 · United States

Supported model Data version 2014-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

18 part groups · 14 illustrations

Illustrations

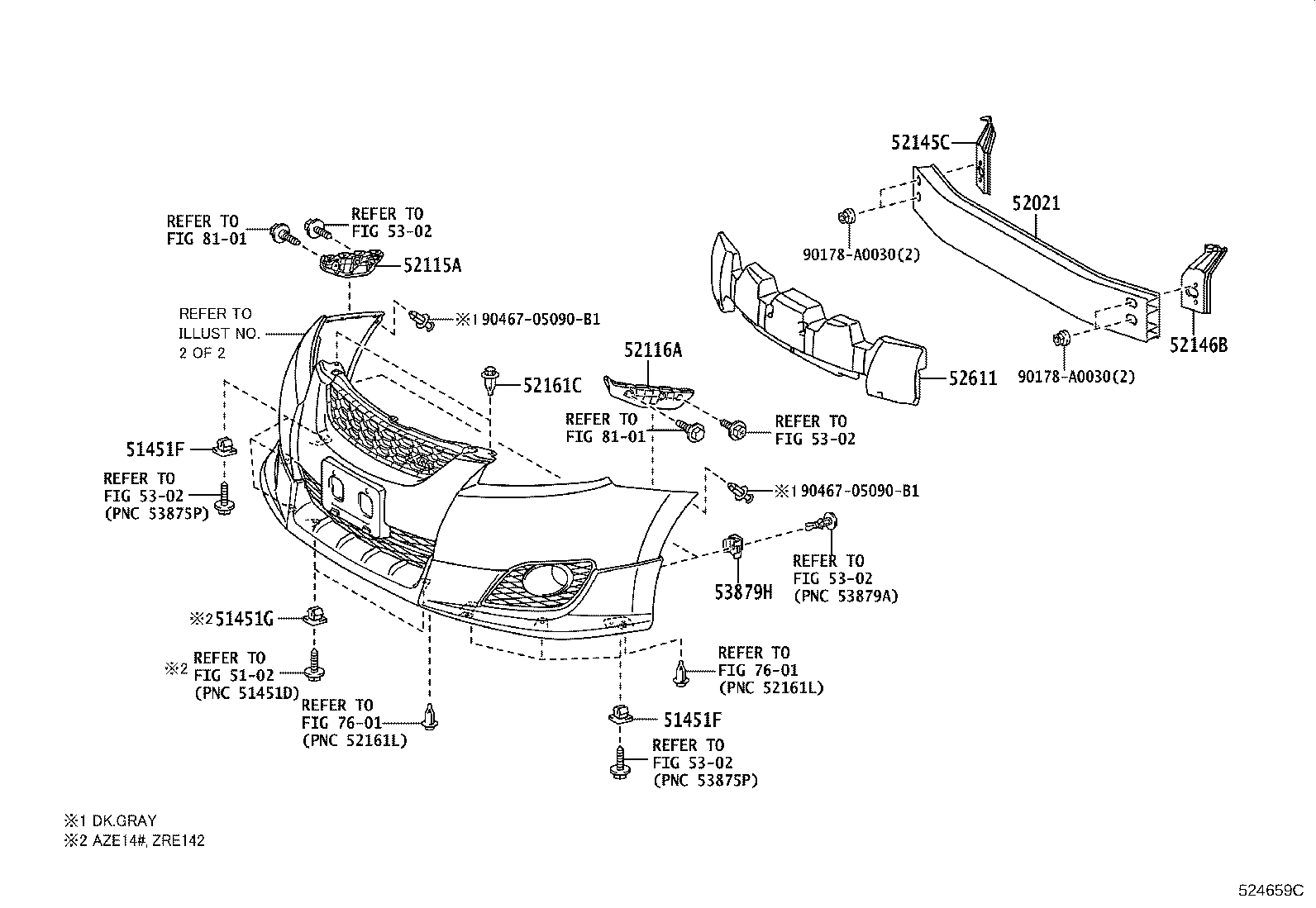

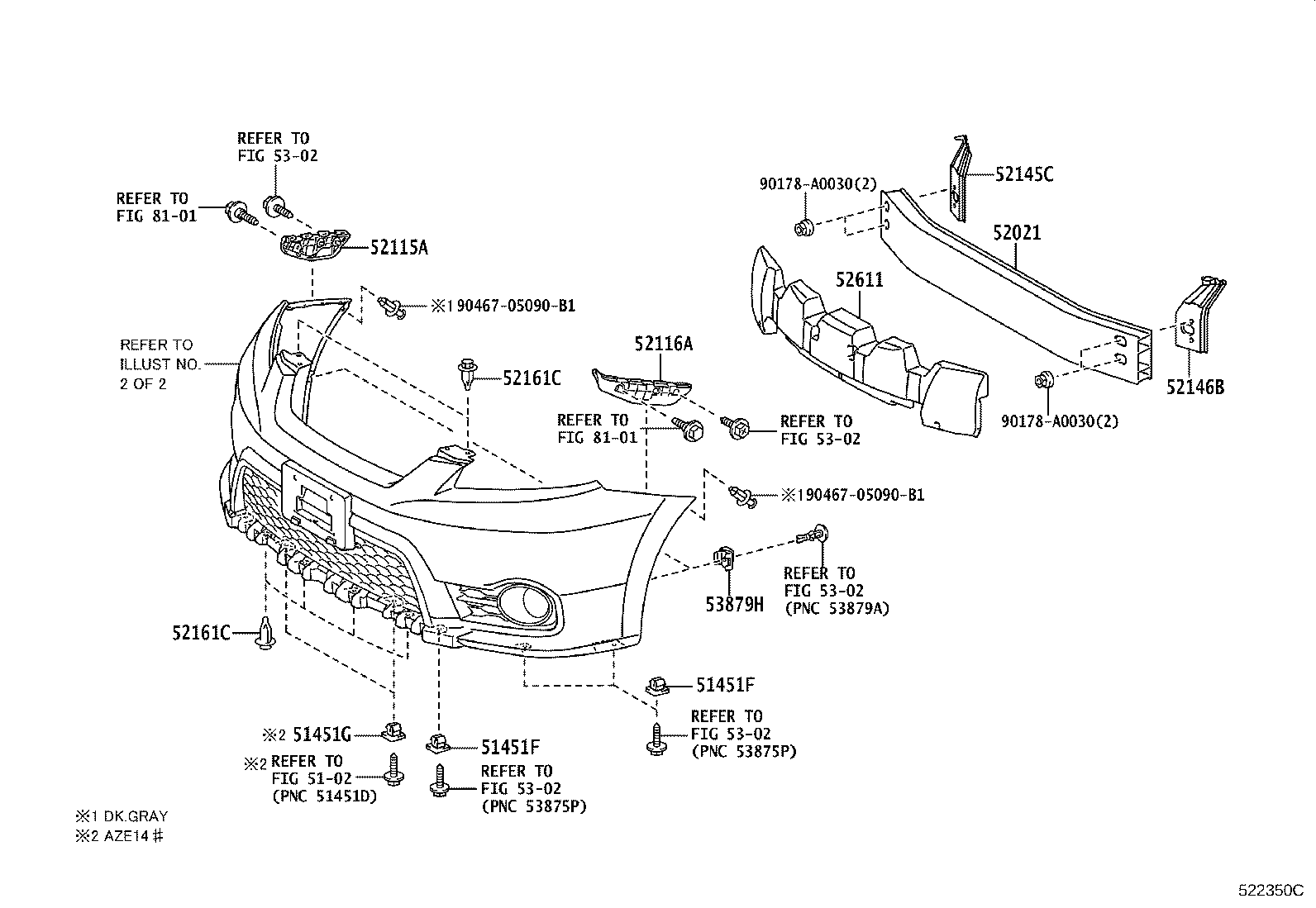

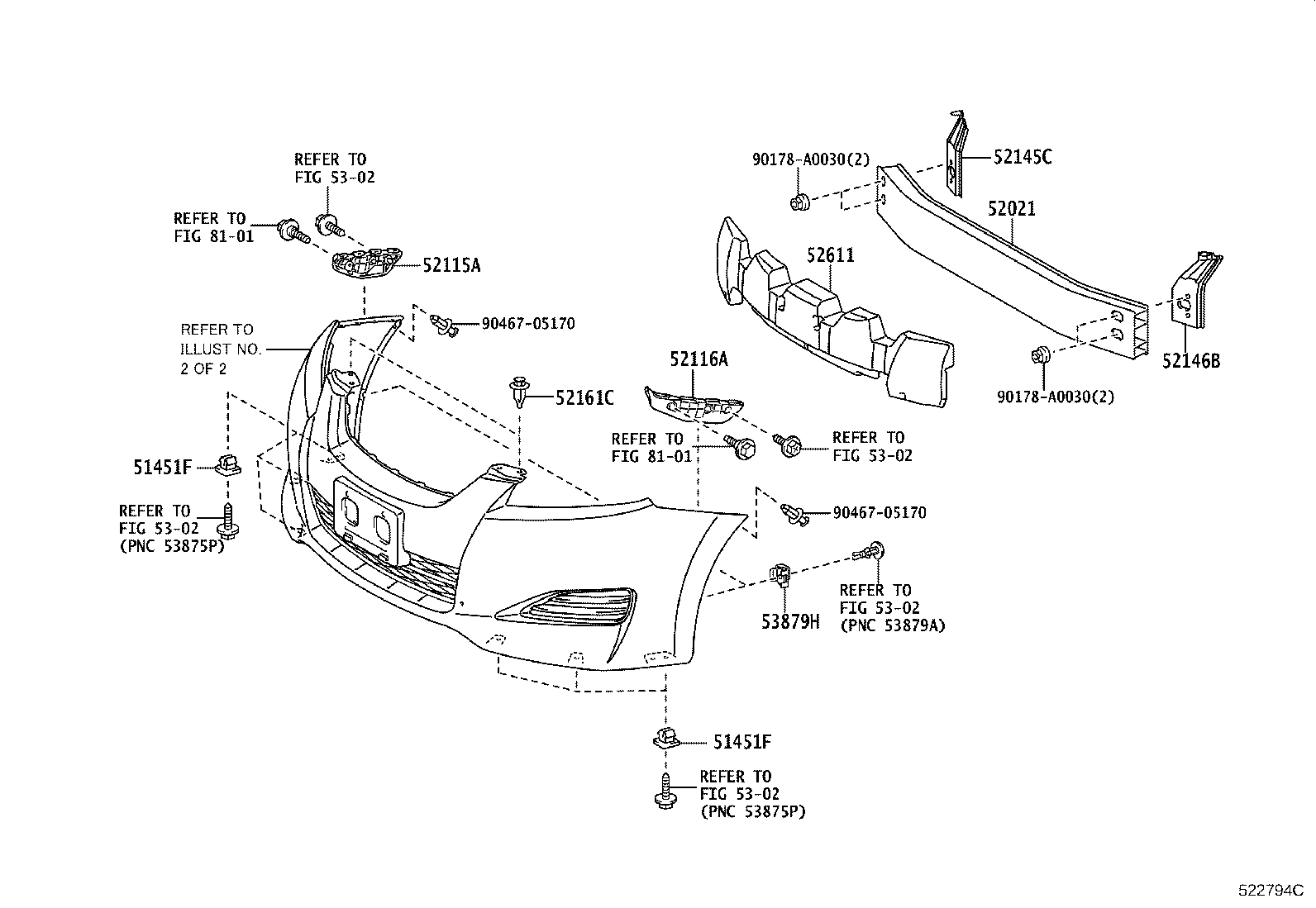

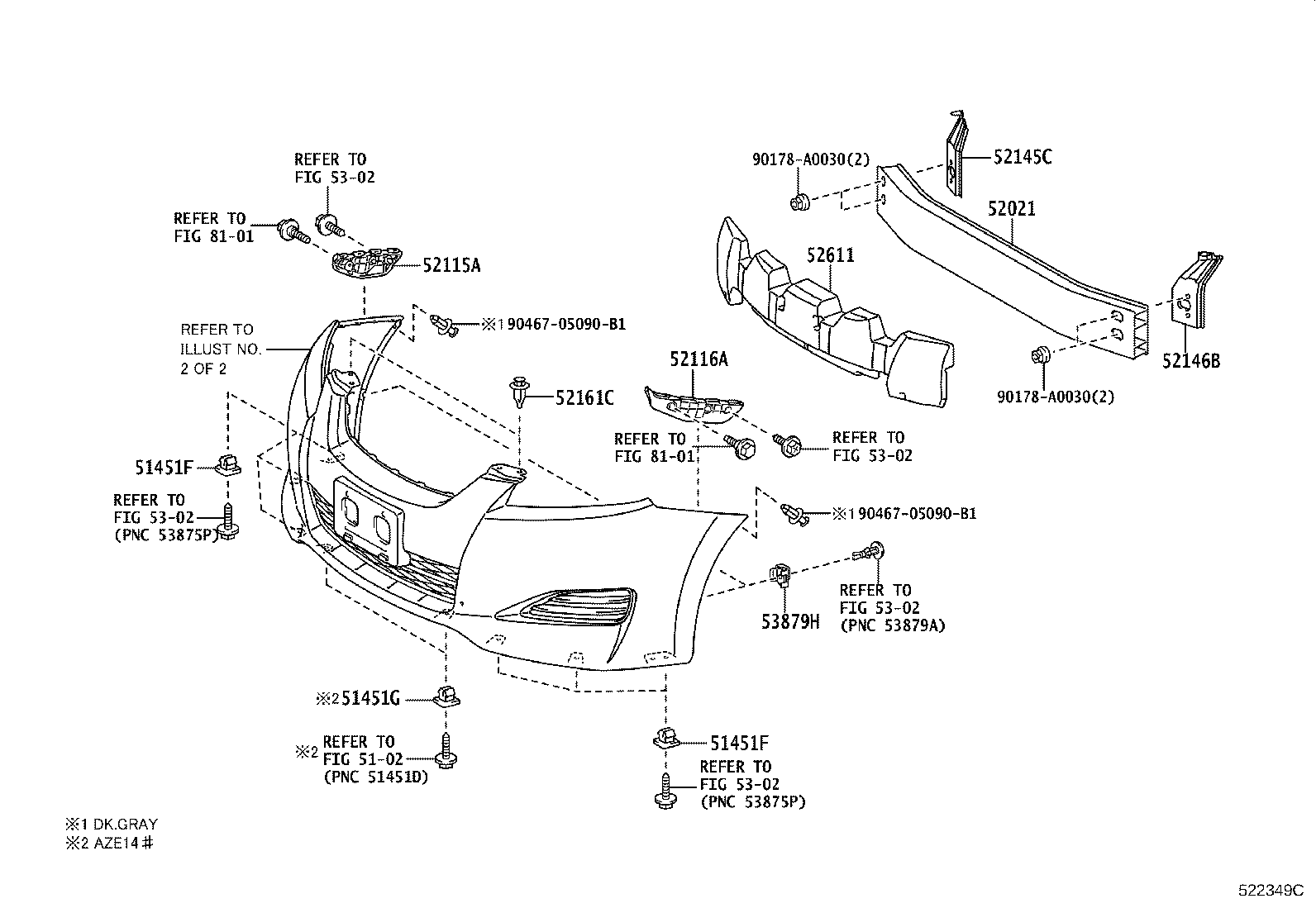

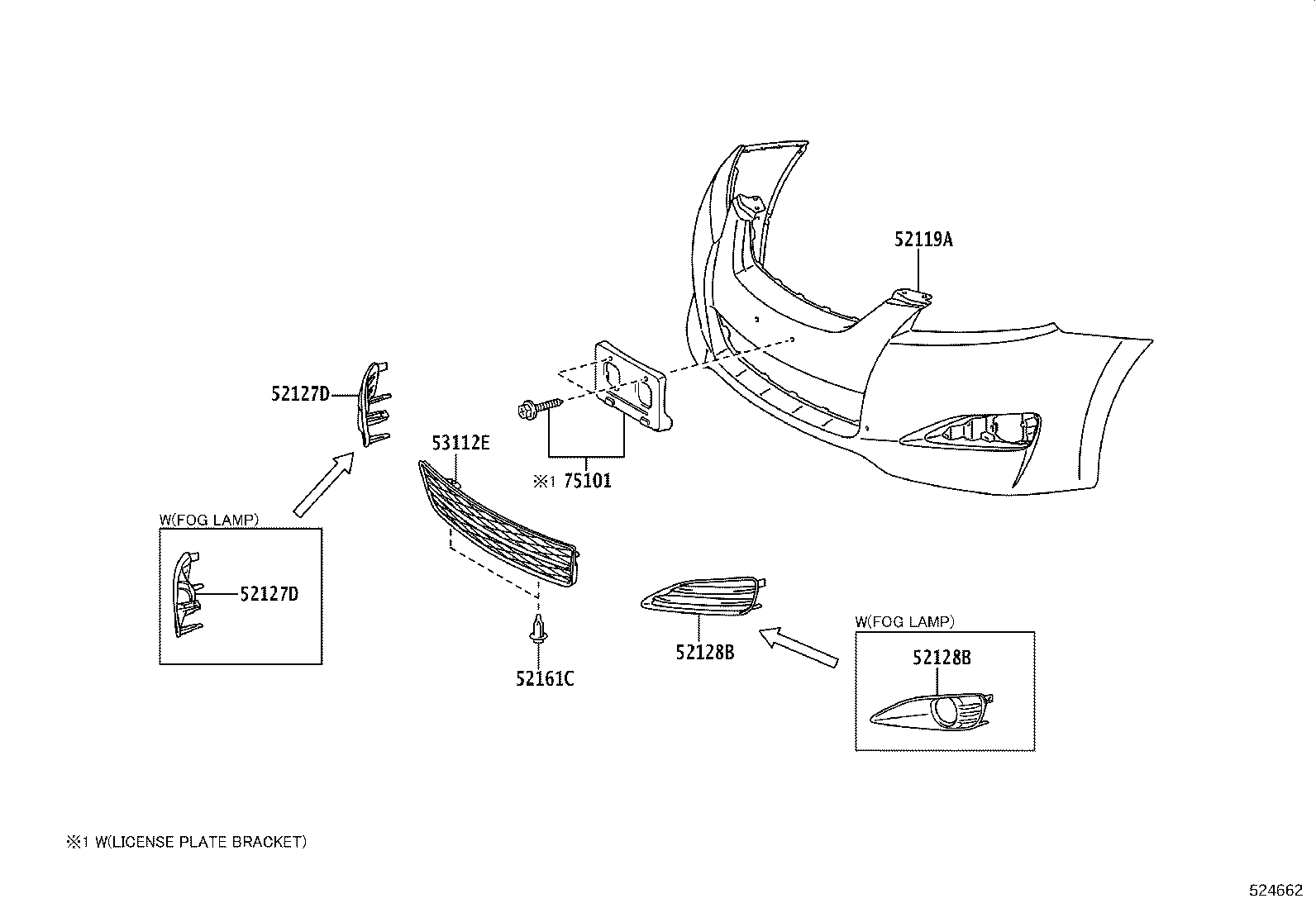

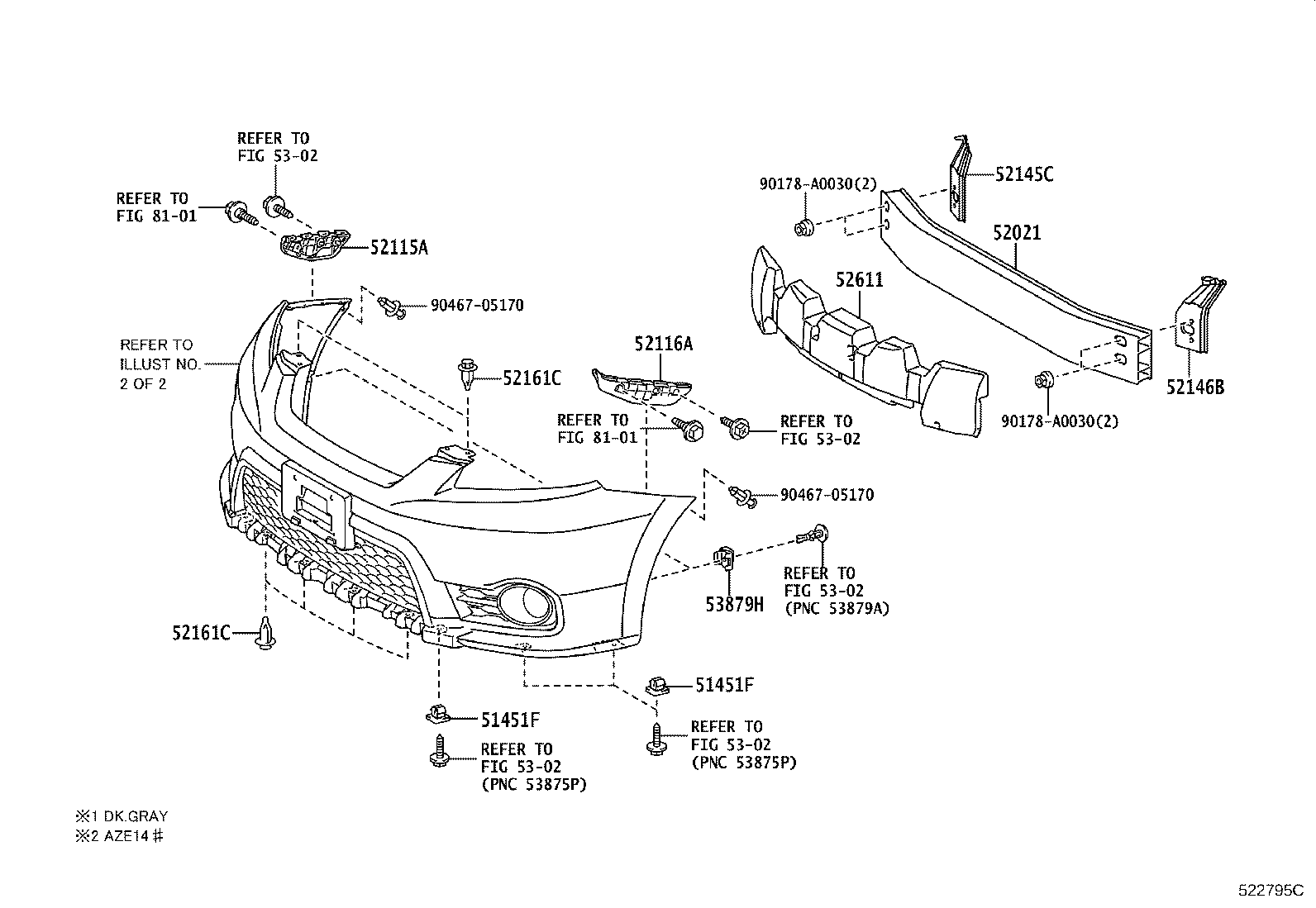

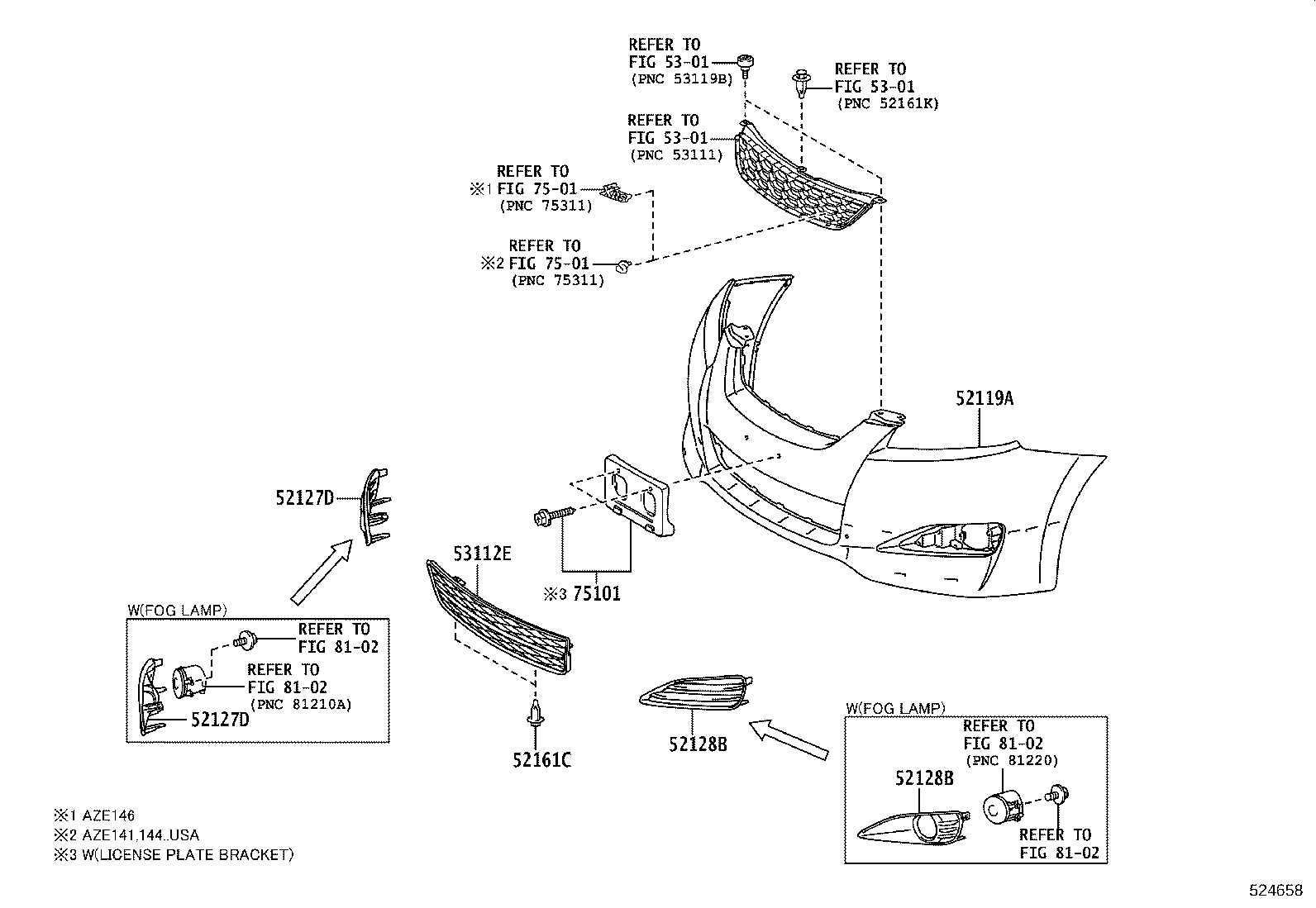

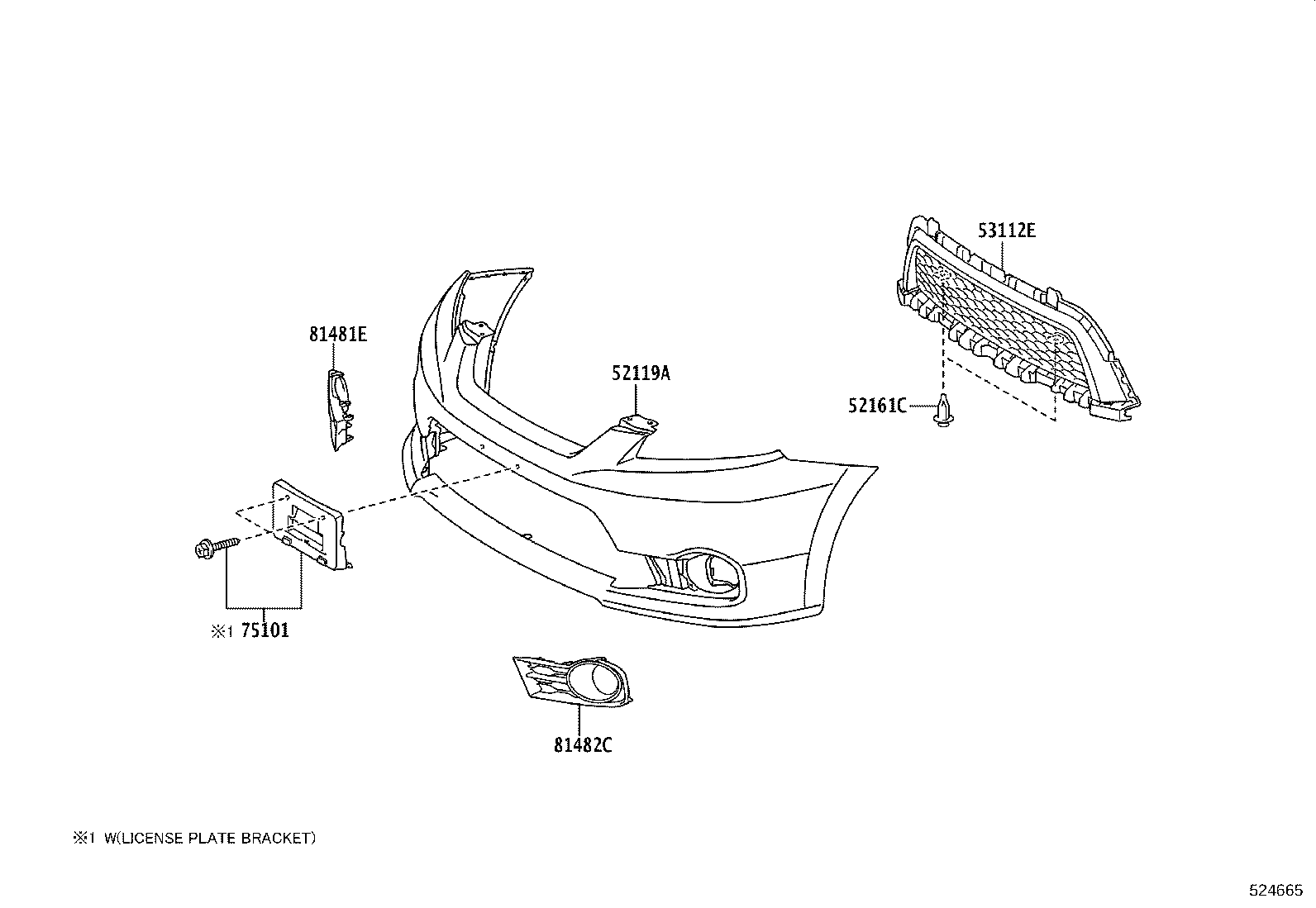

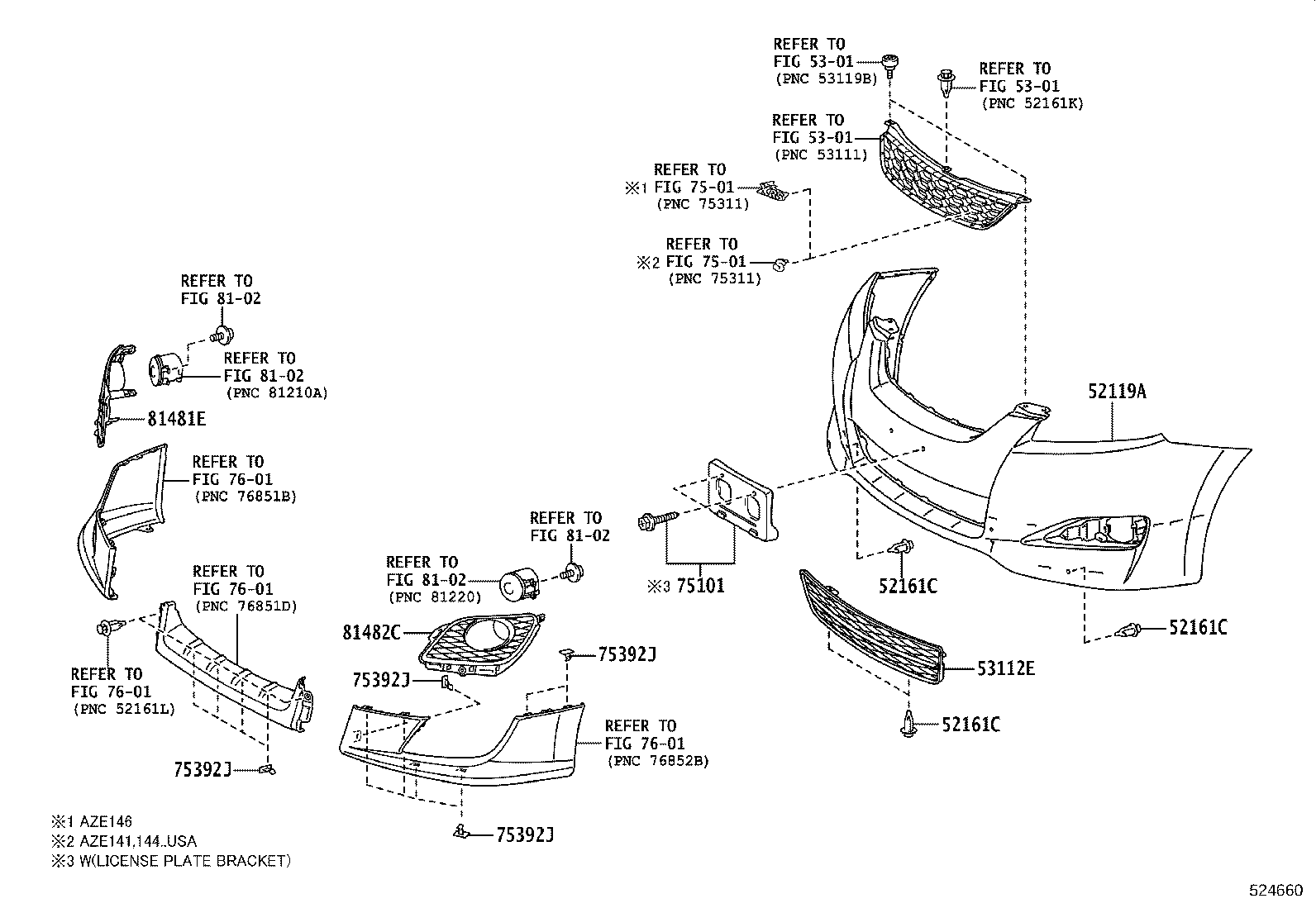

Figure 521882F 521882F 2008-01 → 2010-12 Figure 524658 524658 2008-01 → 2010-12 Figure 524659C 524659C 2008-01 → 2010-12 Figure 524660 524660 2008-01 → 2010-12 Figure 522349C 522349C 2010-12 → — Figure 524661 524661 2010-12 → — Figure 522794C 522794C 2010-12 → — Figure 524662 524662 2010-12 → — Figure 522363C 522363C 2010-12 → — Figure 524663 524663 2010-12 → — Figure 522350C 522350C 2010-12 → — Figure 524664 524664 2010-12 → — Figure 522795C 522795C 2010-12 → — Figure 524665 524665 2010-12 → —

Part groups

PNCDescription
51451F Grommet, NO.1
51451G Grommet, NO.2
52021 Reinforcement Sub-assy, Front Bumper
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52145C Bracket, Front Bumper Side Mounting, RH
52146B Bracket, Front Bumper Side Mounting, LH
52161C Piece, Front Bumper
52611 Absorber, Front Bumper Energy
53112E Grille, Radiator, Lower NO.1
53879H Retainer, Front Fender Liner
75101 Bracket Sub-assy, Front License Plate
75392J Retainer, Outside Moulding
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
