Rear Bumper & Bumper Stay

21 part groups · 4 illustrations

Illustrations

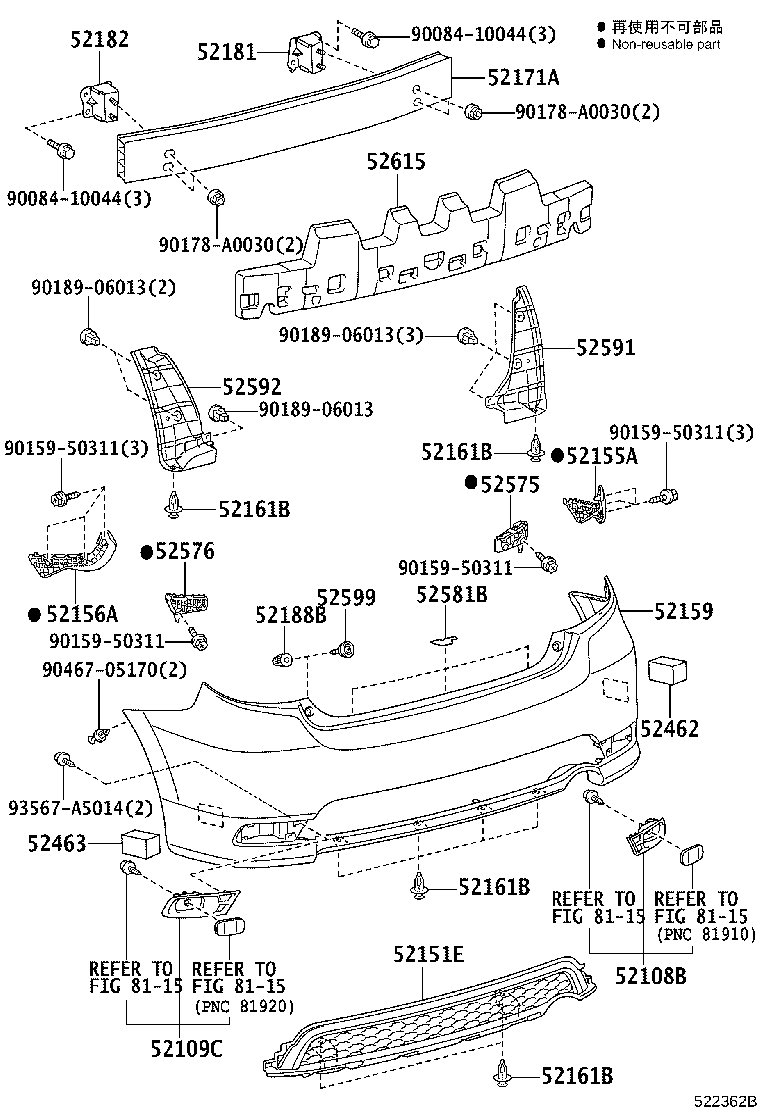

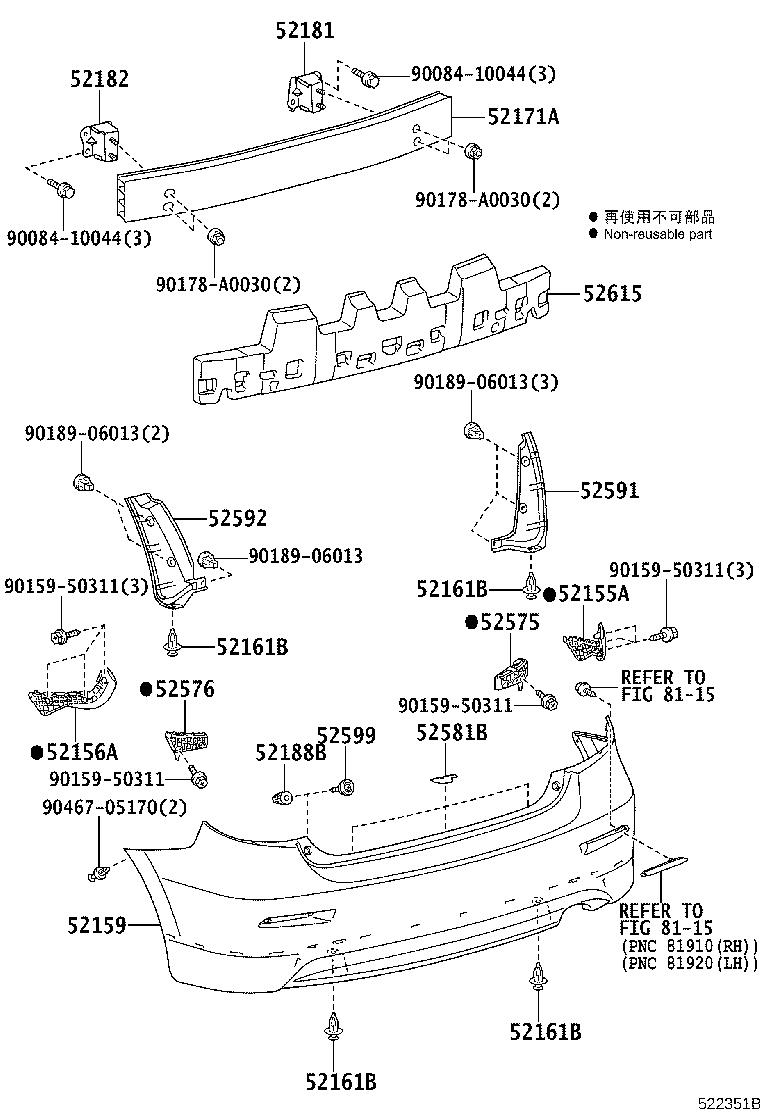

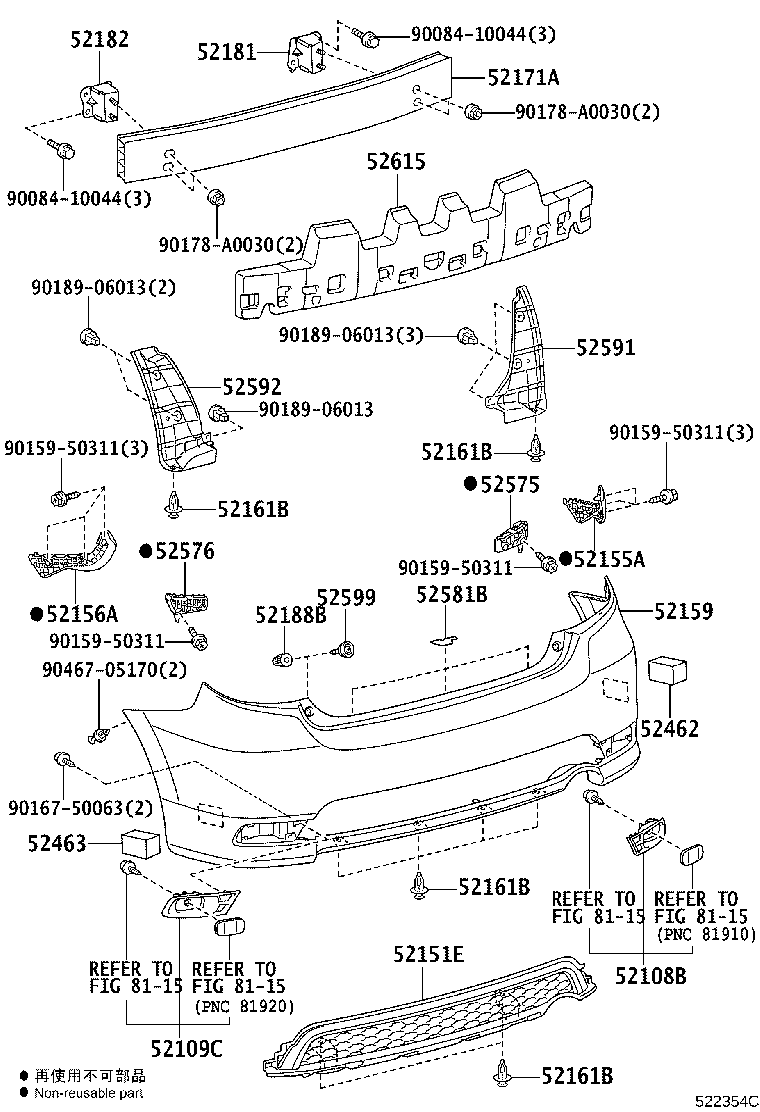

Figure 521883C 521883C 2008-01 → 2010-12 Figure 522351B 522351B 2010-12 → — Figure 522362B 522362B 2010-12 → — Figure 522354C 522354C 2010-12 → —

Part groups

PNCDescription
52108B Extension Sub-assy, Rear Bumper Side, RH
52109C Extension Sub-assy, Rear Bumper Side, LH
52151E Bar, Rear Bumper
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52161B Piece, Rear Bumper
52171A Reinforcement, Rear Bumper, NO.1
52172C Reinforcement, Rear Bumper Bar, Center
52181 Arm, Rear Bumper, RH
52182 Arm, Rear Bumper, LH
52188B Spacer, Rear Bumper Mounting
52462 Pad, Rear Bumper, RH
52463 Pad, Rear Bumper, LH
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
52581B Protector, Rear Bumper
52591 Seal, Rear Bumper Side, RH
52592 Seal, Rear Bumper Side, LH
52599 Stopper, Rear Bumper, Upper
52615 Absorber, Rear Bumper Energy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
