Toyota Matrix
2008-01 → 2014-06 · chassis AZE14#,ZRE142 · catalogue 152460 · United States
Supported model
Data version 2014-12

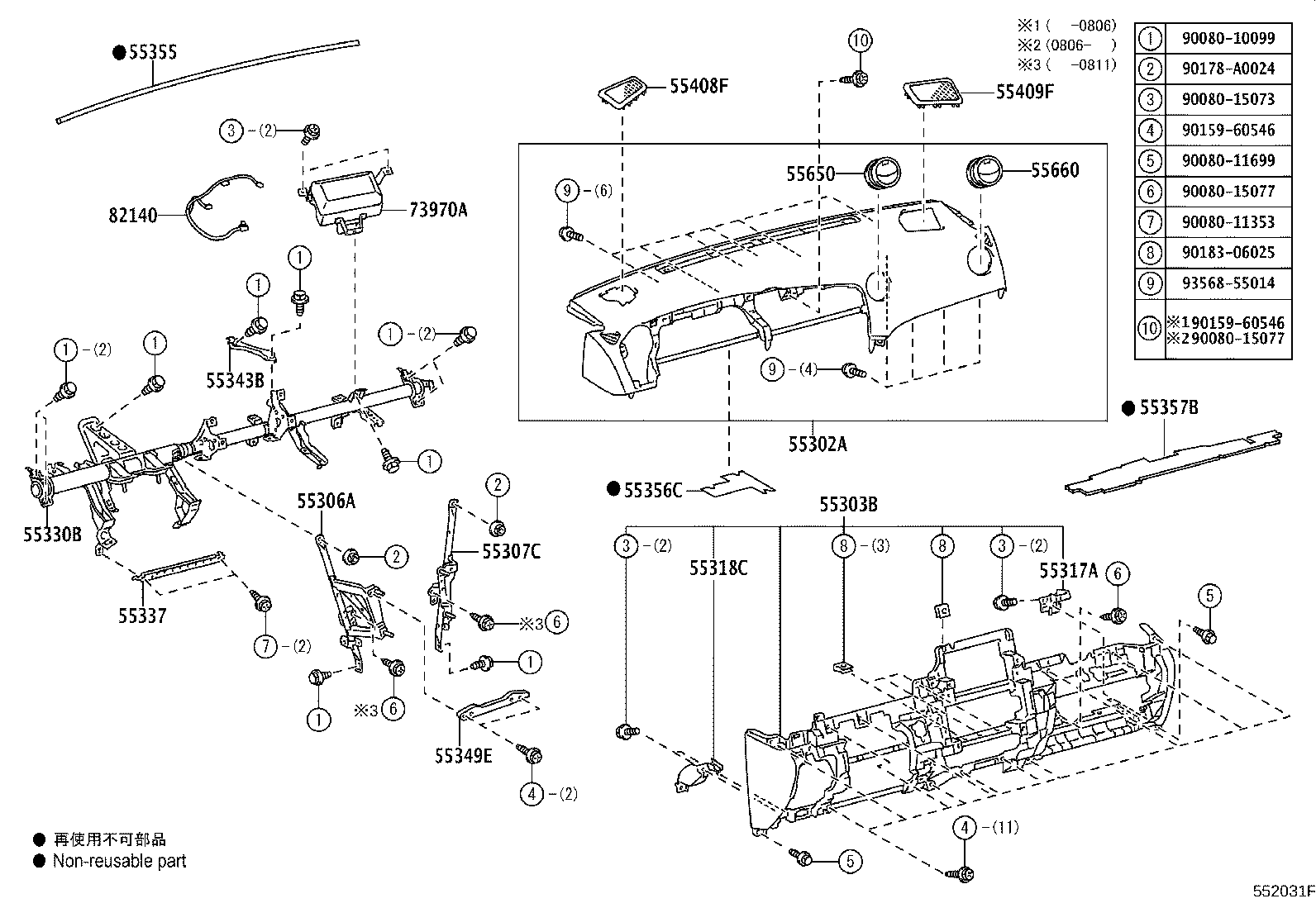

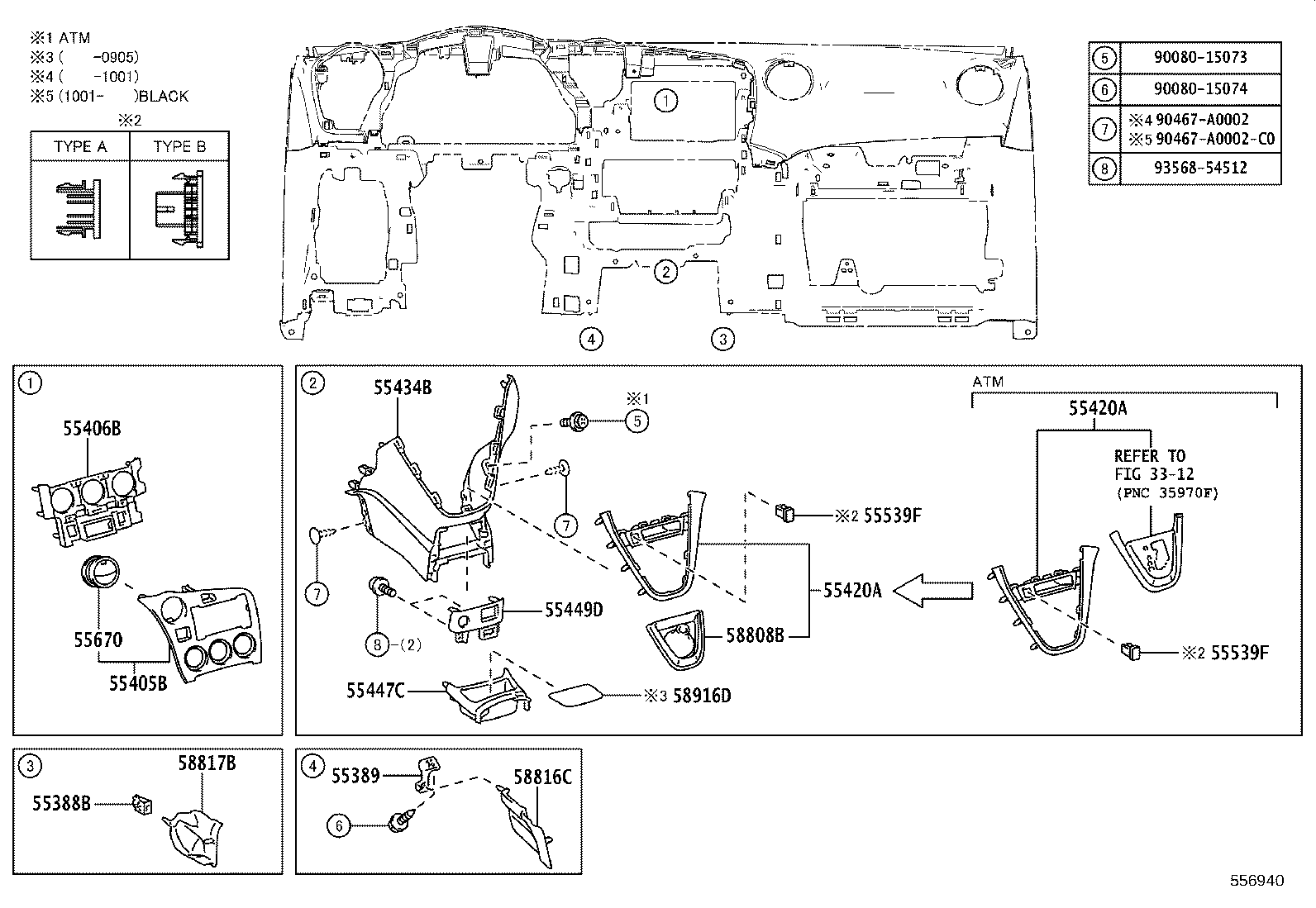

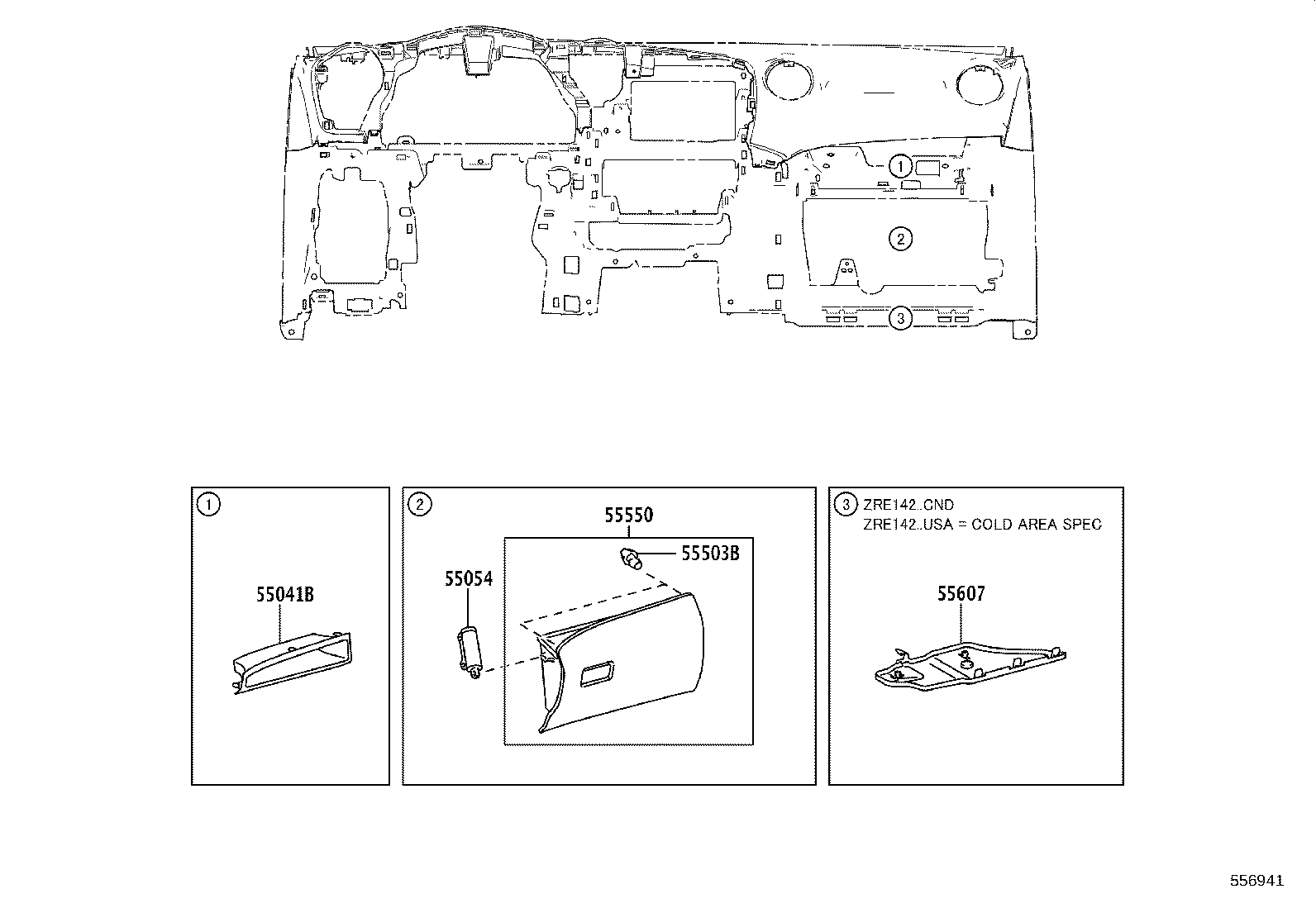

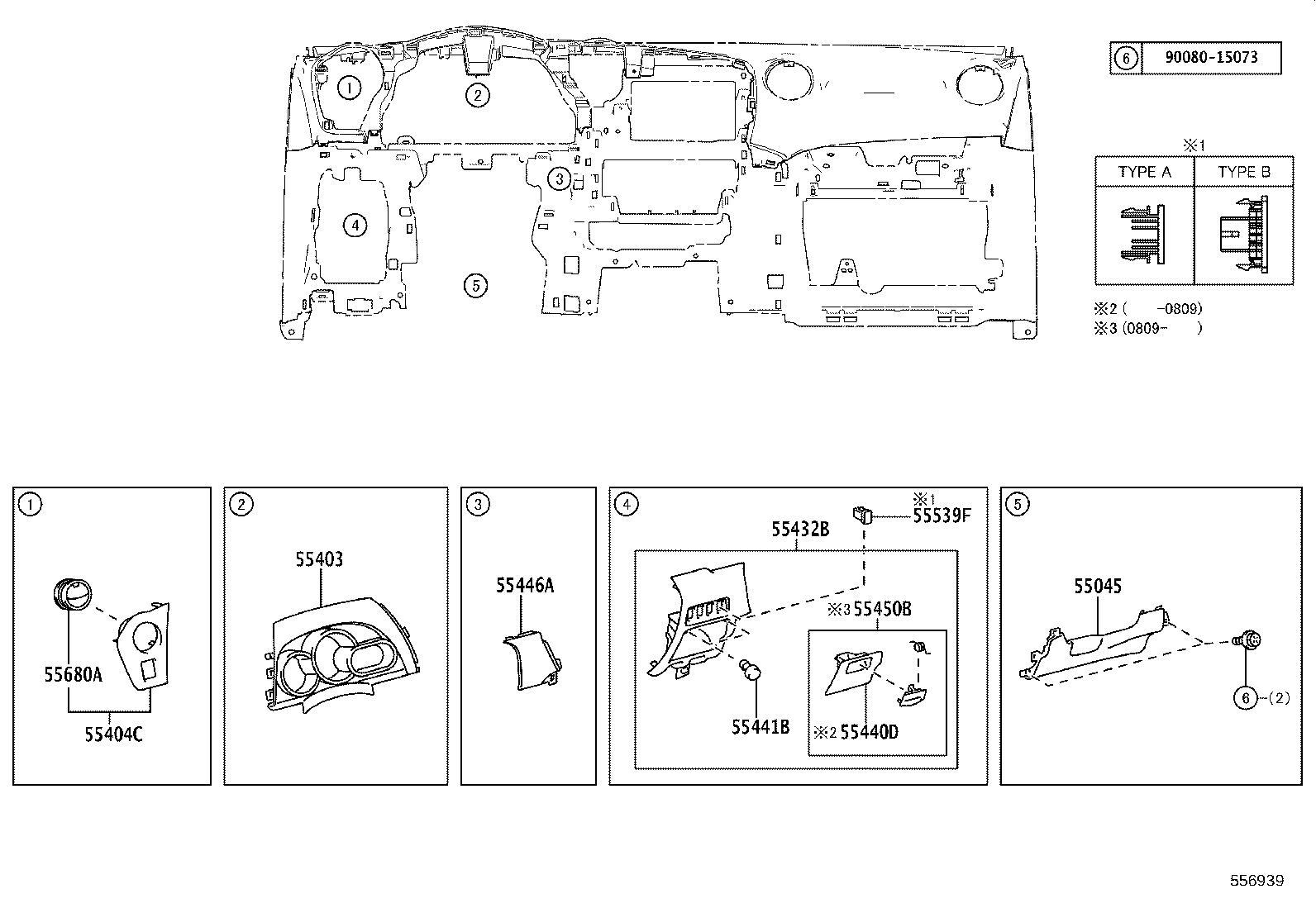

Instrument Panel & Glove Compartment
47 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 55041B | Door Sub-assy, Instrument Panel Box, NO.1 |
| 55045 | Panel Sub-assy, Instrument Panel Finish, Lower |
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55302A | Panel Sub-assy, Instrument, Upper |
| 55303B | Panel Sub-assy, Instrument, Lower |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55317A | Panel, Instrument Side, RH |
| 55318C | Panel, Instrument Side, LH |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55337 | Reinforcement, Instrument Panel Sub |
| 55343B | Brace, Instrument Panel TO Cowl, Center |
| 55349E | Bracket, Instrument Panel Brace Mounting, Lower |
| 55355 | Cushion, Instrument Panel, NO.1 |
| 55356C | Cushion, Instrument Panel, NO.2 |
| 55357B | Cushion, Instrument Panel, NO.3 |
| 55388B | Bracket, Console Mounting, RH |
| 55389 | Bracket, Console Mounting, LH |
| 55403 | Hood Sub-assy, Meter |
| 55404C | Panel Sub-assy, Instrument Cluster Finish, NO.2 |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55406B | Panel Sub-assy, Instrument Cluster Finish, Lower Center |
| 55408F | Panel Sub-assy, Instrument Panel Speaker, NO.1 |
| 55409F | Panel Sub-assy, Instrument Panel Speaker, NO.2 |
| 55420A | Panel Assy, Instrument Cluster Finish, Center |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55434B | Panel, Instrument Panel Finish, Lower Center |
| 55440D | Box Assy, Instrument Panel |
| 55441B | Cushion, Instrument Panel Box |
| 55446A | Base, Switch Hole, NO.1 |
| 55447C | Base, Switch Hole, NO.2 |
| 55449D | Base, Switch |
| 55450B | Box Assy, Coin |
| 55503B | Cushion(FOR GLOVE COMPARTMENT) |
| 55539F | Cover, Spare Switch Hole |
| 55550 | Door Assy, Glove Compartment |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55680A | Register Assy, Instrument Panel, NO.4 |
| 58808B | Cover, Shifting Hole |
| 58816C | Insert, Console Box, Front NO.1 |
| 58817B | Insert, Console Box, Front NO.2 |
| 58916D | Mat, Box Bottom |
| 73970A | Airbag Assy, Instrument Panel Passenger |
| 82140 | Wire Assy, Instrument Panel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
