Toyota Matrix

2008-01 → 2014-06 · chassis AZE14#,ZRE142 · catalogue 152460 · United States

Supported model Data version 2014-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

28 part groups · 2 illustrations

Illustrations

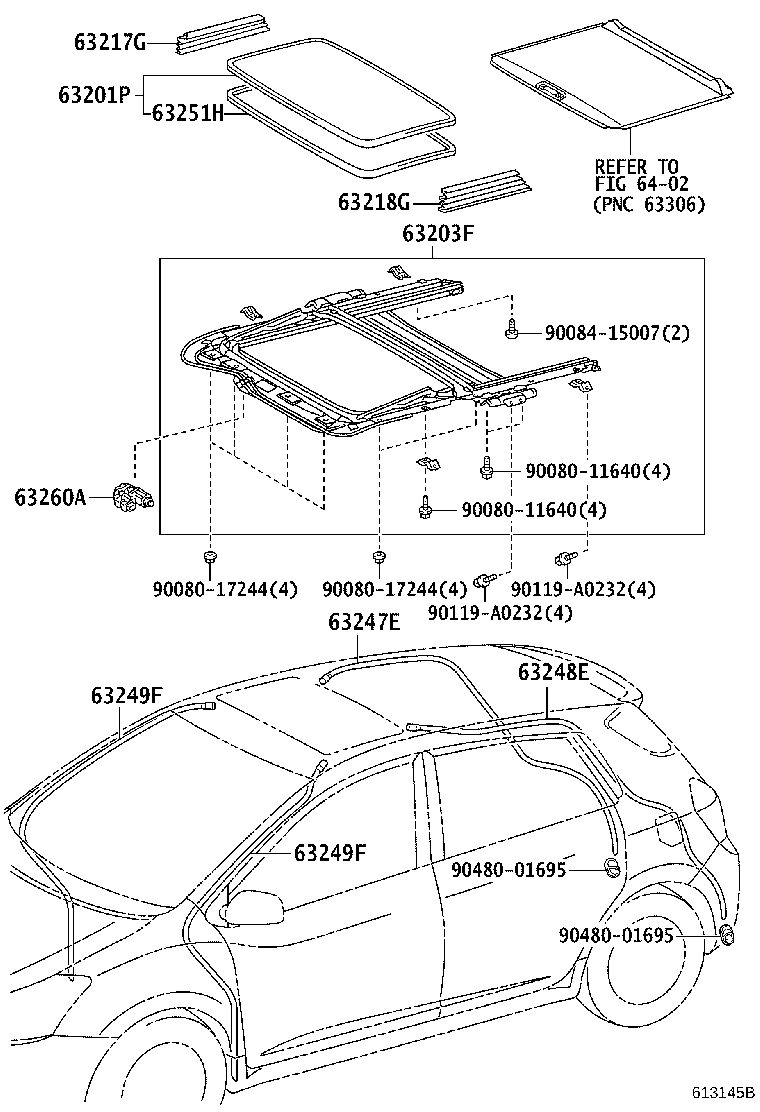

Figure 613144C 613144C 2008-01 → — Figure 613145B 613145B 2008-01 → —

Part groups

PNCDescription
61247F Reinforcement, Roof Side Rail, Inner
63102A Panel Sub-assy, Windshield Header
63103A Reinforcement Sub-assy, Roof Panel
63105D Frame Sub-assy, Back Window, Upper
63111 Panel, Roof
63118 Support, Roof Panel, RH
63119 Support, Roof Panel, LH
63141G Reinforcement, Roof Panel, NO.1
63142A Reinforcement, Roof Panel, NO.2
63143B Reinforcement, Roof Panel, NO.3
63144A Reinforcement, Roof Panel, NO.4
63145A Reinforcement, Roof Panel, NO.5
63161D Plate, Roof Header Panel, NO.1
63162B Plate, Roof Header Panel, NO.2
63185D Bracket, Roof Rack, Front
63185H Bracket, Roof Rack
63187A Bracket, Roof Rack, Rear
63201P Glass Sub-assy, Sliding Roof
63203F Housing Sub-assy, Sliding Roof
63217G Garnish, Sliding Roof Side, RH
63218G Garnish, Sliding Roof Side, LH
63247E Hose, Sliding Roof Drain, Rear RH
63248E Hose, Sliding Roof Drain, Rear LH
63249F Hose, Sliding Roof Drain
63251H Weatherstrip, Sliding Roof
63260A Gear Sub-assy, Sliding Roof Drive
63347C Pad, Roof Silencer, NO.7
63479 Retainer, Roof Inner Rack
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
