Toyota Matrix

2008-01 → 2014-06 · chassis AZE14#,ZRE142 · catalogue 152460 · United States

Supported model Data version 2014-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

12 part groups · 2 illustrations

Illustrations

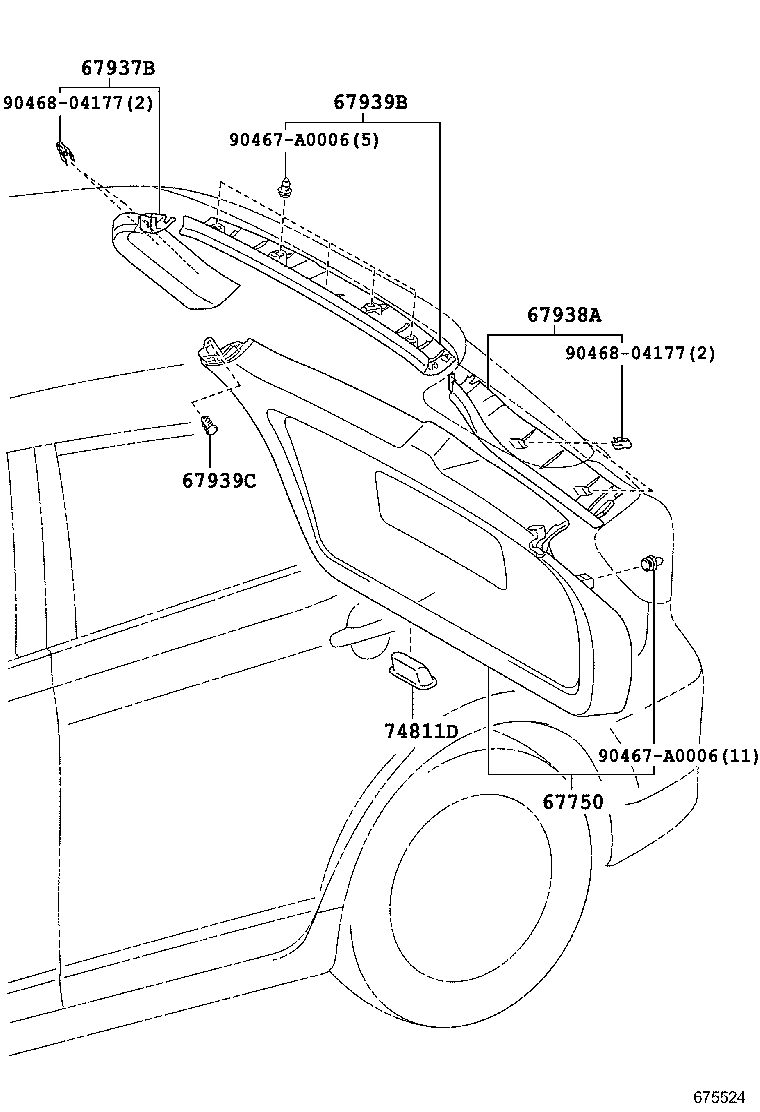

Figure 675525A 675525A 2008-01 → — Figure 675524 675524 2008-01 → —

Part groups

PNCDescription
64813B Dam, Back Window Glass Adhesive
67005 Panel Sub-assy, Back Door
67293 Cushion, Back Door Lower Stopper
67750 Board Assy, Back Door Trim
67881A Weatherstrip, Back Door
67937B Garnish, Back Door Side, RH
67938A Garnish, Back Door Side, LH
67939B Garnish, Back Door, Center
67939C Clip(FOR BACK DOOR CENTER GARNISH)
68131 Glass, Back Door
74811D Handle, Door Pull
75129C Cushion, Rear Licence Plate
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
