Toyota Matrix

2008-01 → 2014-06 · chassis AZE14#,ZRE142 · catalogue 152460 · United States

Supported model Data version 2014-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

71 part groups · 9 illustrations

Illustrations

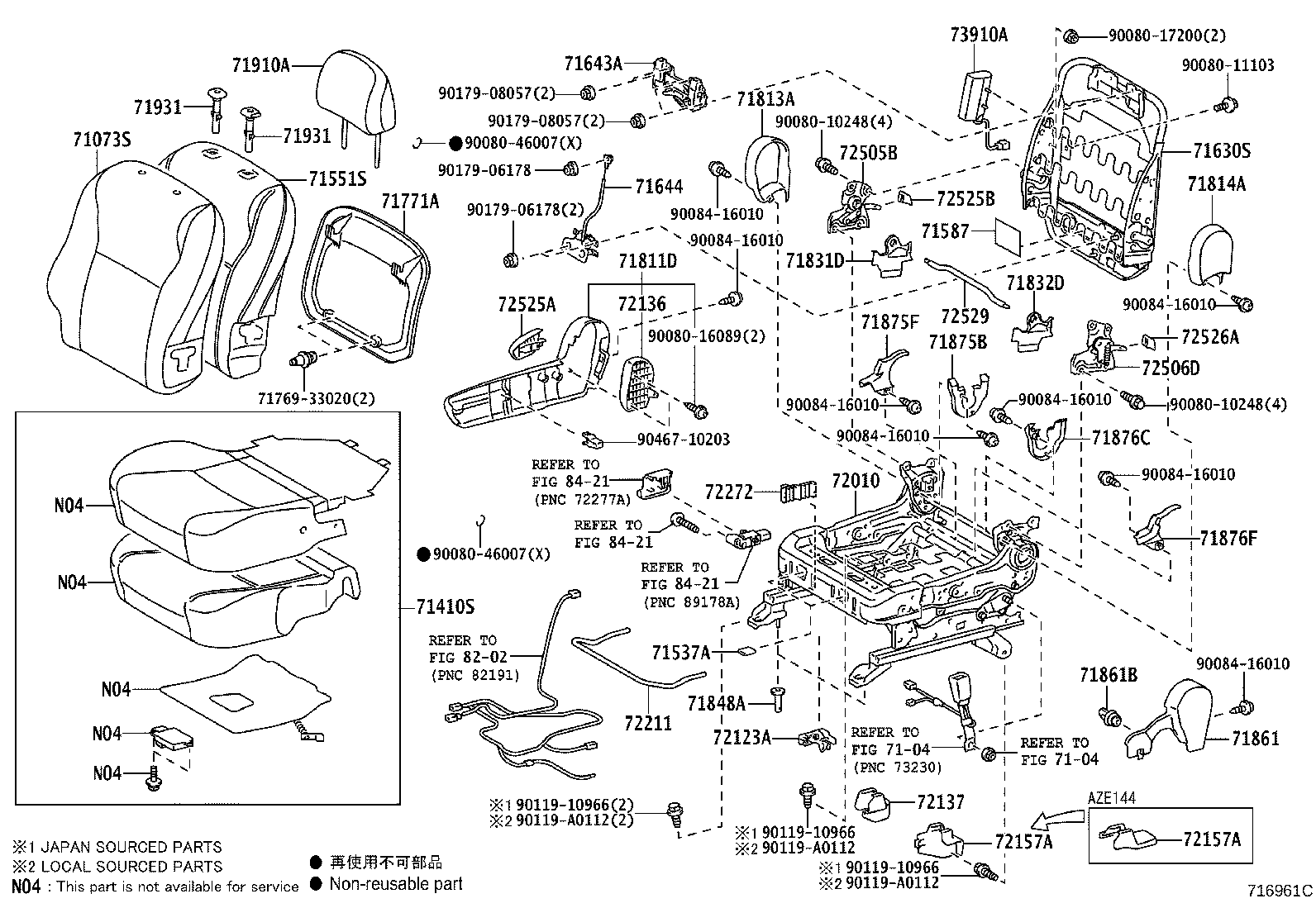

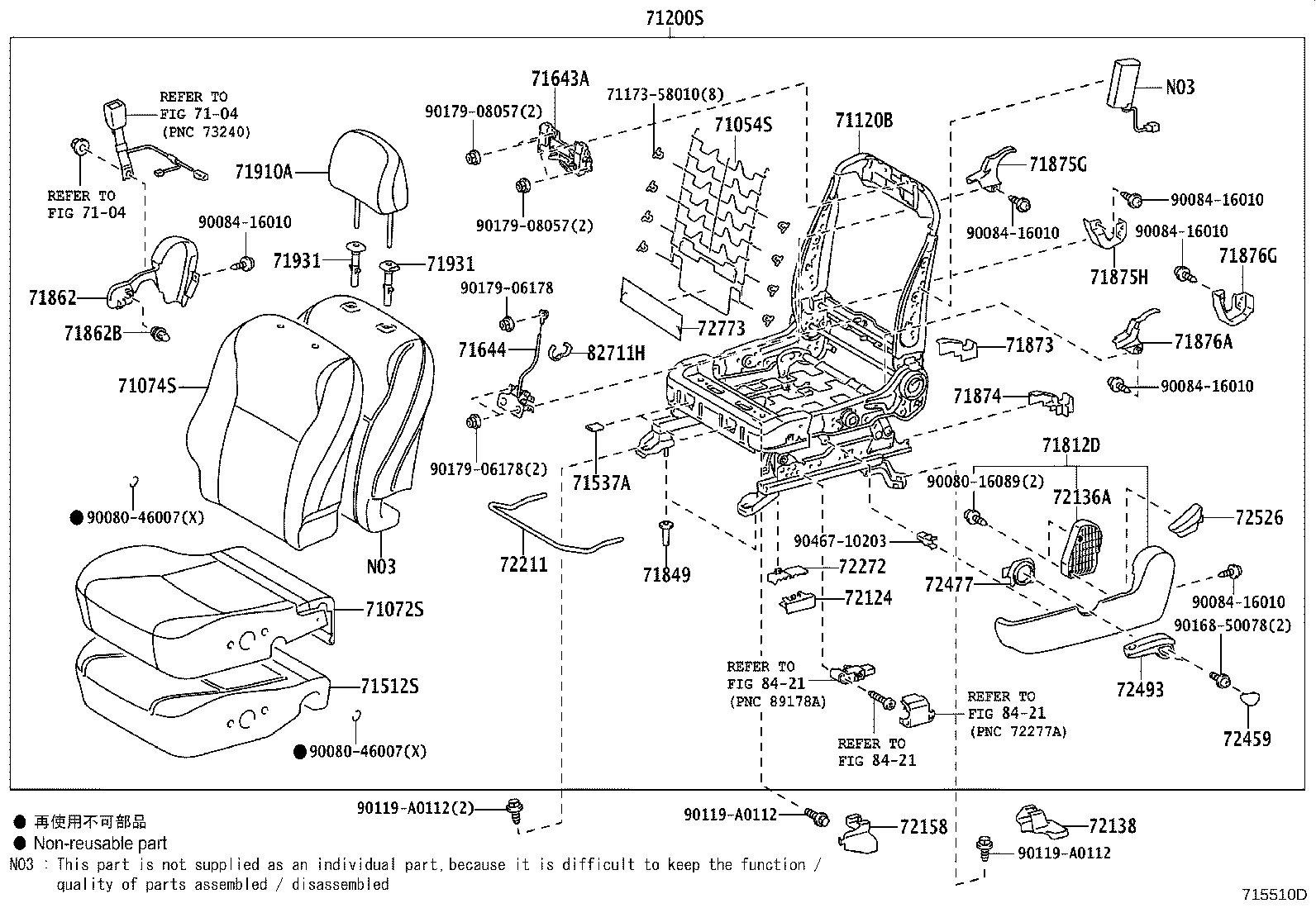

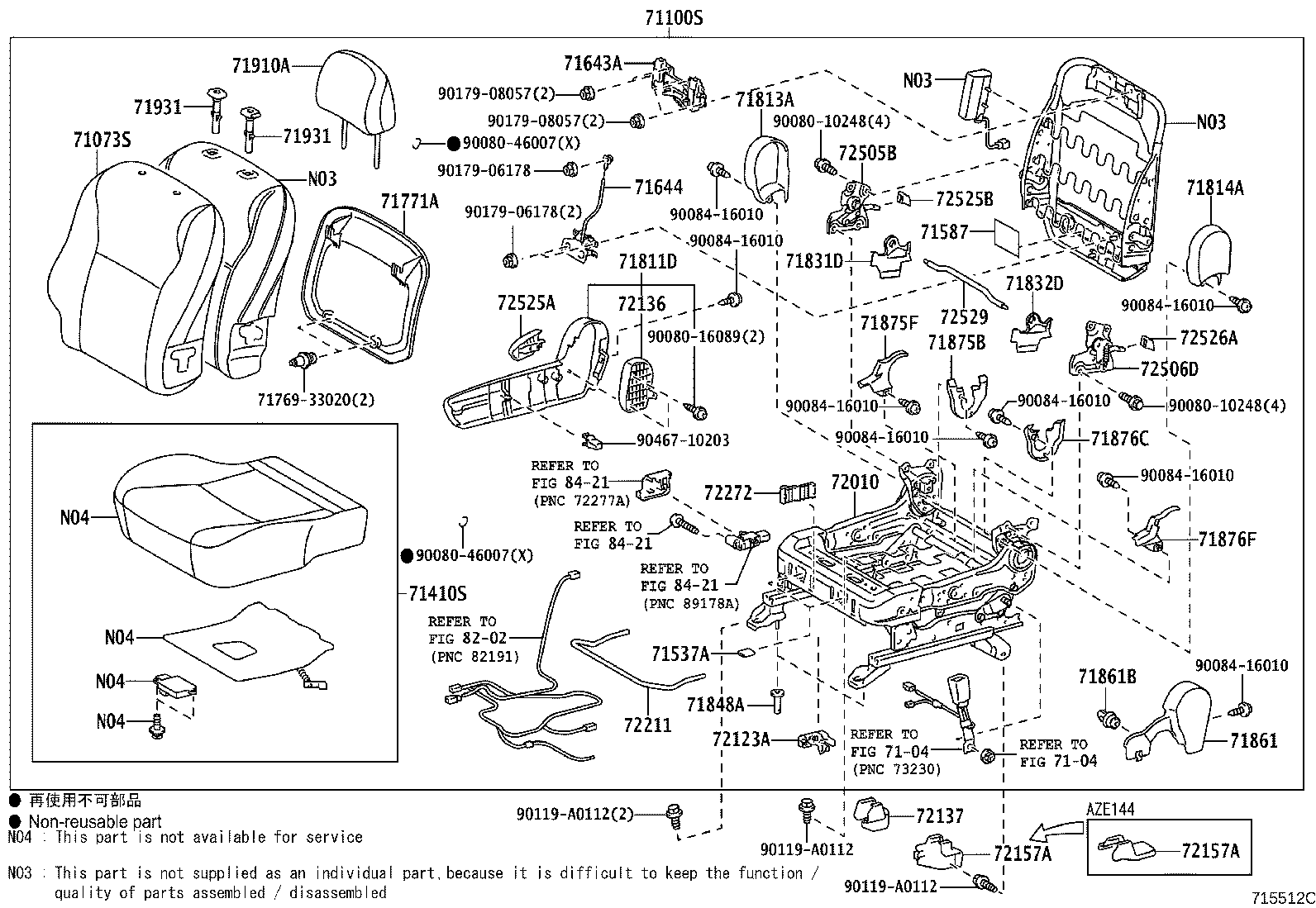

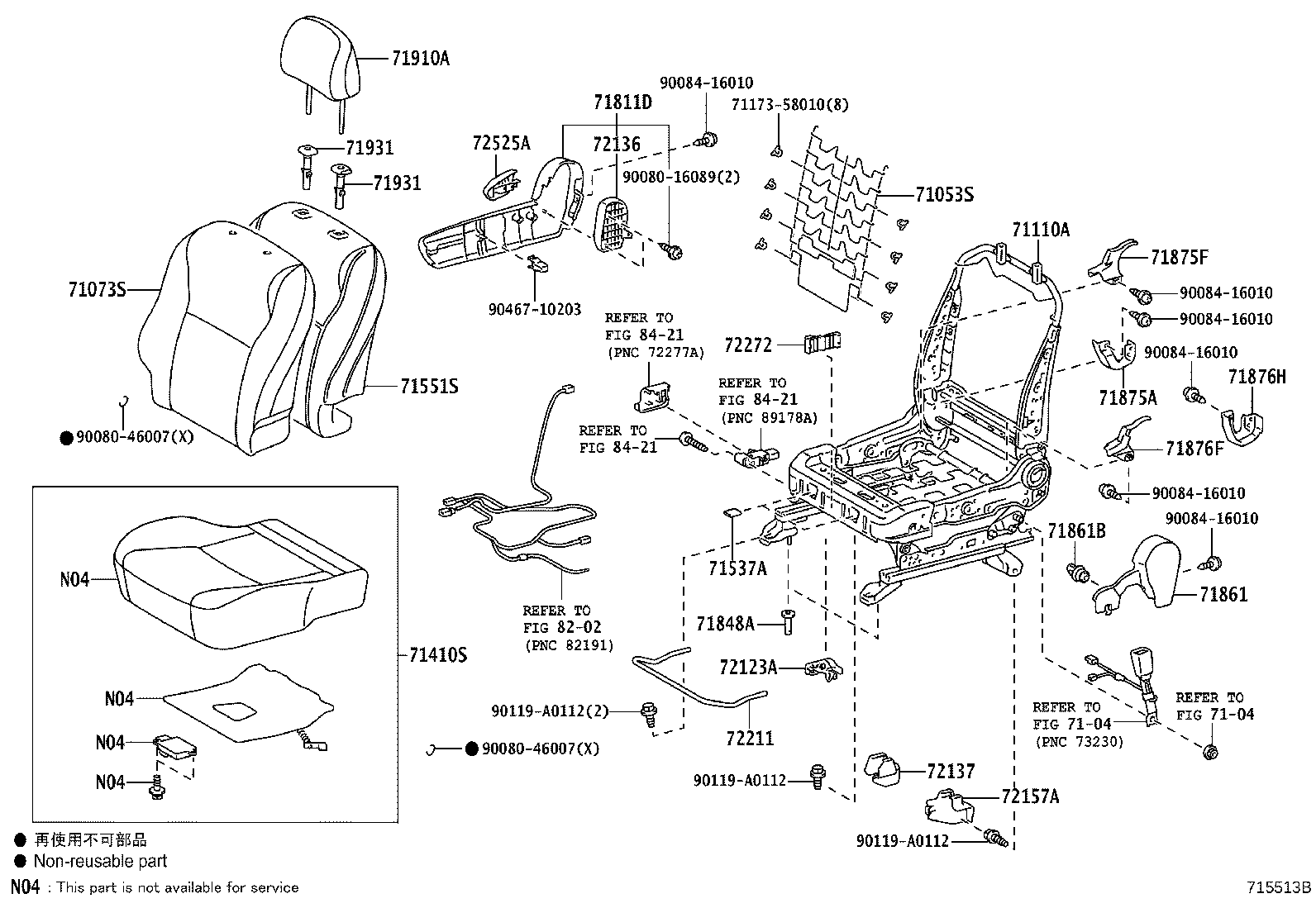

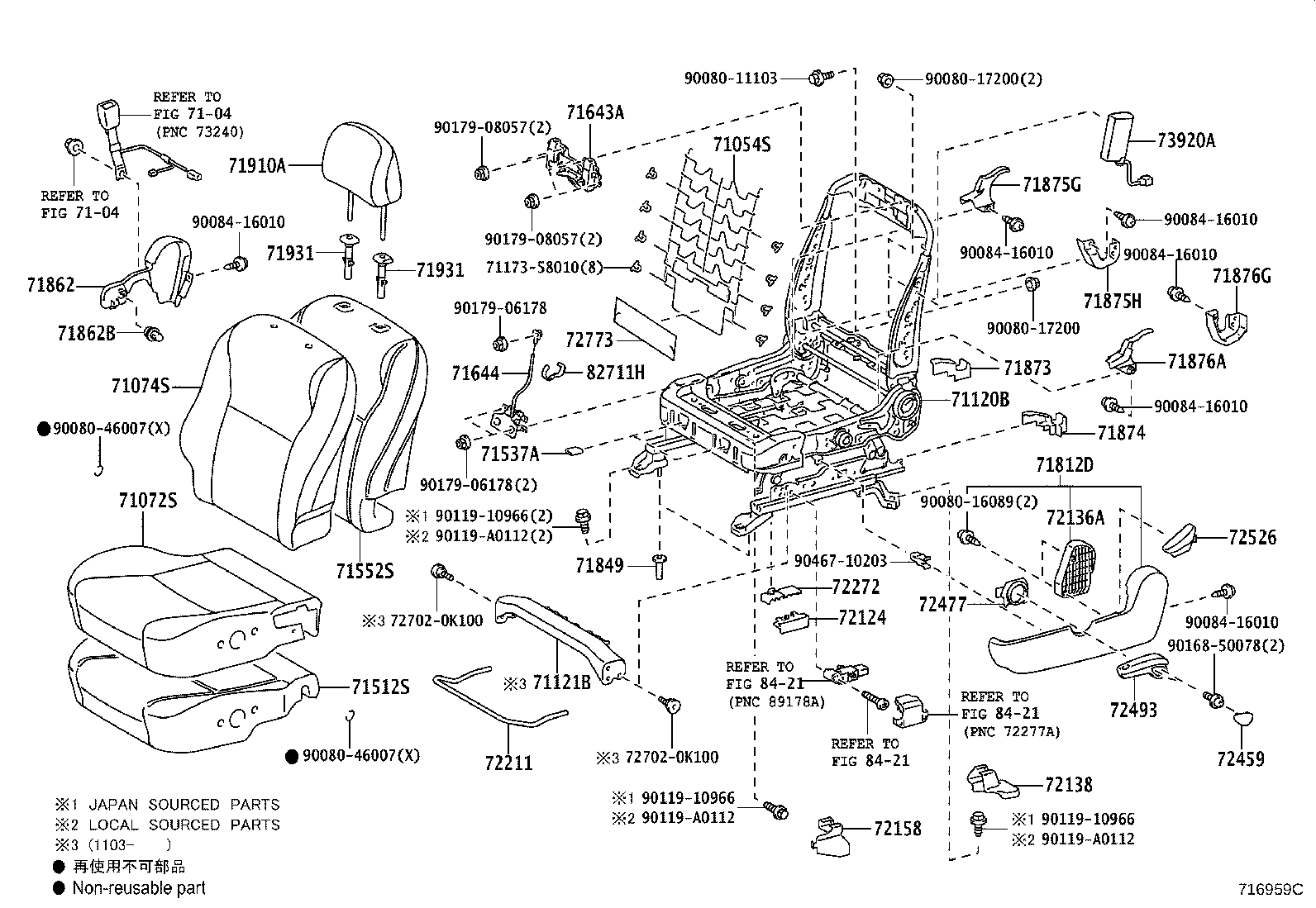

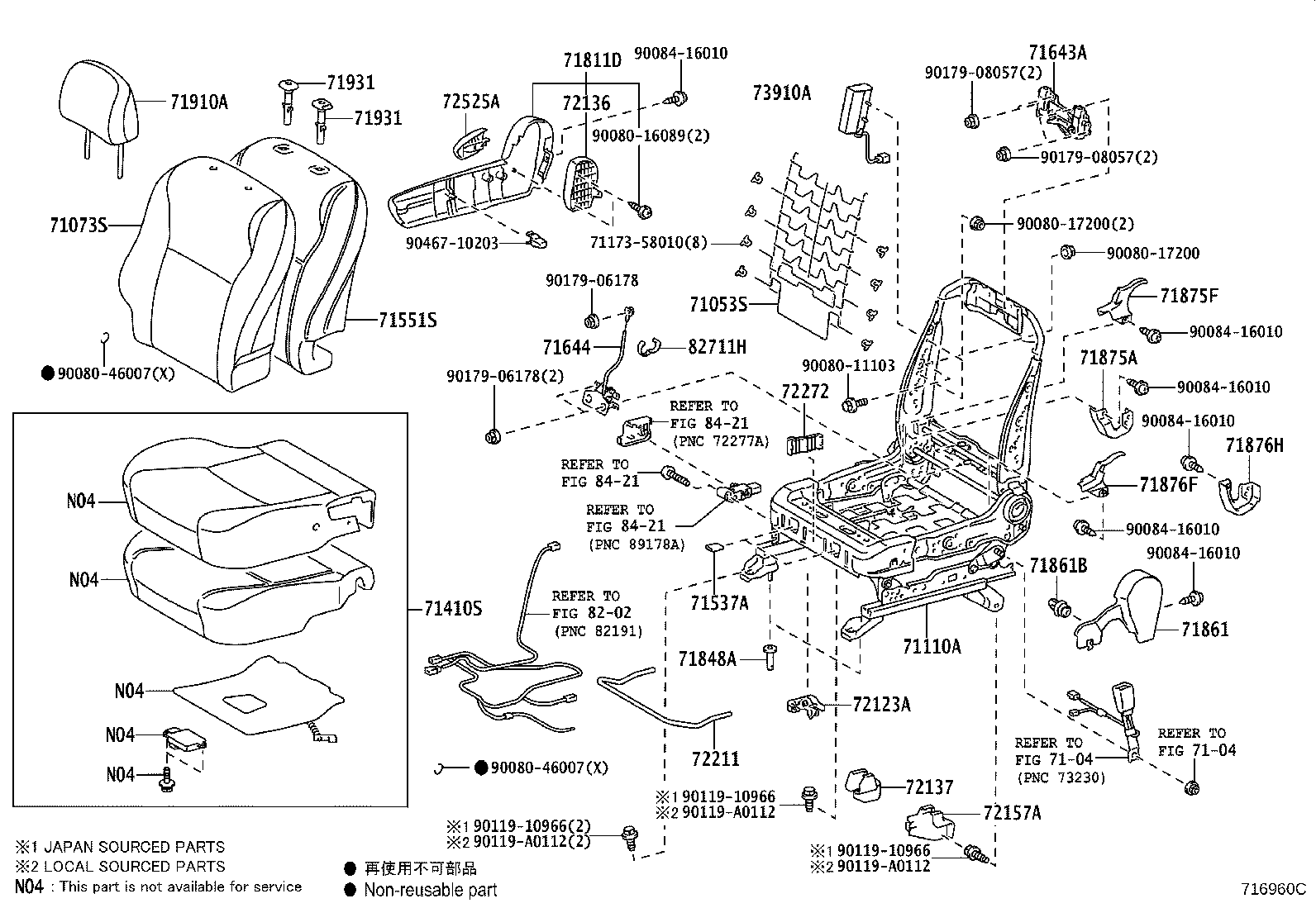

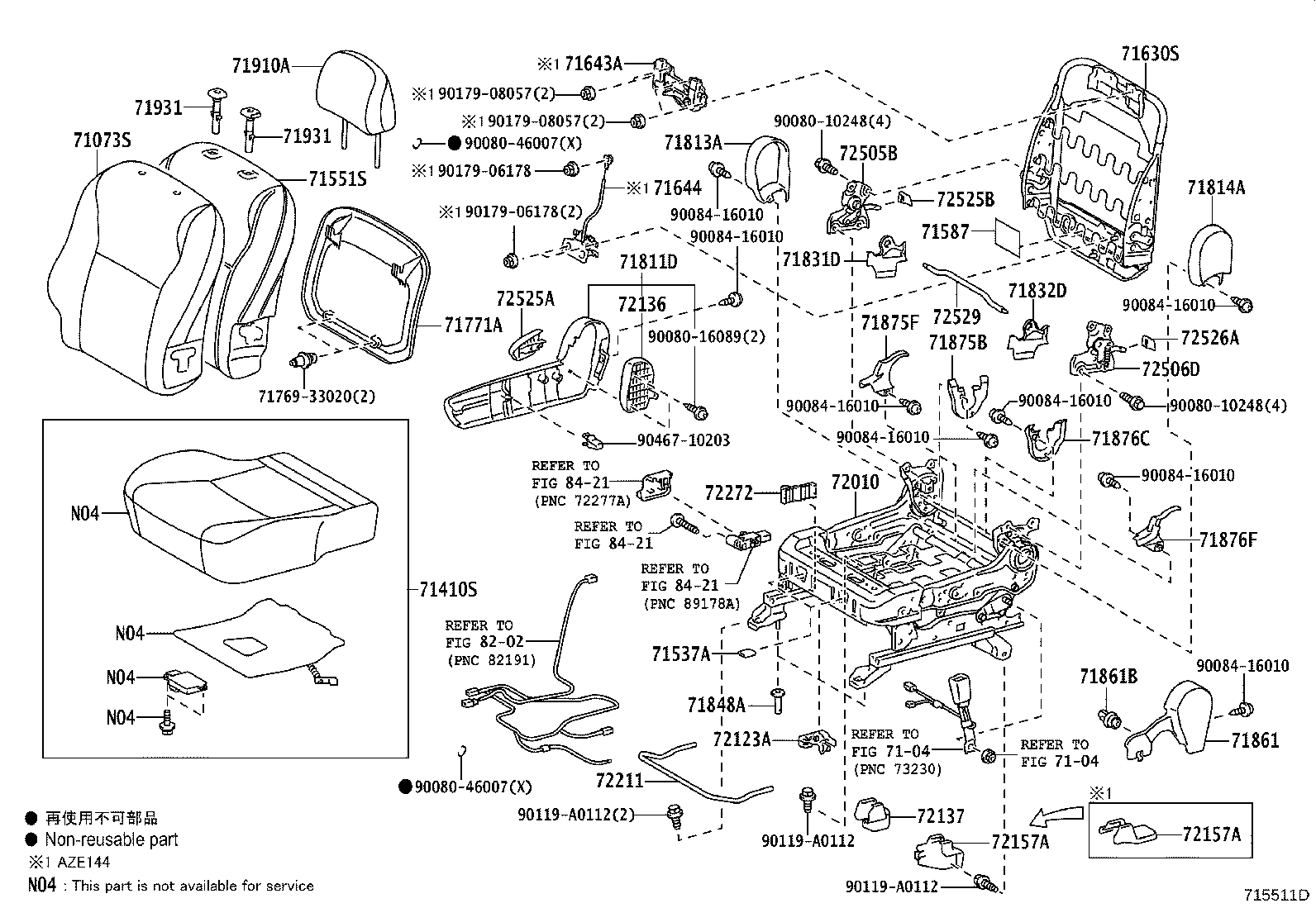

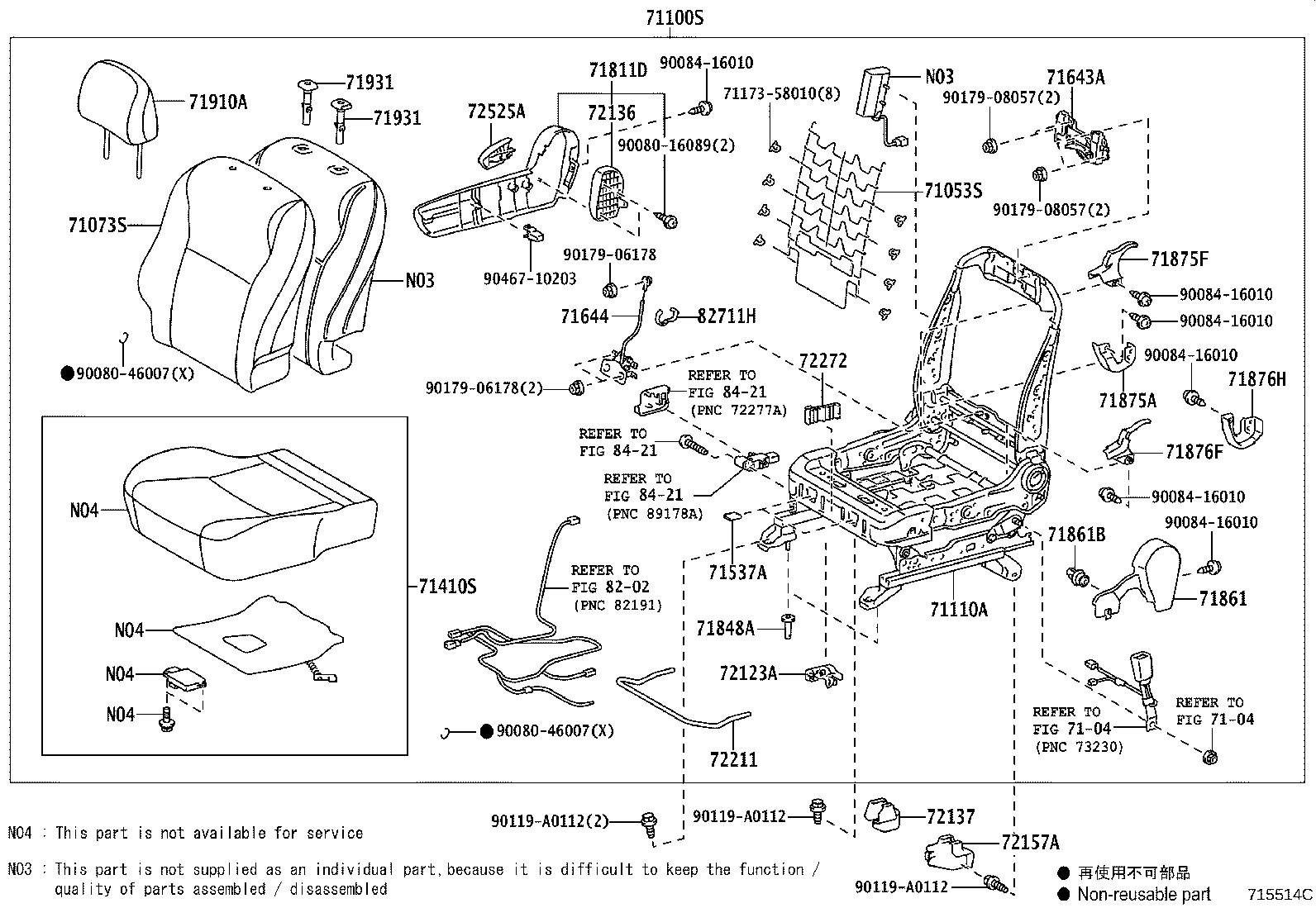

Figure 715509C 715509C 2008-01 → 2009-02 Figure 715511D 715511D 2008-01 → 2009-02 Figure 715513B 715513B 2008-01 → 2009-02 Figure 715510D 715510D 2008-01 → 2010-12 Figure 715512C 715512C 2008-01 → 2010-12 Figure 715514C 715514C 2008-01 → 2010-12 Figure 716959C 716959C 2010-12 → — Figure 716960C 716960C 2010-12 → — Figure 716961C 716961C 2010-12 → —

Part groups

PNCDescription
71053S Spring Sub-assy, Front Seatback, RH
71054S Spring Sub-assy, Front Seatback, LH
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71100S Seat Assy, Front RH
71110A Frame Assy, Front Seat W/Adjuster, RH
71120B Frame Assy, Front Seat W/Adjuster, LH
71121B Reinforcement, Front Seat Cushion
71200S Seat Assy, Front LH
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A Protector, Front Seat Cushion
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587 Protector, Front Seatback Edge
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71643A Unit, Active Headrest, Upr
71644 Unit, Active Headrest, Lwr
71771A Board, Front Seatback
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71813A Shield, Front Seatback, RH
71814A Shield, Front Seatback, LH
71831D Cover, Front Seat Hinge, RH
71832D Cover, Front Seat Hinge, LH
71848A Cap, Seat Adjuster Cover, RH
71849 Cap, Seat Adjuster Cover, LH
71861 Shield, Front Seat Cushion, Inner RH
71861B Clip(FOR FRONT SEAT SHIELD, RH)
71862 Shield, Front Seat Cushion, Inner LH
71862B Clip(FOR FRONT SEAT SHIELD, LH)
71873 Shield, Front Seat Cushion, Lower RH
71874 Shield, Front Seat Cushion, Lower LH
71875A Cover, Reclining Adjuster Inside, RH
71875B Cover, Reclining Adjuster Inside, RH
71875F Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875G Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71875H Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876A Cover, Reclining Adjuster Inside, LH
71876C Cover, Reclining Adjuster Inside, LH
71876F Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876G Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71876H Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
72010 Adjuster Assy, Front Seat, RH
72123A Cover, Seat Track Bracket, Outer Front RH
72124 Cover, Seat Track Bracket, Outer Front LH
72136 Spacer, Seat Track, Lower NO.1
72136A Spacer, Seat Track, Lower NO.2
72137 Cover, Seat Track, Outer RH
72138 Cover, Seat Track, Outer LH
72157A Cover, Seat Track Bracket, Inner RH
72158 Cover, Seat Track Bracket, Inner LH
72211 Handle, Seat Track Adjusting
72272 Clamp, Seat Track Control Cable
72459 Cap, Vertical Seat Adjuster Knob
72477 Spacer, Vertical Adjuster
72493 Handle, Vertical Adjusting, NO.2
72505B Lock Sub-assy, Front Seatback, RH
72506D Lock Sub-assy, Front Seatback, LH
72525A Handle, Reclining Adjuster Release, RH
72525B Handle, Reclining Adjuster Release, RH
72526 Handle, Reclining Adjuster Release, LH
72526A Handle, Reclining Adjuster Release, LH
72529 Rod, Front Seat Backlock Handle
72773 Plate, Lumbar Support
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
82711H Clamp, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
