Toyota Matrix

2008-01 → 2014-06 · chassis AZE14#,ZRE142 · catalogue 152460 · United States

Supported model Data version 2014-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

16 part groups · 3 illustrations

Illustrations

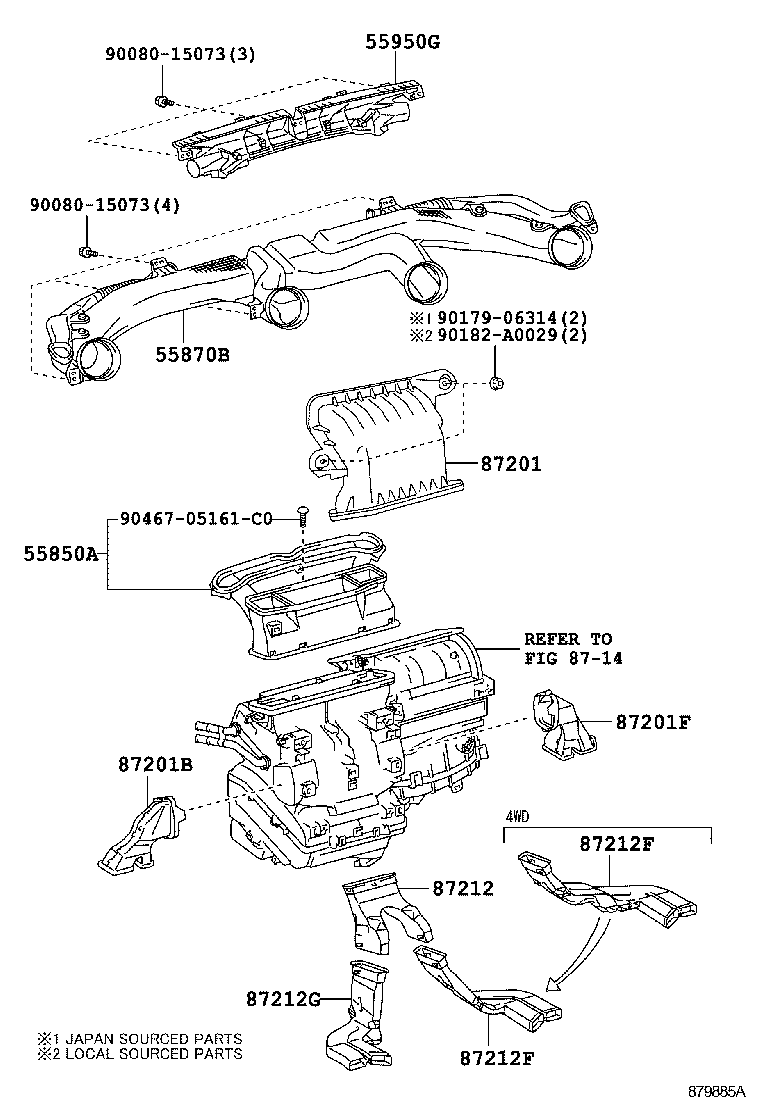

Figure 879884C 879884C 2008-01 → — Figure 879885A 879885A 2008-01 → — Figure 879886 879886 2008-01 → —

Part groups

PNCDescription
55850A Connector Assy, Instrument Panel Register, Center
55870B Duct Assy, Heater TO Register
55901D Control Sub-assy, Heater, NO.1
55902E Control Sub-assy, Heater, NO.2
55903A Control Sub-assy, Heater, NO.3
55906D Cable Sub-assy, Heater Control, NO.2
55909C Cable Sub-assy, Airmix Damper Control
55910B Bulb, Heater Control
55950G Nozzle Assy, Defroster
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3
87212 Duct, Air, Rear NO.1
87212F Duct, Air, Rear NO.2
87212G Duct, Air, Rear NO.3
88790B Thermistor Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
