Toyota Corolla
2013-08 → 2019-03 · chassis ZRE172 · catalogue 152470 · United States
Supported model
Data version 2019-04

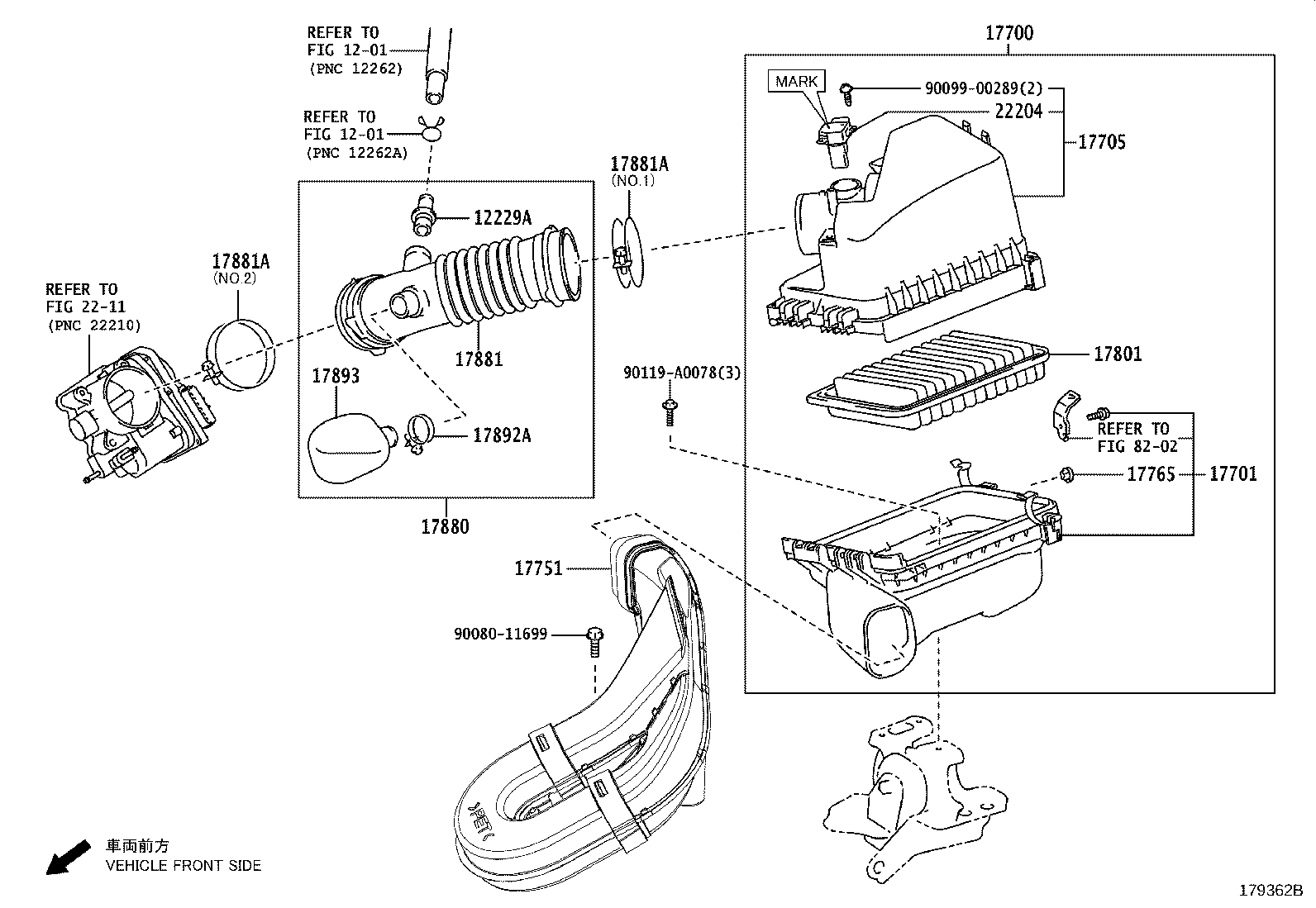

Air Cleaner
13 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 12229A | Pipe, Ventilation |
| 17700 | Cleaner Assy, Air |
| 17701 | Case Sub-assy, Air Cleaner |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17751 | Inlet, Air Cleaner, NO.1 |
| 17765 | Stay, Air Cleaner, NO.1 |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17880 | Hose Assy, Air Cleaner |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17892A | Clamp(FOR INTAKE AIR RESONATOR HOSE) |
| 17893 | Resonator, Intake Air |
| 22204 | Meter Sub-assy, Intake Air Flow |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
