Toyota Corolla

2013-08 → 2019-03 · chassis ZRE172 · catalogue 152470 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

6 part groups · 3 illustrations

Illustrations

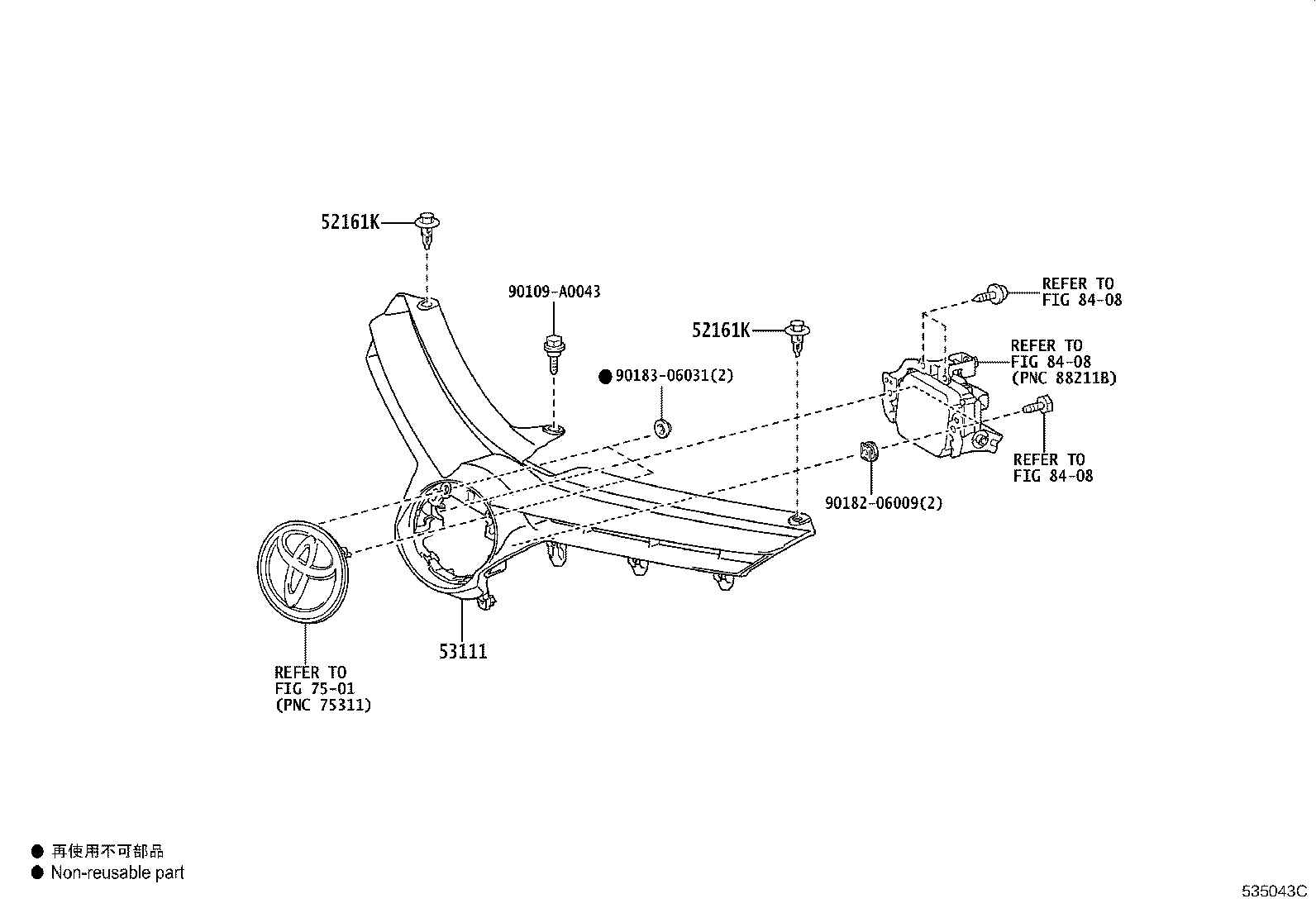

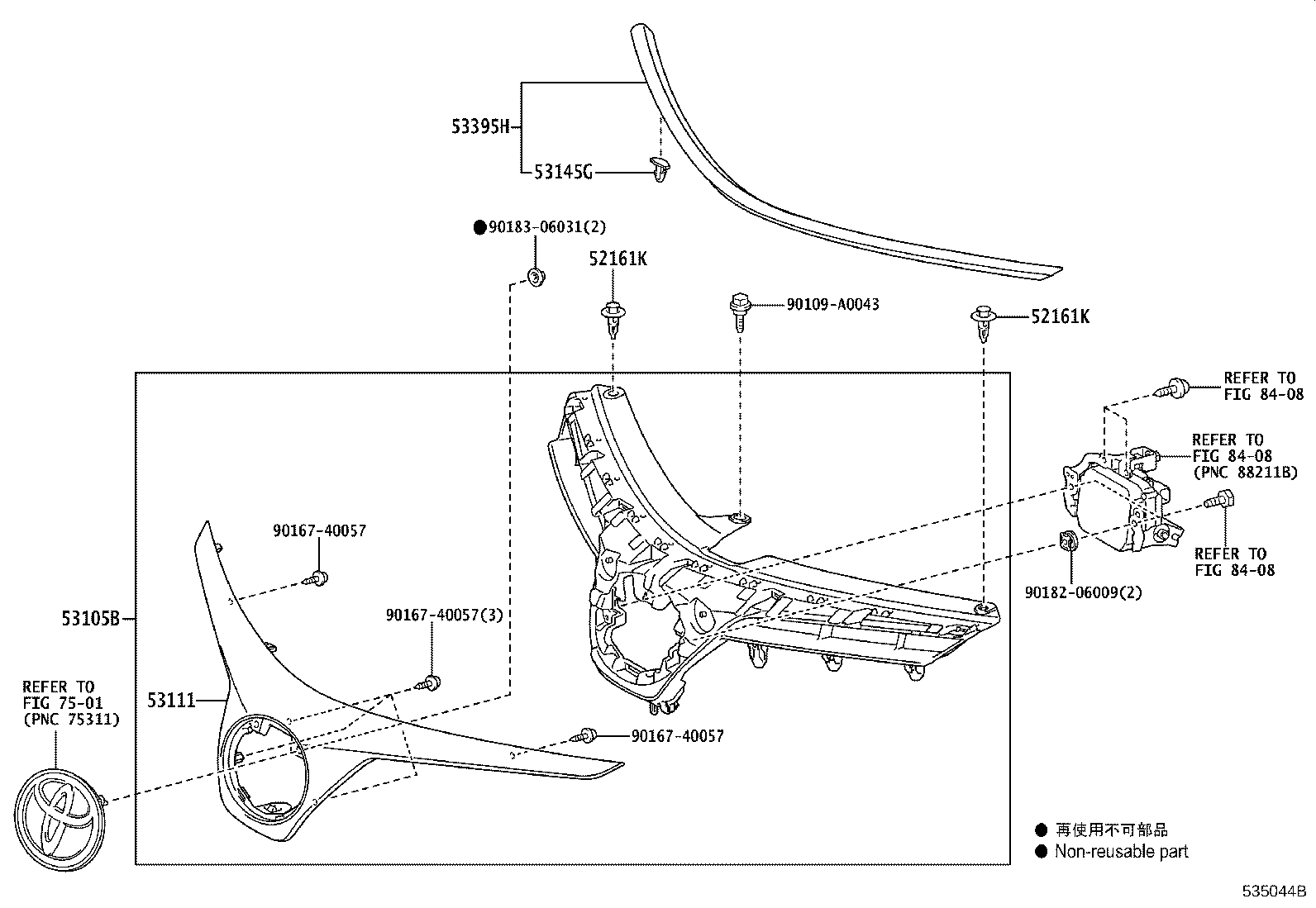

Figure 534033A 534033A 2013-08 → 2016-08 Figure 535043C 535043C 2016-08 → — Figure 535044B 535044B 2016-08 → —

Part groups

PNCDescription
52161K Piece, Front Bumper
53101 Grille Sub-assy, Radiator
53105B Garnish Sub-assy, Radiator Grille
53111 Grille, Radiator
53145G Clip, Radiator Grille
53395H Seal, Hood TO Radiator Grille
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
