Toyota Corolla

2013-08 → 2019-03 · chassis ZRE172 · catalogue 152470 · United States

Supported model Data version 2019-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

84 part groups · 11 illustrations

Illustrations

71A364H 2013-08 → —

71A359E 2013-08 → 2016-08

71A696B 2016-08 → —

71A361G 2013-08 → —

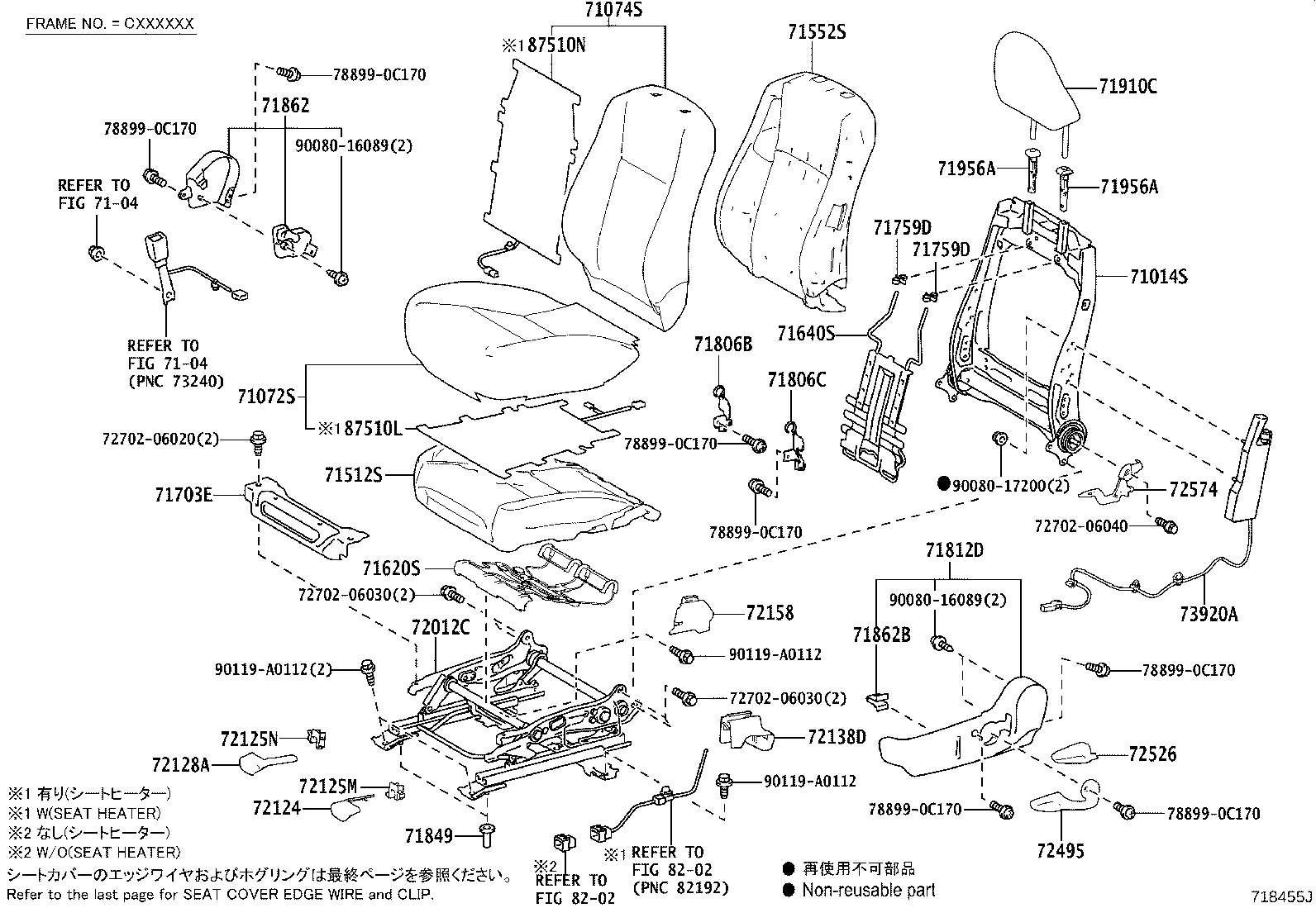

718455J 2013-08 → 2016-08

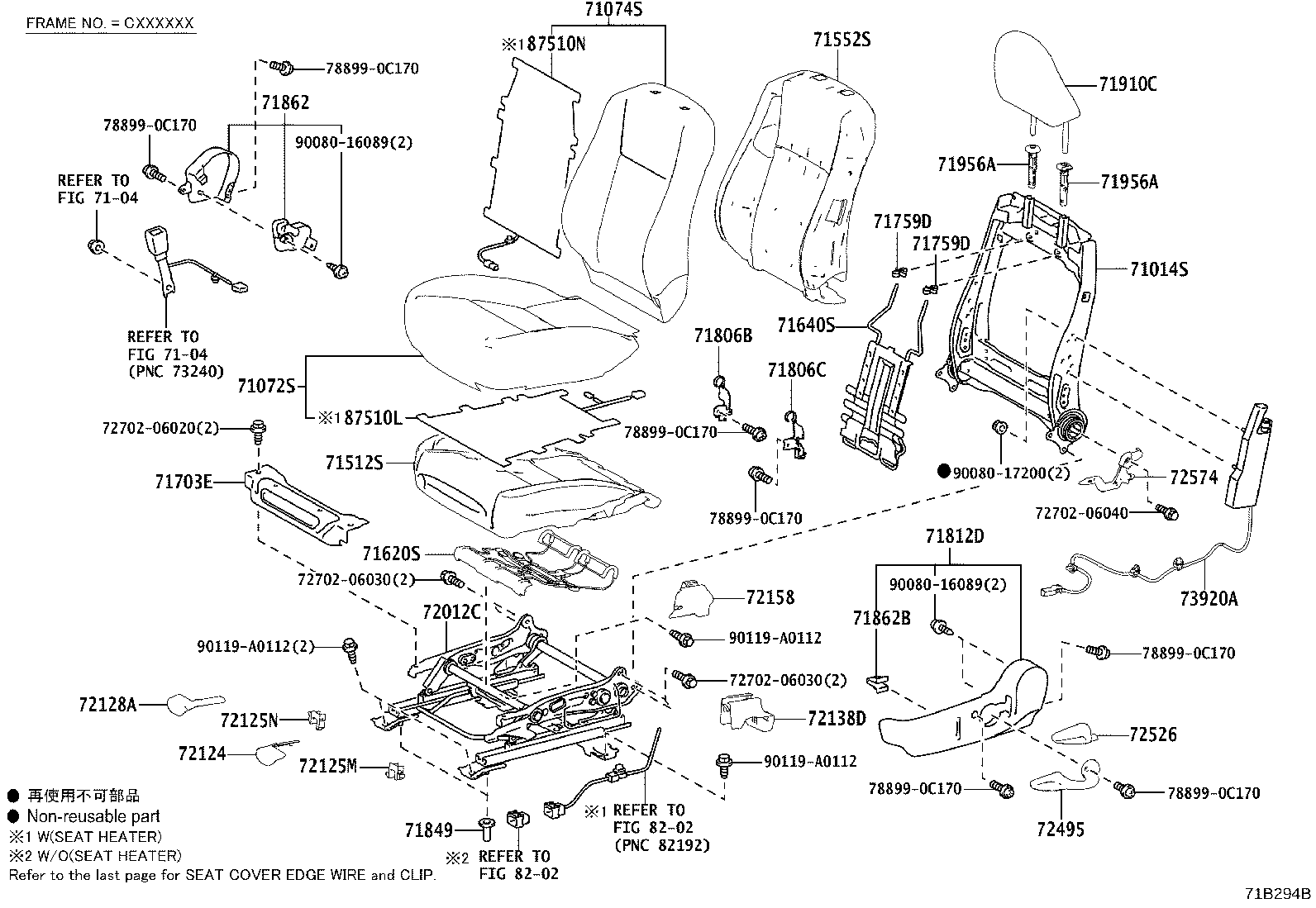

71B294B 2016-08 → —

718456M 2013-08 → 2016-08

71B287B 2016-08 → —

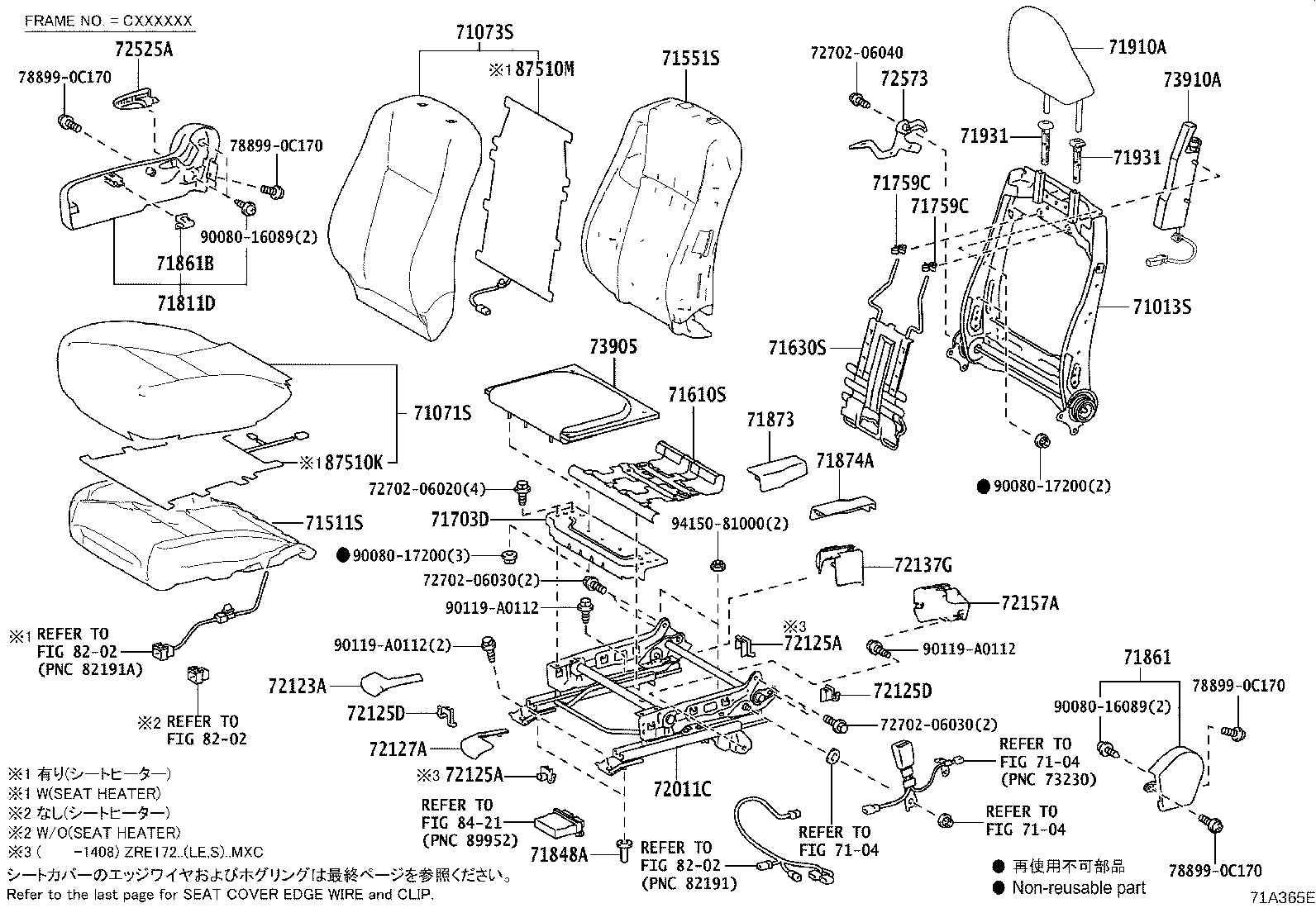

71A365E 2013-08 → 2016-08

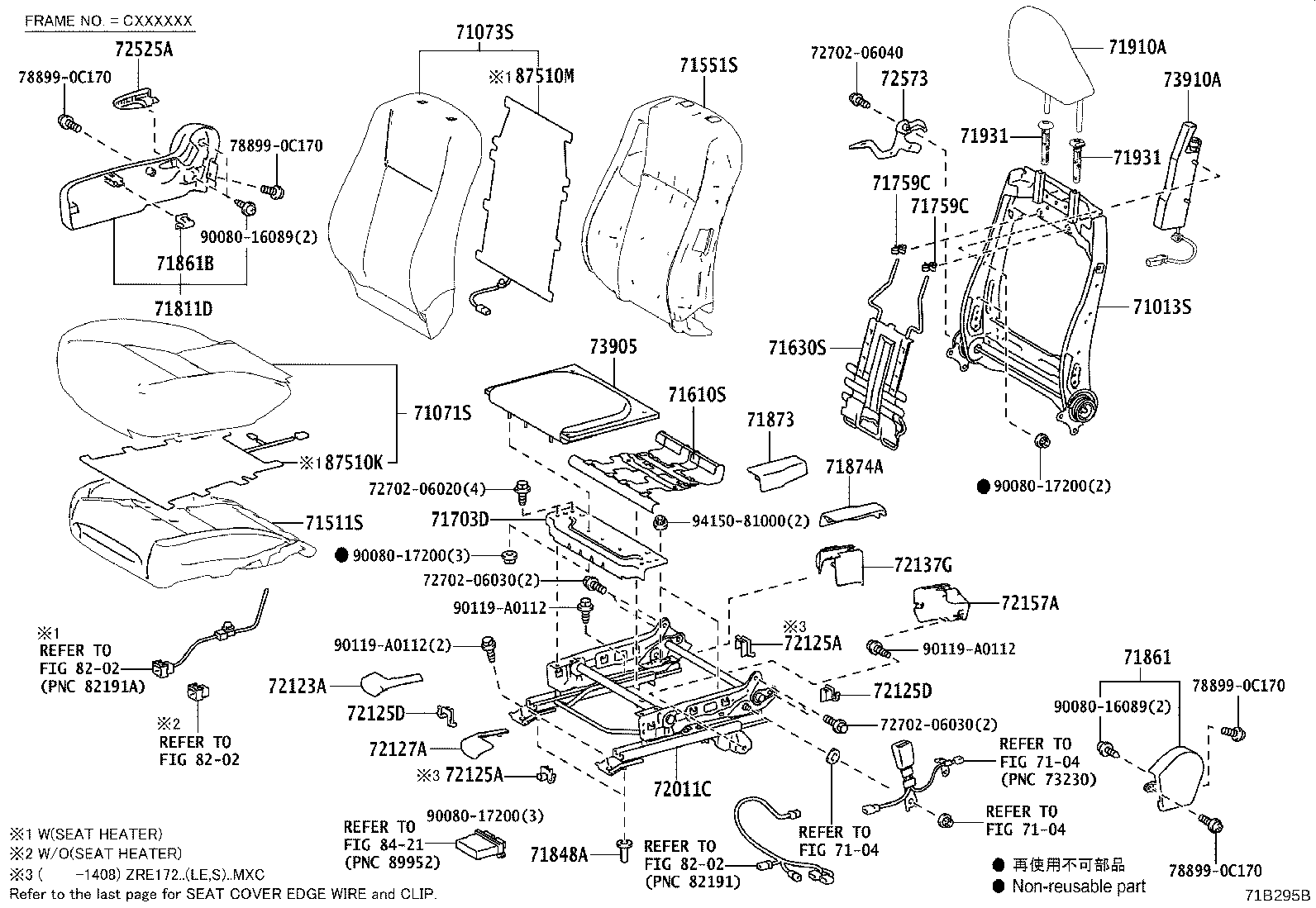

71B295B 2016-08 → —

719024D 2013-08 → —

Part groups

PNC	Description
71013S	Frame Sub-assy, Front Seatback, RH
71014S	Frame Sub-assy, Front Seatback, LH
71051A	Spring Sub-assy, Front Seat Cushion, RH
71052A	Spring Sub-assy, Front Seat Cushion, LH
71053S	Spring Sub-assy, Front Seatback, RH
71054S	Spring Sub-assy, Front Seatback, LH
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537G	Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
71537H	Protector, Front Seat Cushion Edge, RH(FOR LH SEAT)
71538A	Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
71538B	Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587	Protector, Front Seatback Edge
71587B	Protector, Front Seatback Edge
71610S	Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71620S	Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71630S	Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S	Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71703D	Panel Sub-assy, Front Seat Cushion, RH
71703E	Panel Sub-assy, Front Seat Cushion, LH
71759C	Hook, Front Seatback, NO.1
71759D	Hook, Front Seatback, NO.2
71769C	Clip, Front Seat Cushion Cover
71806B	Shield Sub-assy, Front Seat Cushion, LH NO.1
71806C	Shield Sub-assy, Front Seat Cushion, LH NO.2
71811D	Shield, Front Seat Cushion, RH
71812D	Shield, Front Seat Cushion, LH
71848A	Cap, Seat Adjuster Cover, RH
71849	Cap, Seat Adjuster Cover, LH
71861	Shield, Front Seat Cushion, Inner RH
71861B	Clip(FOR FRONT SEAT SHIELD, RH)
71862	Shield, Front Seat Cushion, Inner LH
71862B	Clip(FOR FRONT SEAT SHIELD, LH)
71868A	Shield, Front Seat Cushion, Inner NO.1 LH
71873	Shield, Front Seat Cushion, Lower RH
71873A	Shield, Front Seat Cushion, Lower
71874	Shield, Front Seat Cushion, Lower LH
71874A	Shield, Front Seat Cushion, Lower LH
71876F	Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71910A	Headrest Assy, Front Seat
71910C	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
71956A	Support, Front Seat Headrest
72010	Adjuster Assy, Front Seat, RH
72011C	Adjuster Sub-assy, Front Seat, RH
72012C	Adjuster Sub-assy, Front Seat, LH
72020	Adjuster Assy, Front Seat, LH
72123A	Cover, Seat Track Bracket, Outer Front RH
72124	Cover, Seat Track Bracket, Outer Front LH
72125A	Cover, Seat Track, Upper Rear
72125D	Cover, Seat Track, Upper Rear NO.2
72125M	Cover, Seat Track, Upper NO.3
72125N	Cover, Seat Track, Upper NO.4
72127A	Cover, Seat Track Bracket, Inner Front RH
72128A	Cover, Seat Track Bracket, Inner Front LH
72137E	Cover, Seat Track, NO.1
72137F	Cover, Seat Track, NO.2
72137G	Cover, Seat Track, Outer RH
72138D	Cover, Seat Track, Outer, LH
72157A	Cover, Seat Track Bracket, Inner RH
72158	Cover, Seat Track Bracket, Inner LH
72211	Handle, Seat Track Adjusting
72211C	Handle, Seat Track Adjusting
72447	Pin, Vertical Adjuster, NO.1
72495	Handle, Vertical Adjusting, LH
72525A	Handle, Reclining Adjuster Release, RH
72526	Handle, Reclining Adjuster Release, LH
72573	Lever, Reclining Control, RH
72574	Lever, Reclining Control, LH
73905	Airbag Sub-assy, Front Seat, RH
73910A	Airbag Assy, Front Seat, RH
73920A	Airbag Assy, Front Seat, LH
79977G	Felt, Front Seatback, RH
79977H	Felt, Front Seatback, LH
87510K	Heater Assy, Front Seat Cushion, RH
87510L	Heater Assy, Front Seat Cushion, LH
87510M	Heater Assy, Front Seatback, RH
87510N	Heater Assy, Front Seatback, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
