Toyota Corolla
2013-08 → 2019-03 · chassis ZRE172 · catalogue 152470 · United States
Supported model
Data version 2019-04

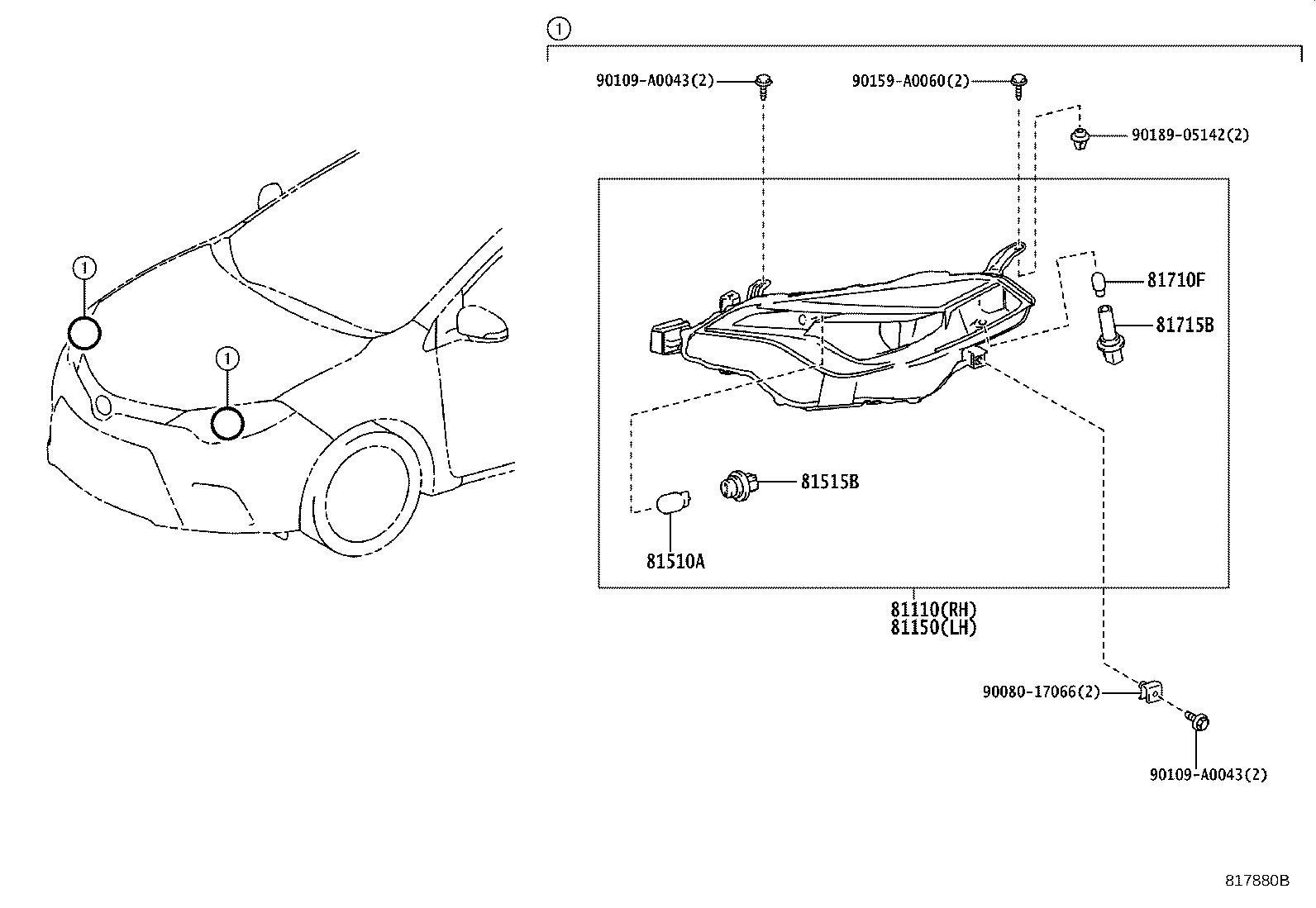

Headlamp
17 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81115B | Socket,Headlamp, NO.1 |
| 81136D | Cover, Headlamp |
| 81150 | Headlamp Assy, LH |
| 81193 | Retainer, Headlamp Protector, Upper RH |
| 81194 | Retainer, Headlamp Protector, Upper LH |
| 81195A | Retainer, Headlamp Protector, Lower RH |
| 81196A | Retainer, Headlamp Protector, Lower LH |
| 81197 | Bracket, Headlamp, Lower RH |
| 81198 | Bracket, Headlamp, Lwr LH |
| 81510A | Bulb, Front Turn Signal & Parking Lamp |
| 81510C | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81515B | Socket, Front Turn Signal Lamp |
| 81710F | Bulb, Front Side Maker Lamp |
| 81715B | Socket & Wire, Front Side Marker Lamp |
| 85967 | Computer, Light Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
