Toyota Corolla

2013-08 → 2019-03 · chassis ZRE172 · catalogue 152470 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

20 part groups · 5 illustrations

Illustrations

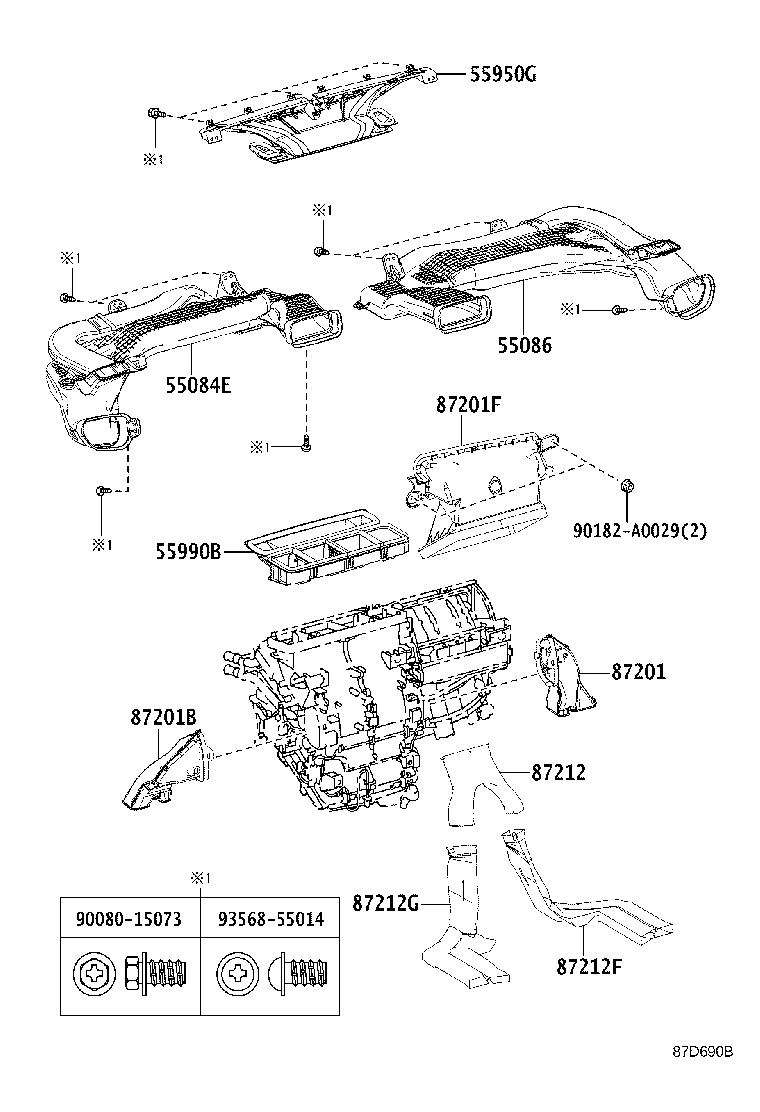

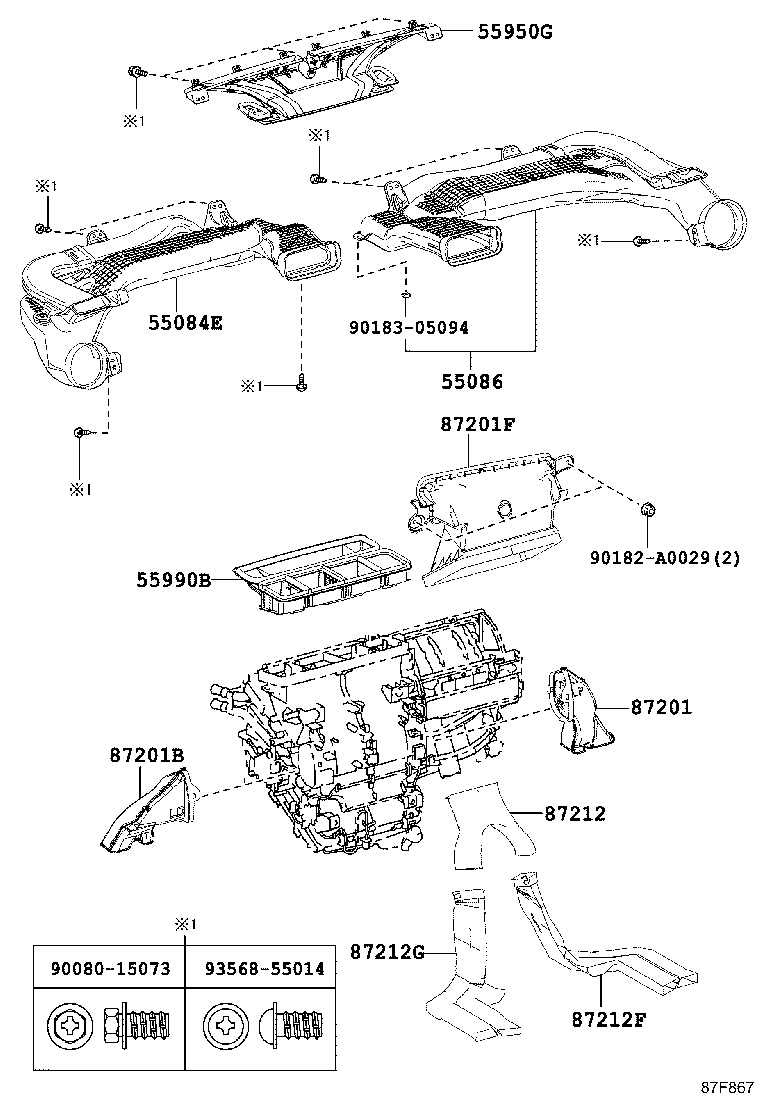

Figure 87D689B 87D689B 2013-08 → 2016-08 Figure 87F863B 87F863B 2016-08 → — Figure 87D690B 87D690B 2013-08 → 2016-08 Figure 87F867 87F867 2016-08 → — Figure 87D691 87D691 2013-08 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55086 Duct Sub-assy, Heater TO Register, NO.3
55900 Control Assy, Air Conditioner
55901D Control Sub-assy, Heater, NO.1
55902E Control Sub-assy, Heater, NO.2
55903A Control Sub-assy, Heater, NO.3
55906D Cable Sub-assy, Heater Control, NO.2
55909C Cable Sub-assy, Airmix Damper Control
55950G Nozzle Assy, Defroster
55990B Nozzle Assy, Defroster, Lower
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3
87212 Duct, Air, Rear NO.1
87212F Duct, Air, Rear NO.2
87212G Duct, Air, Rear NO.3
88625H Thermistor, Cooler (SOLAR SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88790B Thermistor Assy
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
