Toyota Corolla Sed (NAP)

2019-03 → present · chassis MZEA1#,ZRE212 · catalogue 152480 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

12 part groups · 4 illustrations

Illustrations

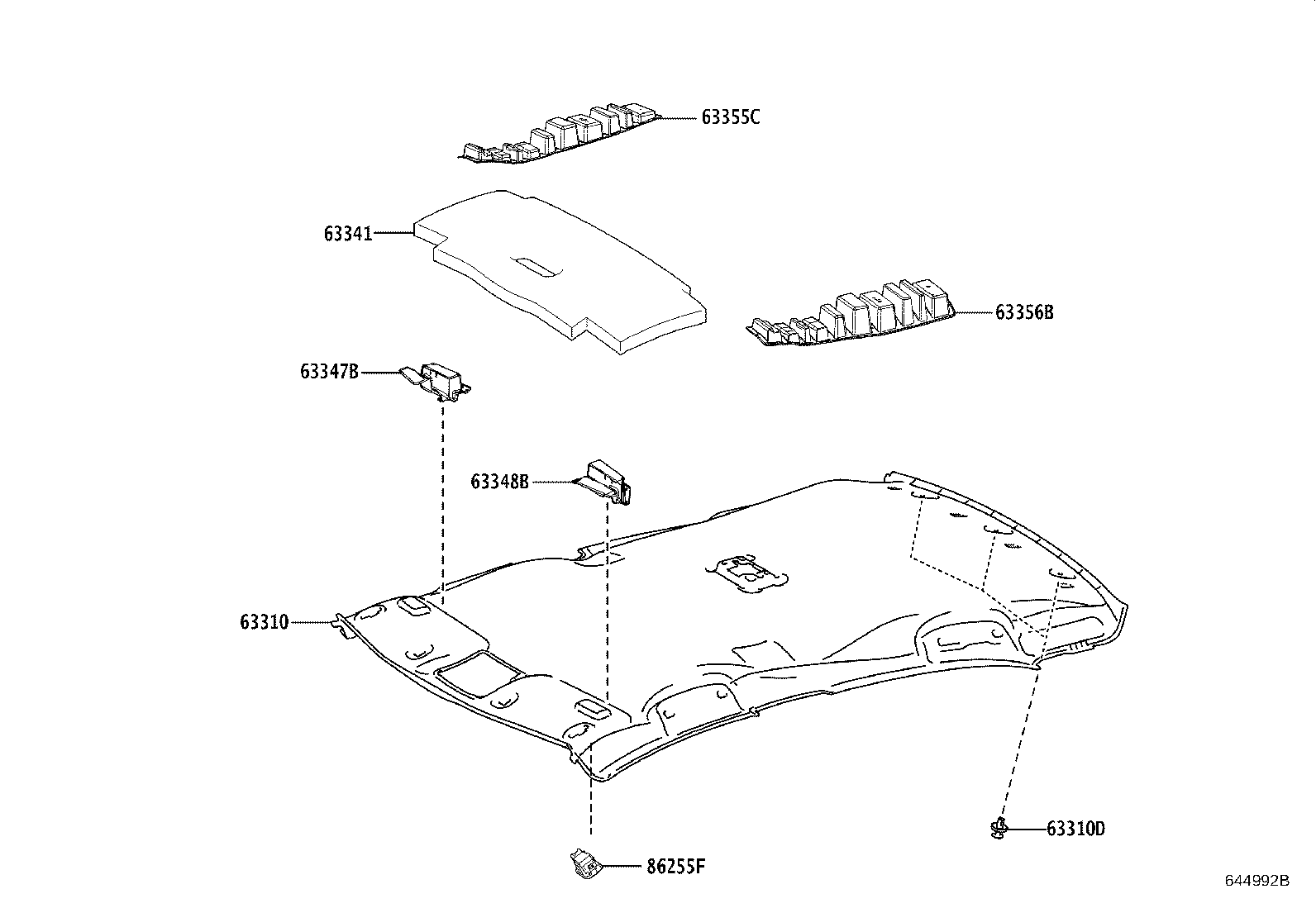

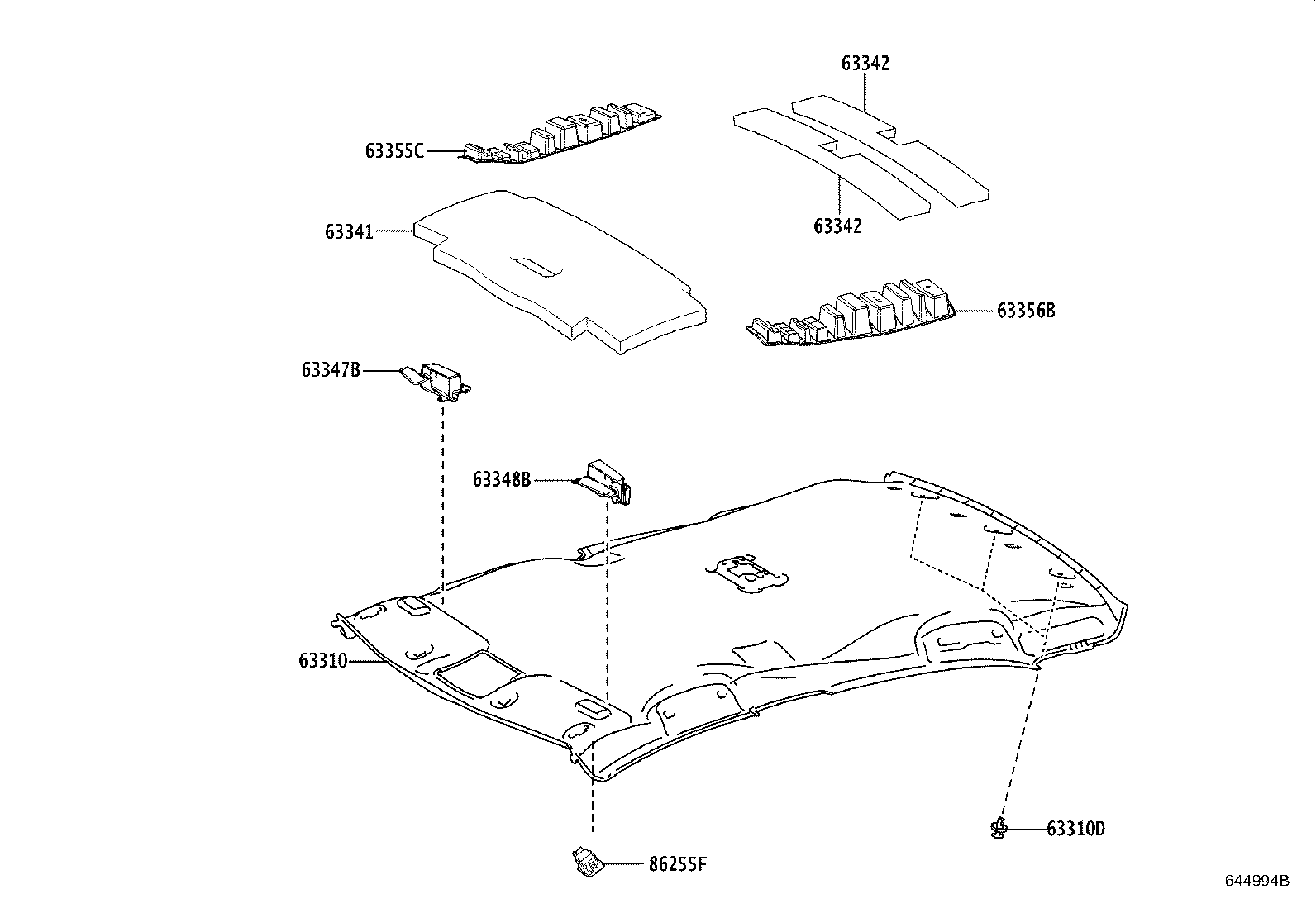

Figure 644533C 644533C 2019-03 → 2020-07 Figure 644992B 644992B 2020-07 → — Figure 644994B 644994B 2020-07 → — Figure 644531B 644531B 2019-03 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63347B Pad, Roof Side Rail Silencer, RH
63348B Pad, Roof Side Rail Silencer, LH
63353C Pad, Roof Headlining, Center
63353D Pad, Roof Headlining, Center
63355C Pad, Roof Headlining, RH
63356B Pad, Roof Headlining, LH
86255F Case, Microphone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
