Toyota Corolla Sed (NAP)

2019-03 → present · chassis MZEA1#,ZRE212 · catalogue 152480 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

14 part groups · 8 illustrations

Illustrations

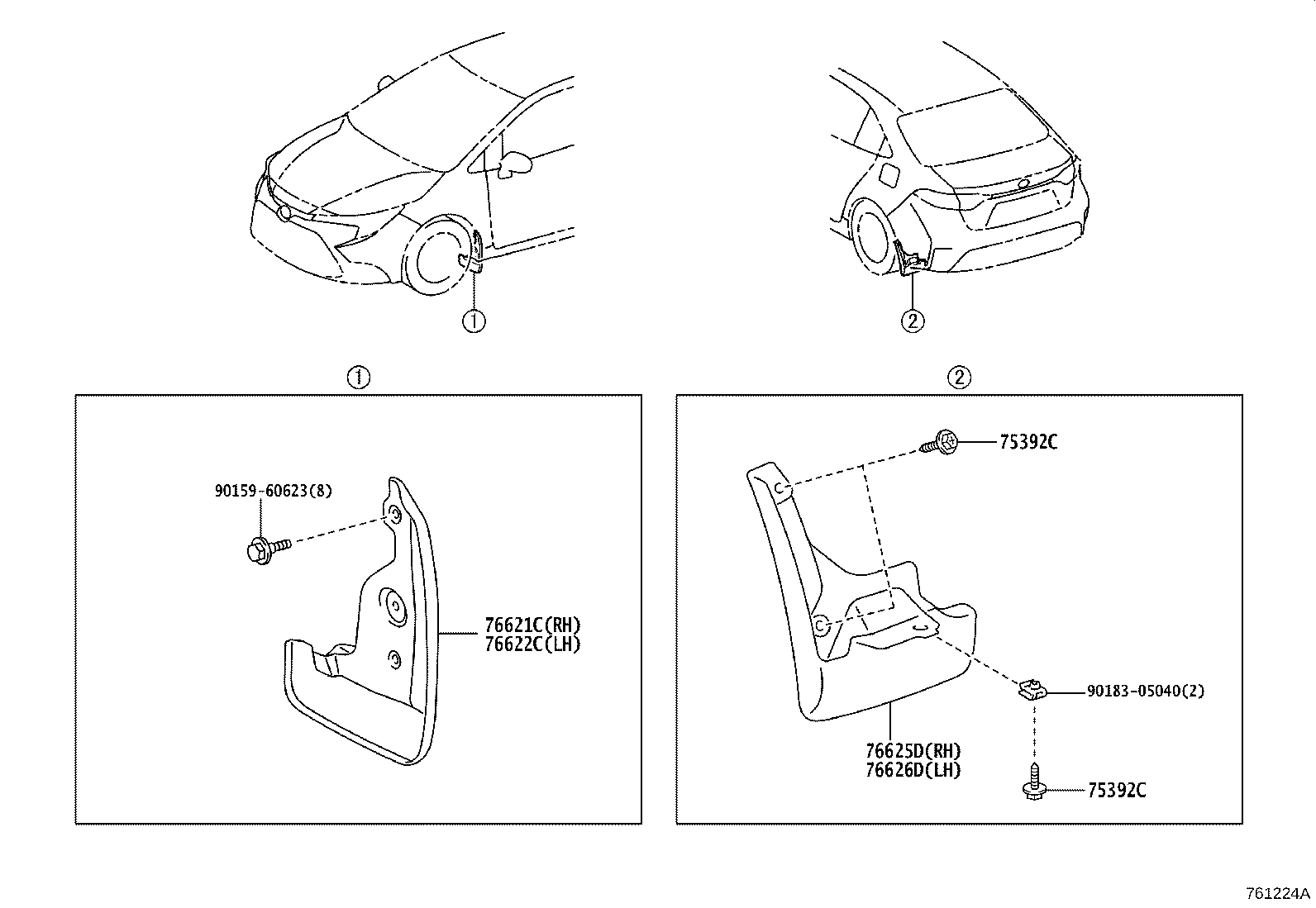

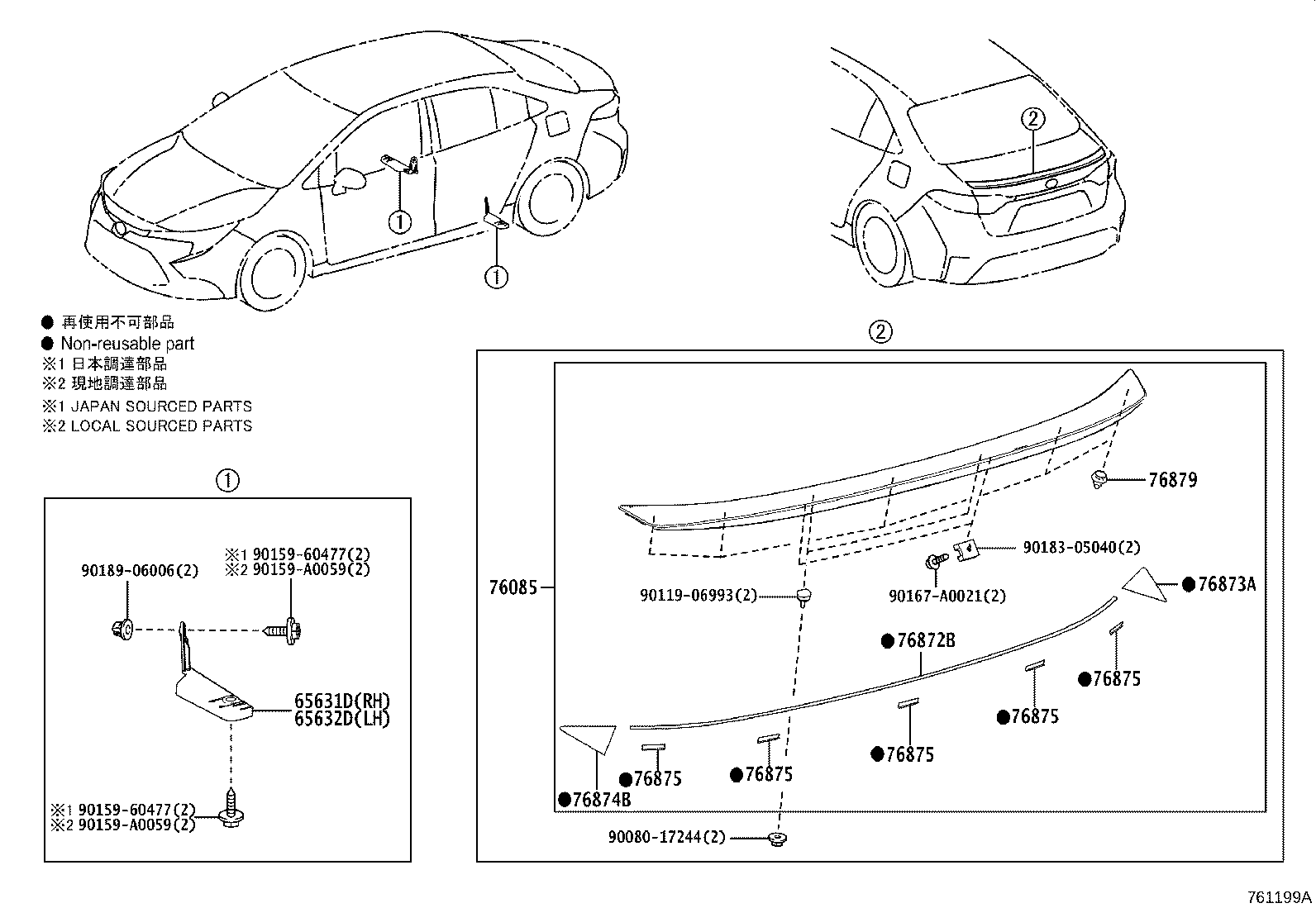

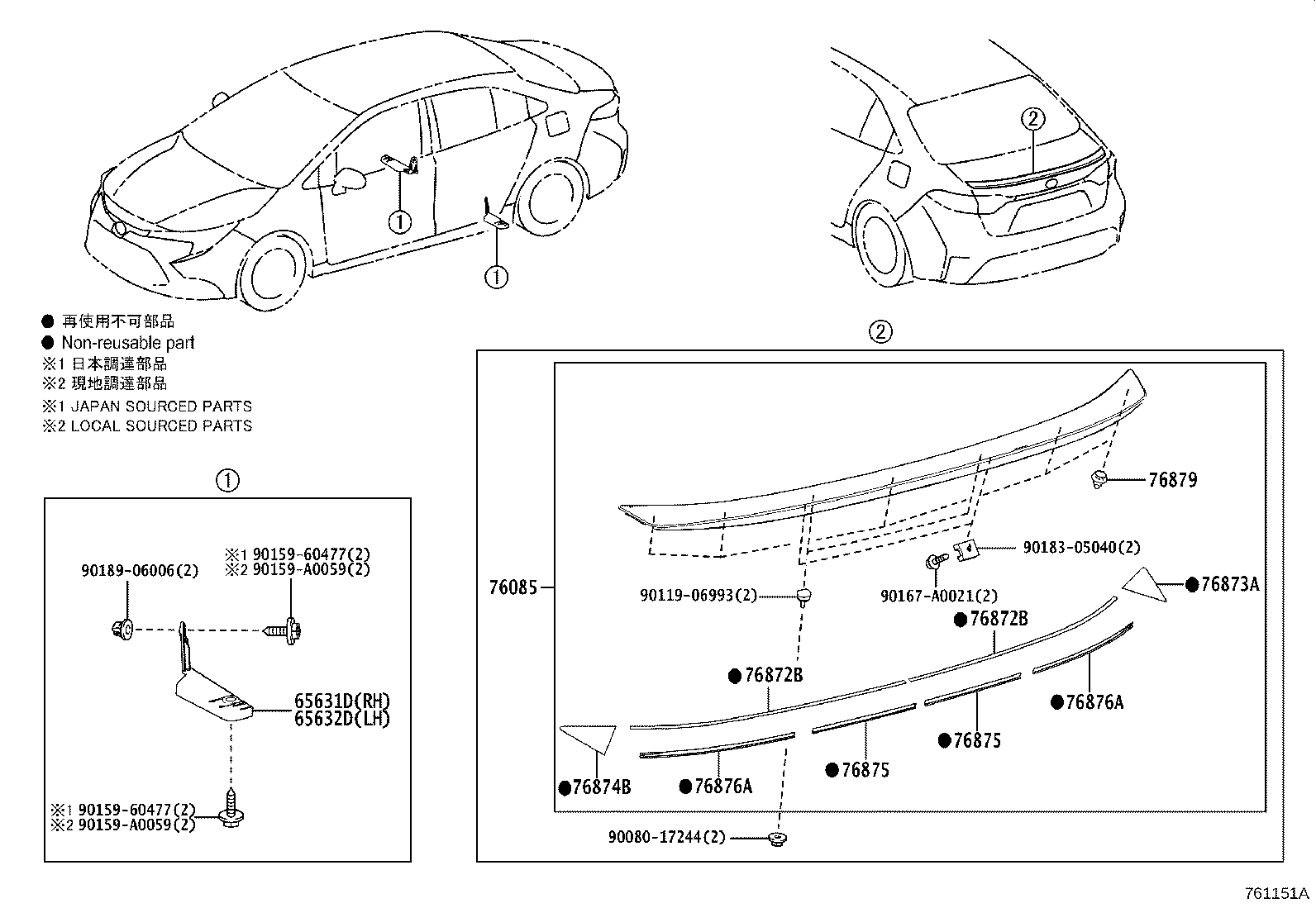

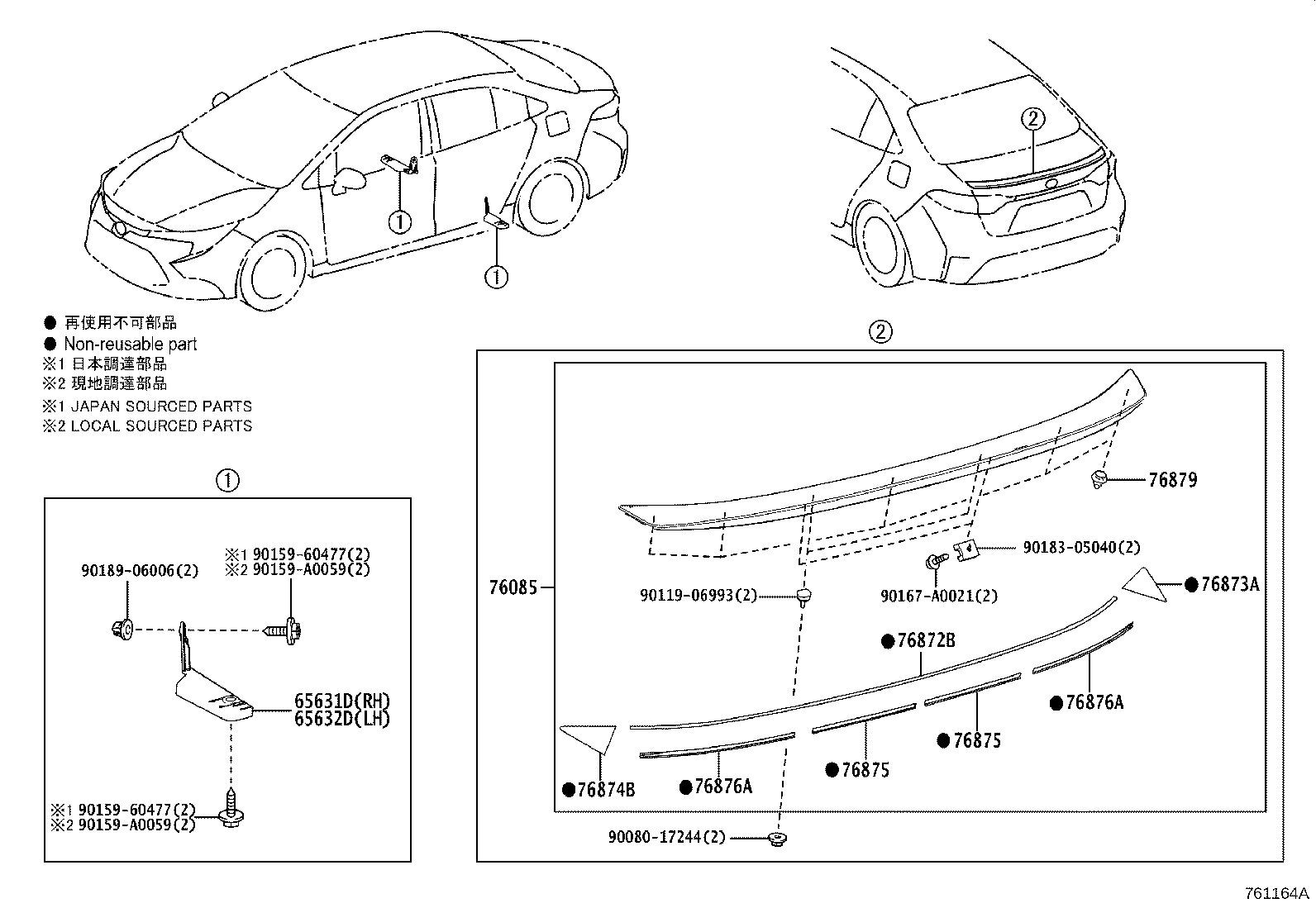

Figure 761150B 761150B 2019-03 → 2019-06 Figure 761151A 761151A 2019-03 → 2019-06 Figure 761163A 761163A 2019-07 → 2020-02 Figure 761164A 761164A 2019-07 → 2020-02 Figure 761198A 761198A 2020-02 → — Figure 761199A 761199A 2020-02 → — Figure 761224A 761224A 2022-11 → — Figure 761225B 761225B 2022-11 → —

Part groups

PNCDescription
65631D Plate, Rear Wheel House, Front RH
65632D Plate, Rear Wheel House, Front LH
75392C Retainer, Outside Moulding
76085 Spoiler Sub-assy, Rear
76621C Mudguad, Front Fender, RH
76622C Mudguard, Front Fender, LH
76625D Mudguard, Quarter Panel, Rear RH
76626D Mudguard, Quarter Panel, Rear LH
76872B Protector, Rear Spoiler, Center
76873A Protector, Rear Spoiler, RH
76874B Protector, Rear Spoiler, LH
76875 Protector, Rear Spoiler, NO.4
76876A Protector, Rear Spoiler, NO.10
76879 Clip, Rear Spoiler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
