Toyota Corolla Sed (JPP)

2019-01 → present · chassis MZEA1#,ZRE212,ZWE21# · catalogue 153260 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Insulator

3 part groups · 3 illustrations

Illustrations

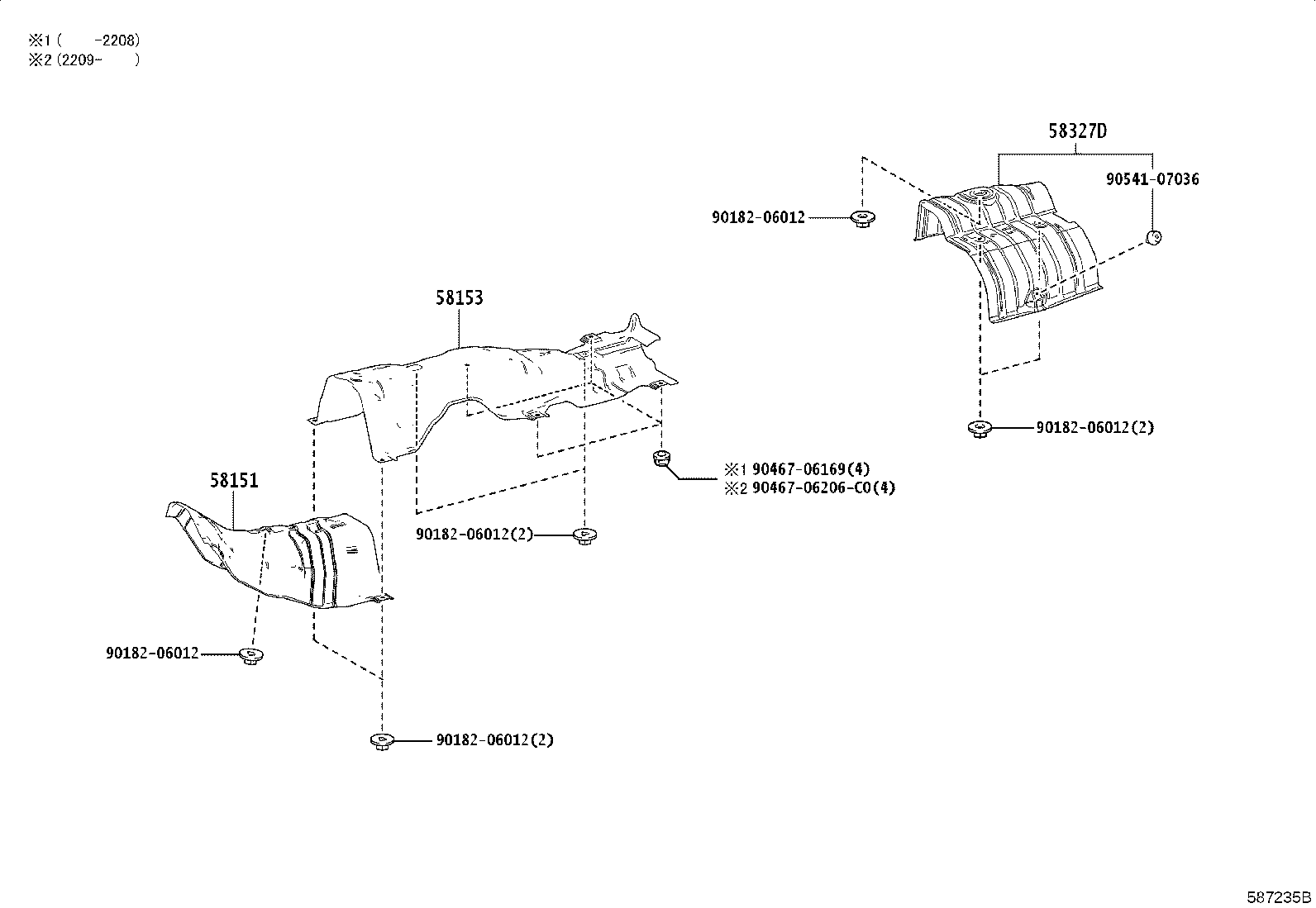

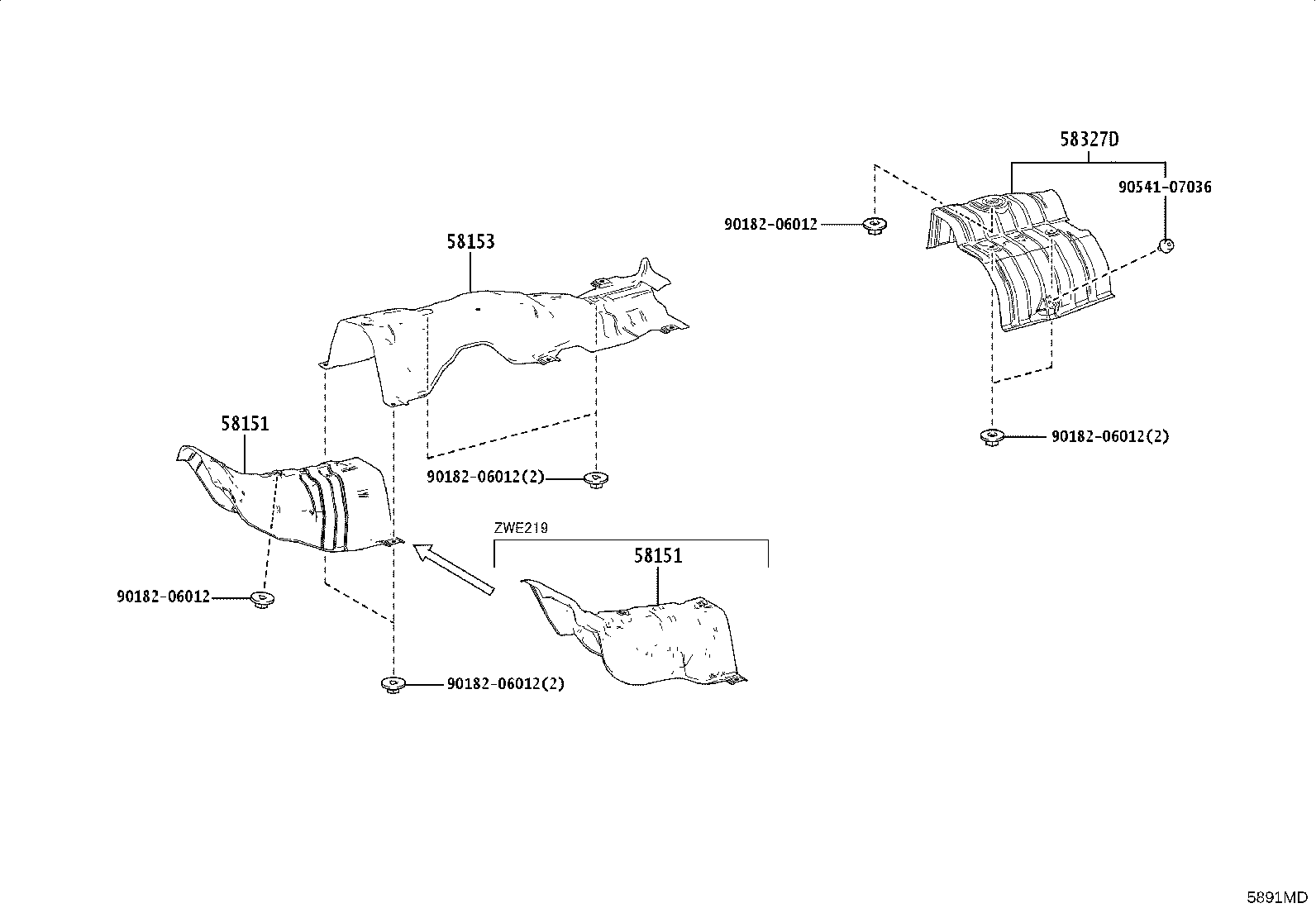

Figure 586824A 586824A 2019-01 → — Figure 5891MD 5891MD 2019-01 → — Figure 587235B 587235B 2019-09 → —

Part groups

PNCDescription
58151 Insulator, Front Floor Heat, NO.1
58153 Insulator, Front Floor Heat, NO.2
58327D Insulator, Main Muffler Heat, Upper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
