Toyota Corolla Sed (JPP)

2019-01 → present · chassis MZEA1#,ZRE212,ZWE21# · catalogue 153260 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

36 part groups · 7 illustrations

Illustrations

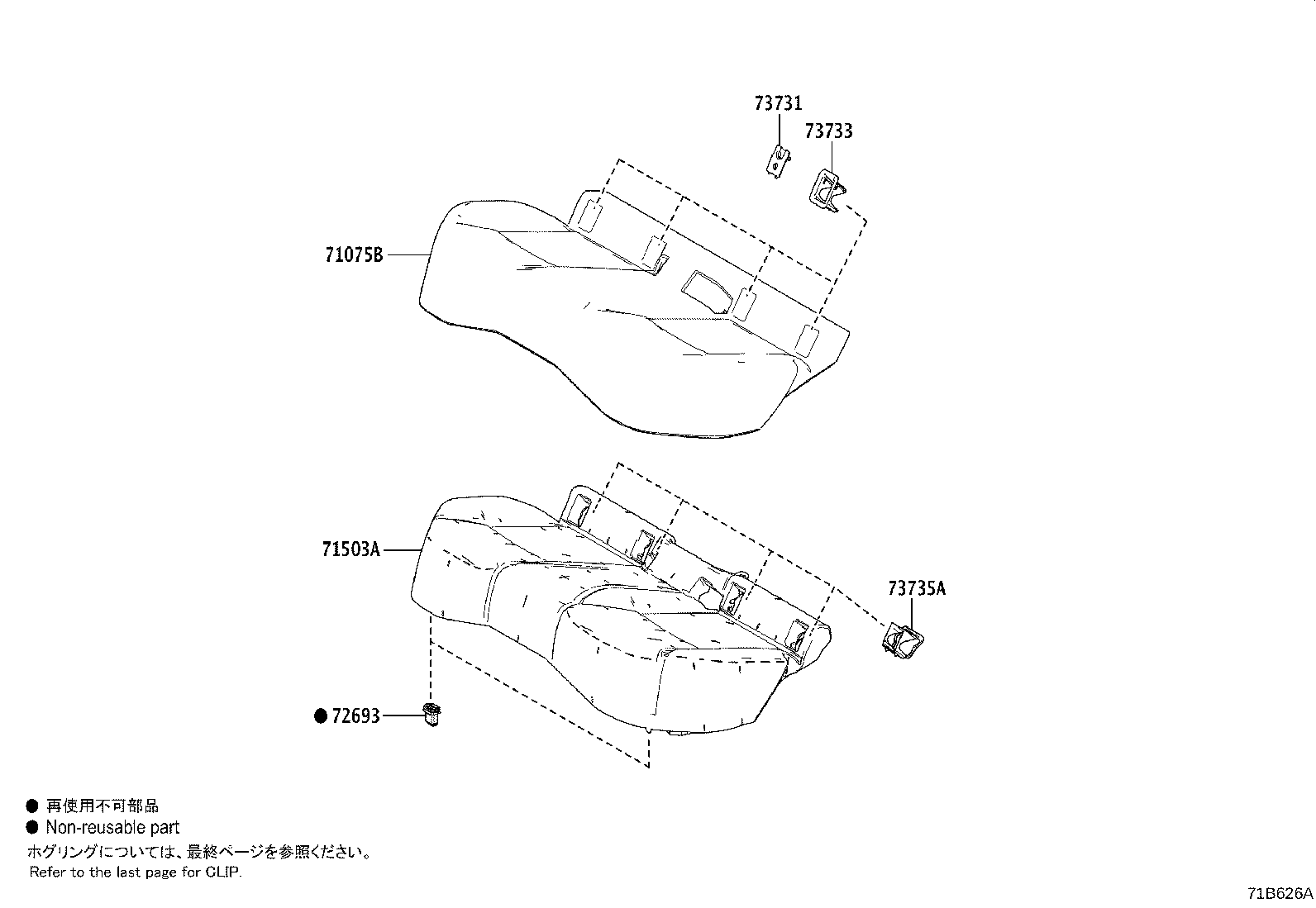

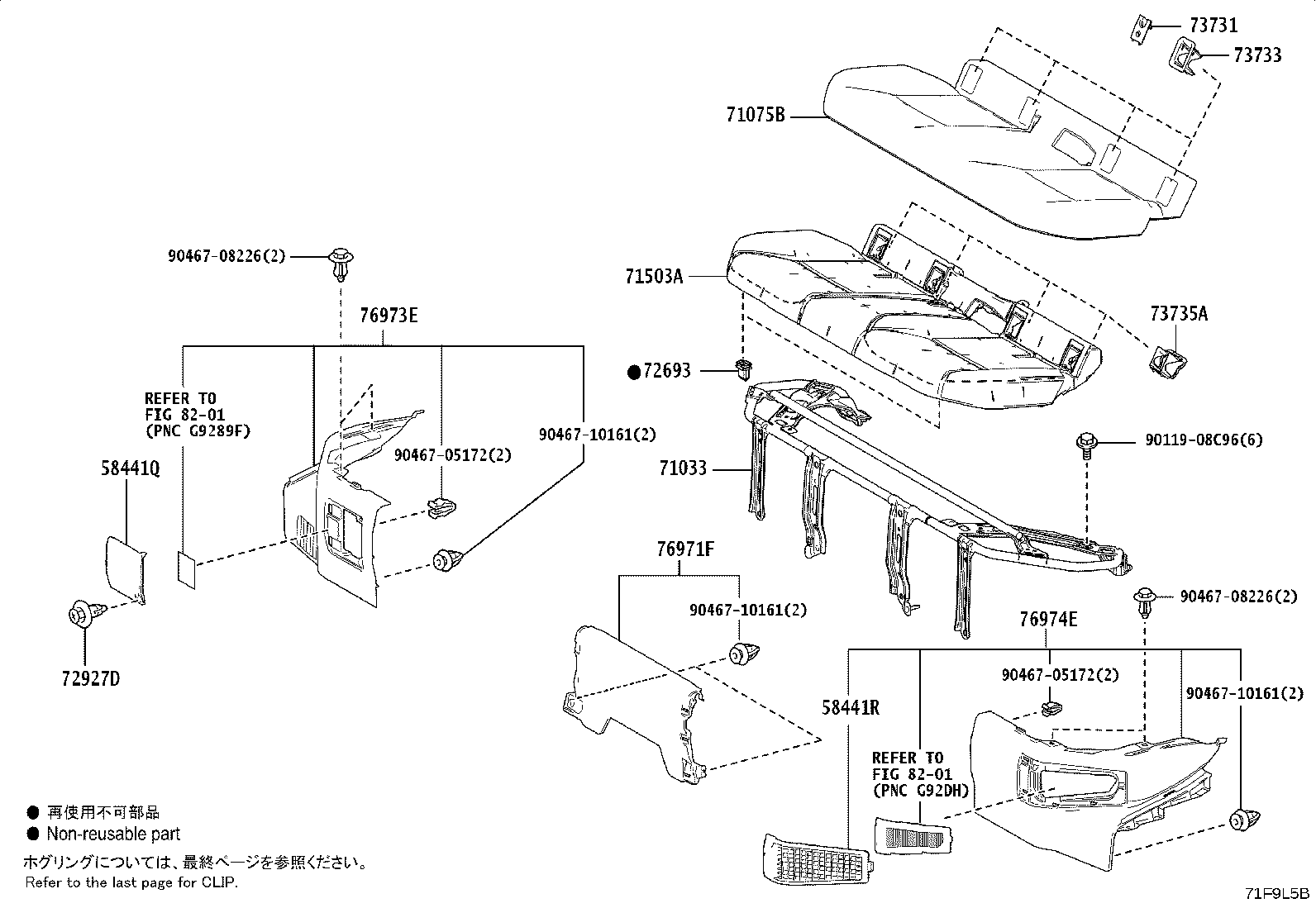

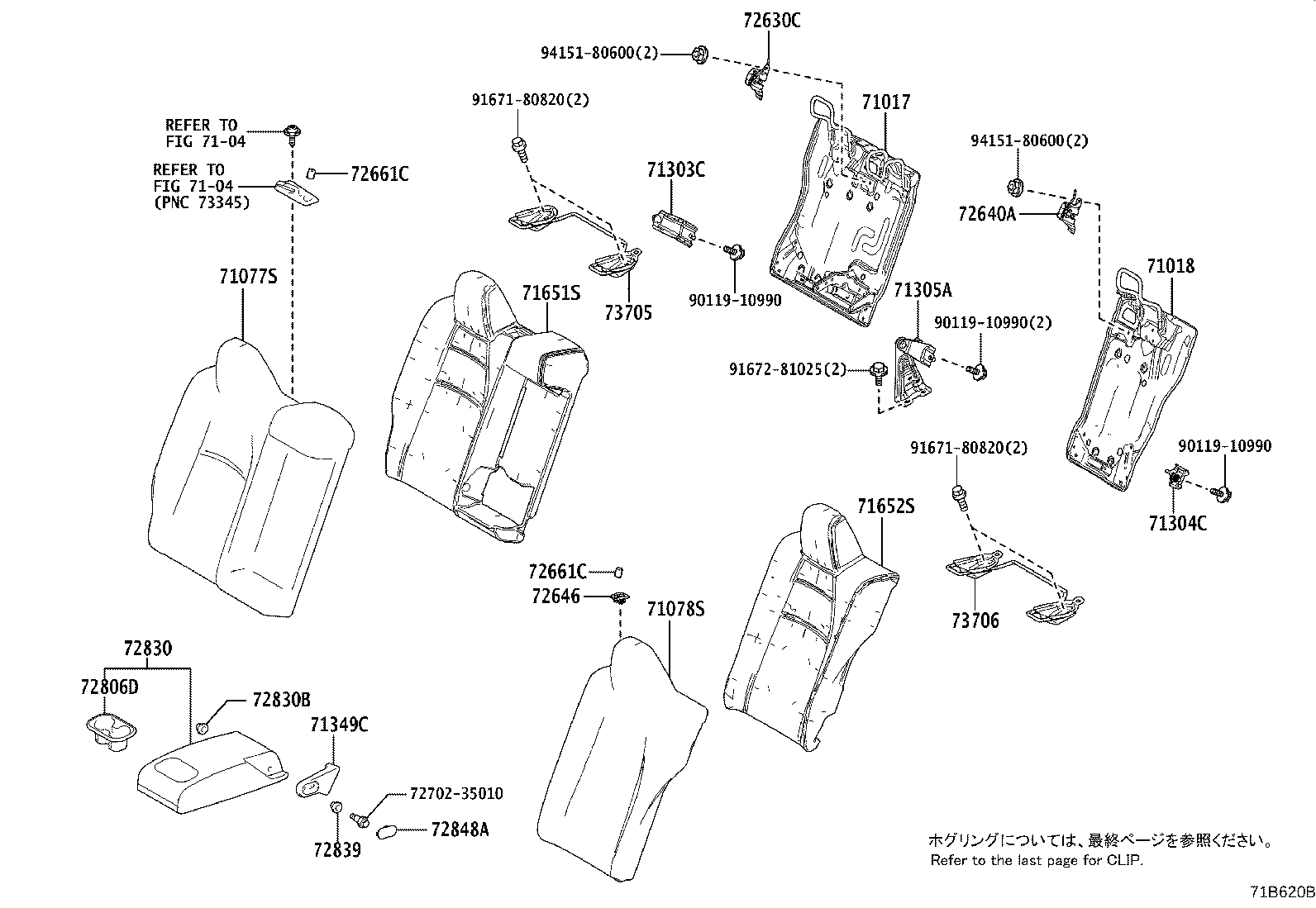

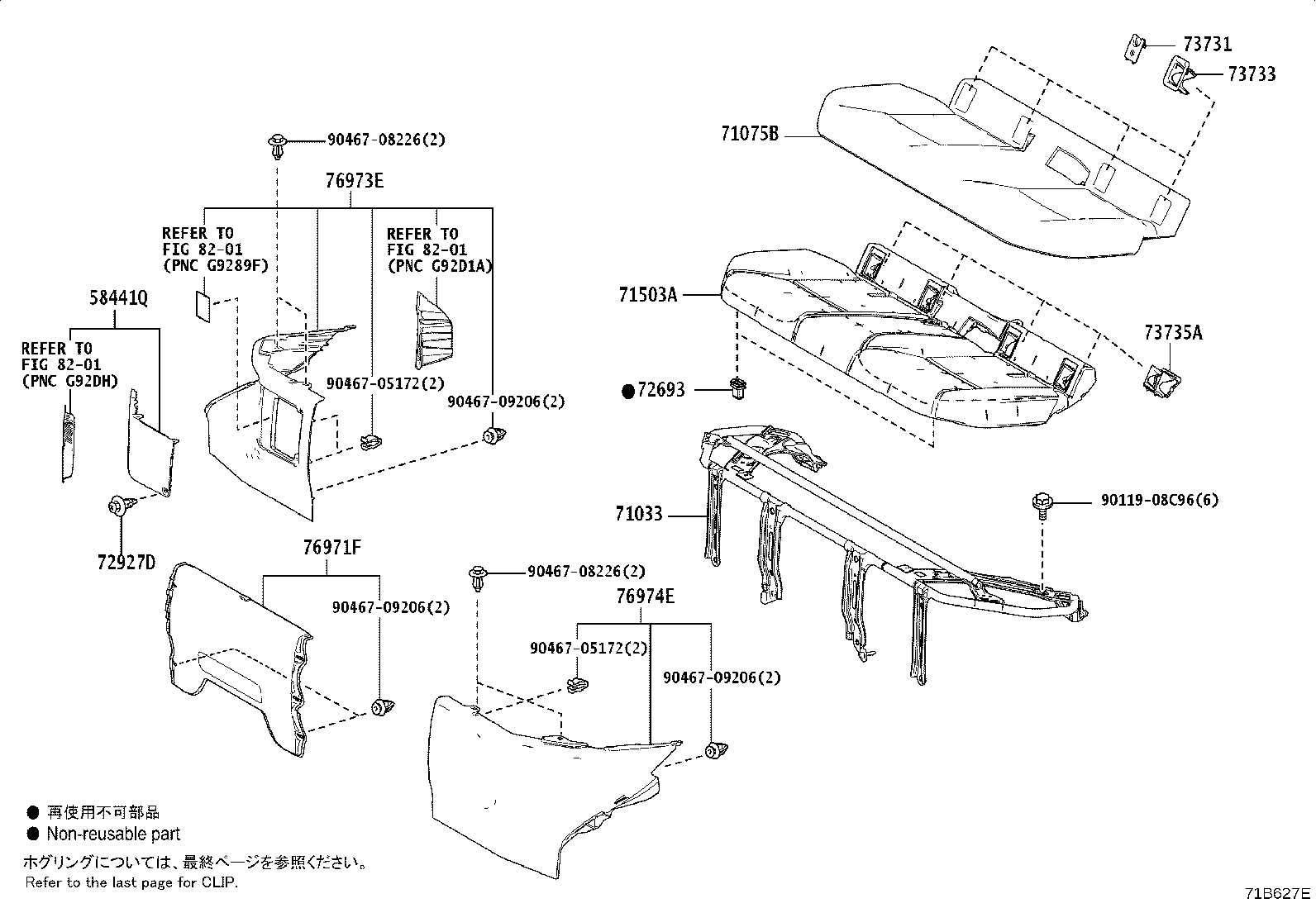

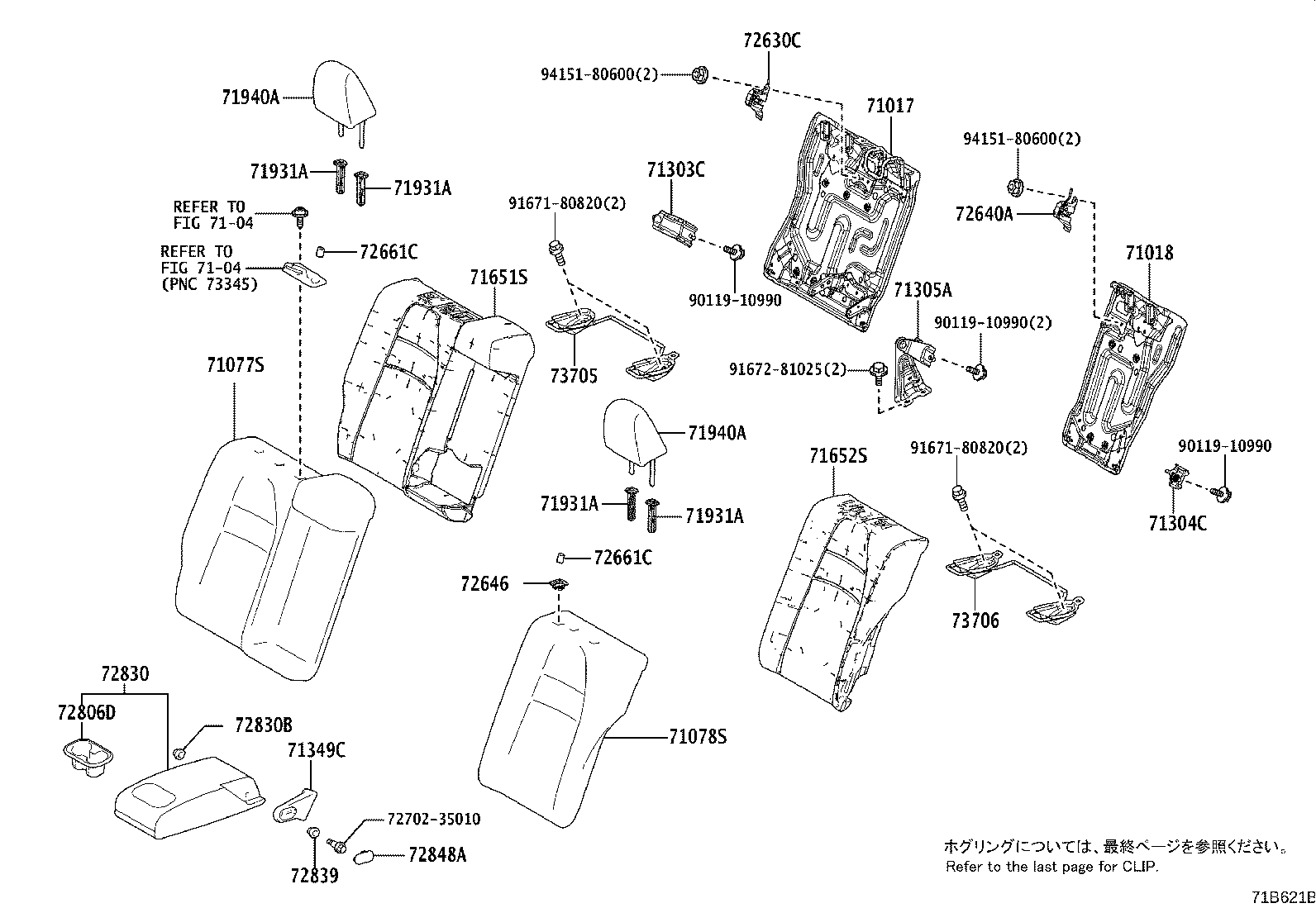

Figure 71B606A 71B606A 2019-01 → — Figure 71B620B 71B620B 2019-01 → — Figure 71B621B 71B621B 2019-01 → — Figure 71B626A 71B626A 2019-01 → — Figure 71B627E 71B627E 2019-01 → 2022-09 Figure 71F9L5B 71F9L5B 2022-09 → — Figure 71A615 71A615 2019-01 → —

Part groups

PNCDescription
58441Q Cover, Battery Service Hole, RH
58441R Cover, Battery Service Hole, LH
71017 Frame Sub-assy, Rear Seatback, RH
71018 Frame Sub-assy, Rear Seatback, LH
71033 Leg Sub-assy, Rear Seat Cushion
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71303C Hinge Sub-assy, Rear Seatback, RH
71304C Hinge Sub-assy, Rear Seatback, LH
71305A Hinge Sub-assy, Rear Seatback, Center
71349C Cover, Rear Seatback Hinge
71503A Pad Sub-assy, Rear Seat Cushion
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
72630C Lock Assy, Rear Seatback, RH
72640A Lock Assy, Rear Seatback, LH
72646 Grommet, Rear Seatback Stop Button
72661C Button, Rear Seatback Lock Release
72693 Hook, Rear Seat Cushion Lock
72806D Holder Sub-assy, Rear Seat Center Armrest Cup
72830 Armrest Assy, Rear Seat, Center
72830B Bush(FOR REAR SEAT CENTER ARMREST)
72839 Shim, Rear Seat Armrest Hinge
72848A Cap, Seat Armrest, NO.1
72927D Clip (FOR REAR SEAT CUSHION UNDER COVER)
73705 Bracket Sub-assy, Child Restraint Seat Anchor, RH
73706 Bracket Sub-assy, Child Restraint Seat Anchor, LH
73731 Cover, Child Restraint Seat
73733 Cover, Child Restraint Seat Base
73735A Cup, Child Restraint Seat Guide
76971F Cover, Rear Under
76973E Cover, Rear Under Side, RH
76974E Cover, Rear Under Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
