Toyota Corolla Sed (JPP)

2019-01 → present · chassis MZEA1#,ZRE212,ZWE21# · catalogue 153260 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

7 part groups · 4 illustrations

Illustrations

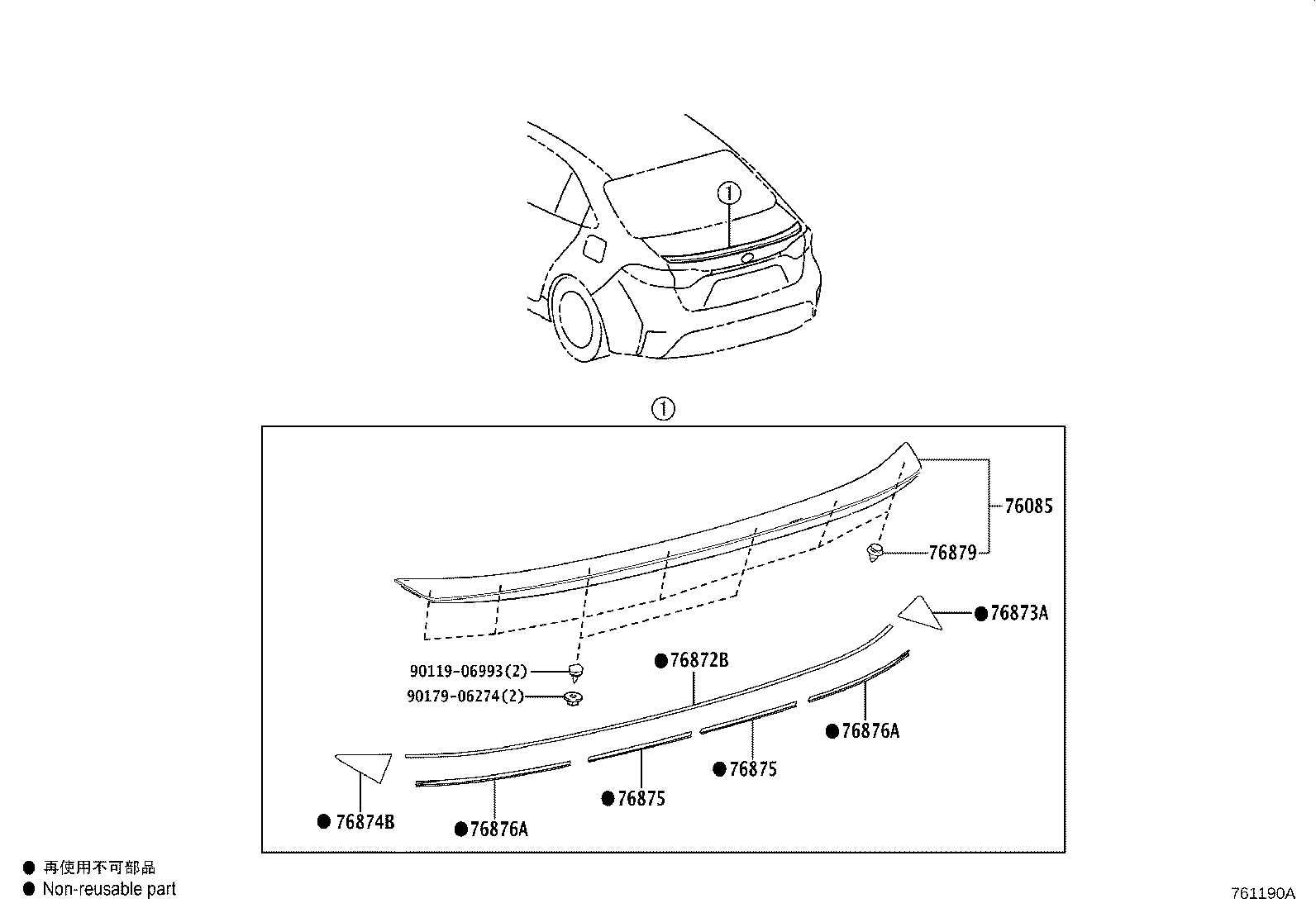

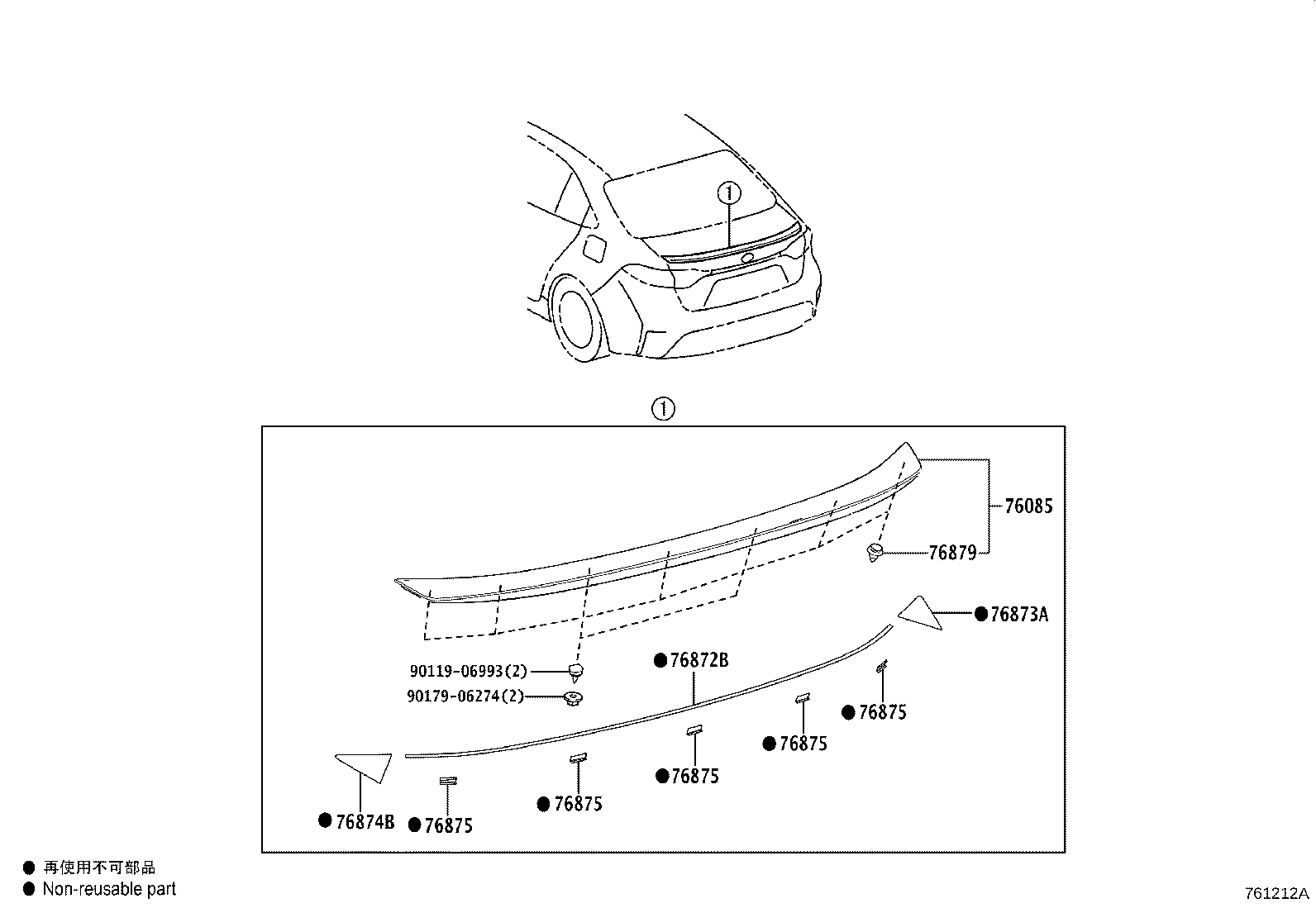

Figure 761170A 761170A 2019-09 → 2019-12 Figure 761190A 761190A 2019-12 → 2020-01 Figure 761212A 761212A 2020-04 → 2022-08 Figure 761212A 761212A 2022-09 → 2023-07

Part groups

PNCDescription
76085 Spoiler Sub-assy, Rear
76872B Protector, Rear Spoiler, Center
76873A Protector, Rear Spoiler, RH
76874B Protector, Rear Spoiler, LH
76875 Protector, Rear Spoiler, NO.4
76876A Protector, Rear Spoiler, NO.10
76879 Clip, Rear Spoiler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
