Toyota Corolla Sed (JPP)

2019-01 → present · chassis MZEA1#,ZRE212,ZWE21# · catalogue 153260 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

32 part groups · 8 illustrations

Illustrations

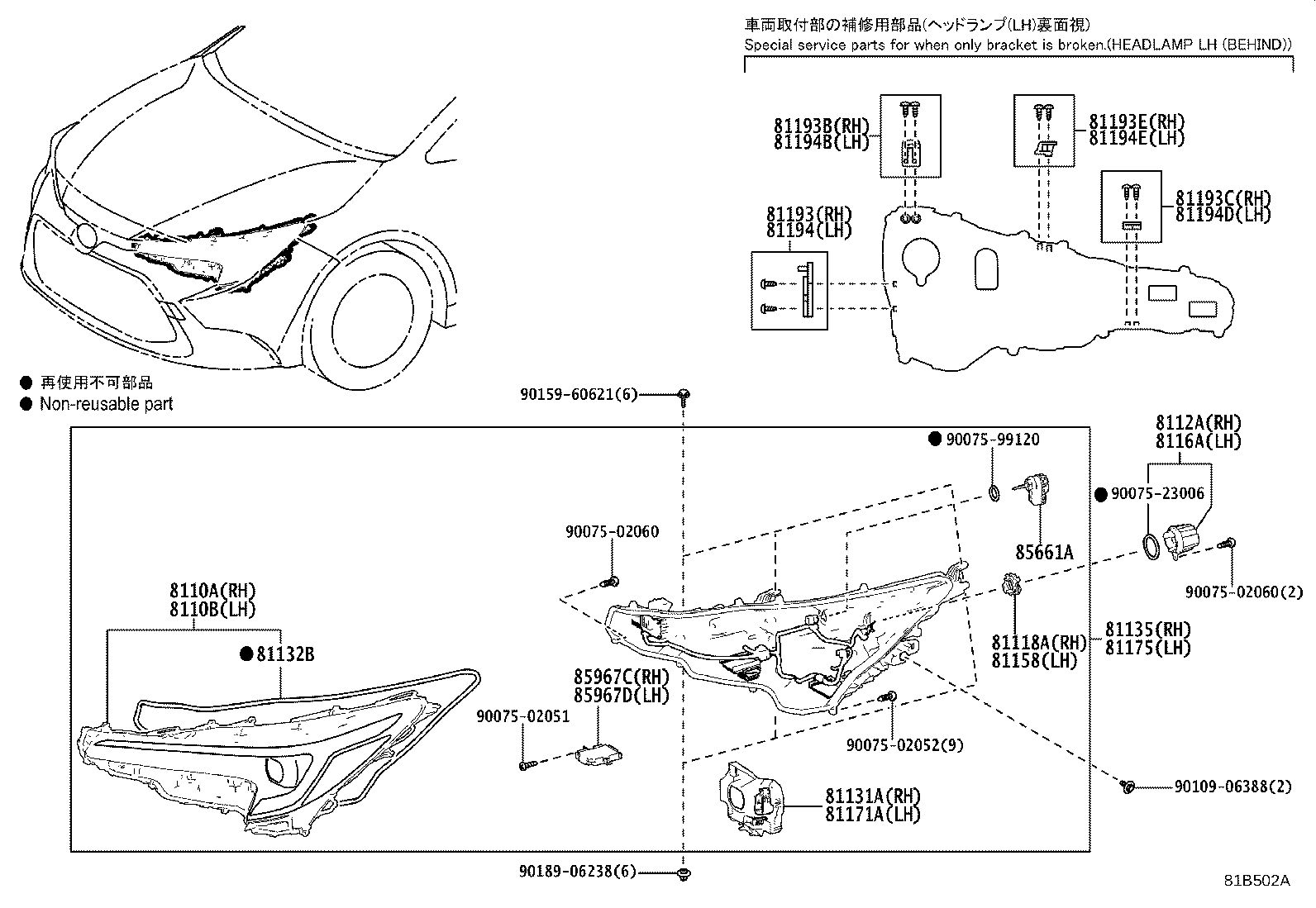

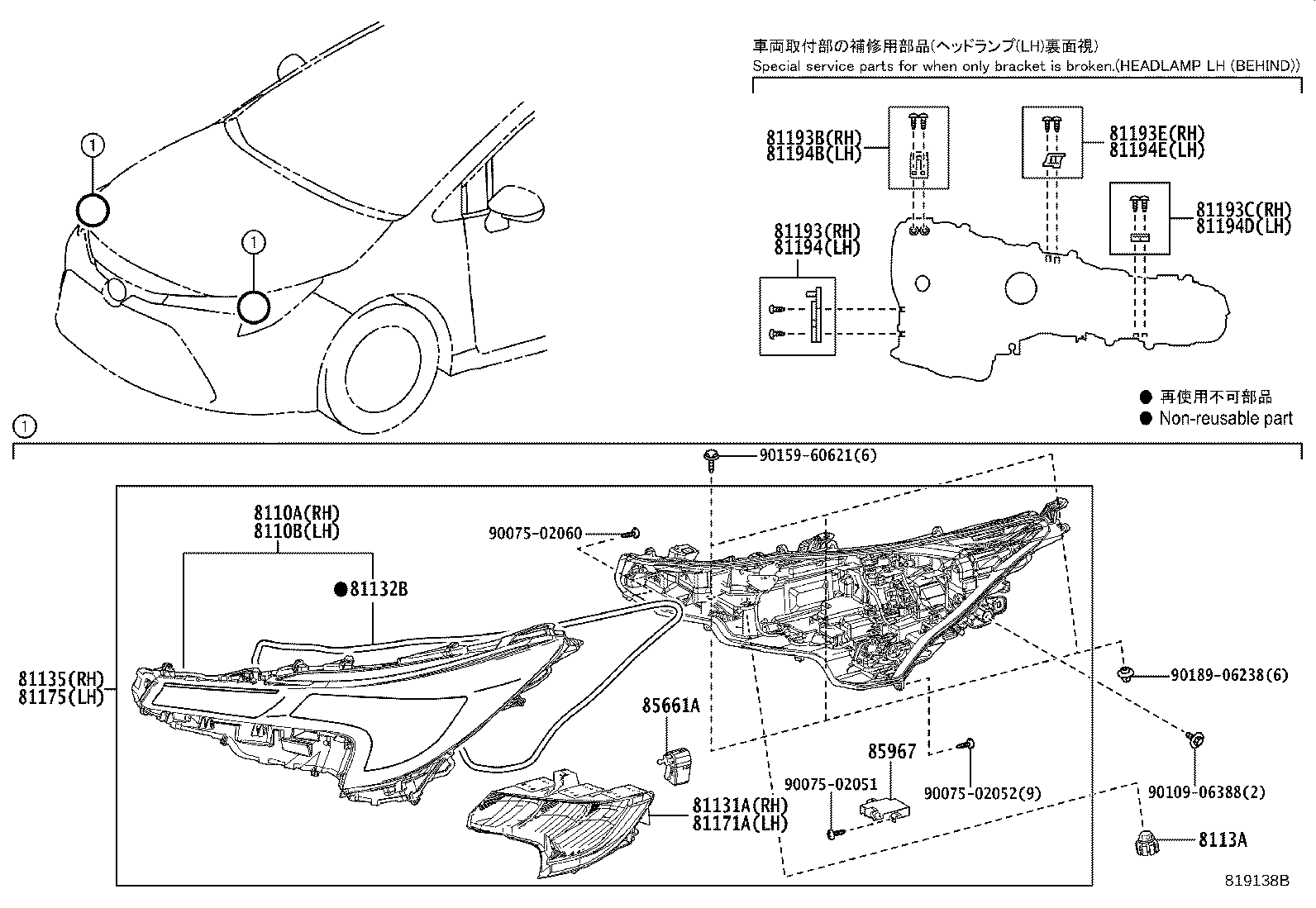

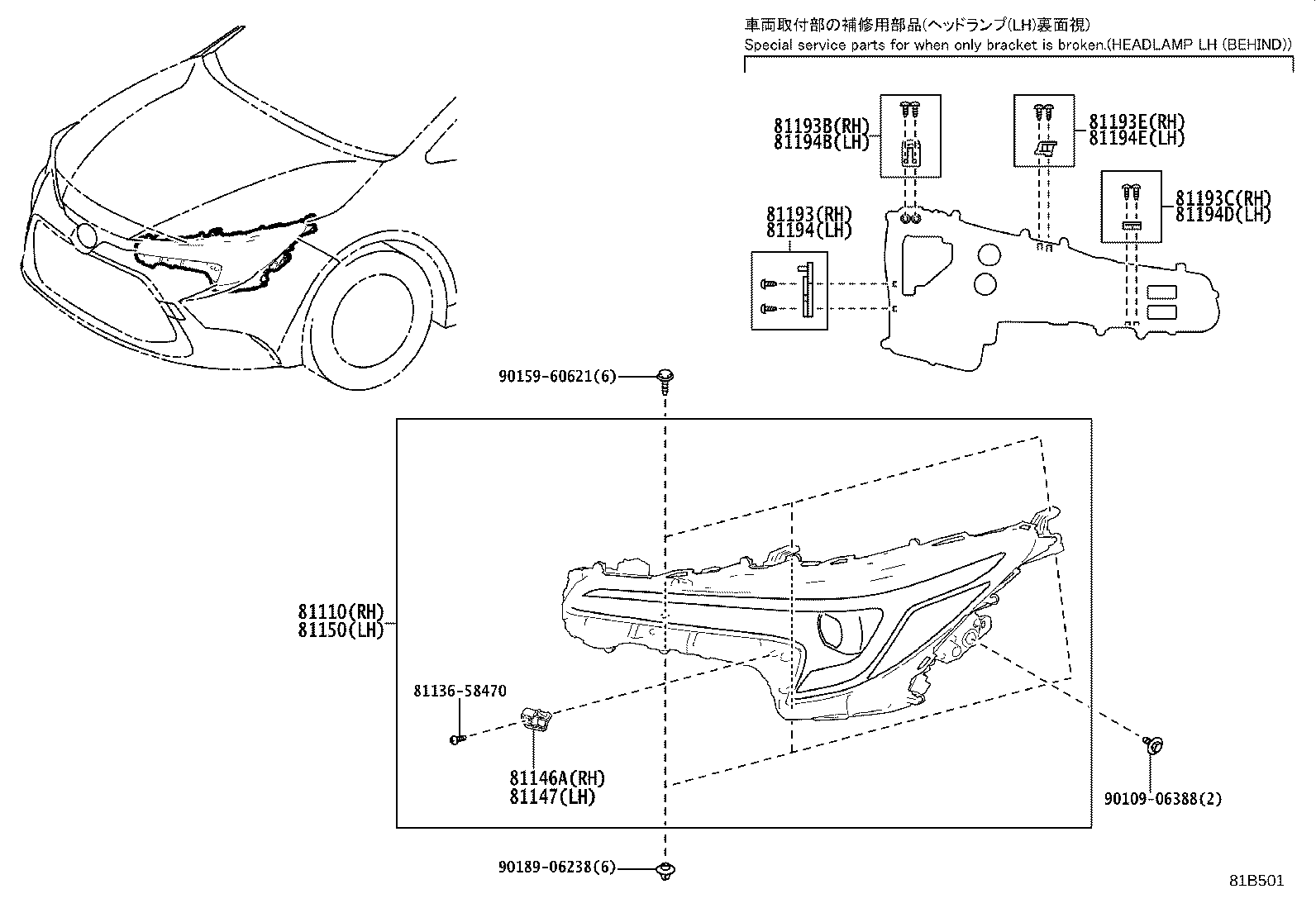

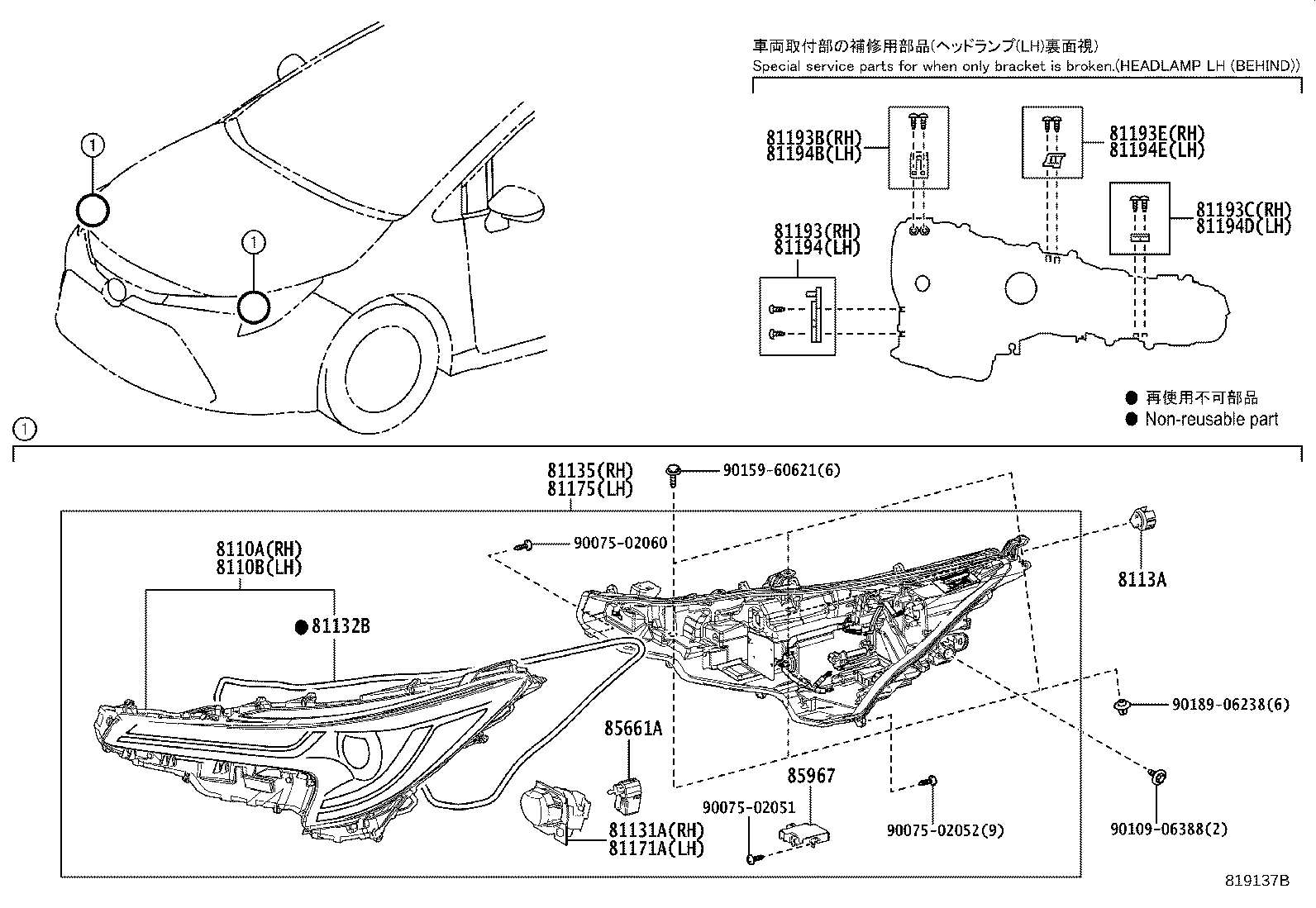

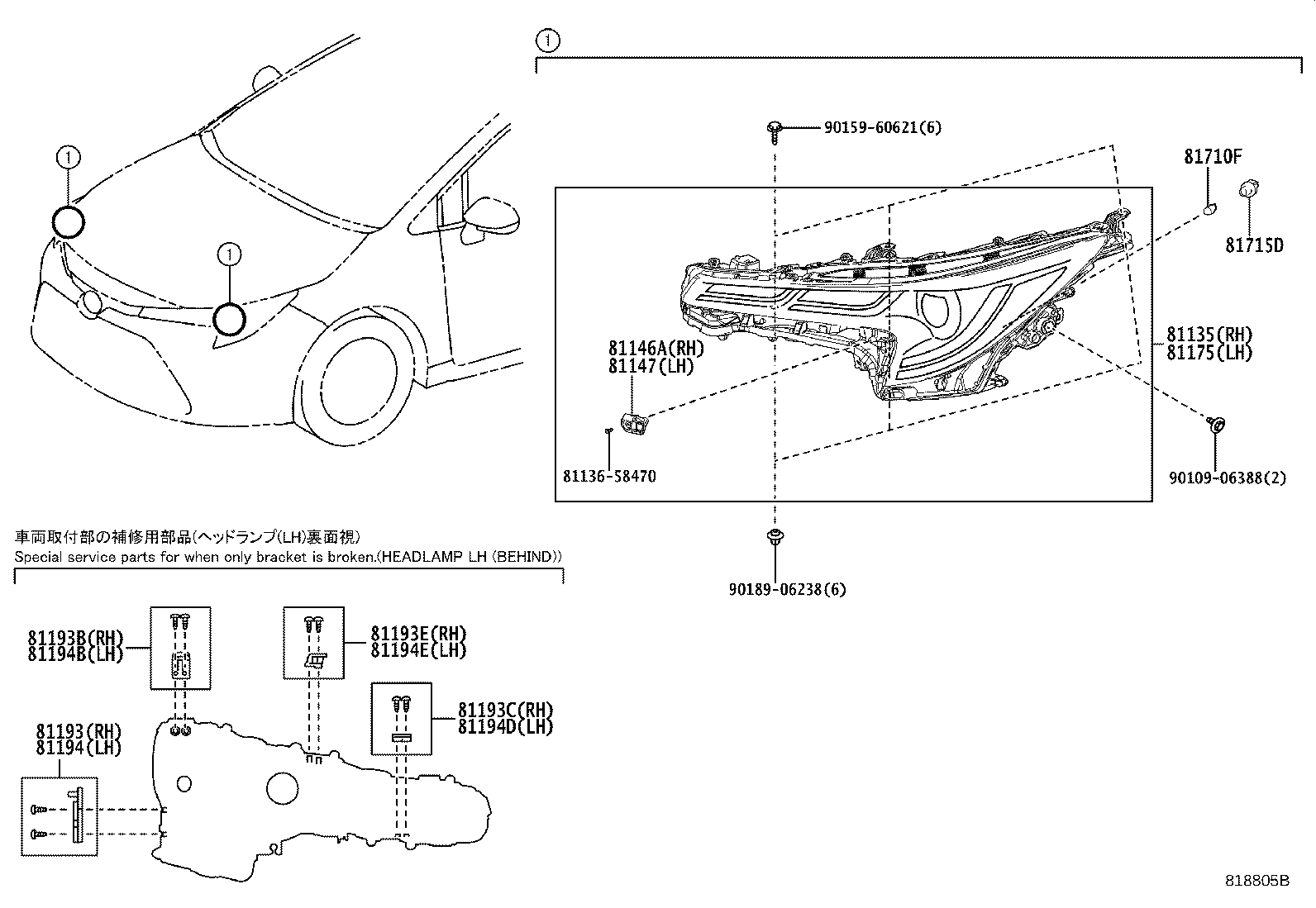

Figure 818804B 818804B 2019-01 → — Figure 818804B 818804B 2022-09 → — Figure 818805B 818805B 2019-01 → 2022-09 Figure 819137B 819137B 2019-09 → 2022-09 Figure 819138B 819138B 2019-09 → — Figure 819138B 819138B 2022-09 → — Figure 81B501 81B501 2022-09 → — Figure 81B502A 81B502A 2022-09 → —

Part groups

PNCDescription
8110A Lens Sub-assy, Headlamp, RH
8110B Lens Sub-assy, Headlamp, LH
81110 Headlamp Assy, RH
81118A Bracket, Headlamp, RH
8112A Unit, Headlamp Clearance Led, NO.1 RH
81131A Unit, Headlamp, RH
81132B Gasket, Headlamp Lens
81135 Unit Assy, Headlamp, RH
8113A Led, Headlamp Front Turn Signal
81146A Fitting, Headlamp, RH
81147 Fitting, Headlamp, LH
81150 Headlamp Assy, LH
81158 Bracket, Headlamp, LH
8116A Unit, Headlamp Clearance Led, NO.1 LH
81171A Unit, Headlamp, LH
81175 Unit Assy, Headlamp, LH
81193 Retainer, Headlamp Protector, Upper RH
81193B Retainer, Headlamp Protector, Upper RH NO.2
81193C Retainer, RH Headlamp Protector, Upper RH
81193E Retainer, Headlamp Protector, Upper RH NO.3
81194 Retainer, Headlamp Protector, Upper LH
81194B Retainer, Headlamp Protector, Upper LH NO.2
81194D Retainer, LH Headlamp Protector, Upper LH
81194E Retainer, Headlamp Protector, Upper LH NO.3
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81710F Bulb, Front Side Maker Lamp
81715D Socket Plug, Front Marker Lamp
85661A Motor, Headlamp Leveling
85967 Computer, Light Control
85967C Computer, Light Control Led, RH
85967D Computer, Light Control Led, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
