Toyota Corolla Sed (JPP)
2019-01 → present · chassis MZEA1#,ZRE212,ZWE21# · catalogue 153260 · United States
Supported model
Data version 2024-09
Hev Inverter
11 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

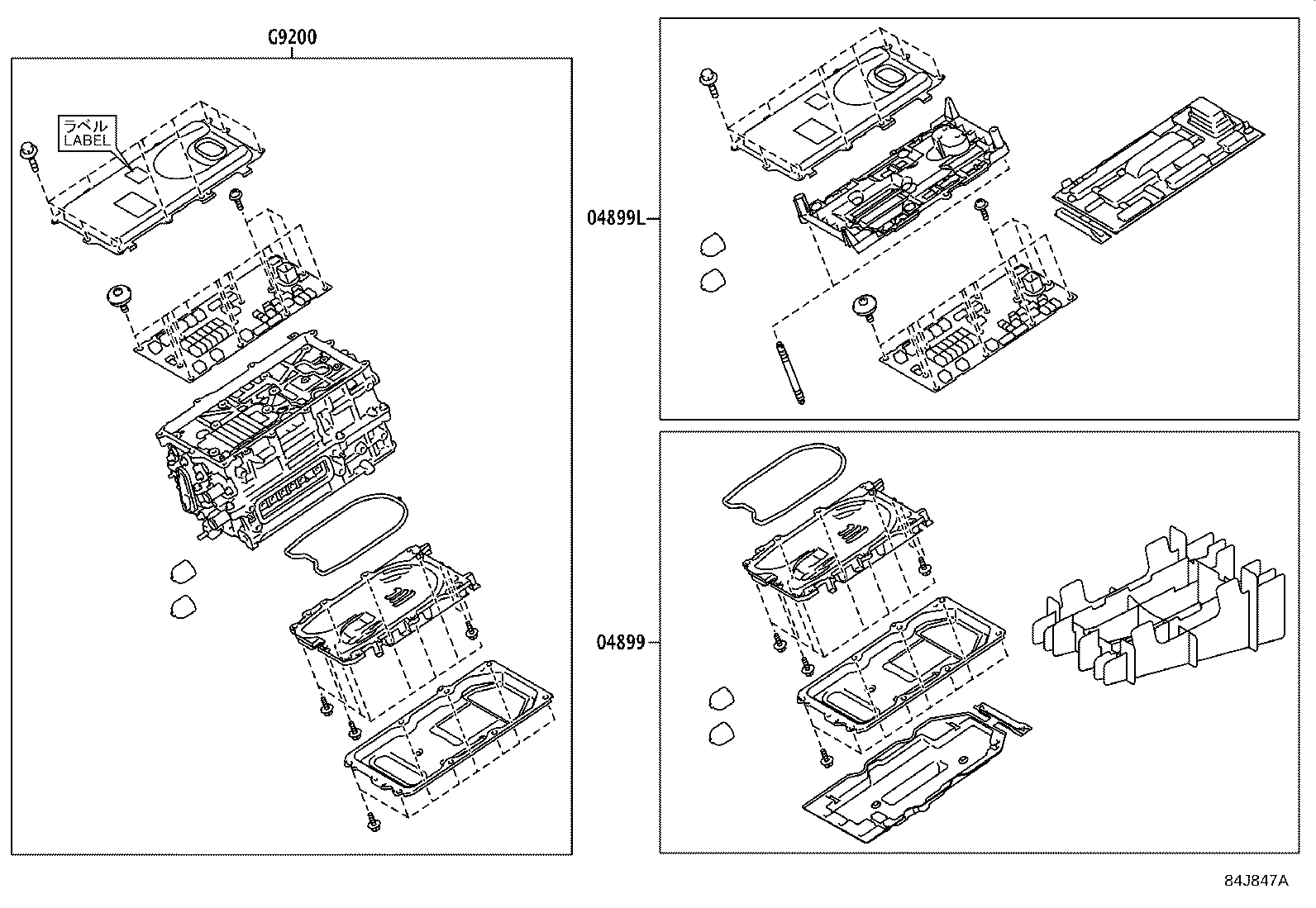

| 04899 | Converter Kit, HV |
| 04899L | Computer Kit, Motor Generator Control |
| G9172A | Clamp, Inverter Cooling Pipe |

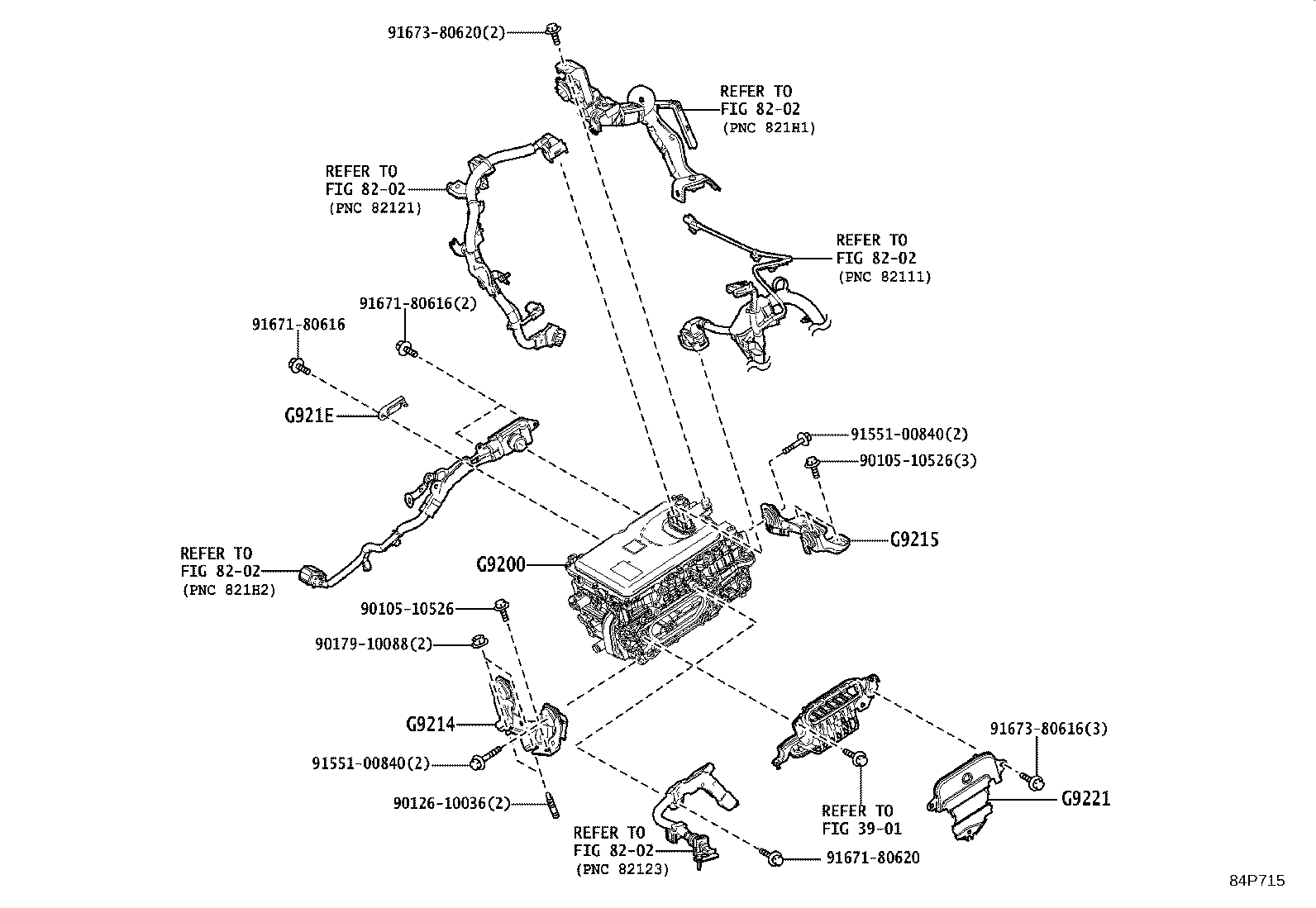

| G9200 | Inverter Assy, W/Converter |

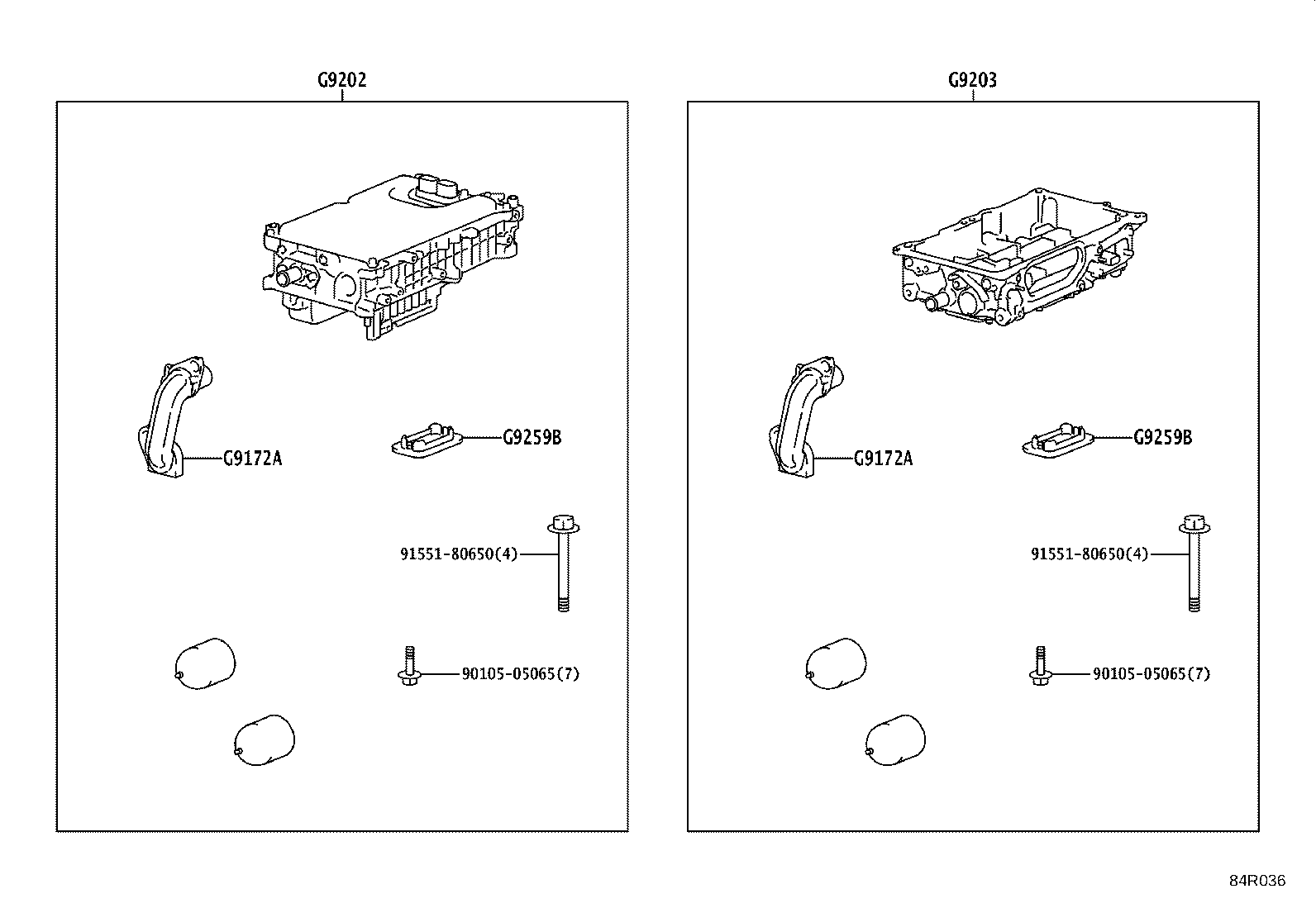

| G9202 | Case Sub-assy, Inverter |
| G9203 | Case Sub-assy, Converter |
| G9214 | Bracket, Inverter, NO.1 |
| G9215 | Bracket, Inverter, NO.2 |
| G921E | Protector, Inverter |
| G9221 | Cover, Inverter |
| G9259B | Plug, Inverter Drain |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
