Heating & Air Conditioning - Control & Air Duct

22 part groups · 14 illustrations

Illustrations

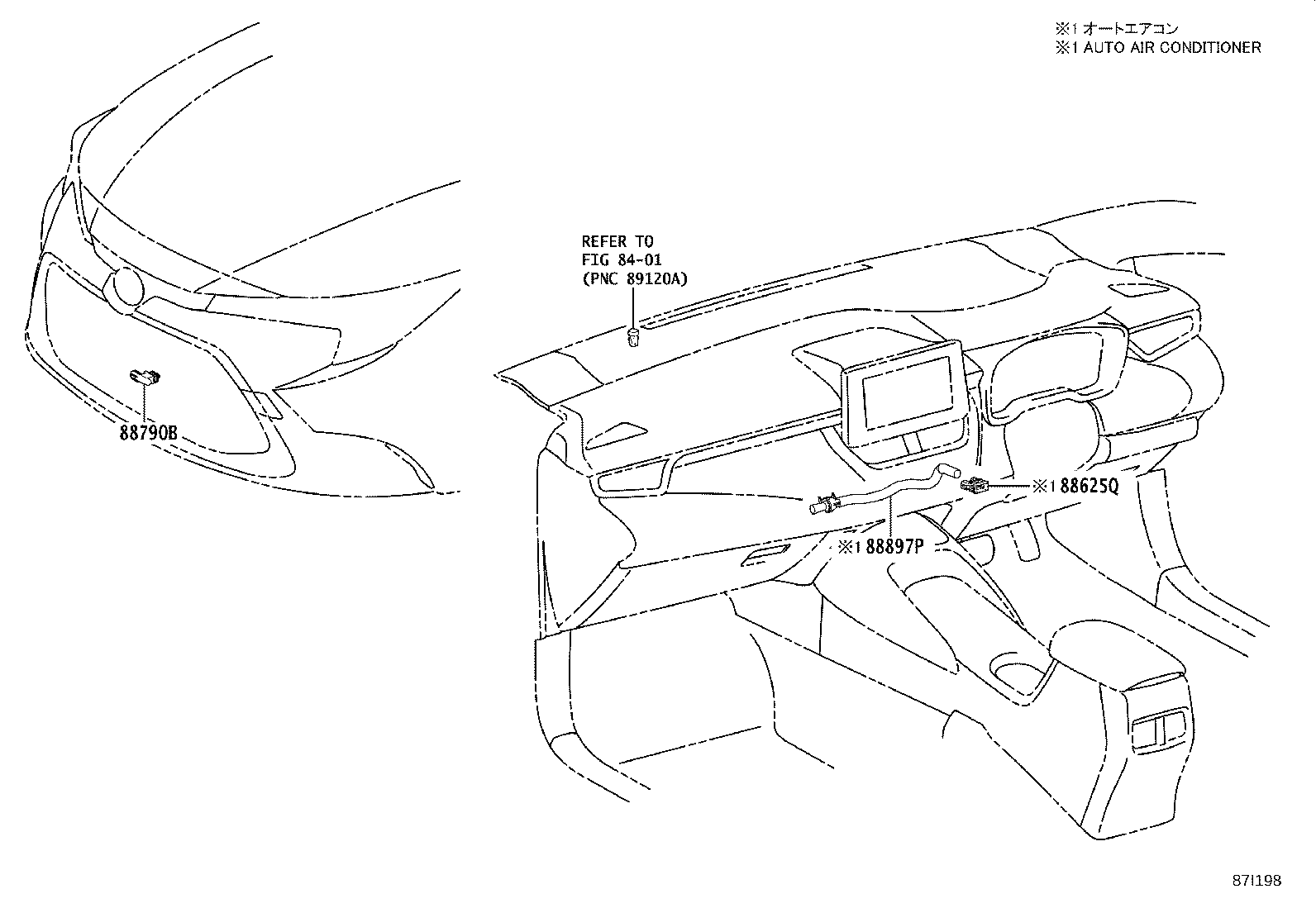

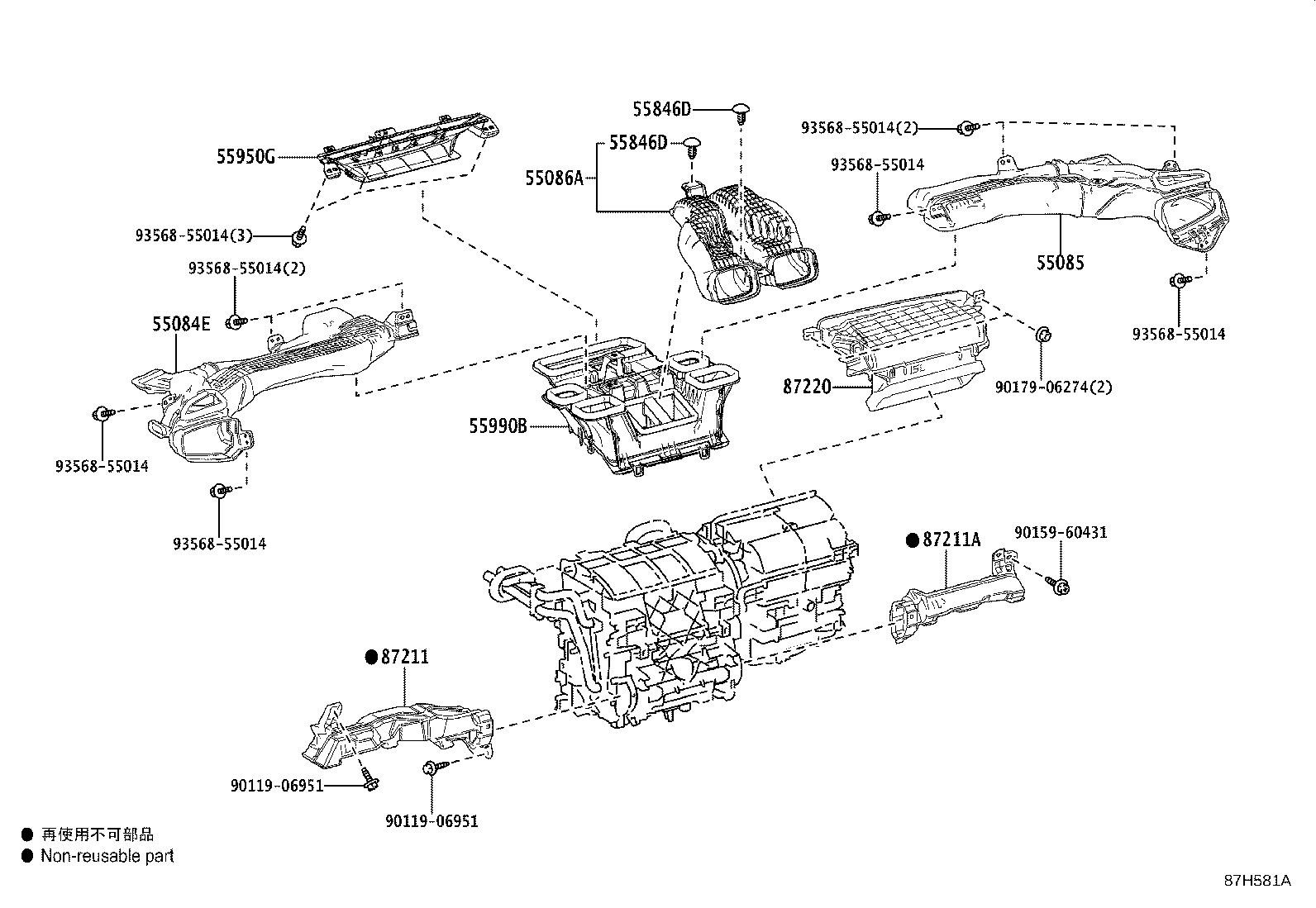

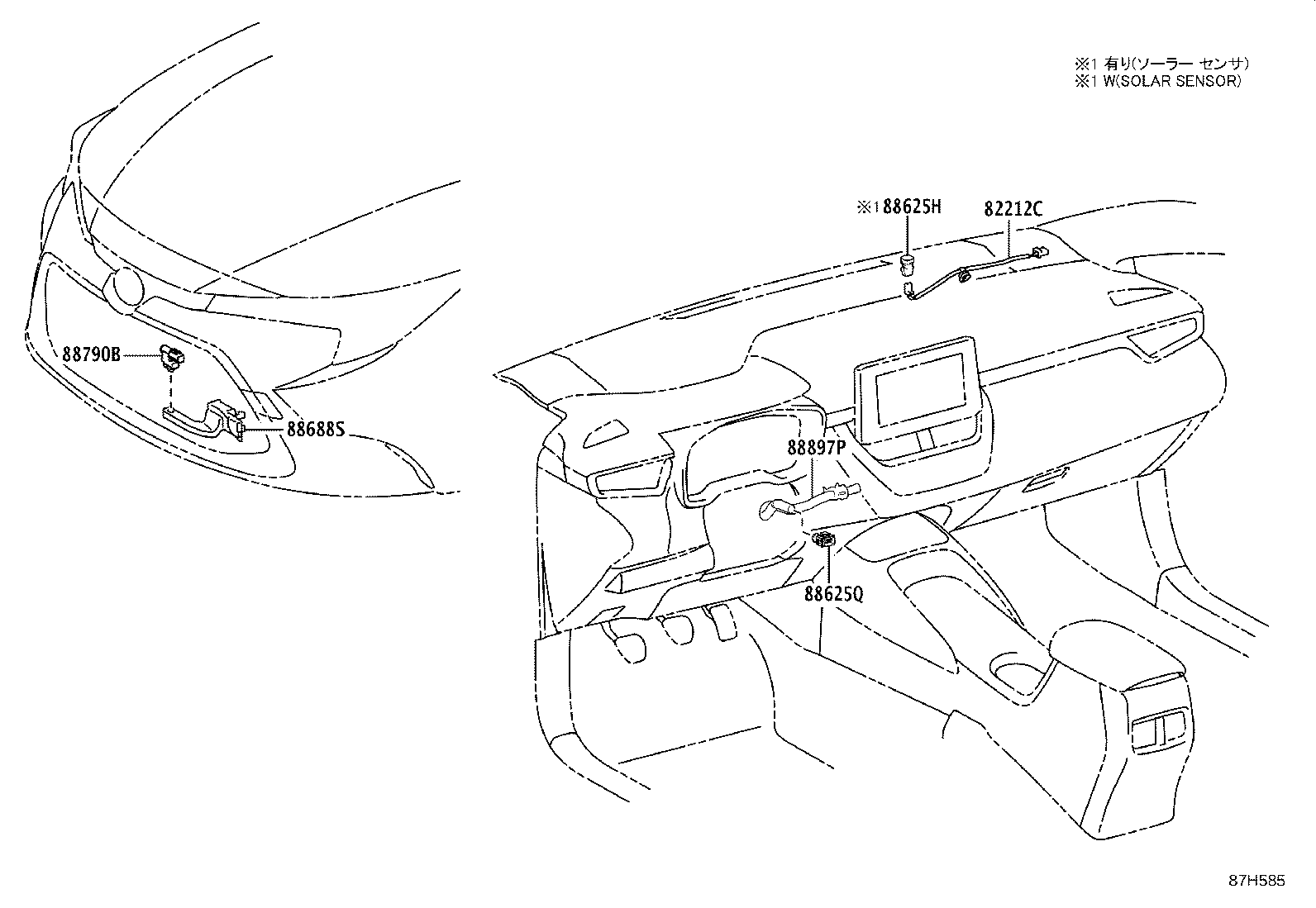

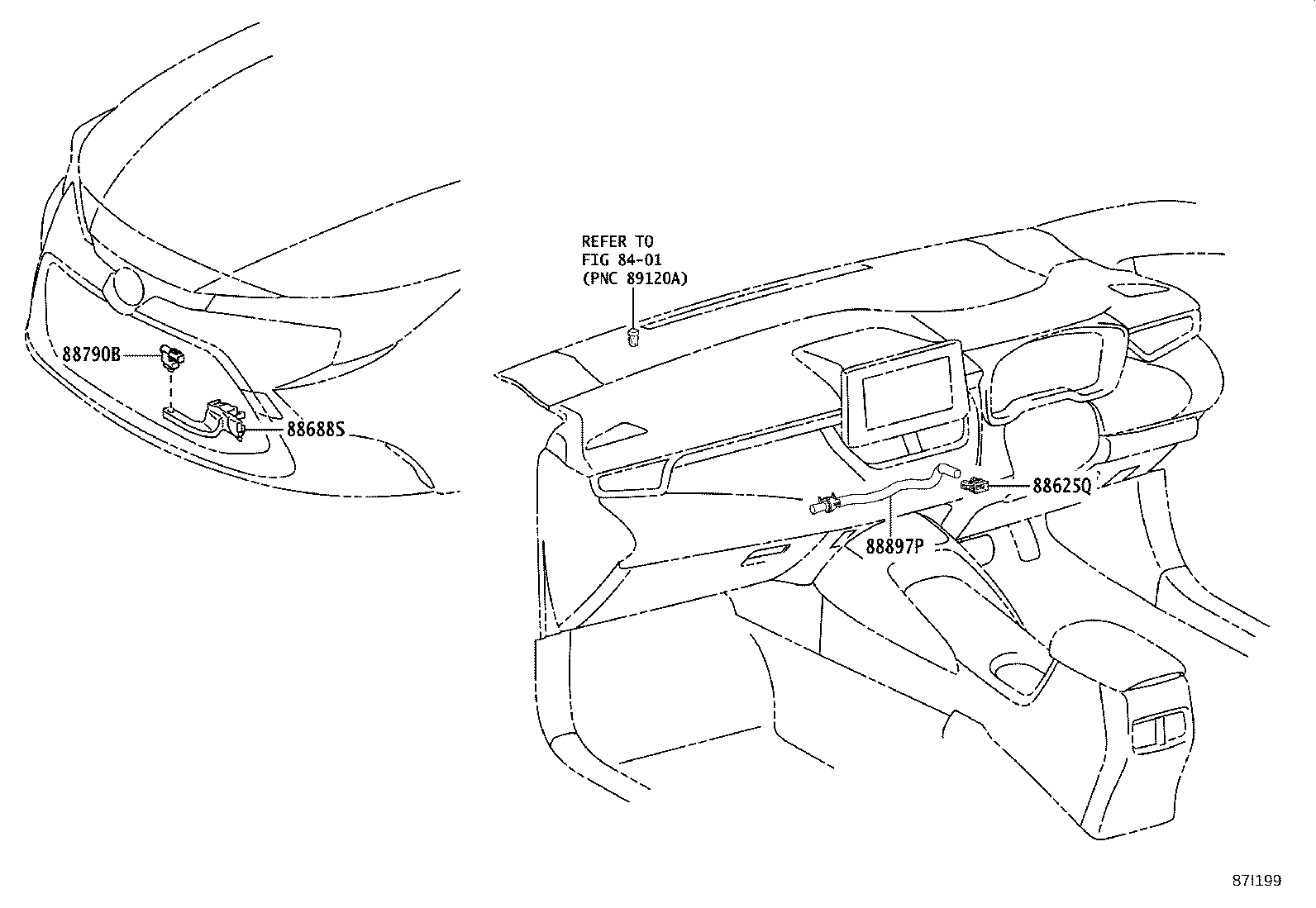

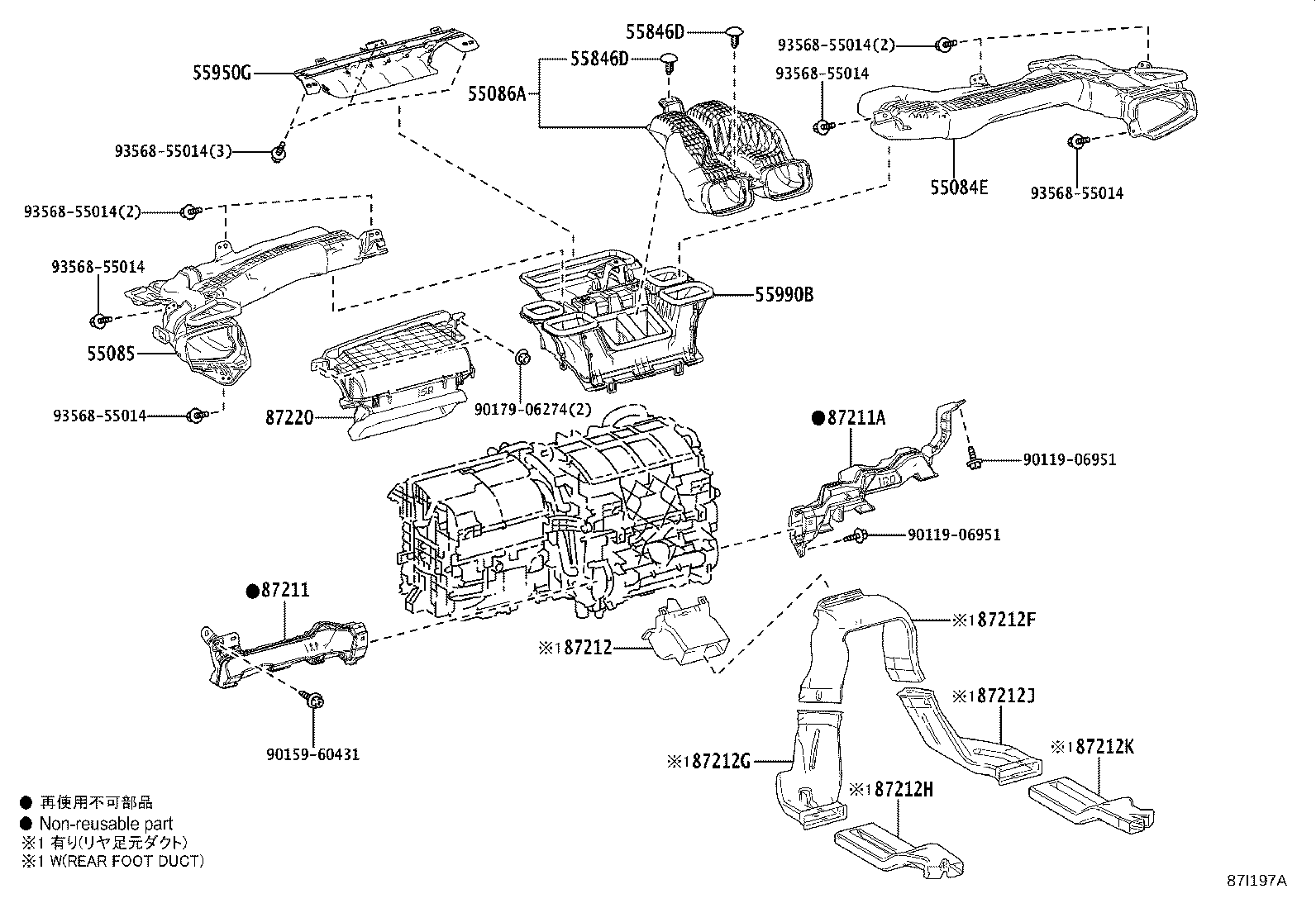

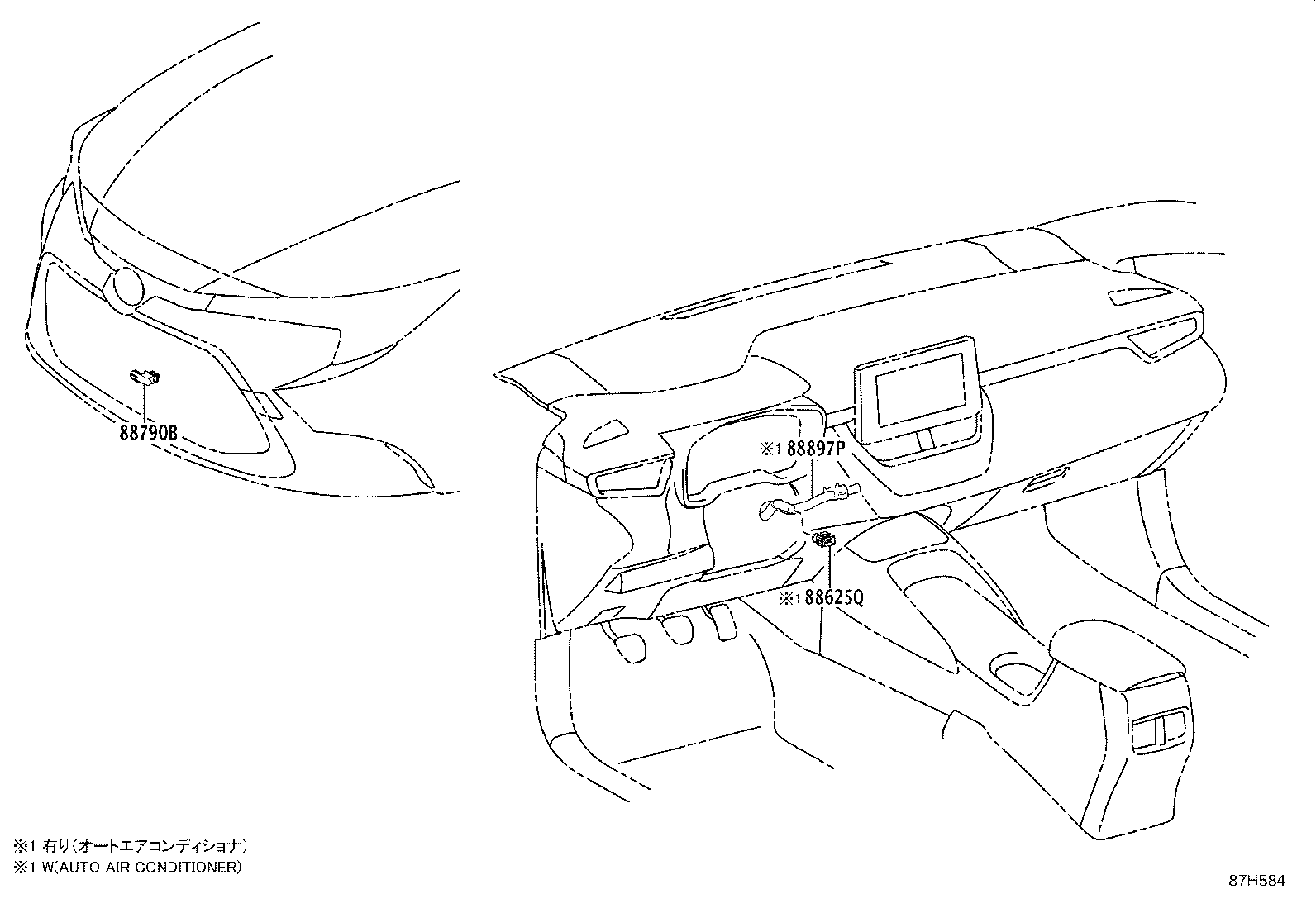

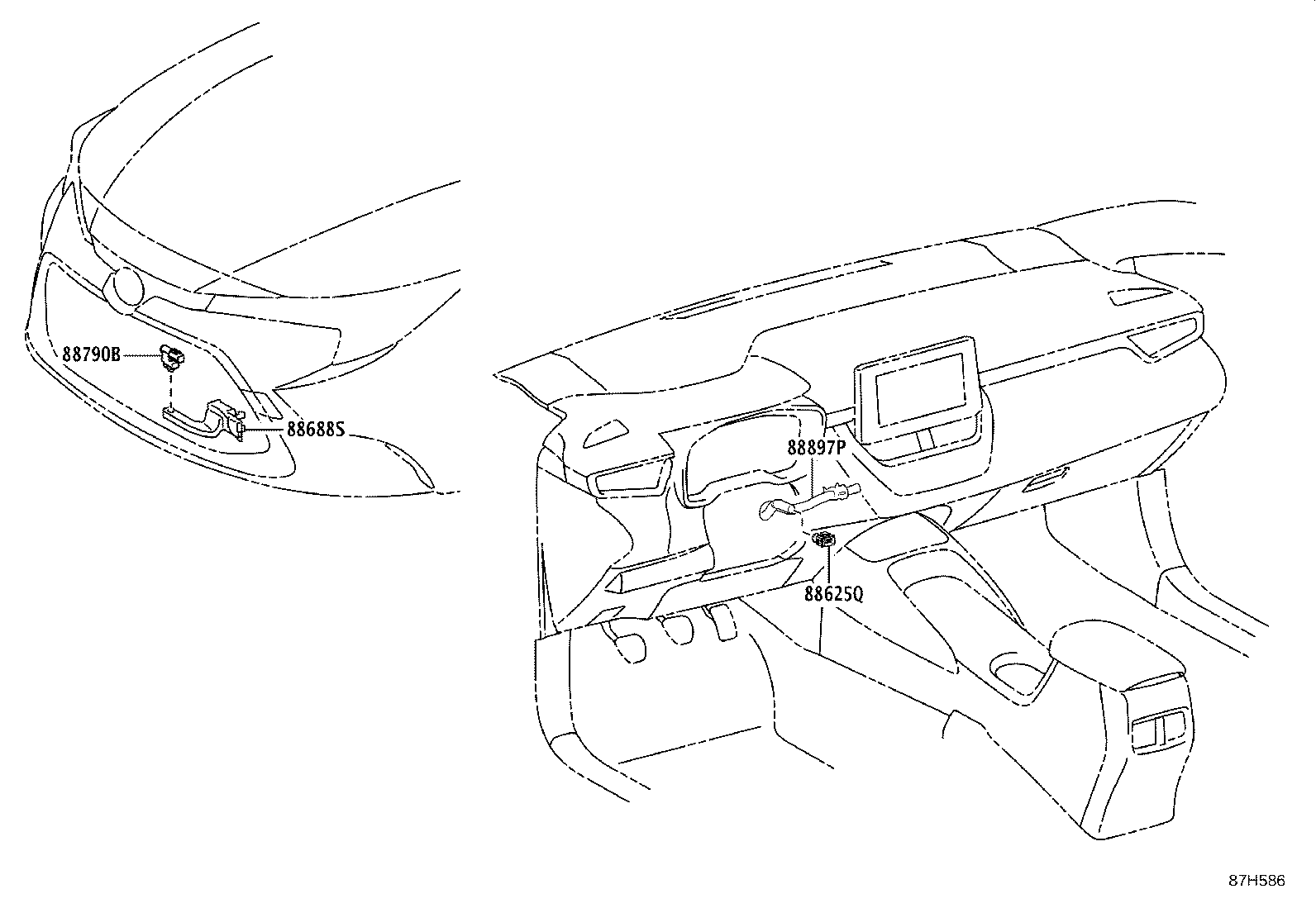

Figure 87H580A 87H580A 2019-01 → 2020-04 Figure 87H580A 87H580A 2020-04 → — Figure 87H581A 87H581A 2019-01 → 2020-04 Figure 87H581A 87H581A 2020-04 → — Figure 87I197A 87I197A 2019-09 → 2020-04 Figure 87I197A 87I197A 2020-04 → — Figure 87H584 87H584 2019-01 → 2020-04 Figure 87H584 87H584 2020-04 → — Figure 87I198 87I198 2019-09 → 2020-04 Figure 87I198 87I198 2020-04 → — Figure 87H585 87H585 2019-01 → 2020-04 Figure 87H586 87H586 2020-04 → — Figure 87I199 87I199 2019-09 → 2020-04 Figure 87I199 87I199 2020-04 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55085 Duct Sub-assy, Heater TO Register, NO.2
55086A Duct Sub-assy, Heater TO Register, Center
55846D Clip, Heater TO Register Duct
55900 Control Assy, Air Conditioner
55950G Nozzle Assy, Defroster
55990B Nozzle Assy, Defroster, Lower
82212C Harness, Air Conditioner NO.1
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87212 Duct, Air, Rear NO.1
87212F Duct, Air, Rear NO.2
87212G Duct, Air, Rear NO.3
87212H Duct, Air, Rear NO.4
87212J Duct, Air, Rear NO.5
87212K Duct, Air, Rear NO.6
87220 Duct Assy, Air
88625H Thermistor, Cooler (SOLAR SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88688S Bracket (FOR COOLER THERMISTOR)
88790B Thermistor Assy
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
