Toyota Corolla Sed (JPP)

2019-01 → present · chassis MZEA1#,ZRE212,ZWE21# · catalogue 153260 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

23 part groups · 14 illustrations

Illustrations

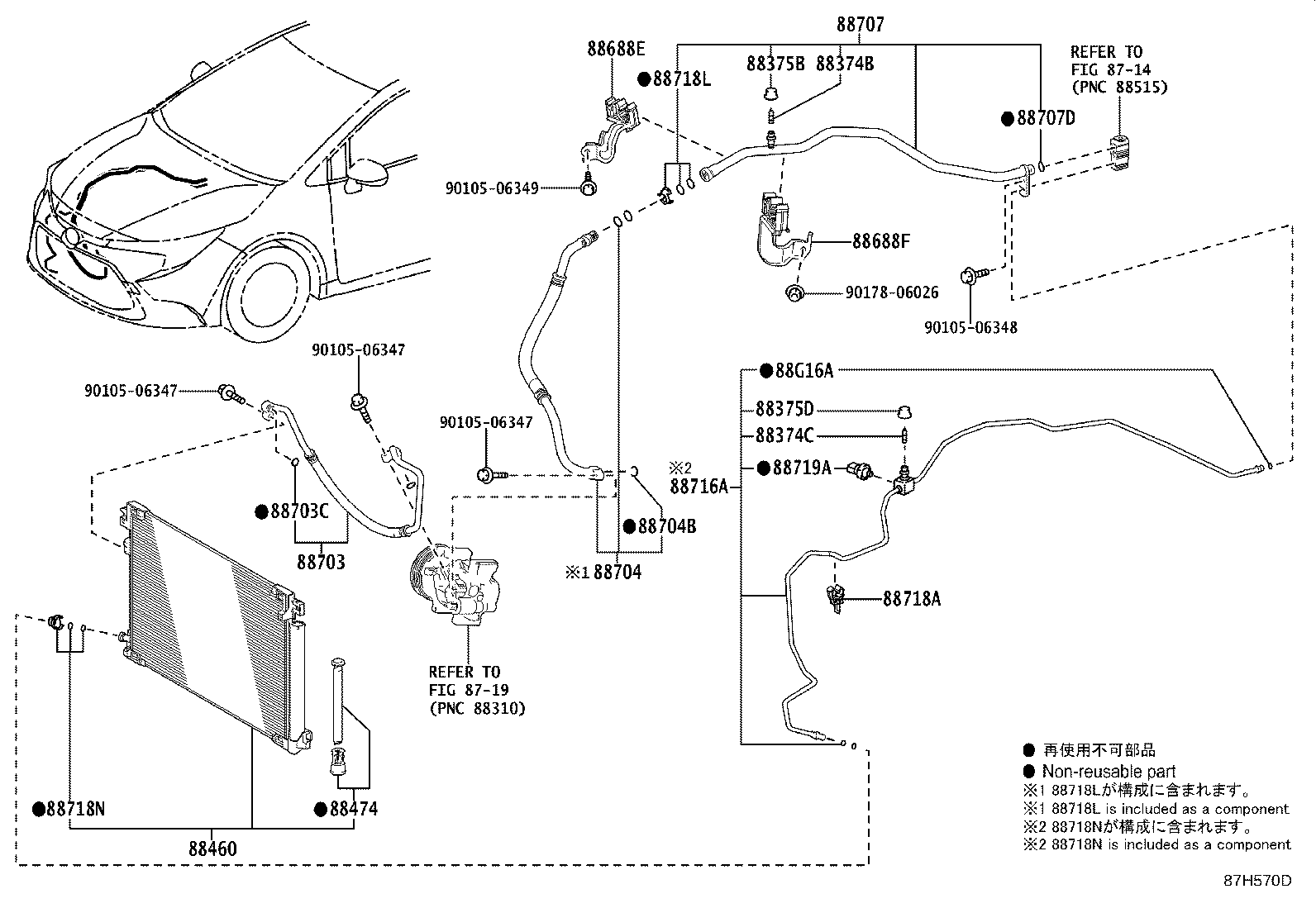

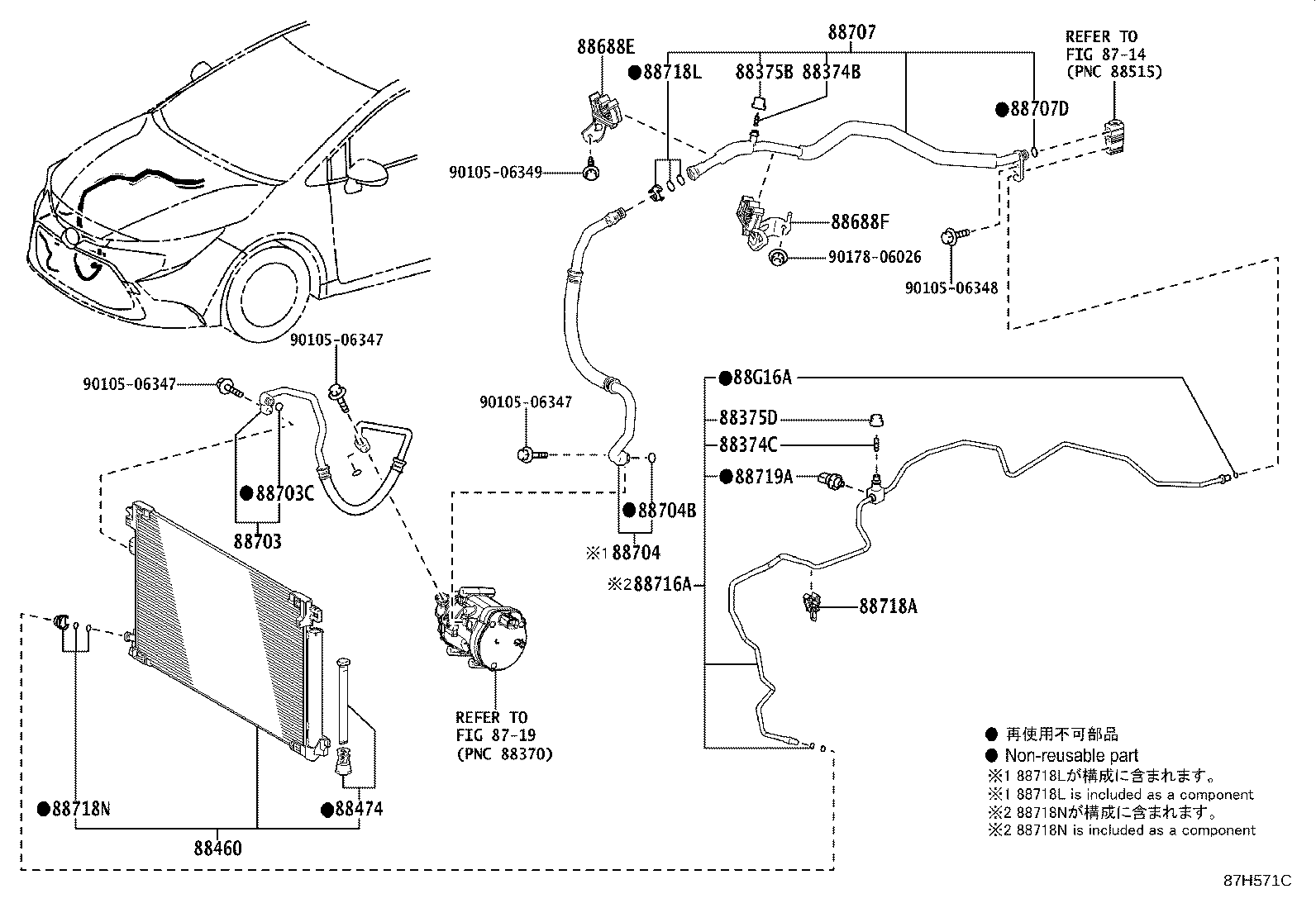

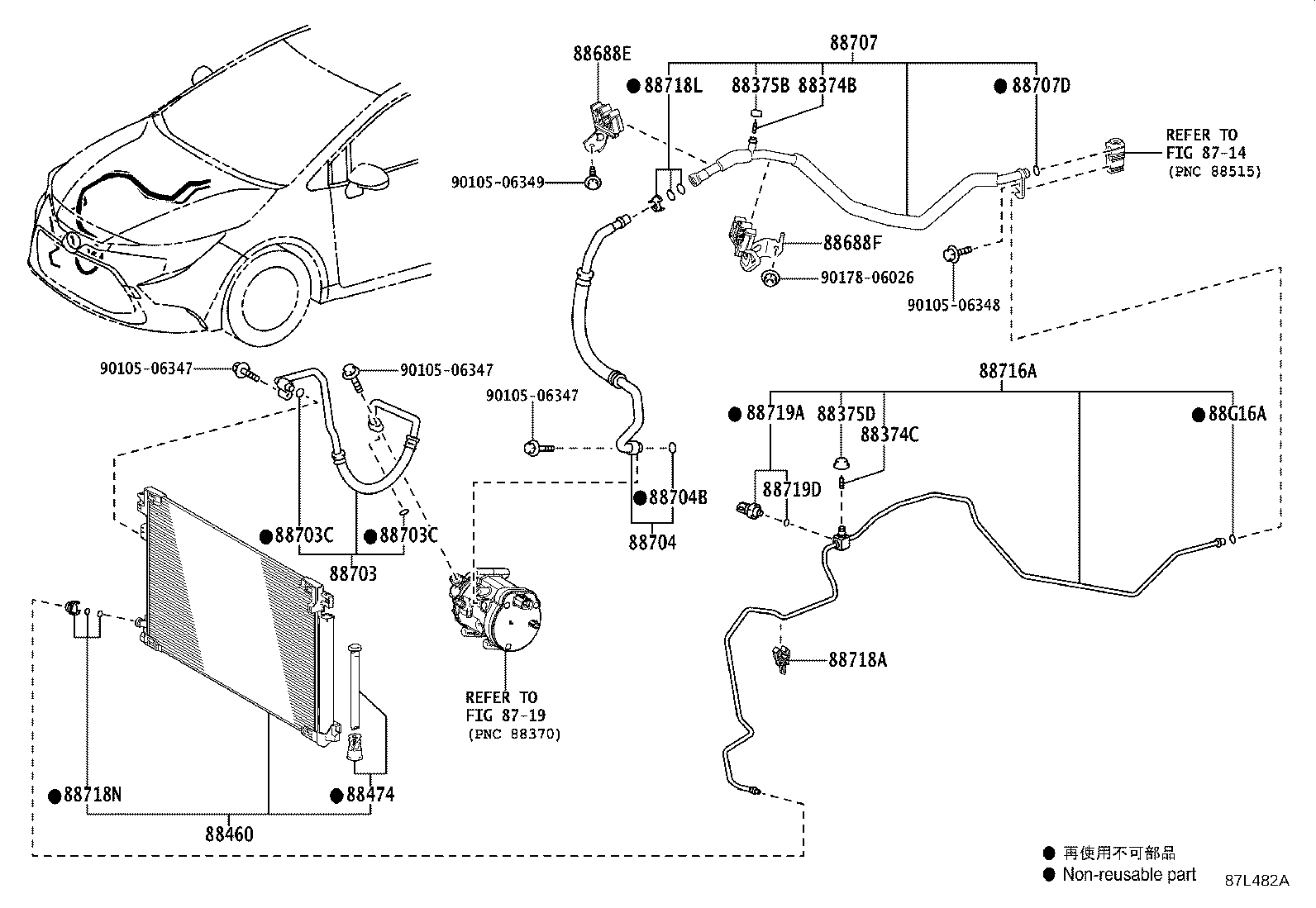

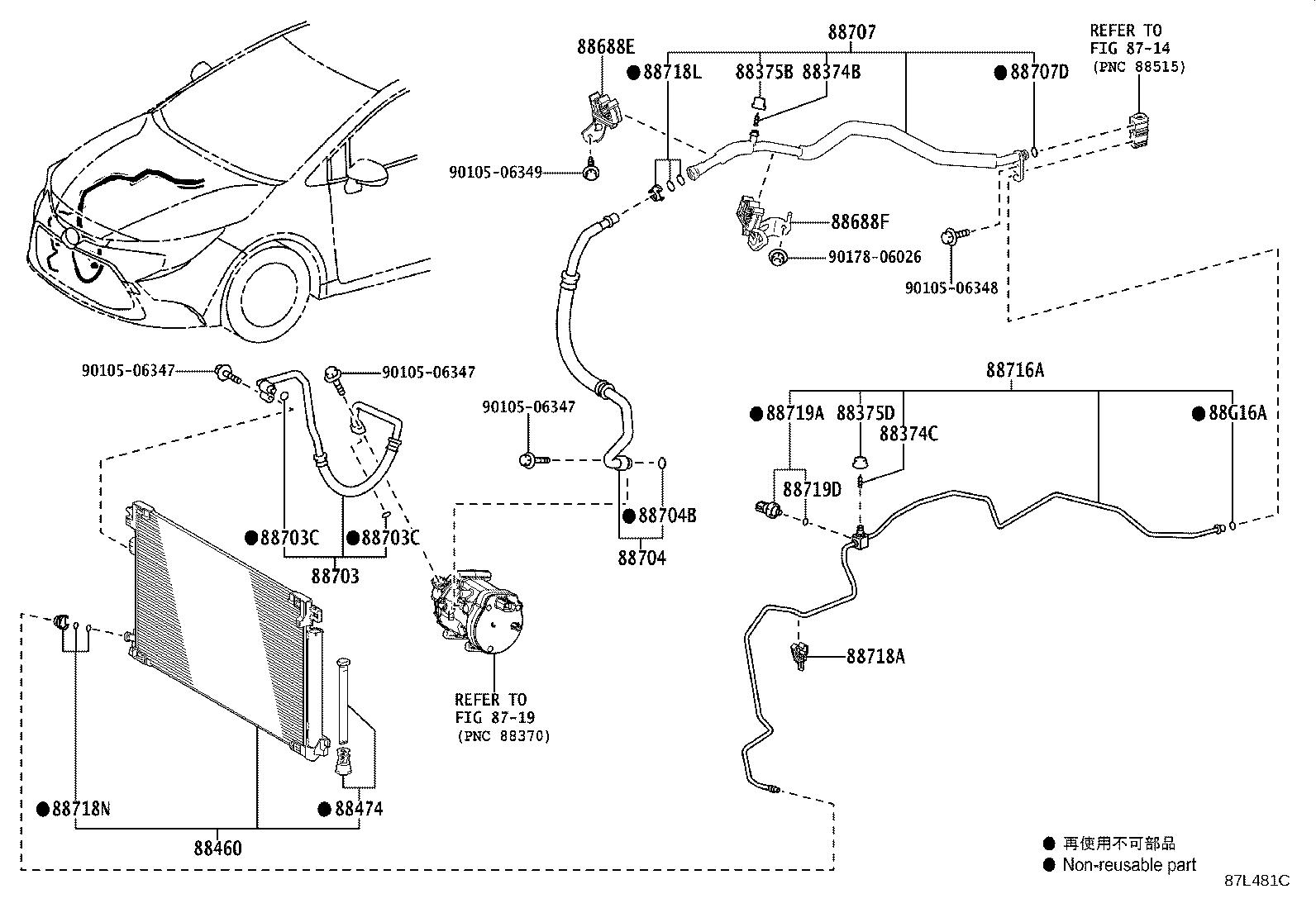

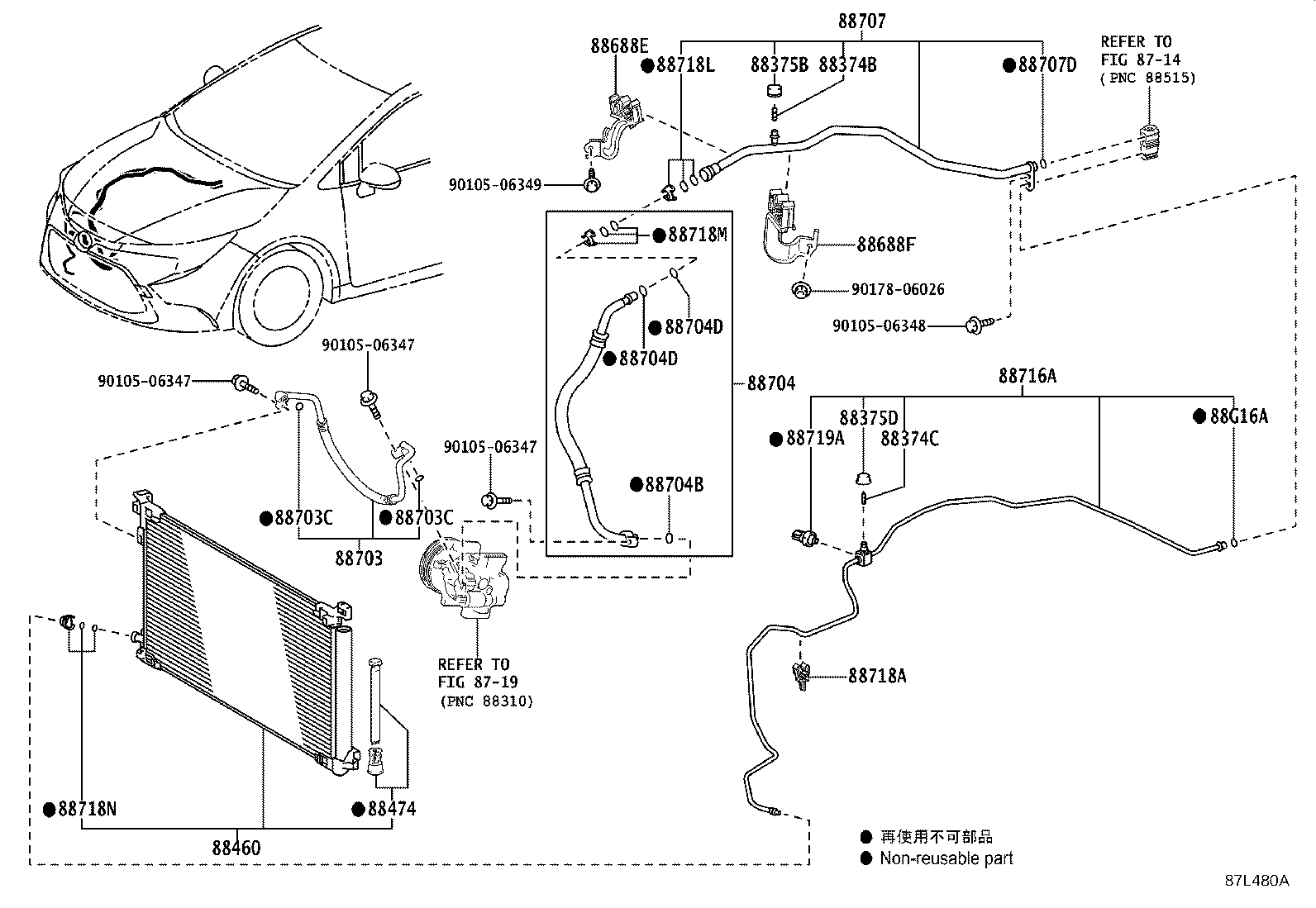

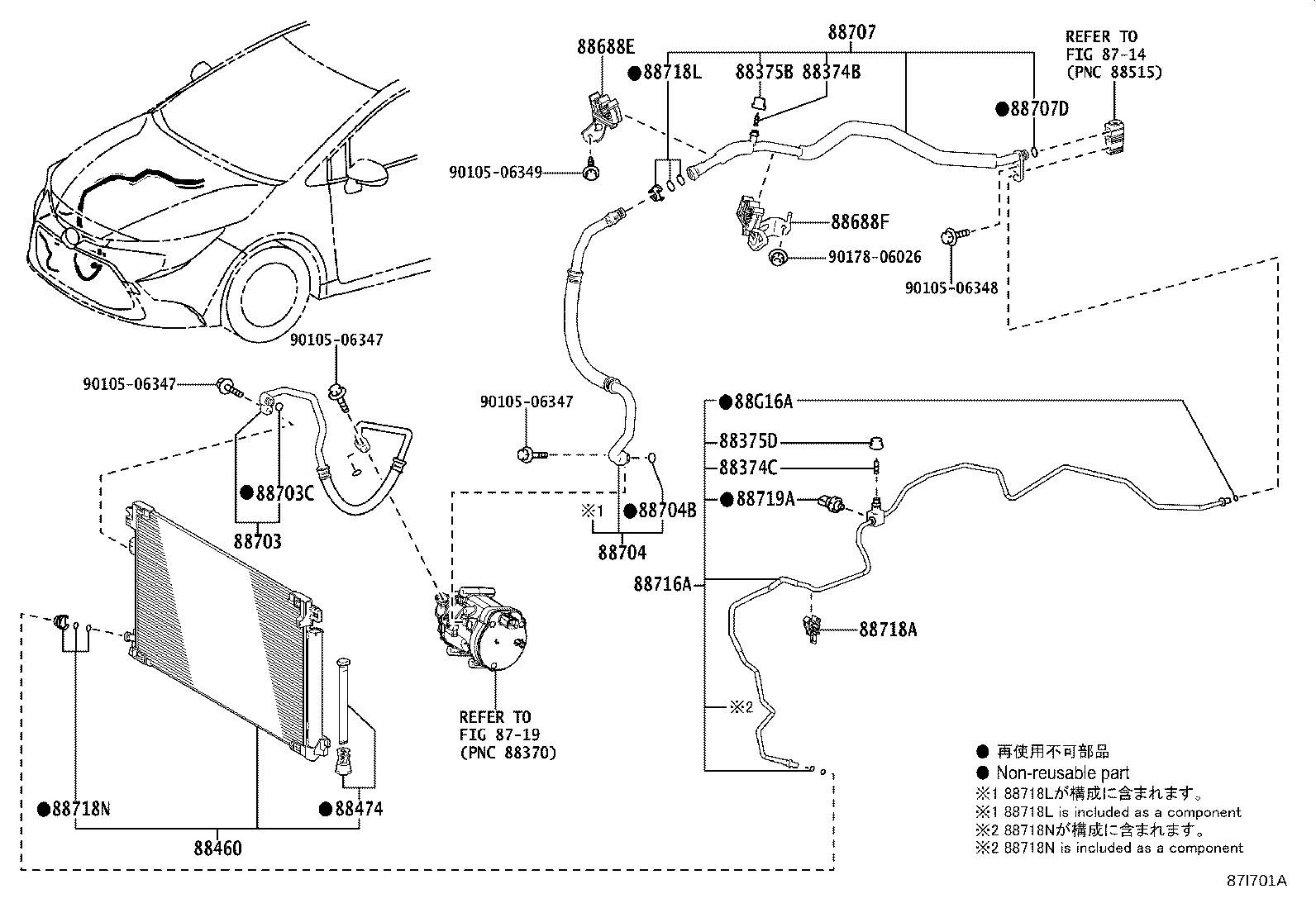

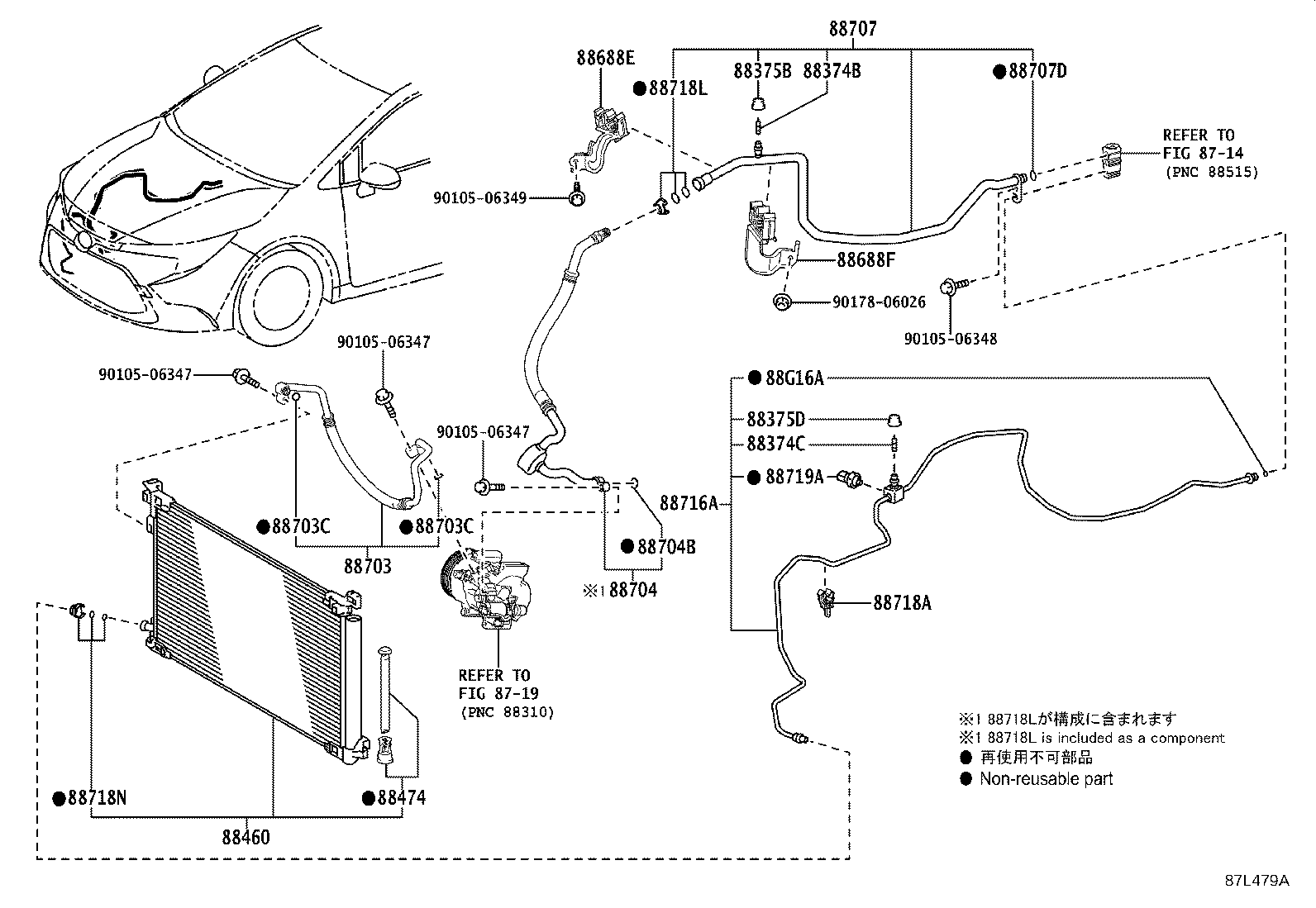

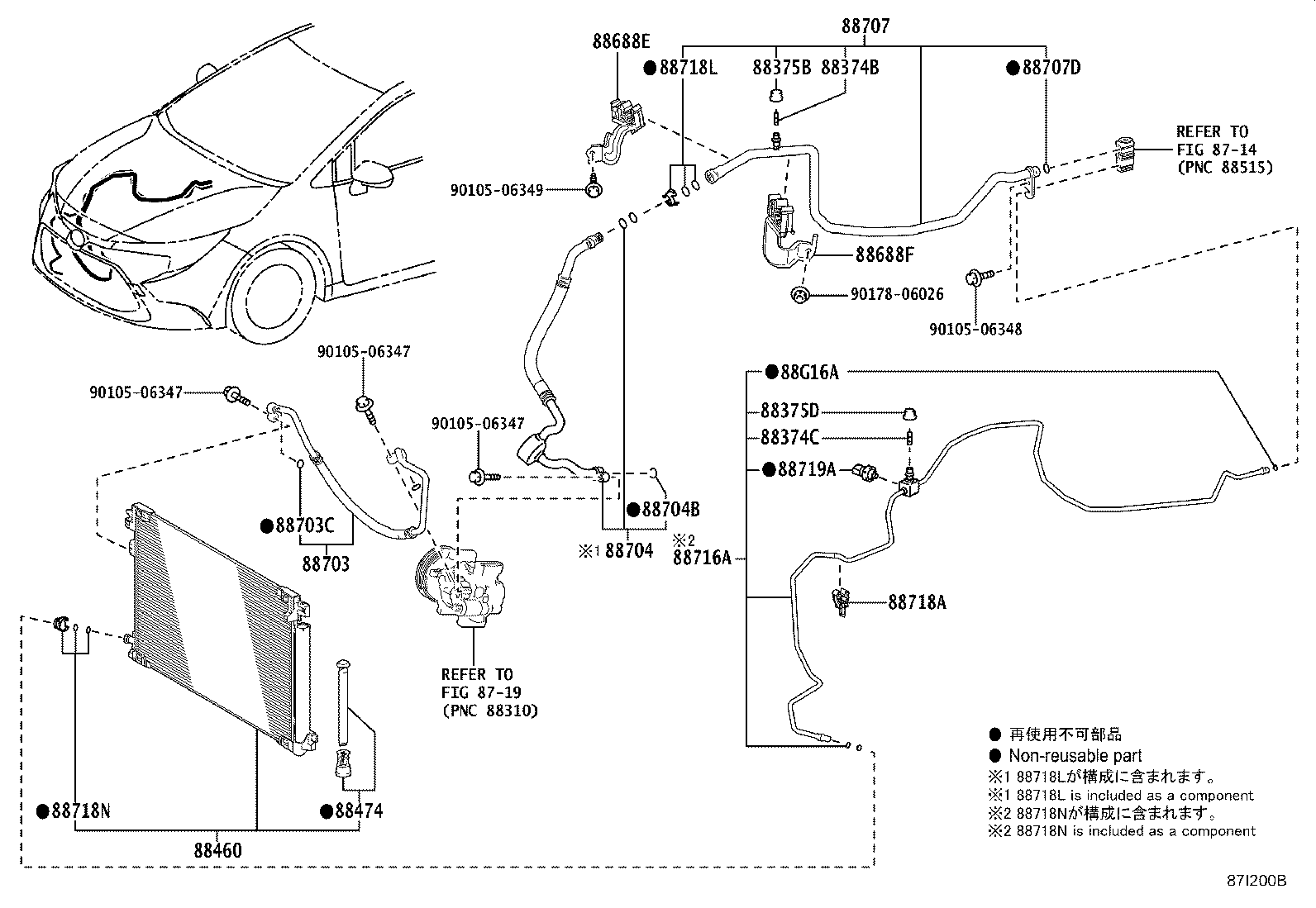

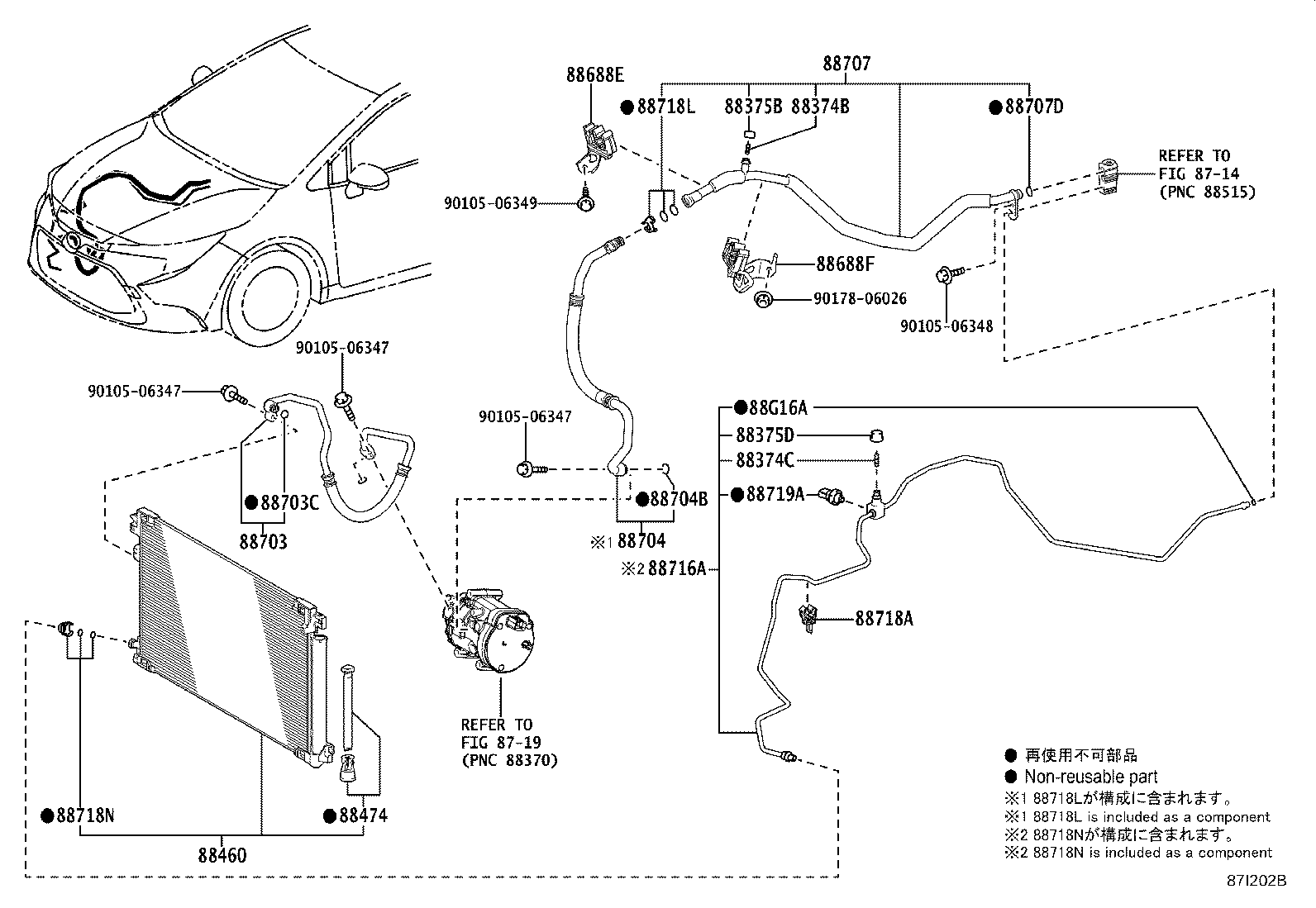

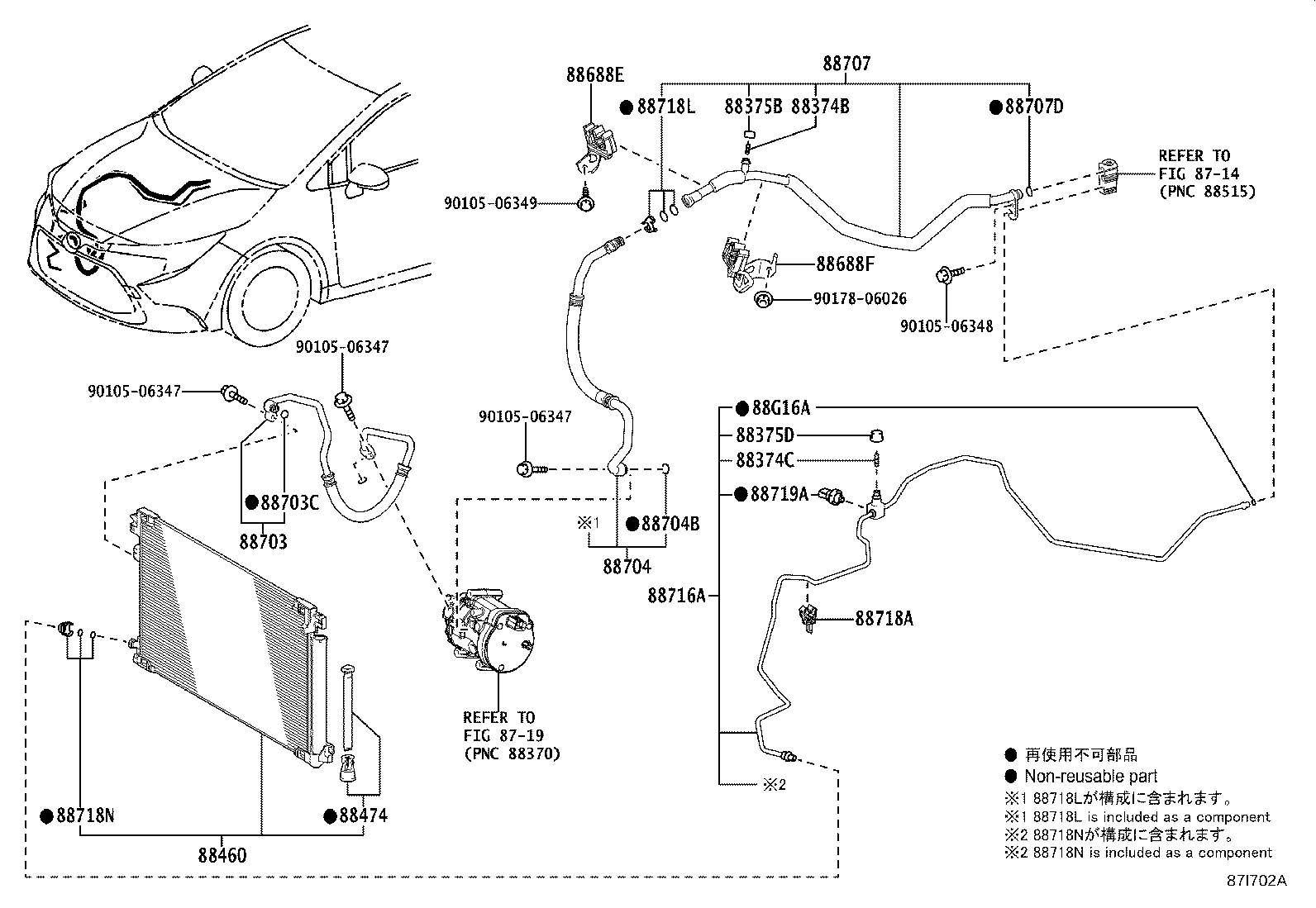

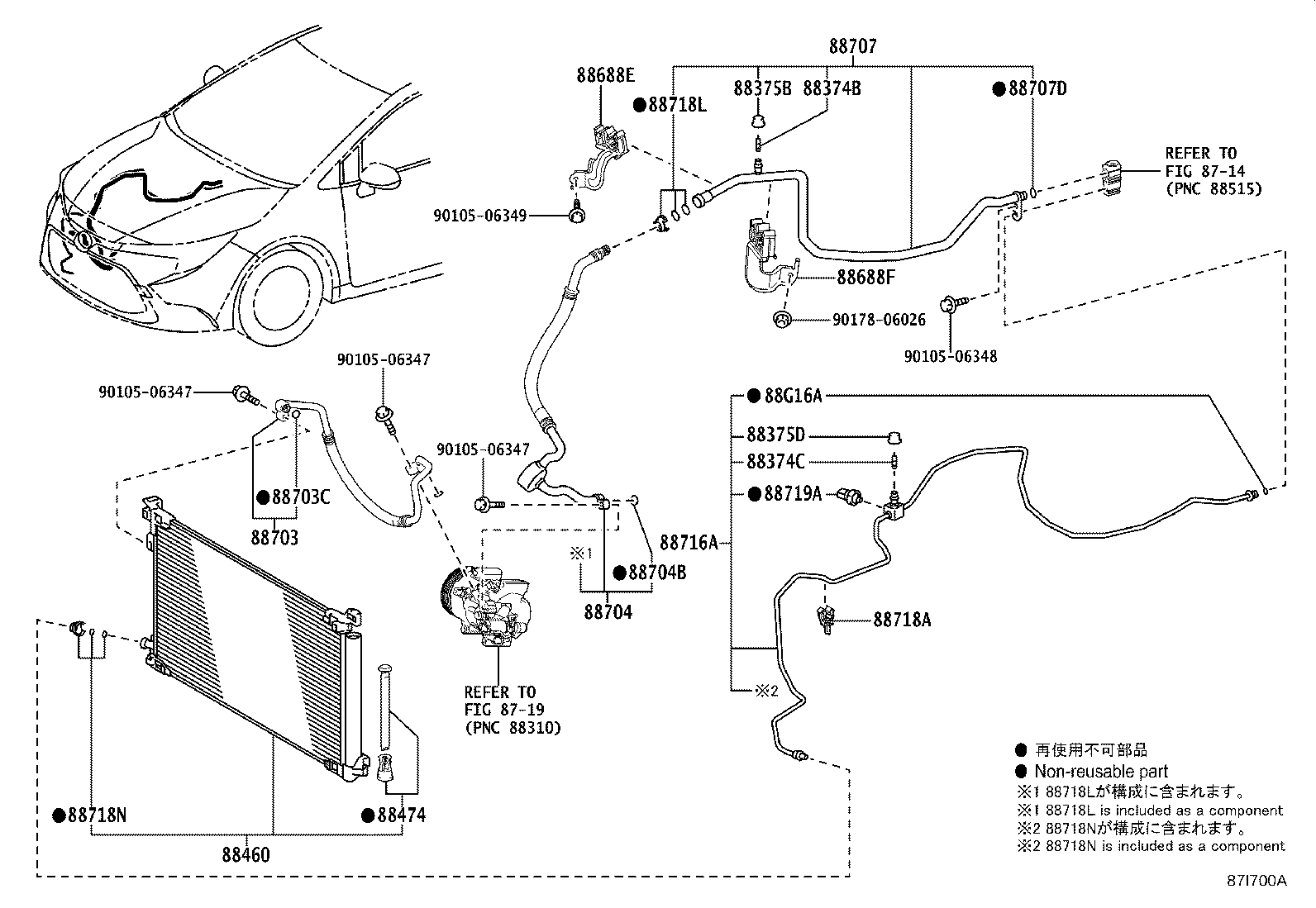

Figure 87I201B 87I201B 2019-09 → 2020-04 Figure 87I700A 87I700A 2020-04 → 2022-09 Figure 87L479A 87L479A 2022-09 → — Figure 87L480A 87L480A 2022-09 → — Figure 87H570D 87H570D 2019-01 → 2020-04 Figure 87H570D 87H570D 2020-04 → — Figure 87I200B 87I200B 2019-09 → 2020-04 Figure 87I200B 87I200B 2020-04 → — Figure 87H571C 87H571C 2019-01 → 2020-04 Figure 87I701A 87I701A 2020-04 → 2022-09 Figure 87L481C 87L481C 2022-09 → — Figure 87I202B 87I202B 2019-09 → 2020-04 Figure 87I702A 87I702A 2020-04 → 2022-09 Figure 87L482A 87L482A 2022-09 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88688E Bracket, Cooler Refrigerant Hose, NO.1
88688F Bracket, Cooler Refrigerant Hose, NO.2
88703 Hose Sub-assy, Discharge
88703C Ring, O(FOR DISCHARGE HOSE)
88704 Hose Sub-assy, Suction
88704B Ring, O(FOR SUCTION HOSE)
88704D Ring, O, NO.2 (FOR SUCTION HOSE)
88707 Pipe Sub-assy, Suction
88707D Ring, O(FOR SUCTION TUBE)
88716A Pipe, Cooler Refrigerant Liquid, A
88718A Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718L Clamp, Piping
88718M Clamp, Piping
88718N Clamp, Piping
88719A Sensor, Air Conditioner Pressure
88719D Ring, O(FOR AIR CONDITIONER PRESSURE SENSOR)
88G16A Ring, O, NO.1(FOR COOLER REFRIGERANT LIQUID PIPE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
