Toyota Corolla Sed (JPP)

2019-01 → present · chassis MZEA1#,ZRE212,ZWE21# · catalogue 153260 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

2 part groups · 5 illustrations

Illustrations

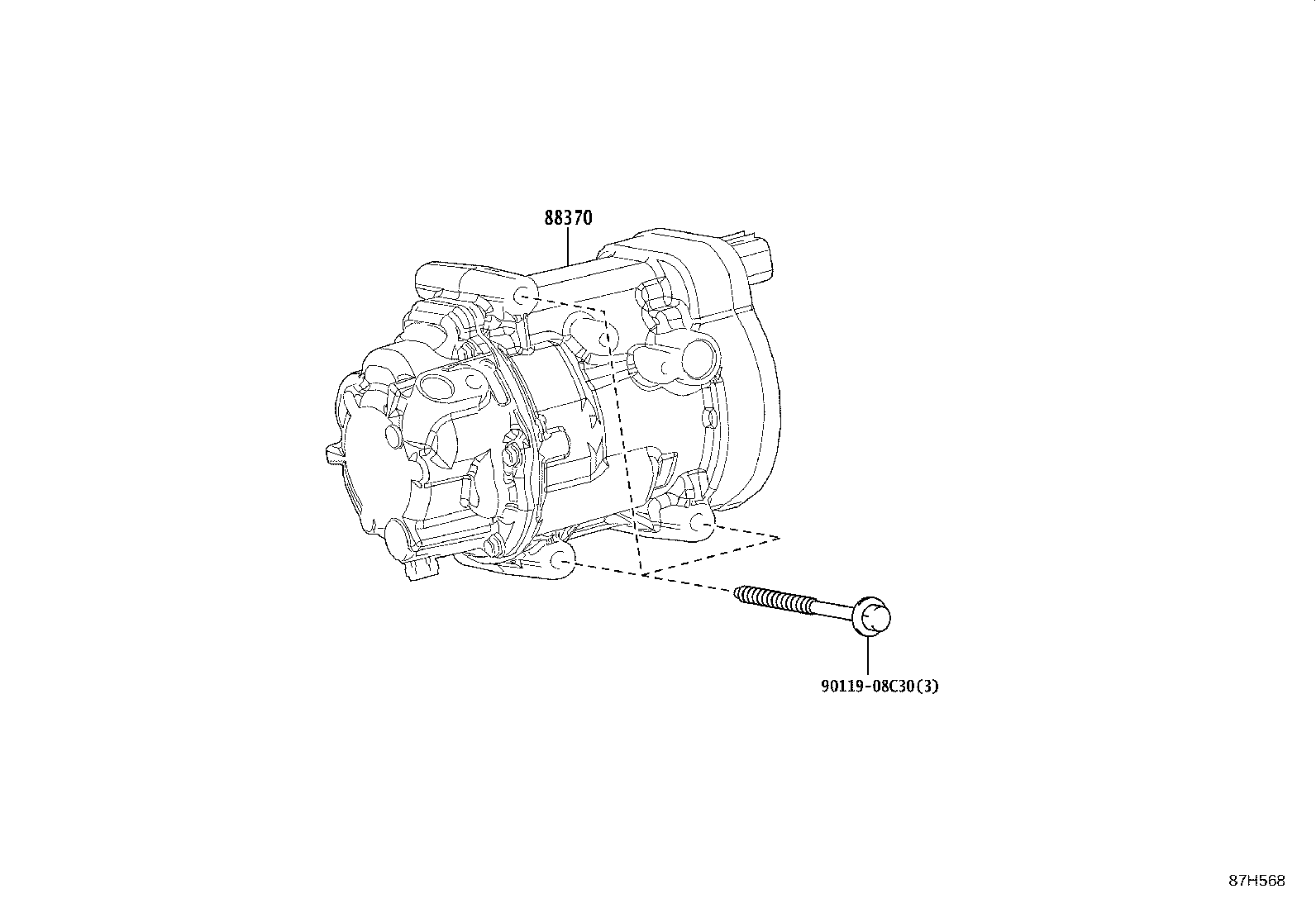

Figure 87I203 87I203 2019-09 → 2020-04 Figure 87I203 87I203 2020-04 → — Figure 87H569 87H569 2019-01 → — Figure 87H568 87H568 2019-01 → 2020-04 Figure 87H568 87H568 2020-04 → —

Part groups

PNCDescription
88310 Compressor Assy, W/Pulley
88370 Compressor Assy, W/Motor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
