Toyota Corolla Sed (JPP)
2019-01 → present · chassis MZEA1#,ZRE212,ZWE21# · catalogue 153460 · United States
Supported model
Data version 2024-09

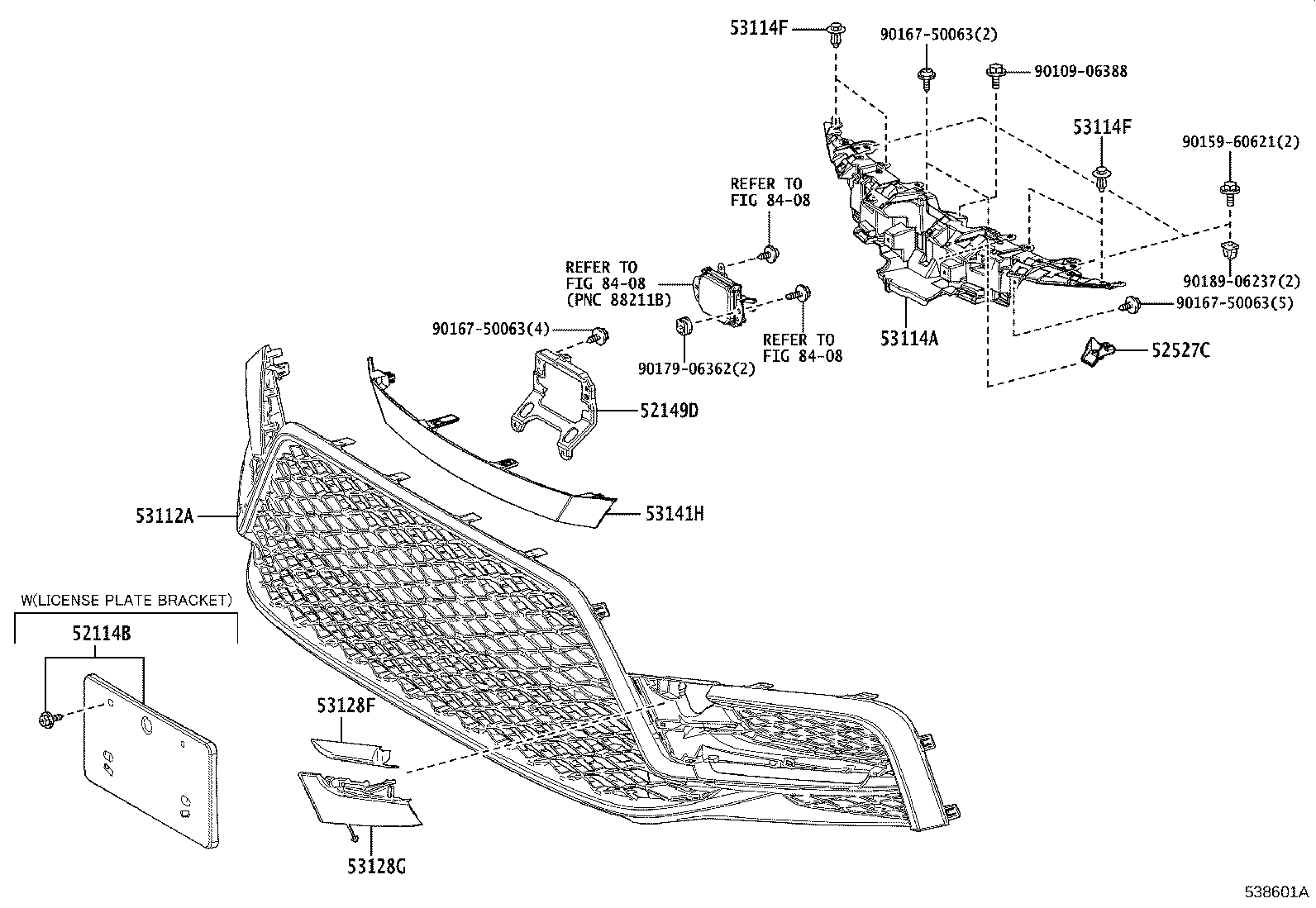

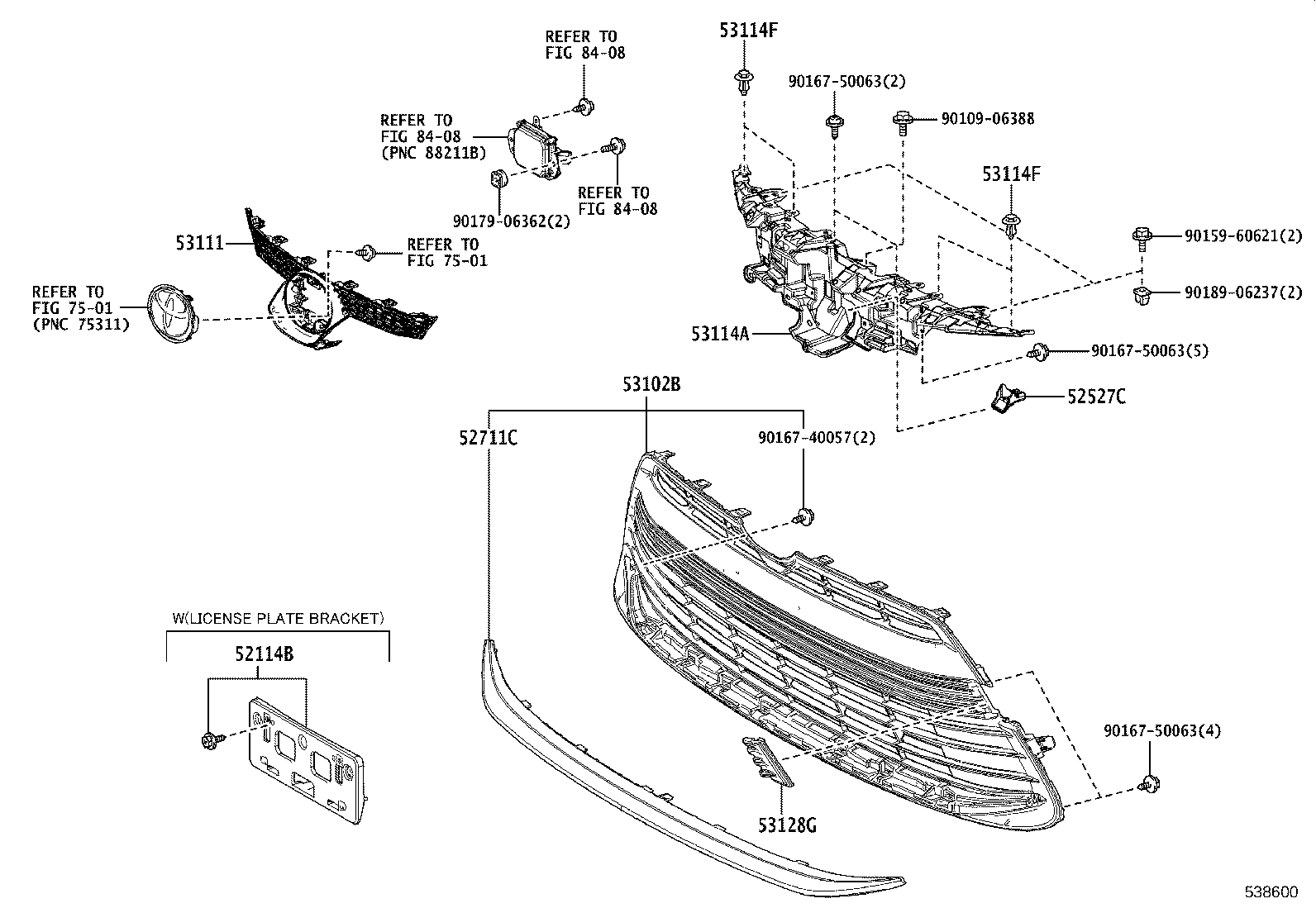

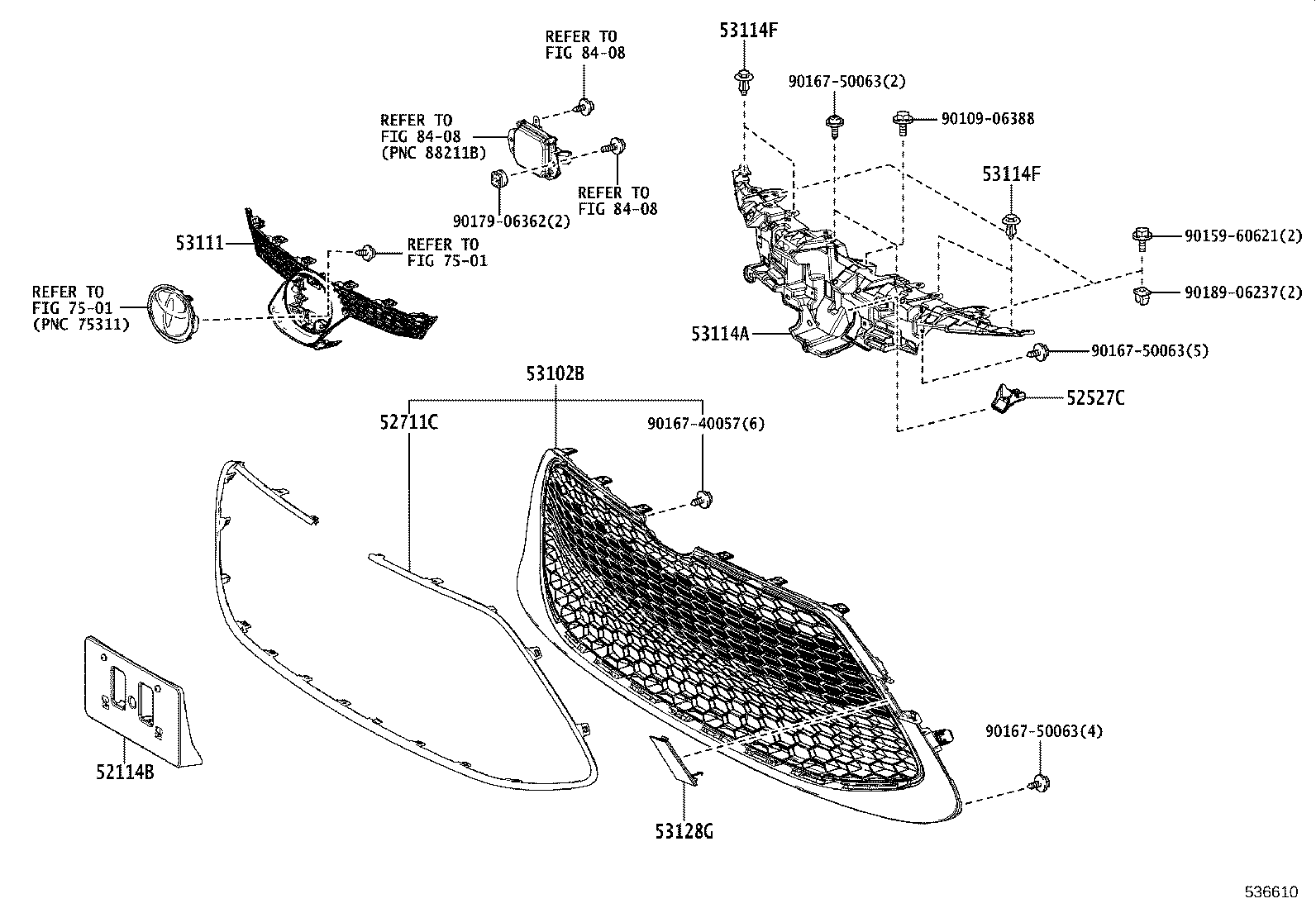

Radiator Grille
12 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 52114B | Bracket, Front Bumper Extension Mounting |
| 52149D | Bracket, Front Bumper, Inner |
| 52527C | Retainer, Front Bumper, Lower NO.2 |
| 52711C | Moulding, Front Bumper |
| 53102B | Grille Sub-assy, Radiator, Lower |
| 53111 | Grille, Radiator |
| 53112A | Grille, Radiator, Lower |
| 53114A | Grille, Radiator, Inner |
| 53114F | Clip, Radiator Grille |
| 53128F | Moulding, Radiator Grille, NO.8 |
| 53128G | Grille, Radiator, Lower Side LH |
| 53141H | Garnish, Radiator Grille |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
