Toyota Corolla Sed (JPP)

2019-01 → present · chassis MZEA1#,ZRE212,ZWE21# · catalogue 153460 · United States

Supported model Data version 2024-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

76 part groups · 14 illustrations

Illustrations

71B614D 2019-01 → 2022-09

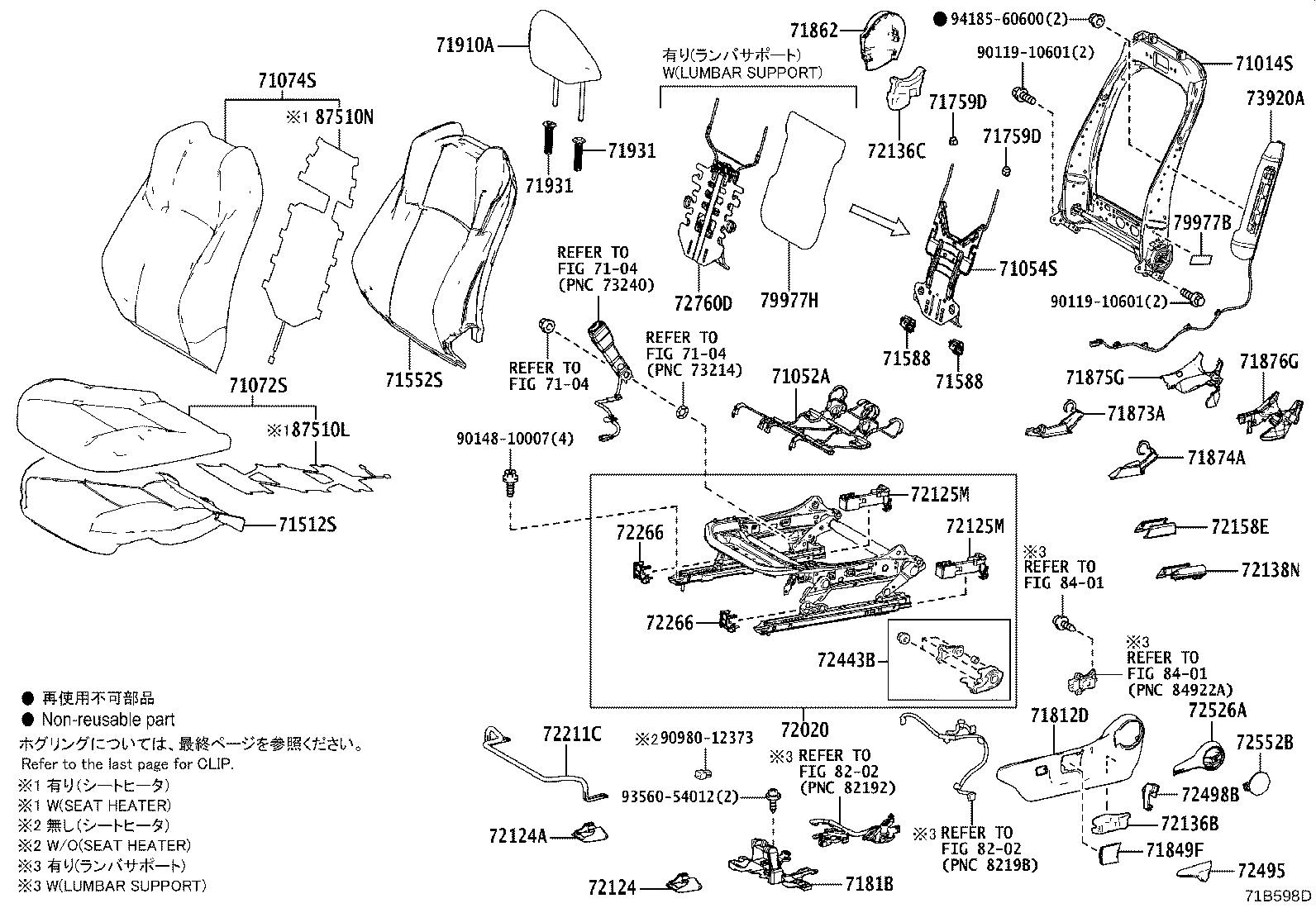

71B598D 2019-01 → 2022-09

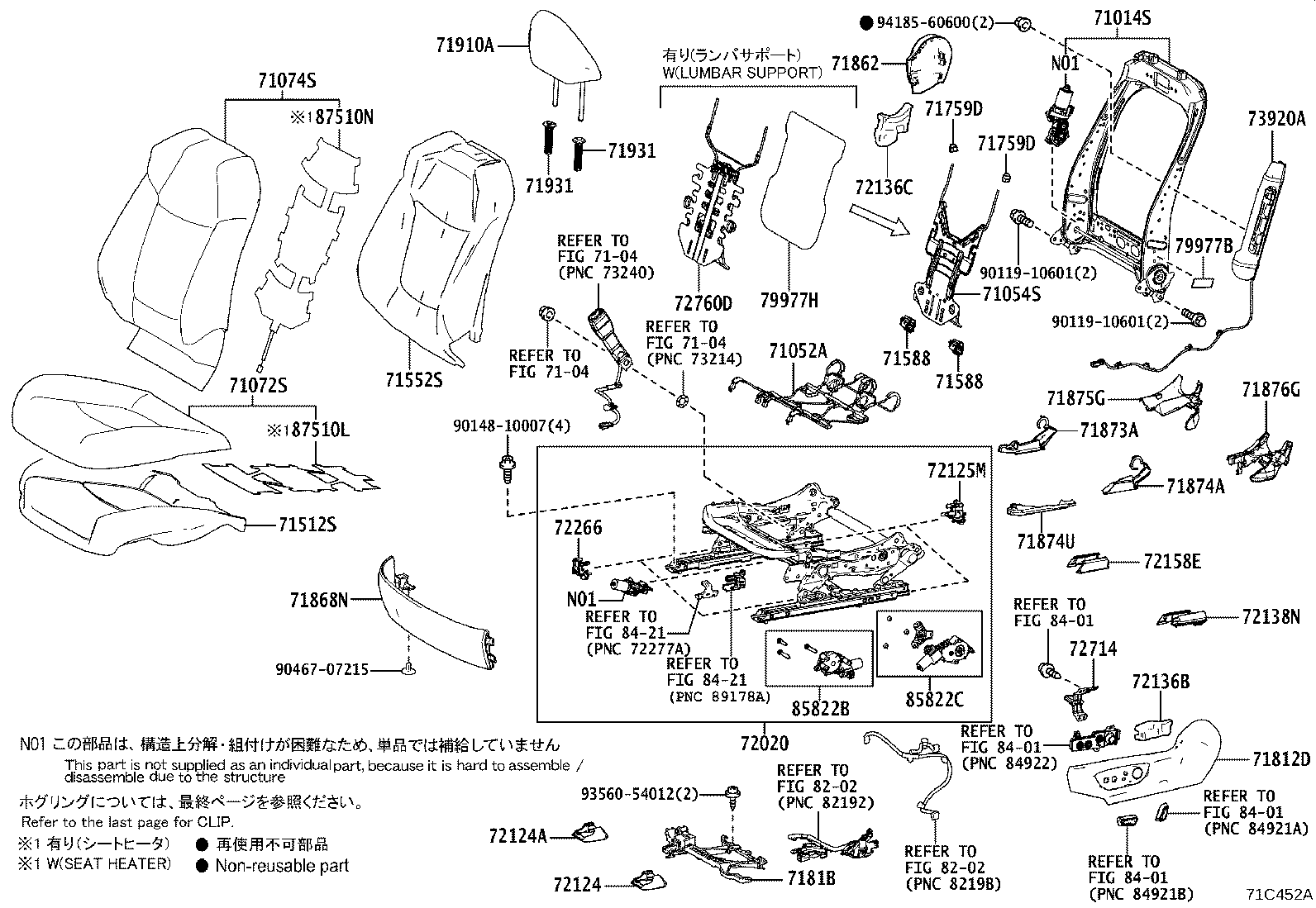

71C452A 2019-01 → 2022-09

71B600D 2019-01 → 2022-09

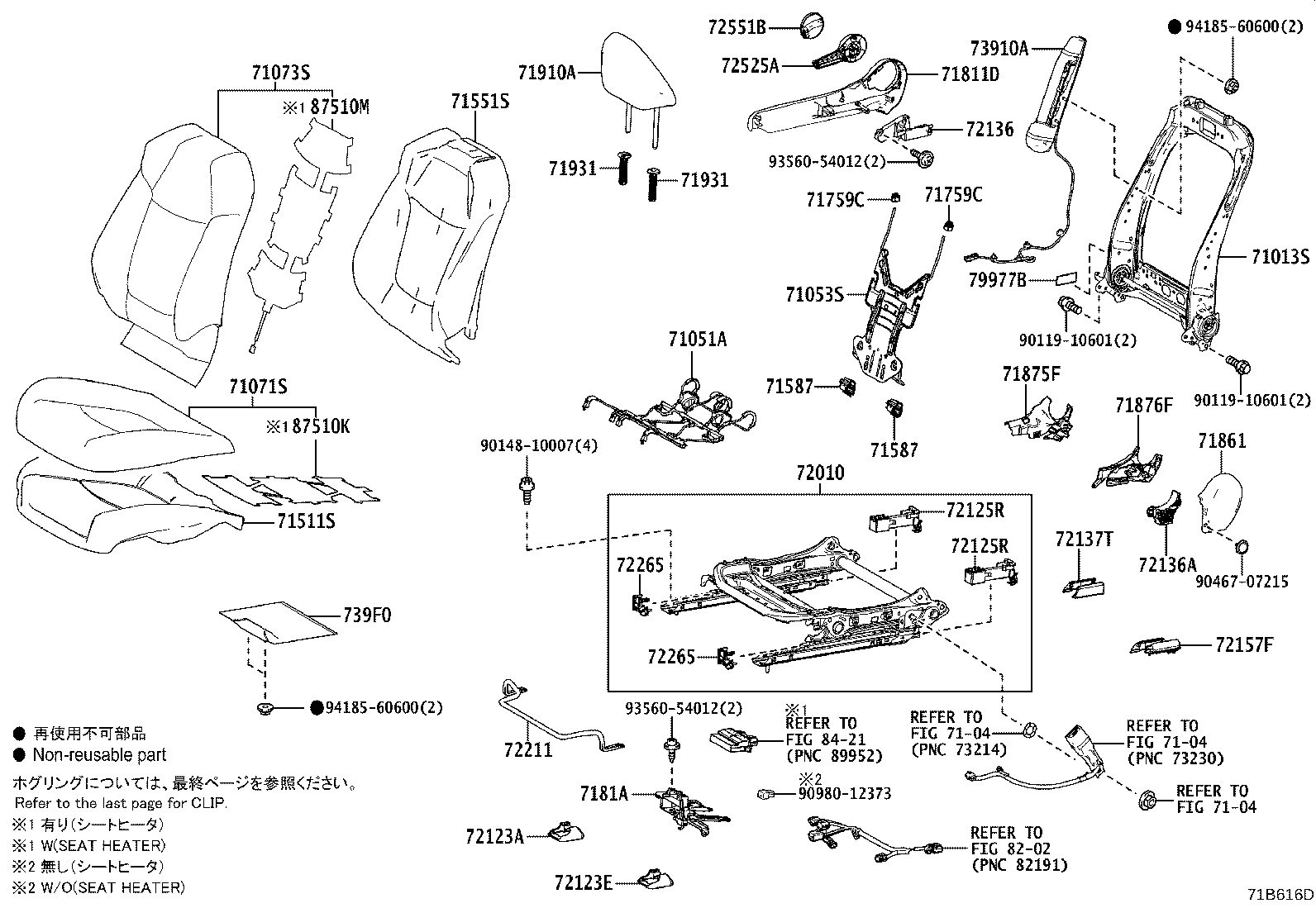

71B616D 2019-01 → 2022-09

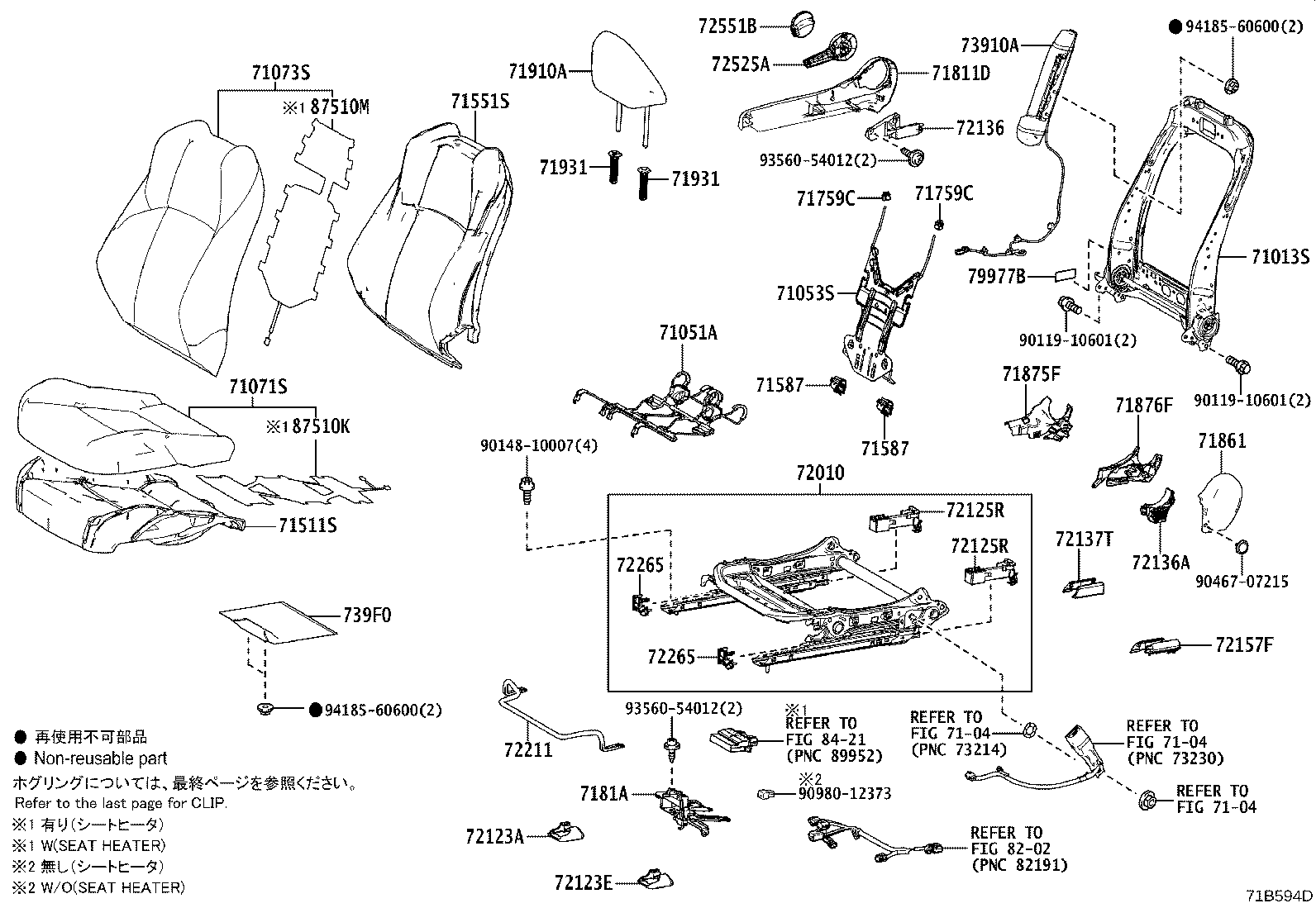

71B594D 2019-01 → 2022-09

Part groups

PNC	Description
71013S	Frame Sub-assy, Front Seatback, RH
71014S	Frame Sub-assy, Front Seatback, LH
71051A	Spring Sub-assy, Front Seat Cushion, RH
71052A	Spring Sub-assy, Front Seat Cushion, LH
71053S	Spring Sub-assy, Front Seatback, RH
71054S	Spring Sub-assy, Front Seatback, LH
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587	Protector, Front Seatback Edge
71588	Protector, Front Seatback Edge, NO.2
71759C	Hook, Front Seatback, NO.1
71759D	Hook, Front Seatback, NO.2
71811D	Shield, Front Seat Cushion, RH
71812D	Shield, Front Seat Cushion, LH
7181A	Holder, Front Seat Cushion Wire Harness, RH
7181B	Holder, Front Seat Cushion Wire Harness, LH
71849F	Cap, Seat Adjuster Cover, LH(FOR LH SEAT)
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71868N	Shield, Front Seat Cushion, Front LH
71873A	Shield, Front Seat Cushion, Lower
71874A	Shield, Front Seat Cushion, Lower LH
71874U	Shield, Front Seat Cushion, Lower LH
71875F	Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875G	Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876F	Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876G	Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71910A	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
72010	Adjuster Assy, Front Seat, RH
72020	Adjuster Assy, Front Seat, LH
72123A	Cover, Seat Track Bracket, Outer Front RH
72123E	Cover, Seat Track Bracket, Inner Front RH
72124	Cover, Seat Track Bracket, Outer Front LH
72124A	Cover, Seat Track Bracket, Inner Front LH
72125M	Cover, Seat Track, Upper NO.3
72125R	Cover, Seat Track, Upper Rear NO.1
72136	Spacer, Seat Track, Lower NO.1
72136A	Spacer, Seat Track, Lower NO.2
72136B	Spacer, Seat Track, Lower NO.3
72136C	Spacer, Seat Track, Lower NO.4
72137T	Cover, Seat Track Bracket, Outer Rear RH
72138N	Cover, Seat Track Bracket, Outer Rear LH
72157F	Cover, Seat Track Bracket, Inner Rear RH
72158E	Cover, Seat Track Bracket, Inner Rear LH
72211	Handle, Seat Track Adjusting
72211C	Handle, Seat Track Adjusting
72265	Cover, Seat Track Upper Rail, RH
72266	Cover, Seat Track Upper Rail, LH
72443B	Gear, Vertical Adjuster, LH
72495	Handle, Vertical Adjusting, LH
72498B	Cover, Vertical Adjuster Bracket, Outer
72525A	Handle, Reclining Adjuster Release, RH
72526A	Handle, Reclining Adjuster Release, LH
72551B	Cover, Reclining Hinge, RH
72552B	Cover, Reclining Hinge, LH
72714	Bracket, Seat Adjuster Shield Clamp, LH
72760D	Adjuster Assy, Lumbar Support, LH
73910A	Airbag Assy, Front Seat, RH
73920A	Airbag Assy, Front Seat, LH
739F0	Airbag Assy, Front Seat Cushion, RH
76854C	Retainer, Front Seat Cushion Cover
79977B	Felt, Seatback Frame
79977H	Felt, Front Seatback, LH
85822B	Motor Assy, Power Seat Tilt, LH
85822C	Motor Assy, Power Seat Lifter, LH
87510K	Heater Assy, Front Seat Cushion, RH
87510L	Heater Assy, Front Seat Cushion, LH
87510M	Heater Assy, Front Seatback, RH
87510N	Heater Assy, Front Seatback, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
