Toyota Corolla Sed (JPP)
2019-01 → present · chassis MZEA1#,ZRE212,ZWE21# · catalogue 153460 · United States
Supported model
Data version 2024-09

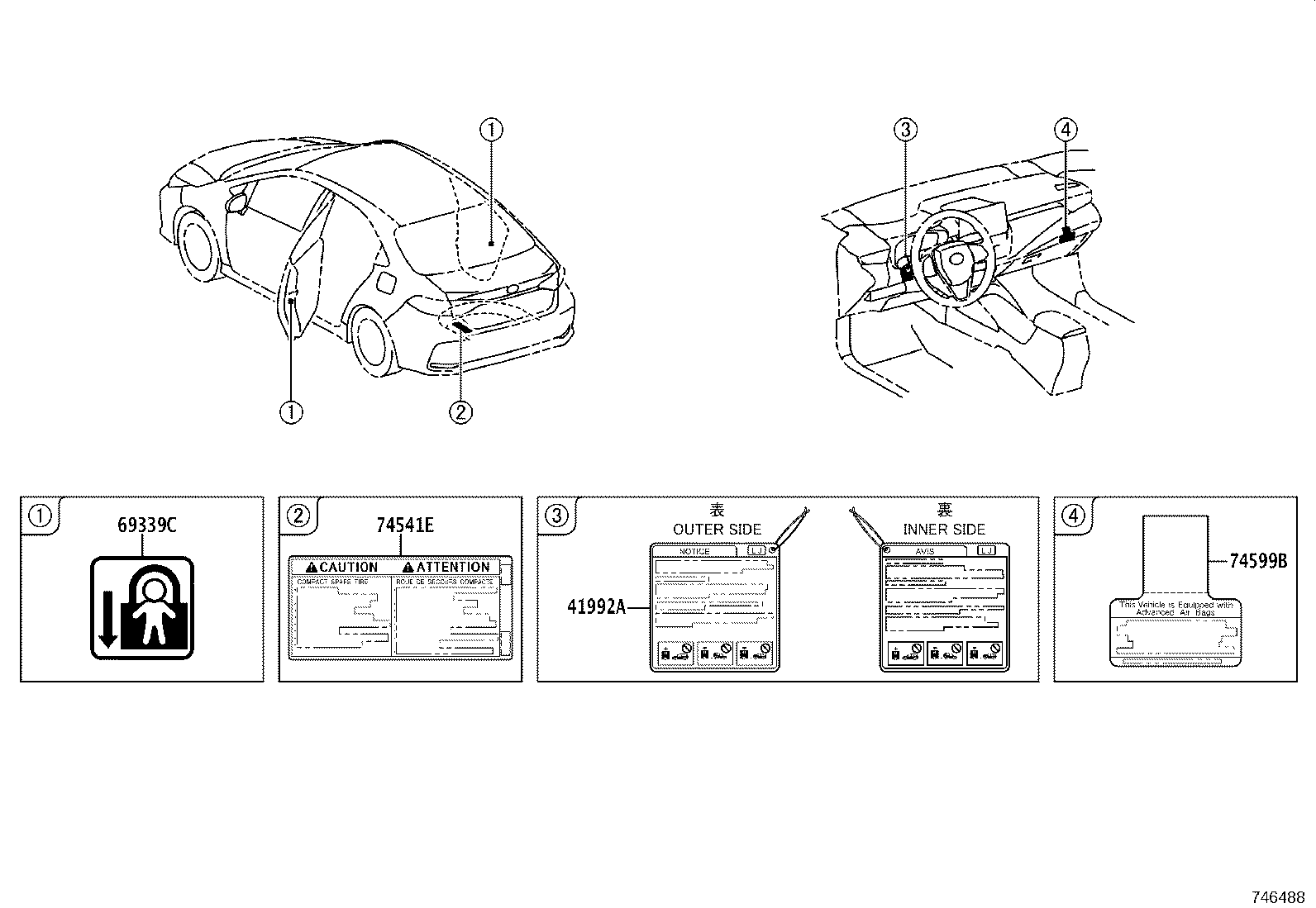

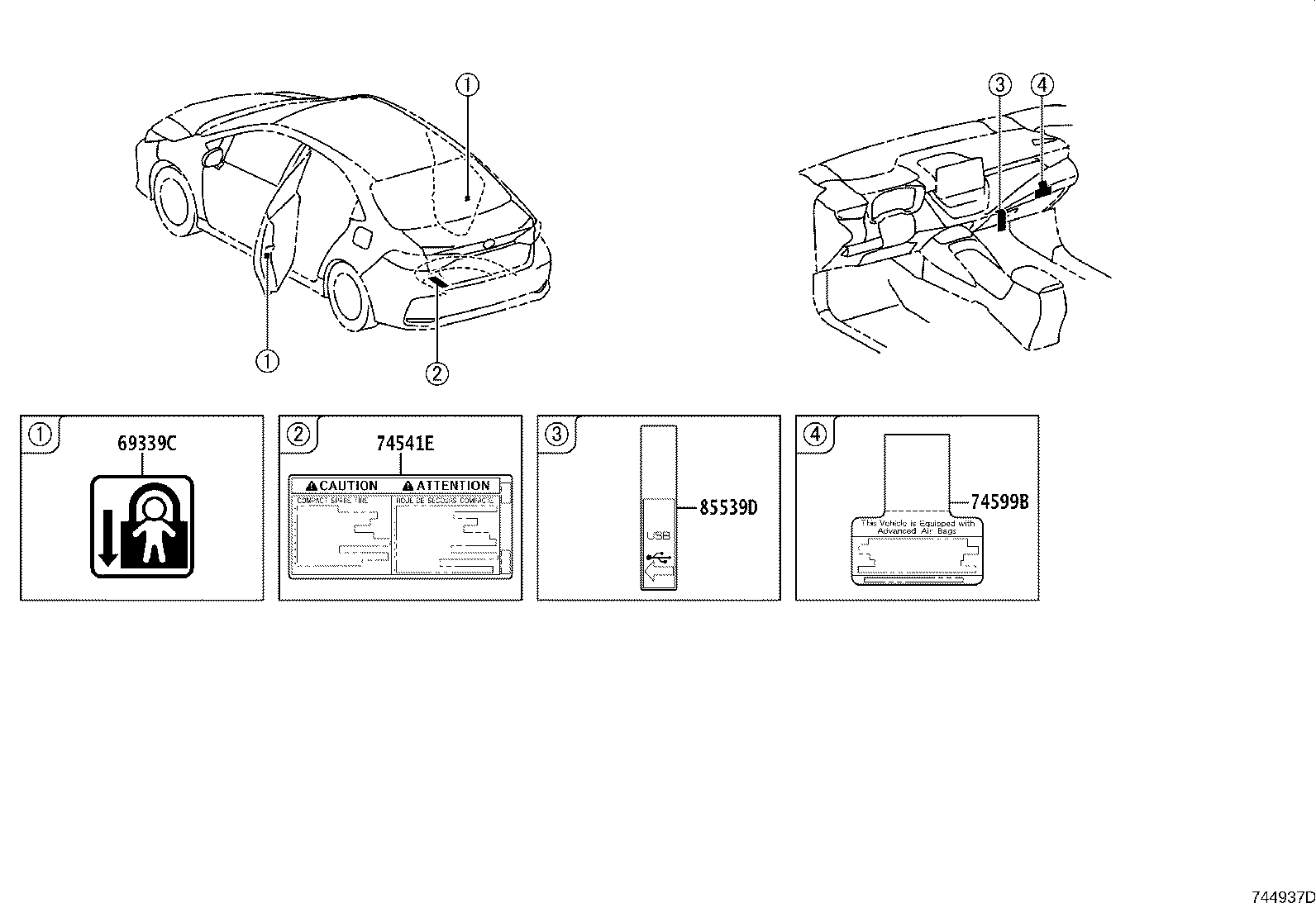

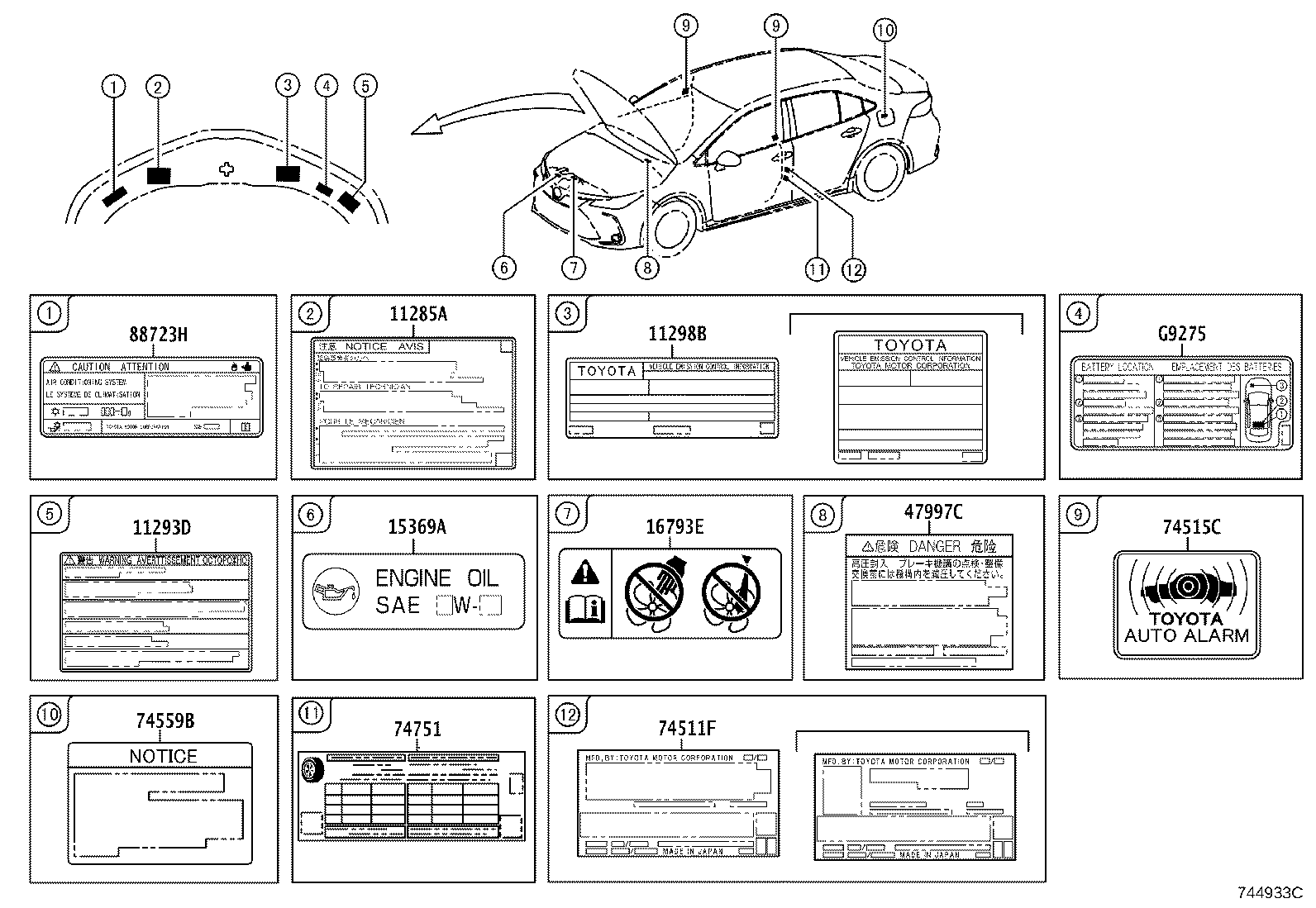

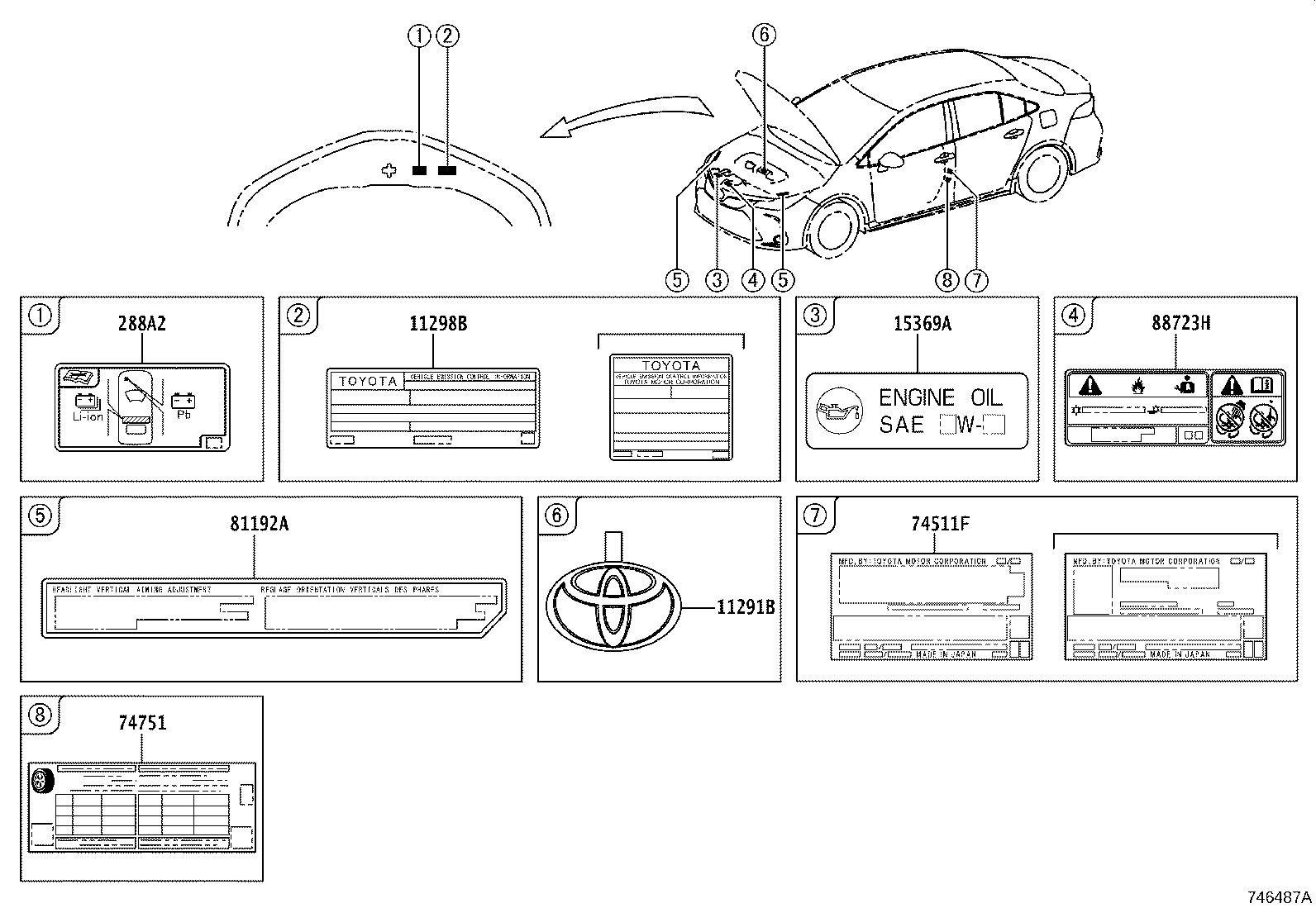

Caution Plate (EXTERIOR & INTERIOR)
20 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 11285A | Label, Coolant System Notice |
| 11291B | Plate, Engine Name |
| 11293D | Label, Engine Caution |
| 11298B | Label, Emission Control Information |
| 15369A | Label, Engine Oil Information |
| 16793E | Label, Cooling Fan Caution |
| 288A2 | Label, Battery Location |
| 41992A | Label, Differential Notice, NO.2 |
| 47997C | Label, Accumulator Caution, NO.1 |
| 69339C | Label, Child Protector Information |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74515C | Label, Theft Warning Information |
| 74541E | Plate, Compact Spare Tire Caution |
| 74559B | Label, Fuel Information |
| 74599B | Label, Driver & Passenger Airbag Information |
| 74751 | Label, Tire Pressure Information |
| 81192A | Seal, Headlamp |
| 85539D | Label, Power Outlet Notice |
| 88723H | Label, Cooler Service Caution |
| G9275 | Label, Battery Caution, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
