Toyota Corolla Sed (JPP)

2019-01 → present · chassis MZEA1#,ZRE212,ZWE21# · catalogue 153460 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

22 part groups · 5 illustrations

Illustrations

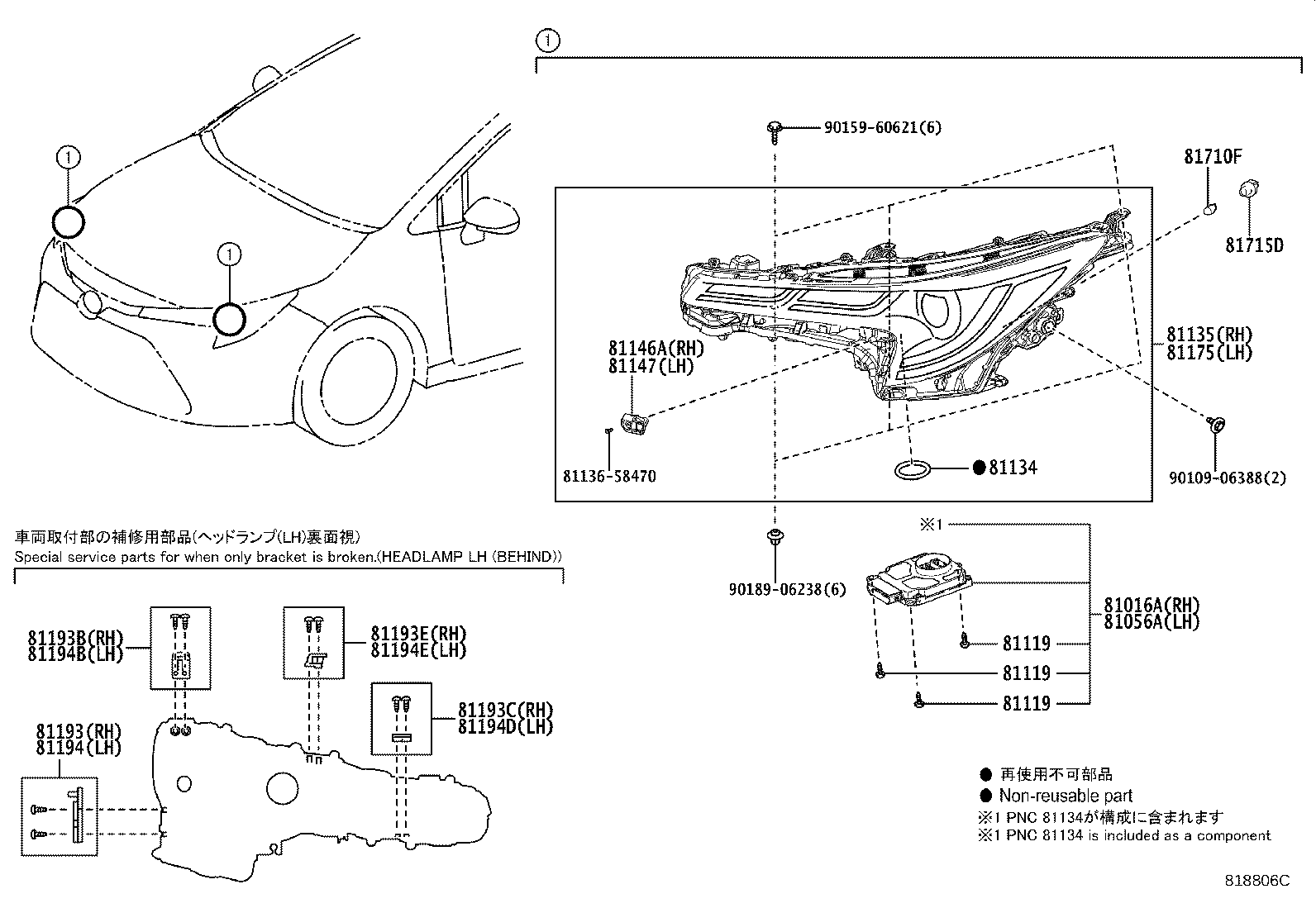

Figure 818804B 818804B 2019-01 → — Figure 818804B 818804B 2022-09 → — Figure 818805B 818805B 2019-01 → 2022-09 Figure 818806C 818806C 2019-01 → — Figure 81B501 81B501 2022-09 → —

Part groups

PNCDescription
81016A Computer Sub-assy, Headlamp, RH
81056A Computer Sub-assy, Headlamp, LH
81110 Headlamp Assy, RH
81119 Screw, Headlamp
81134 Gasket, Headlamp
81135 Unit Assy, Headlamp, RH
81146A Fitting, Headlamp, RH
81147 Fitting, Headlamp, LH
81150 Headlamp Assy, LH
81175 Unit Assy, Headlamp, LH
81193 Retainer, Headlamp Protector, Upper RH
81193B Retainer, Headlamp Protector, Upper RH NO.2
81193C Retainer, RH Headlamp Protector, Upper RH
81193E Retainer, Headlamp Protector, Upper RH NO.3
81194 Retainer, Headlamp Protector, Upper LH
81194B Retainer, Headlamp Protector, Upper LH NO.2
81194D Retainer, LH Headlamp Protector, Upper LH
81194E Retainer, Headlamp Protector, Upper LH NO.3
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81710F Bulb, Front Side Maker Lamp
81715D Socket Plug, Front Marker Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
