Toyota Corolla Sed (JPP)
2019-01 → present · chassis MZEA1#,ZRE212,ZWE21# · catalogue 153460 · United States
Supported model
Data version 2024-09
Wiring & Clamp
149 part groups · 42 illustrations
Illustrations
82C583
82C584A

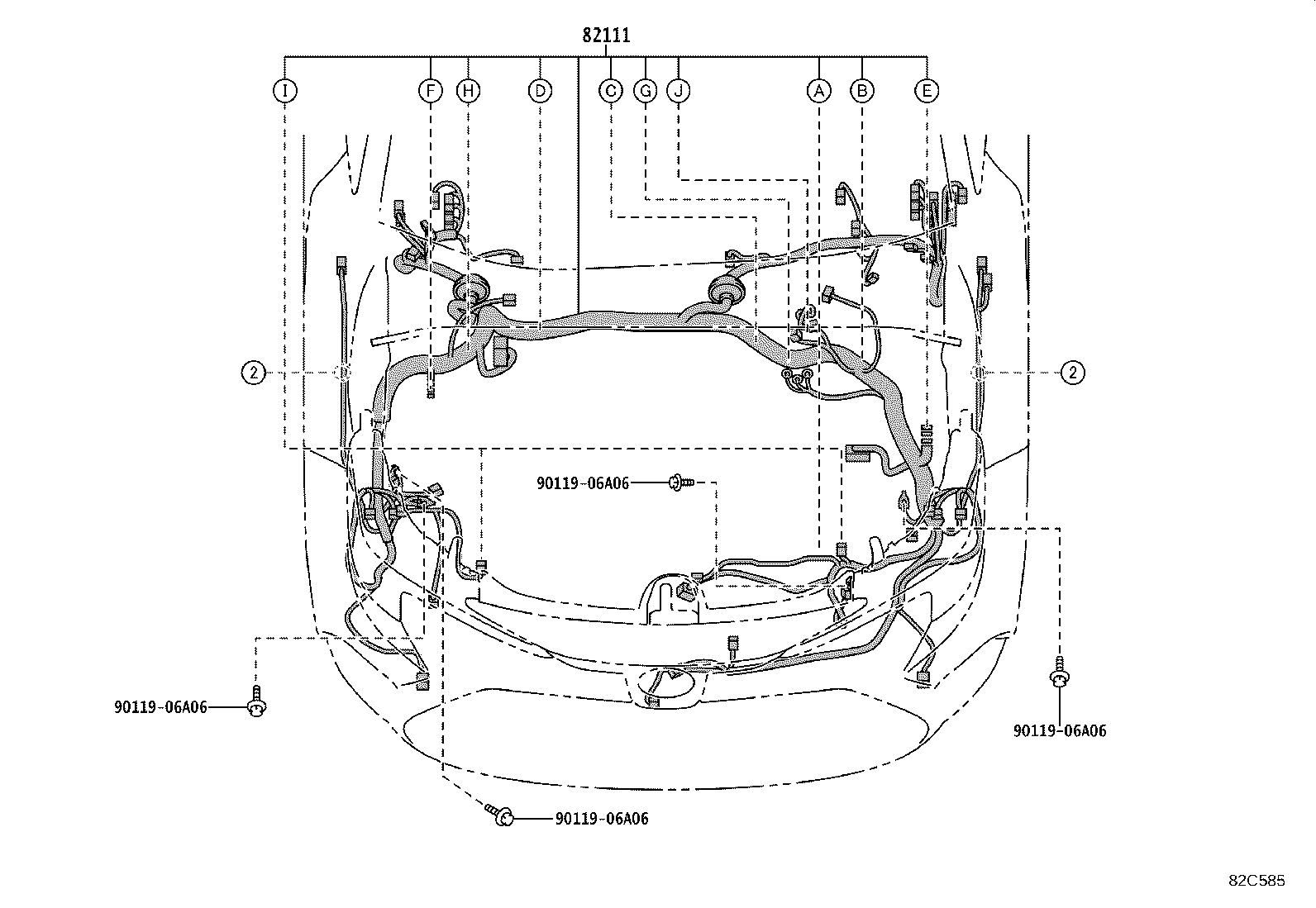

82C585
82C585

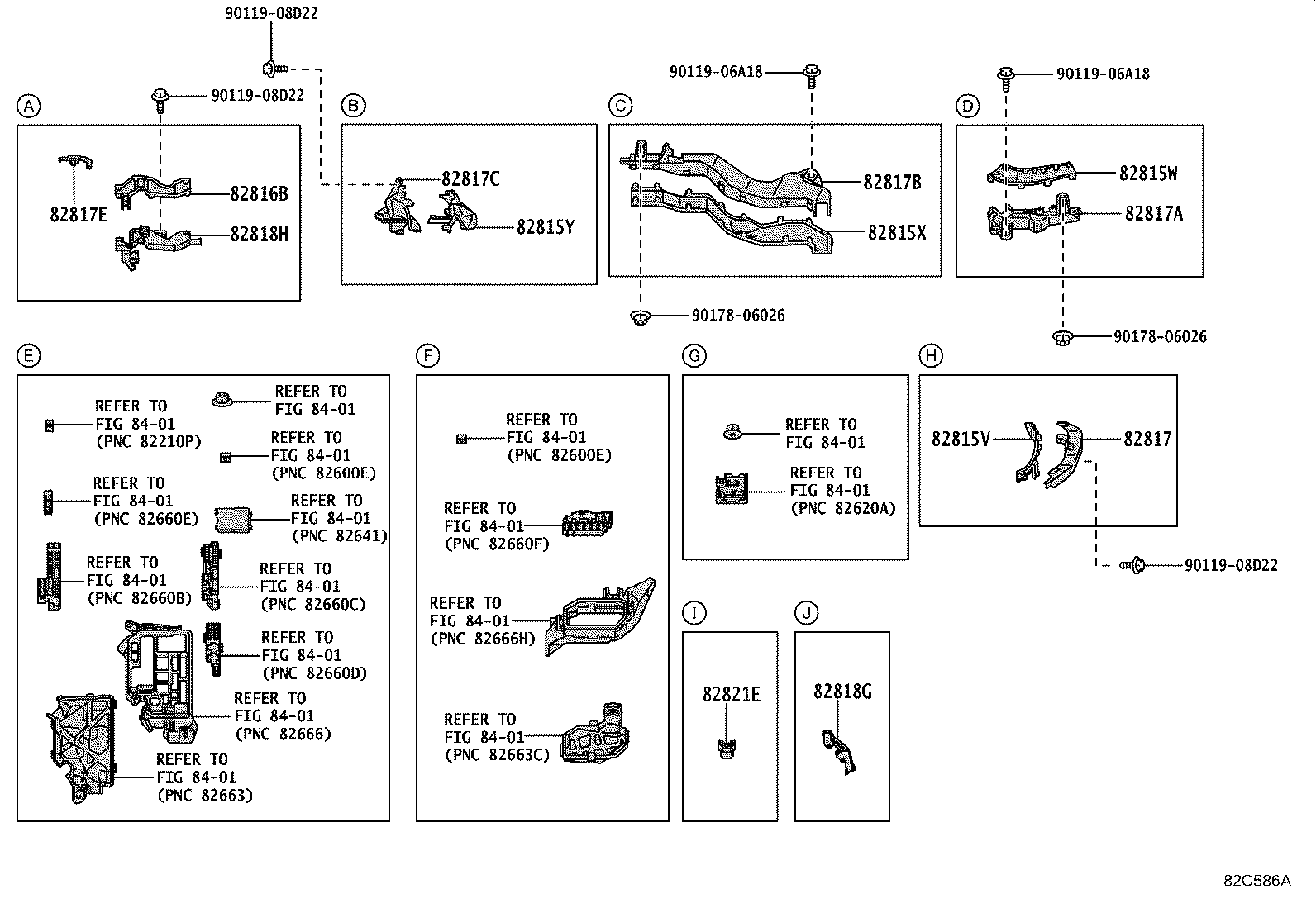

82C586A
82C586A
82C587
82C588A

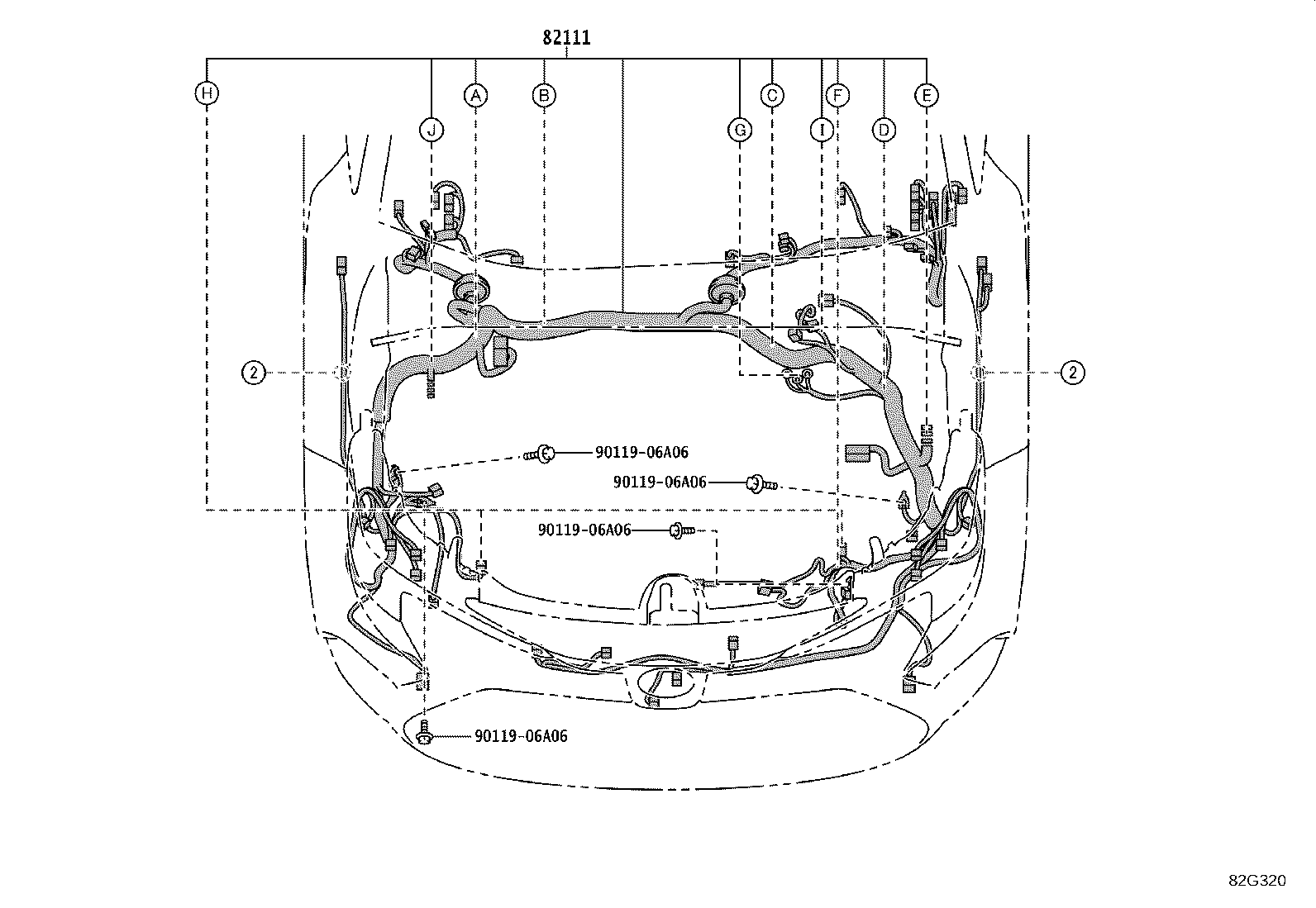

82G320

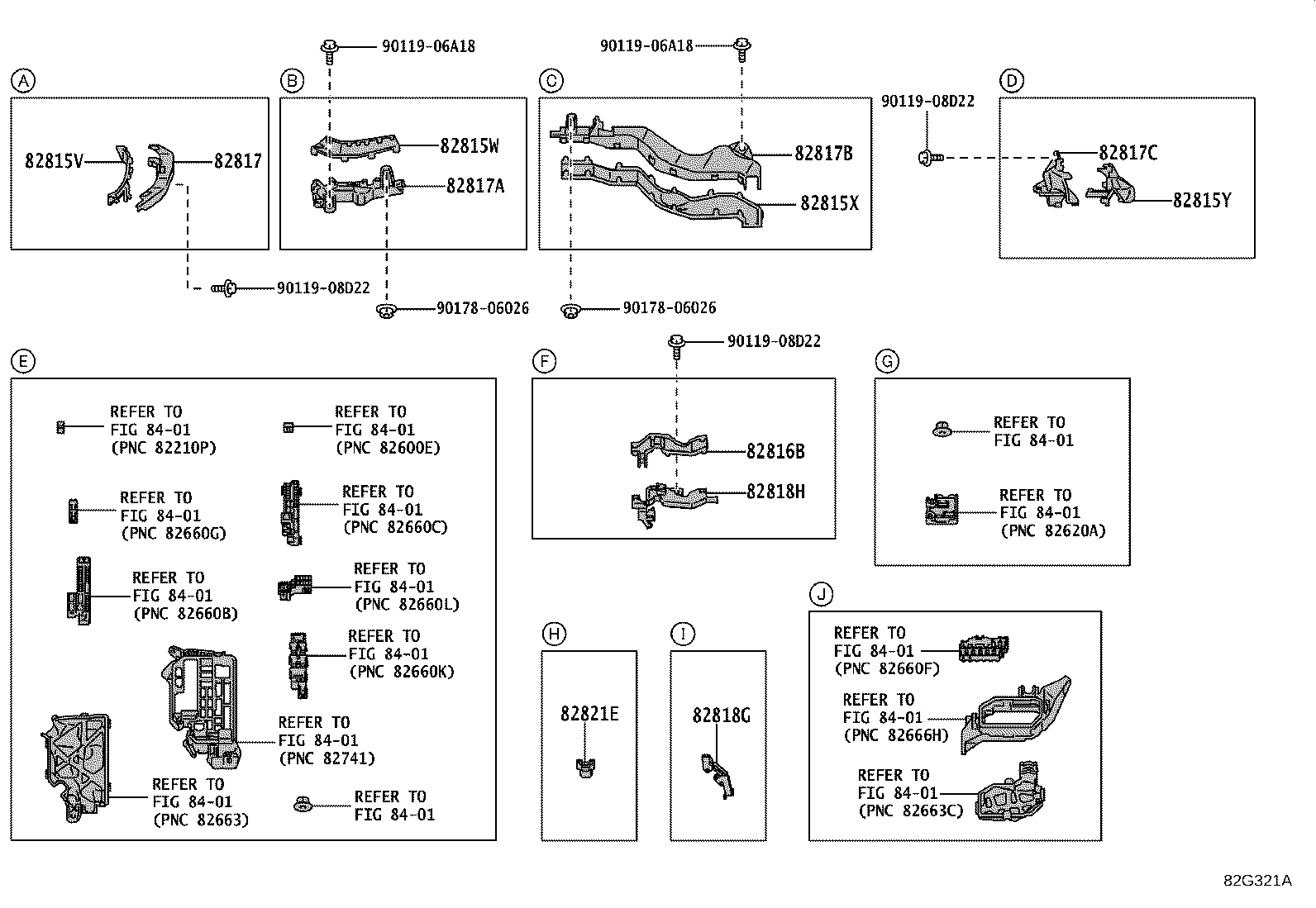

82G321A

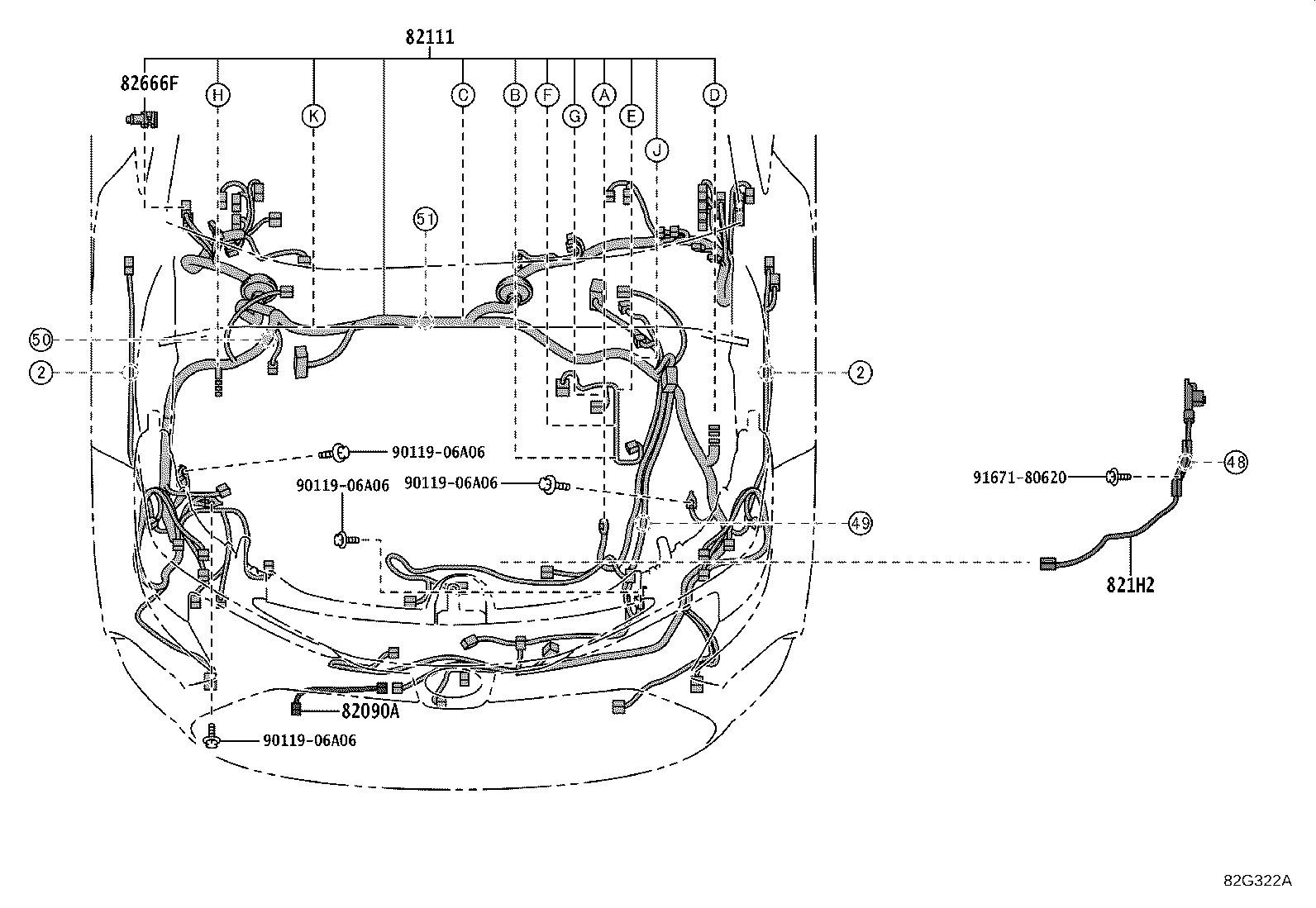

82G322A

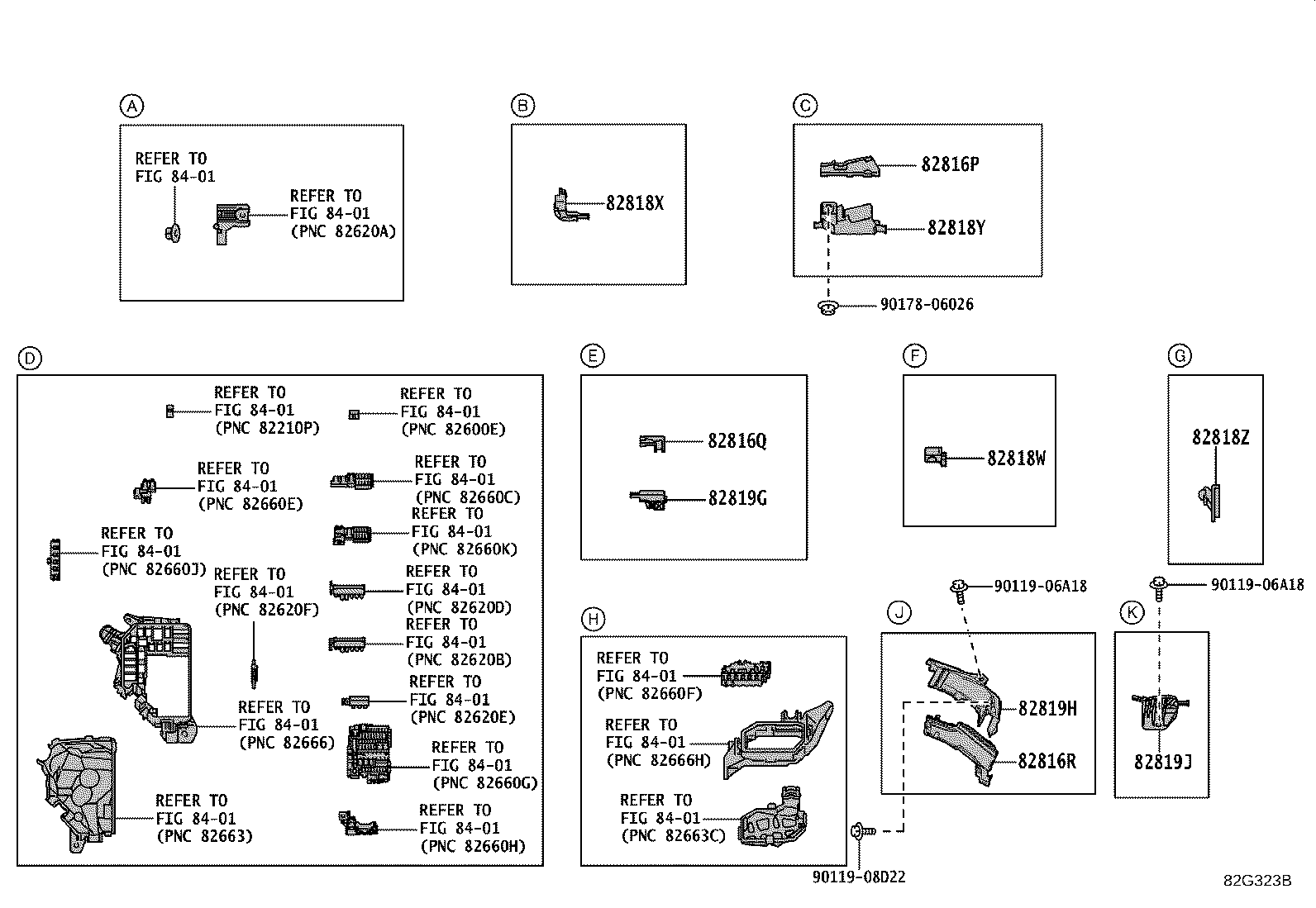

82G323B

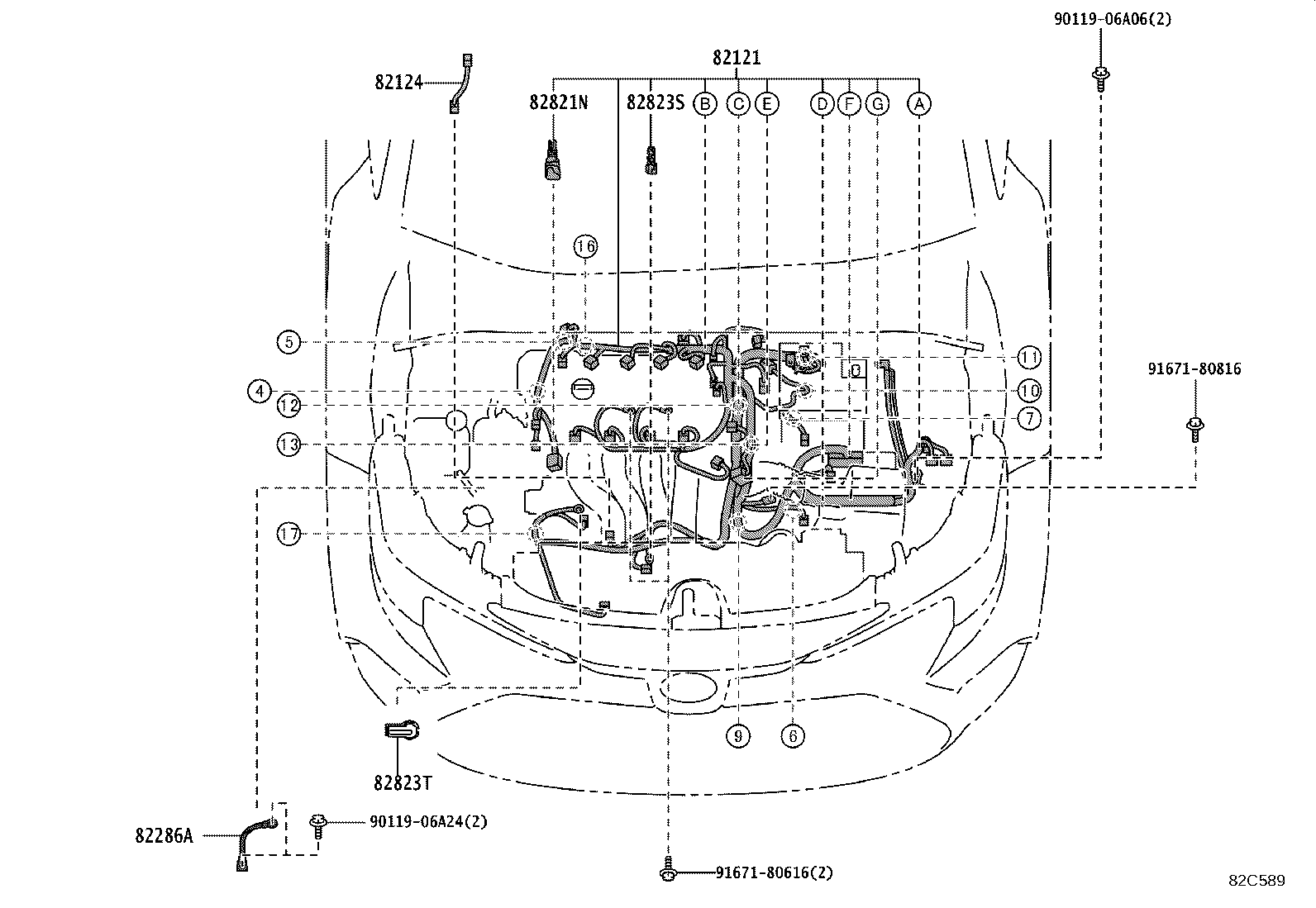

82C589
82C590A
82C591
82C592A

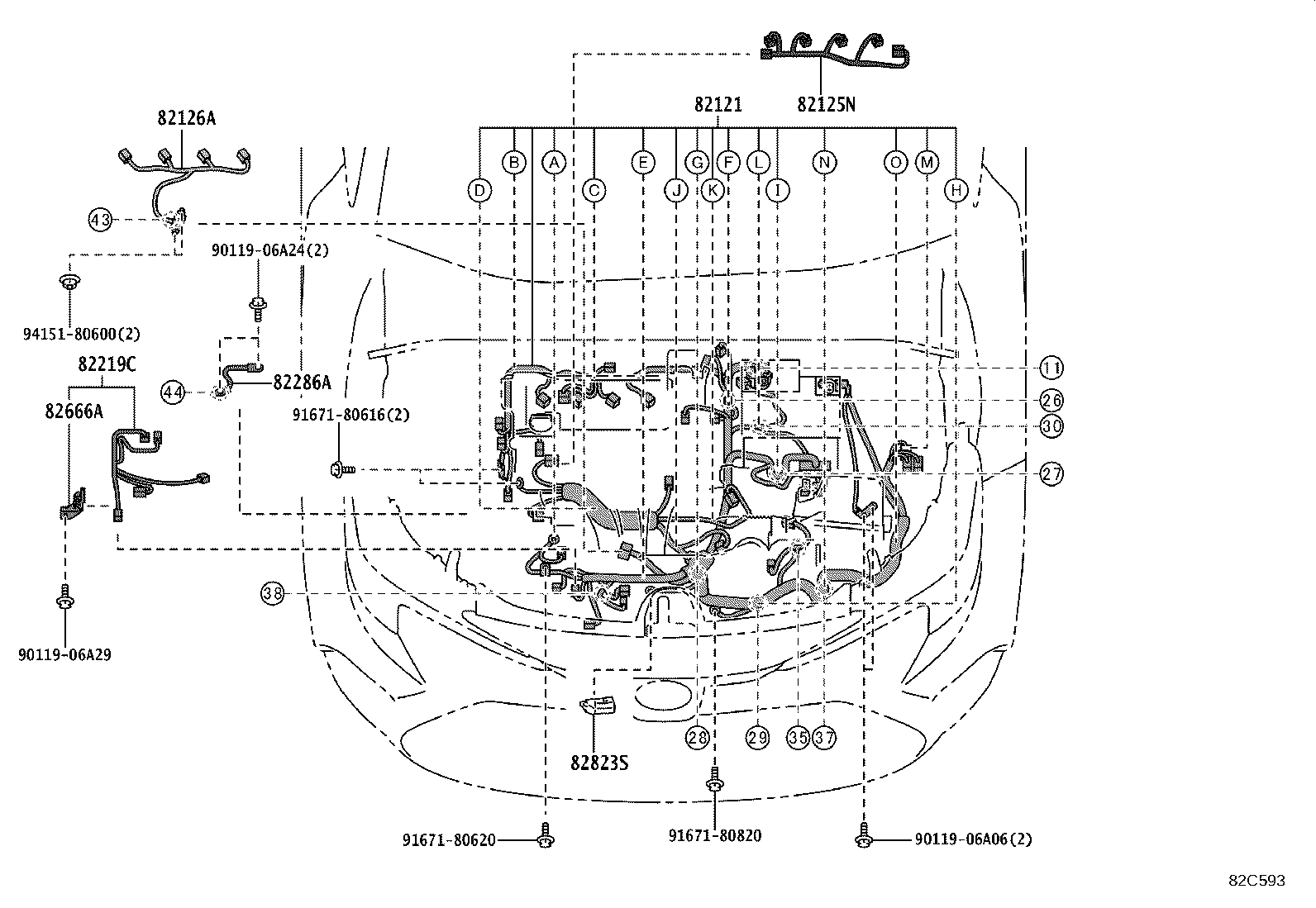

82C593

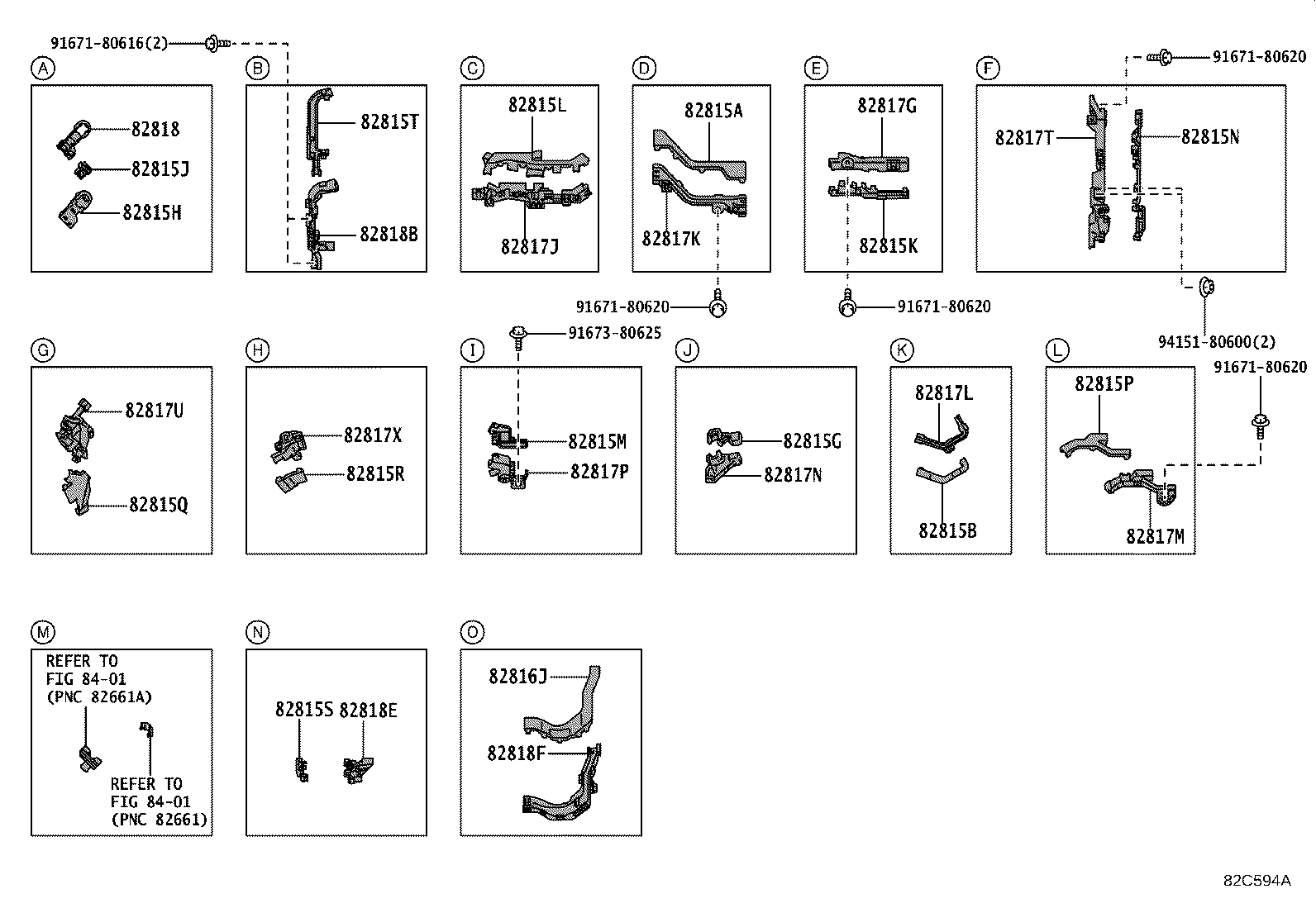

82C594A

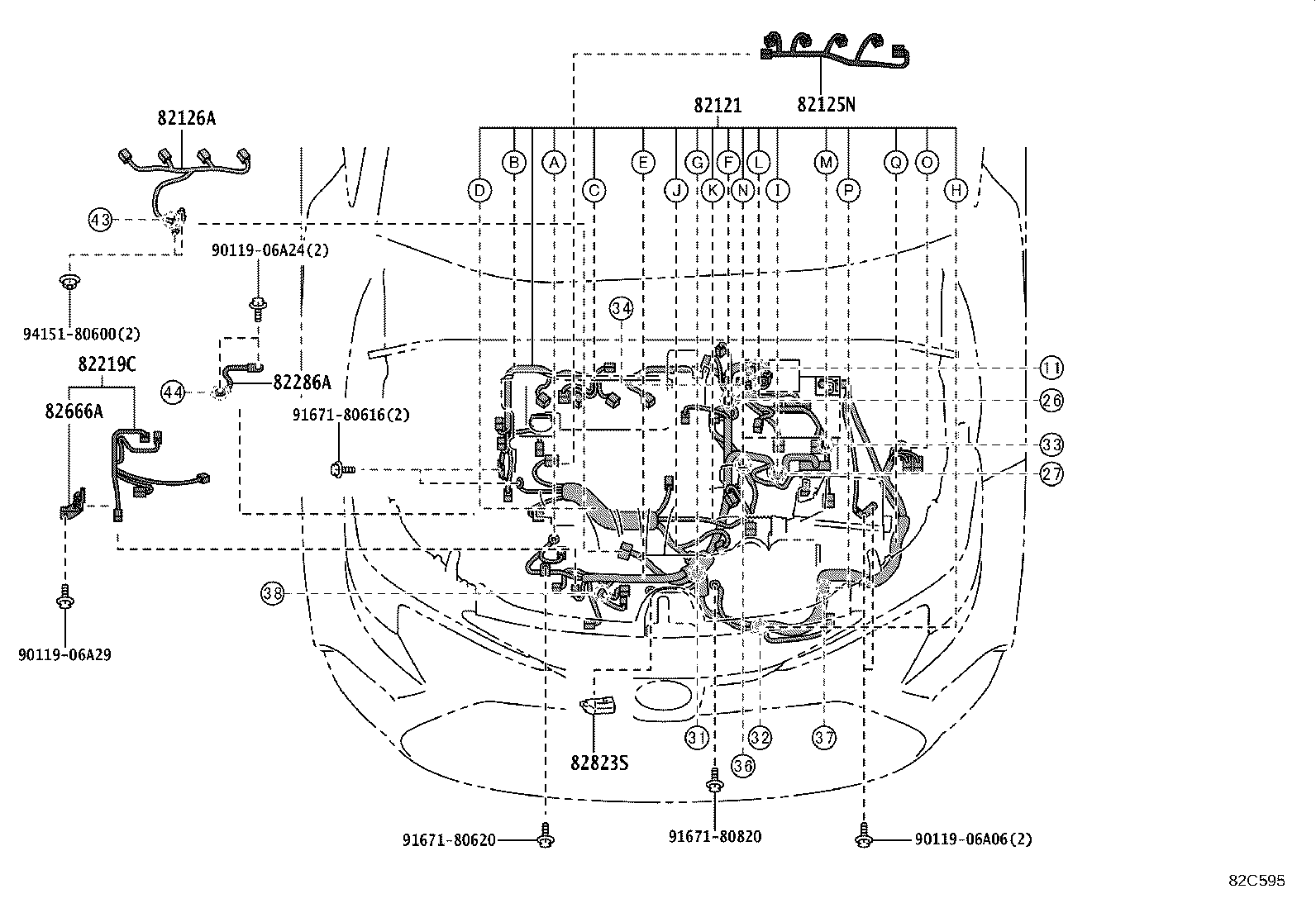

82C595

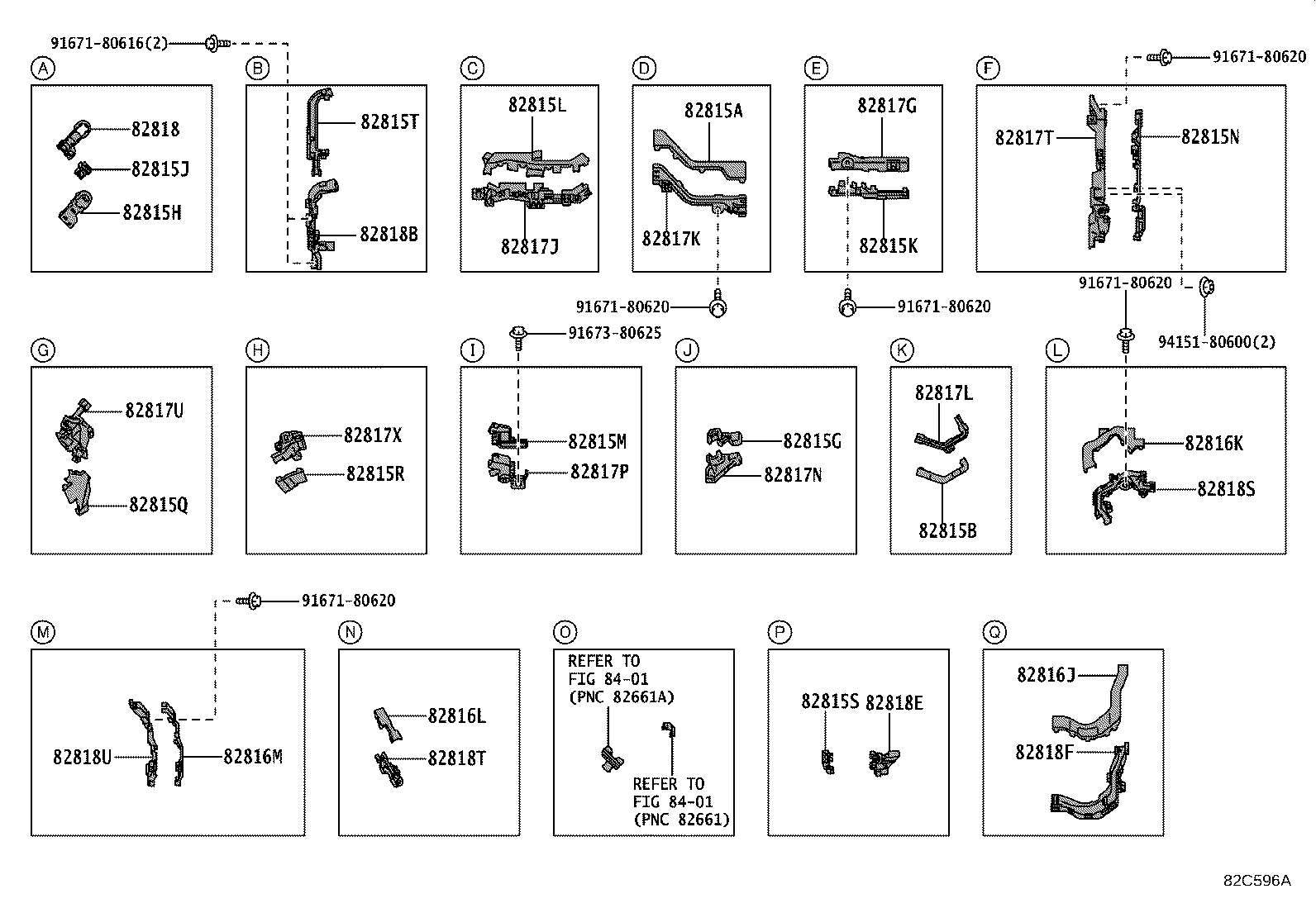

82C596A

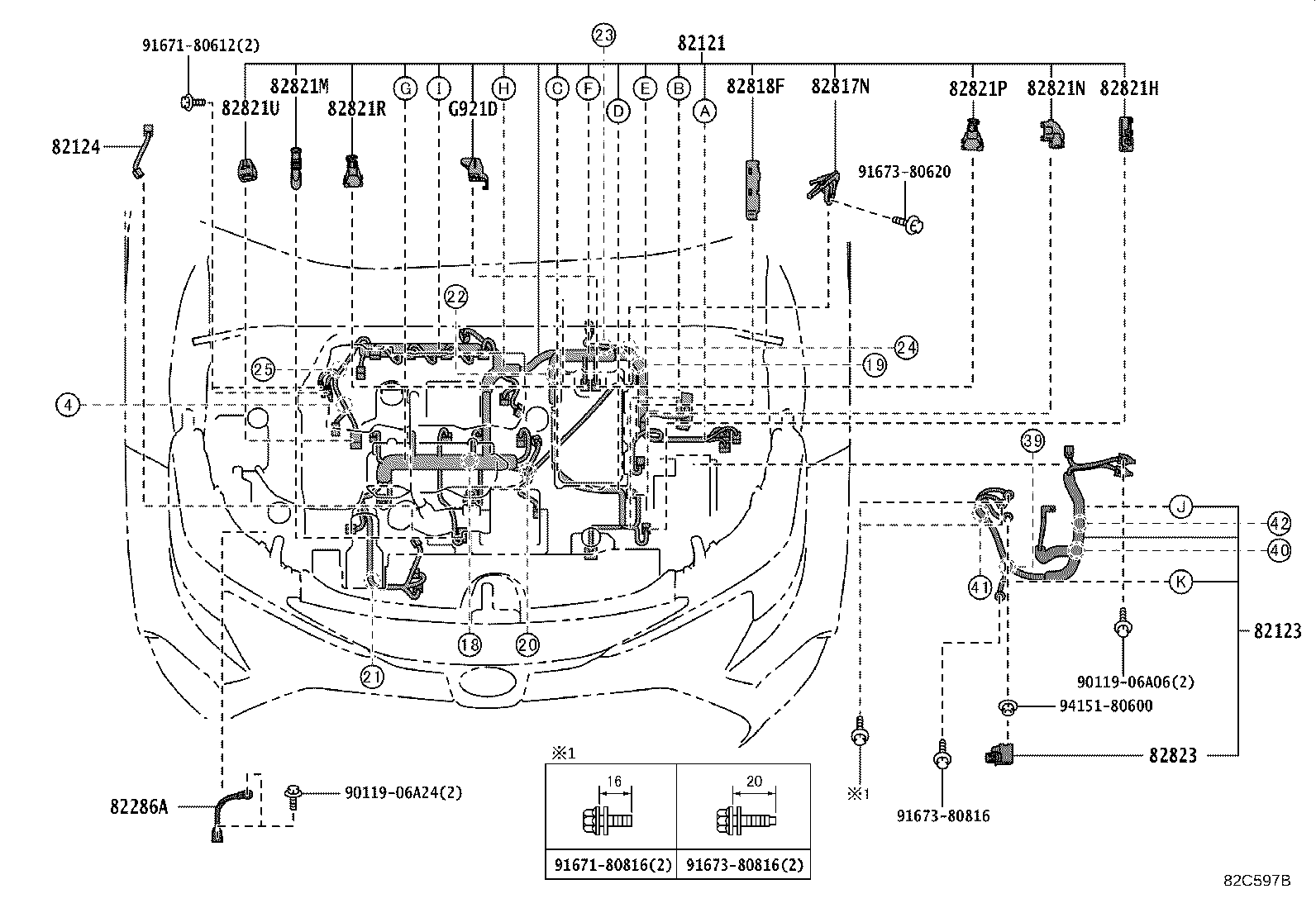

82C597B
82C598

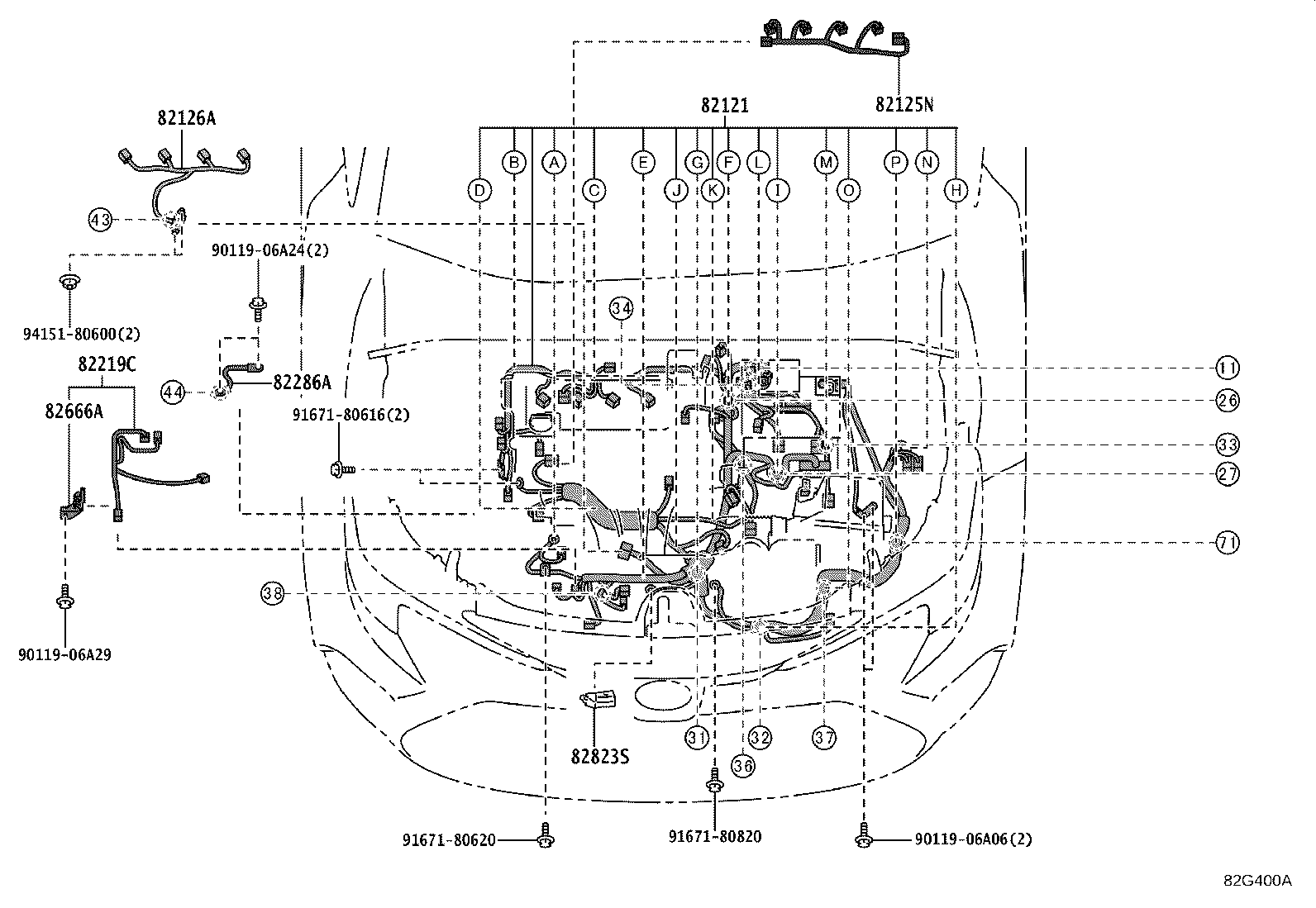

82G400A

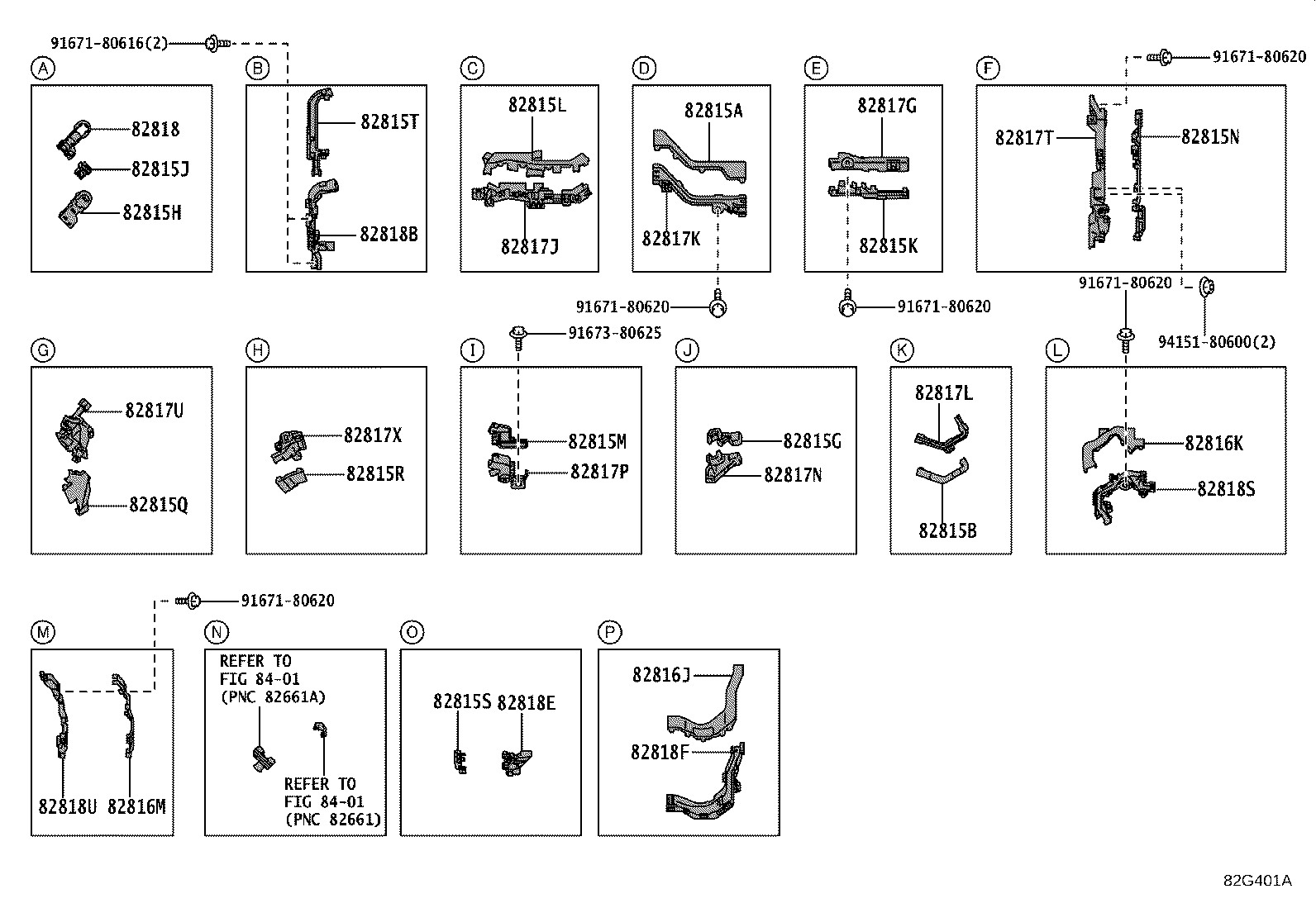

82G401A

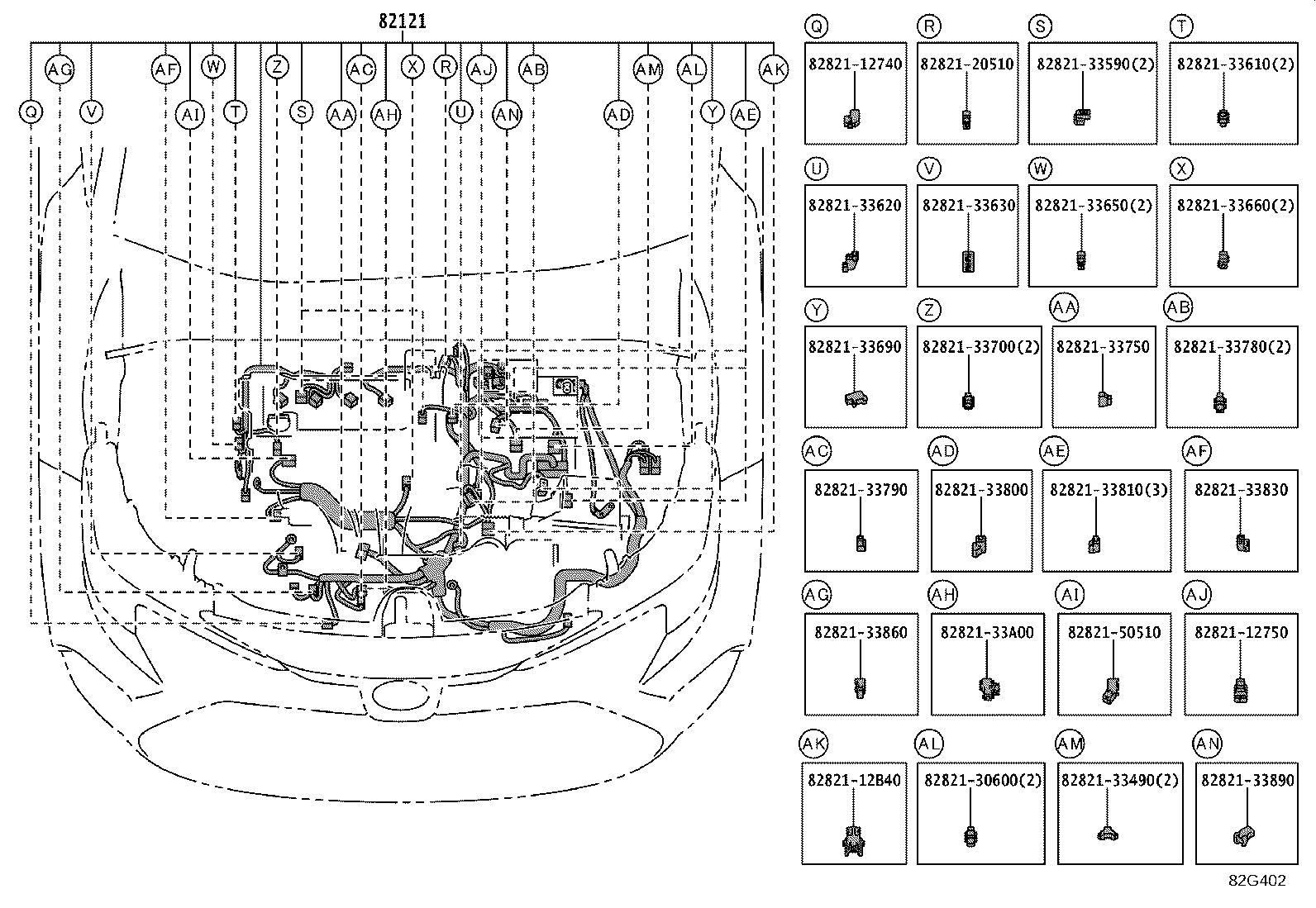

82G402

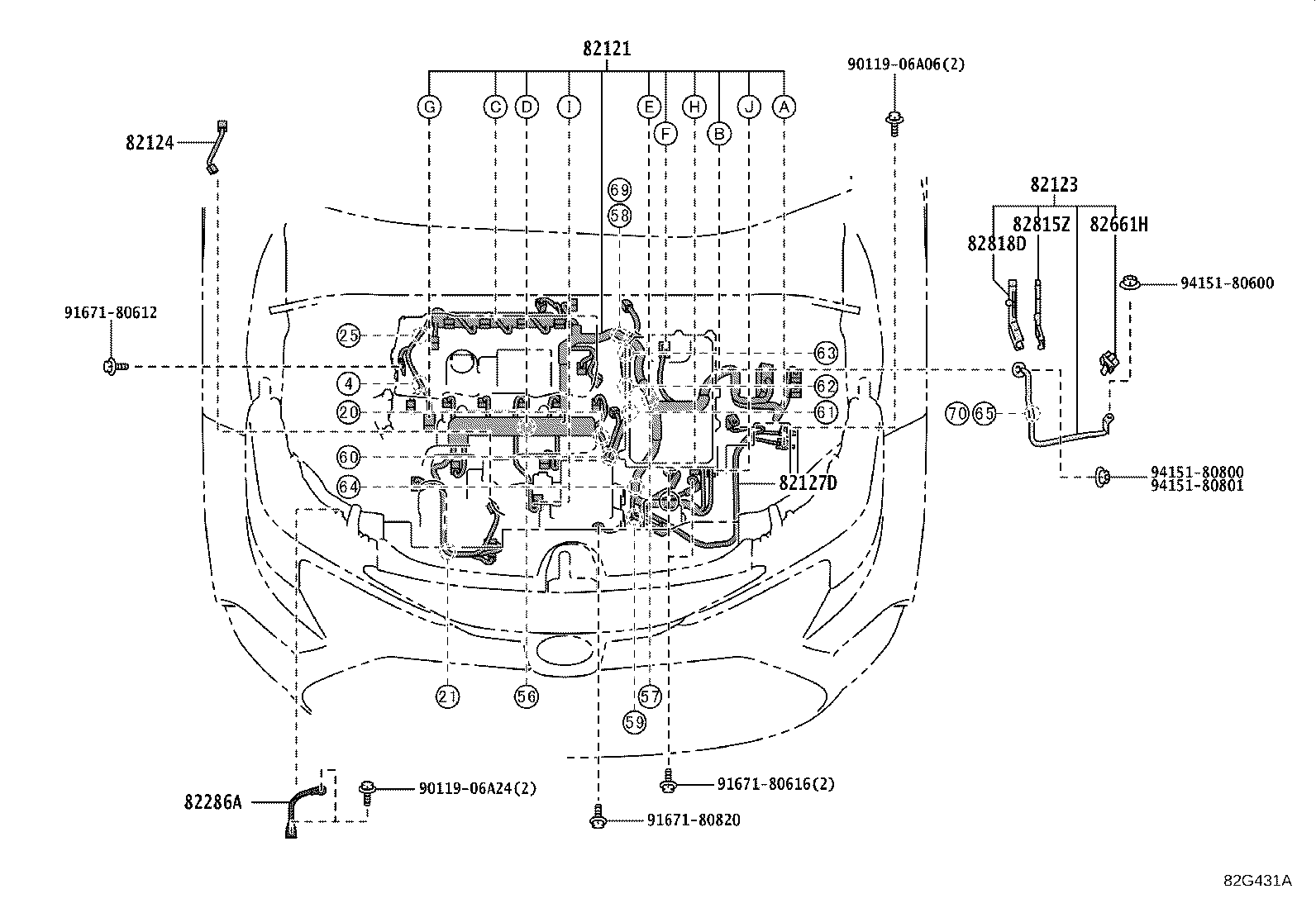

82G431A

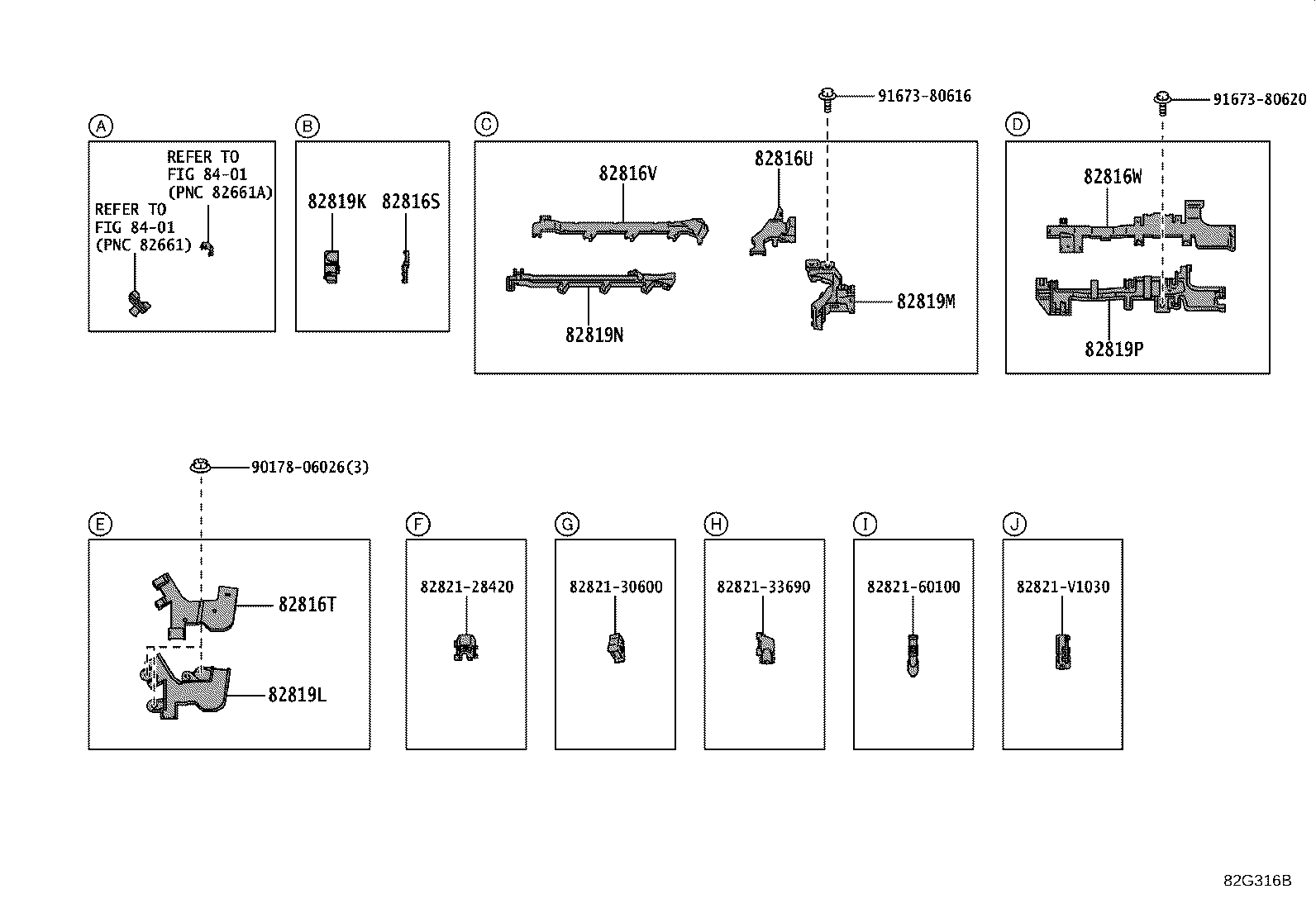

82G316B

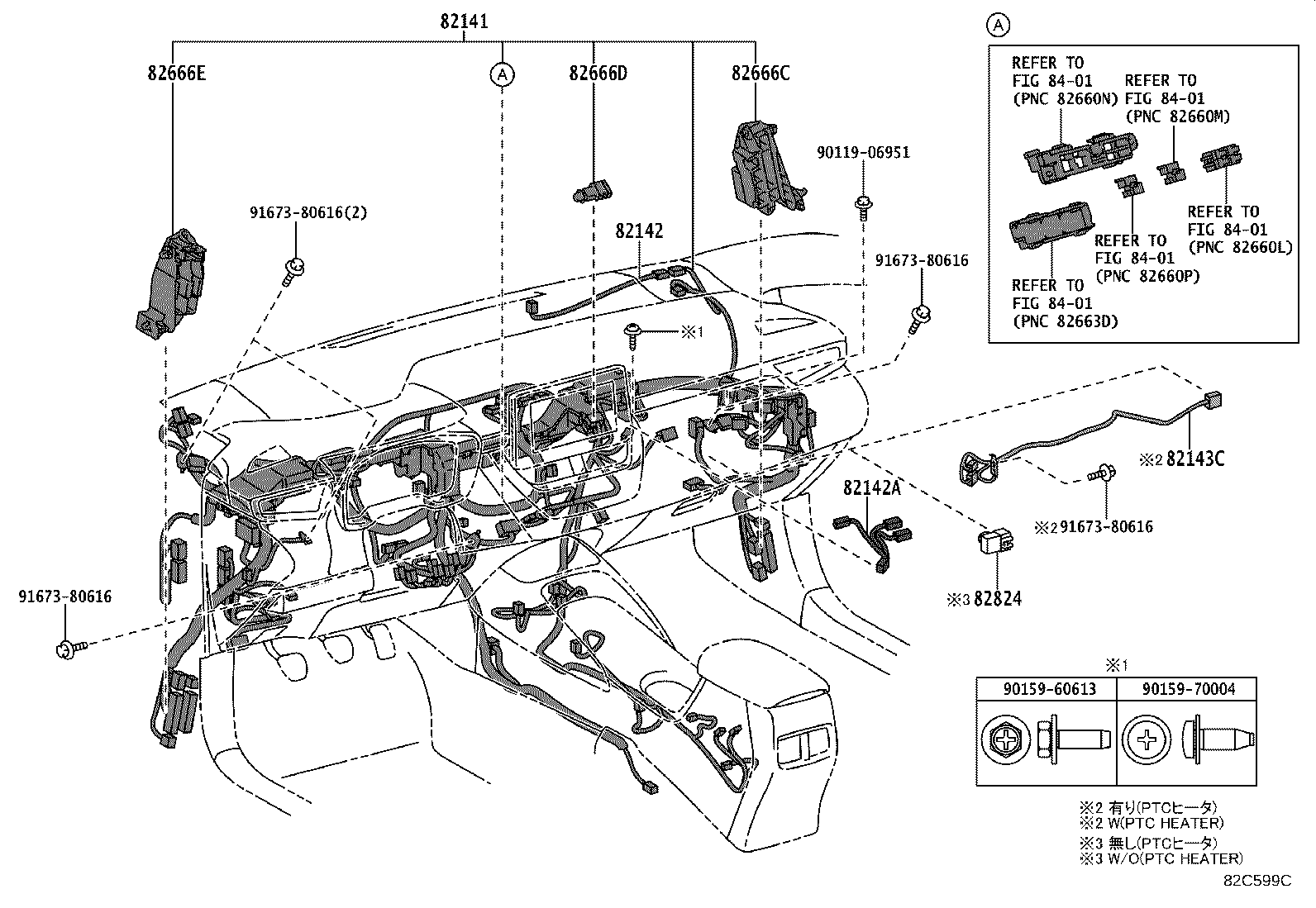

82C599C
82C600
82C601A

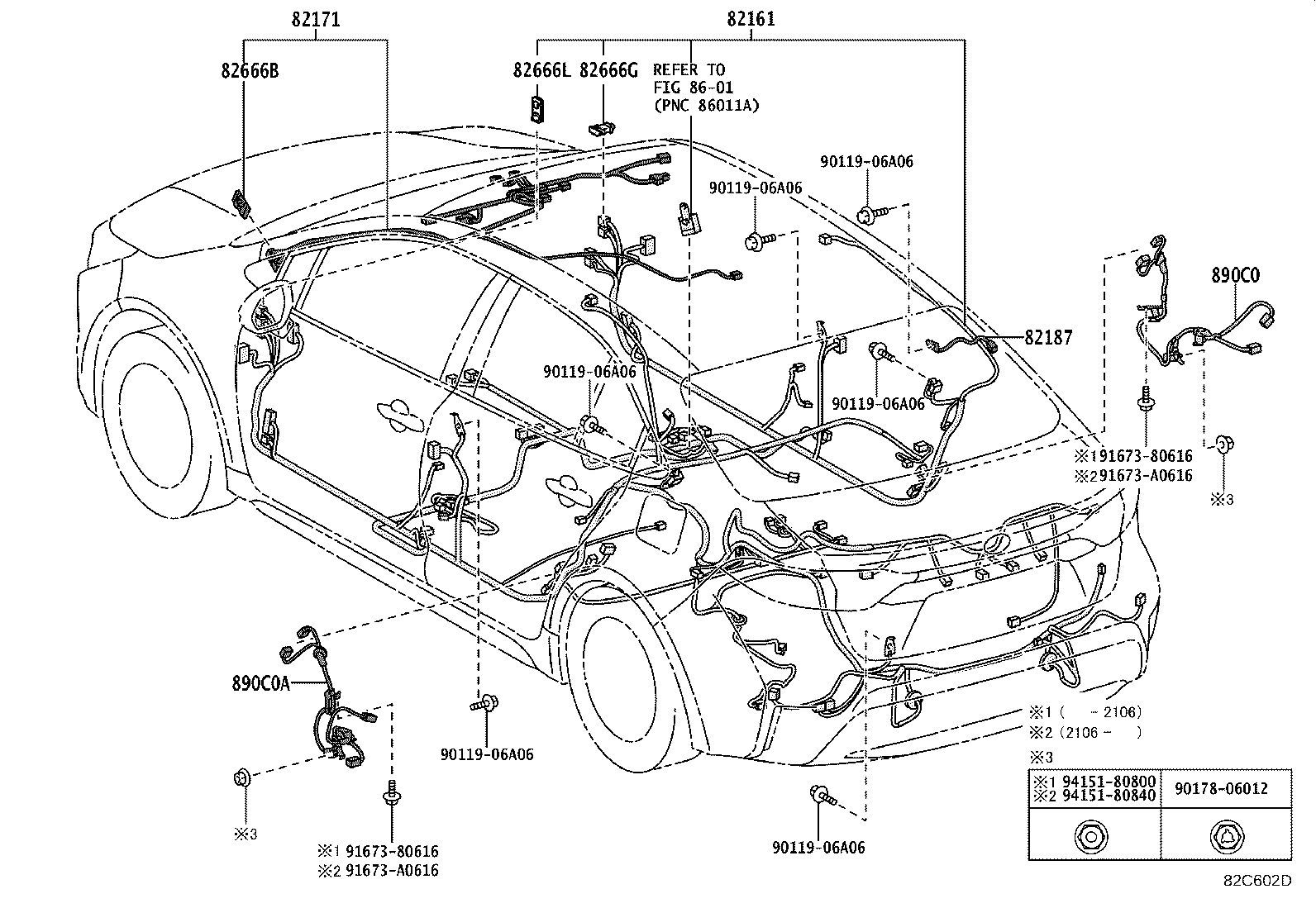

82C602D

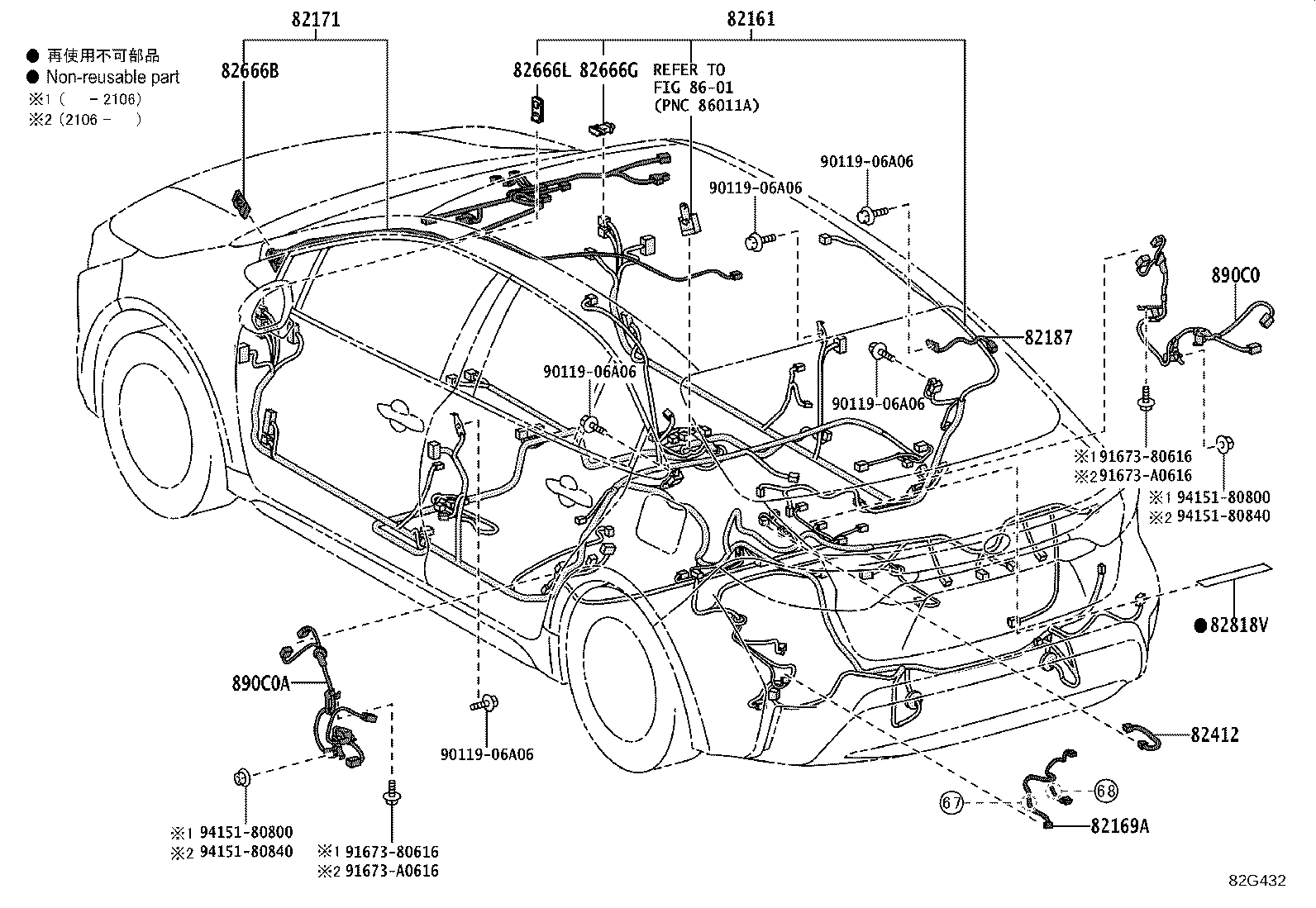

82G432
82C604
82G317

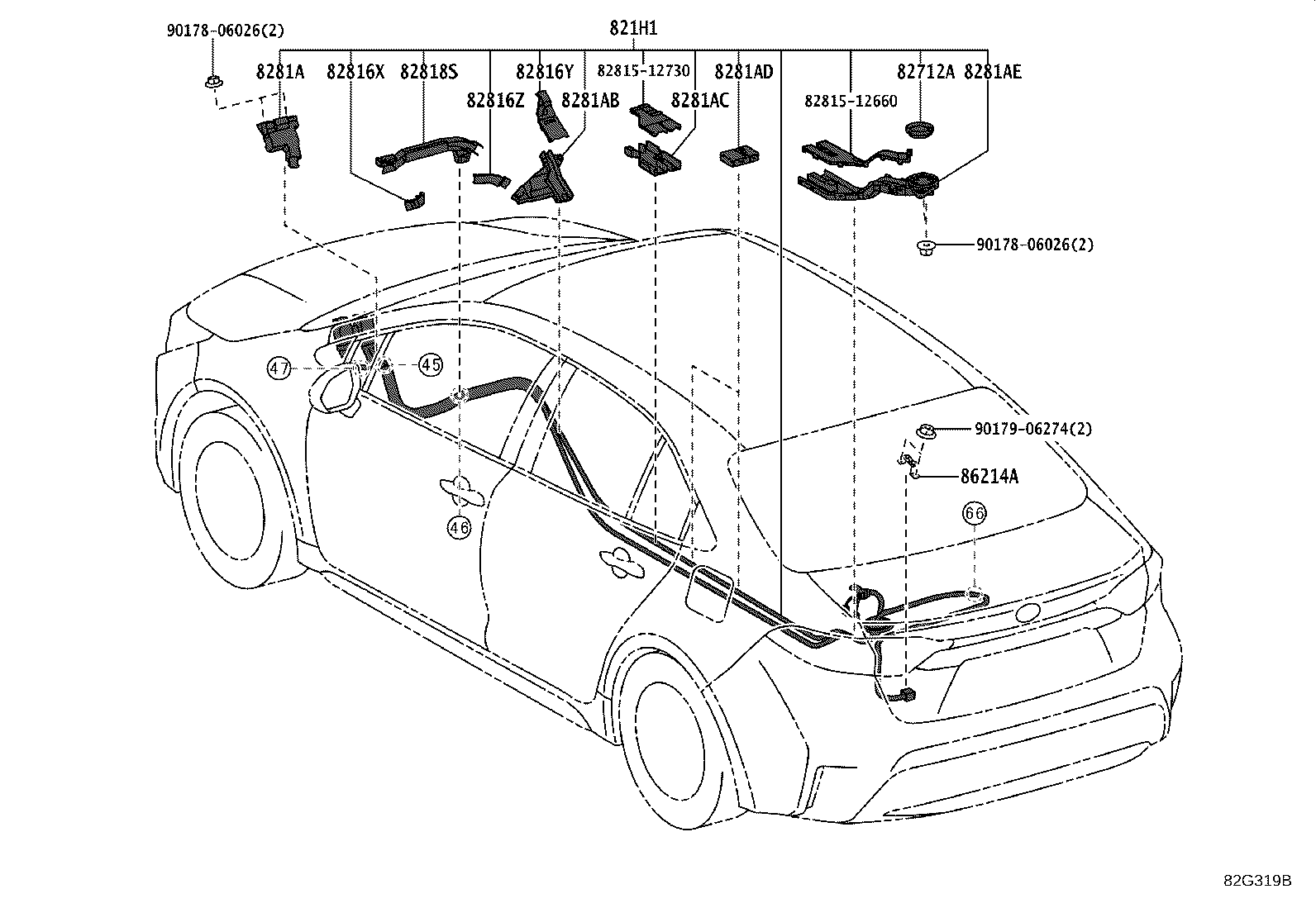

82G319B
82C605

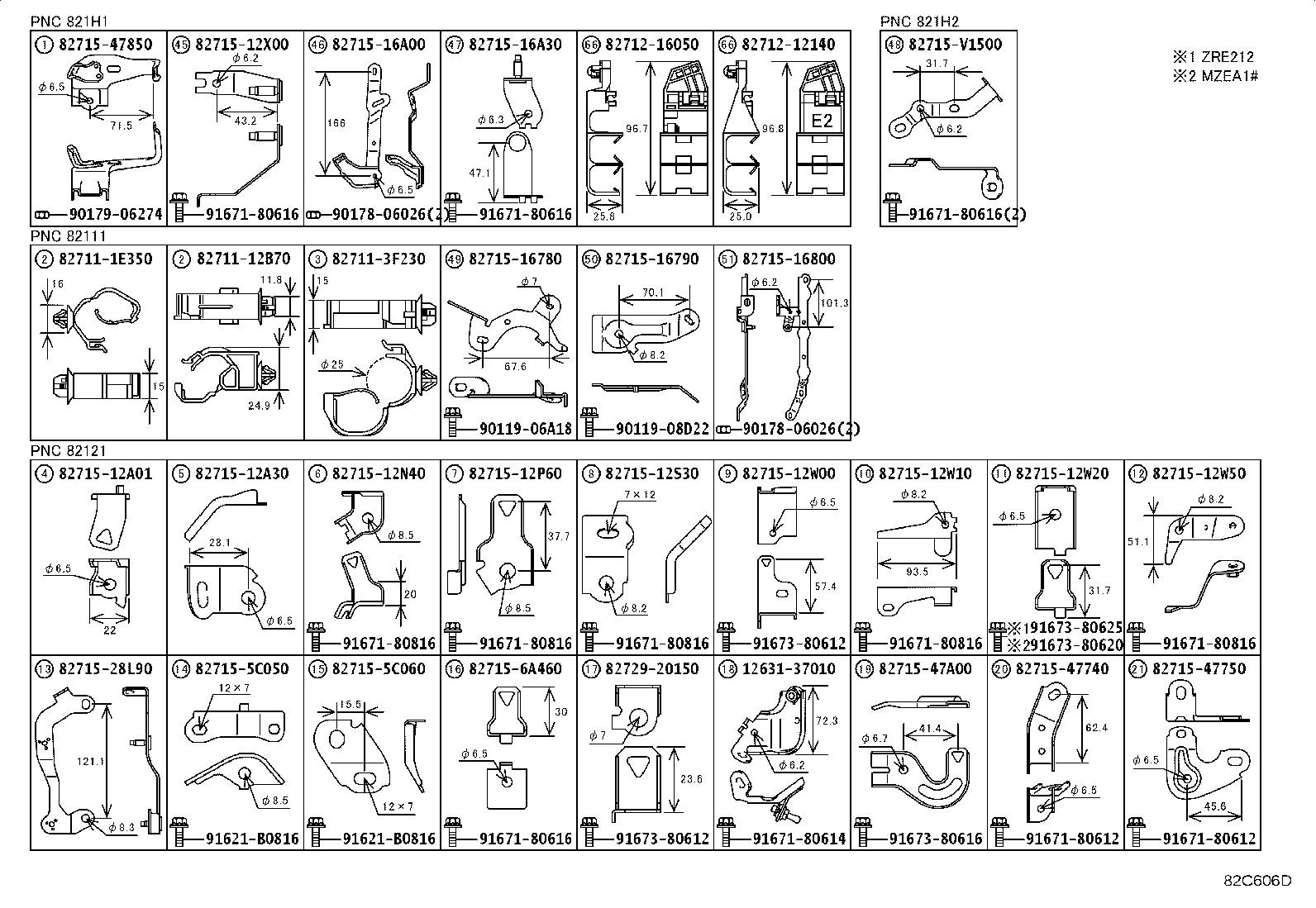

82C606D

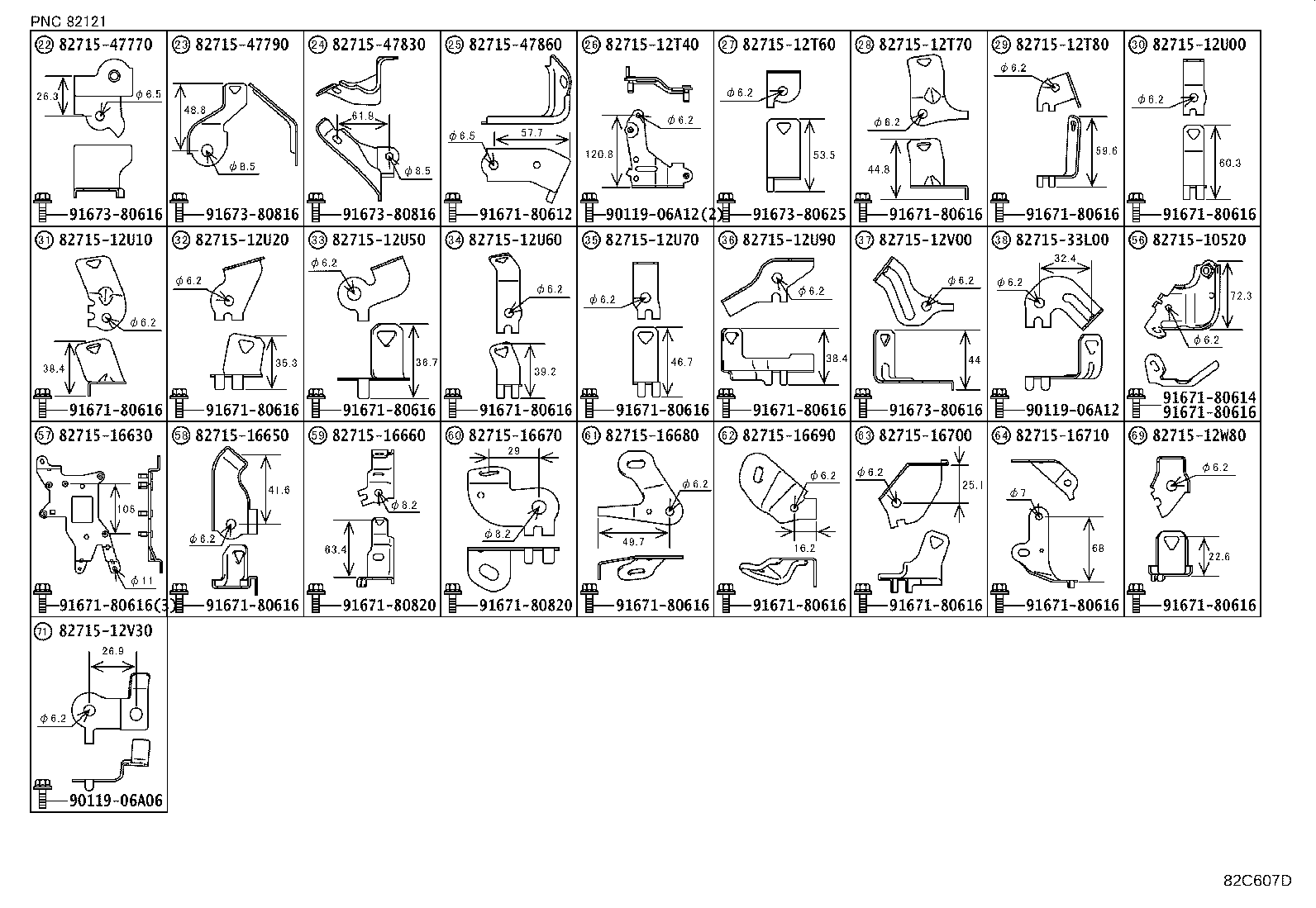

82C607D

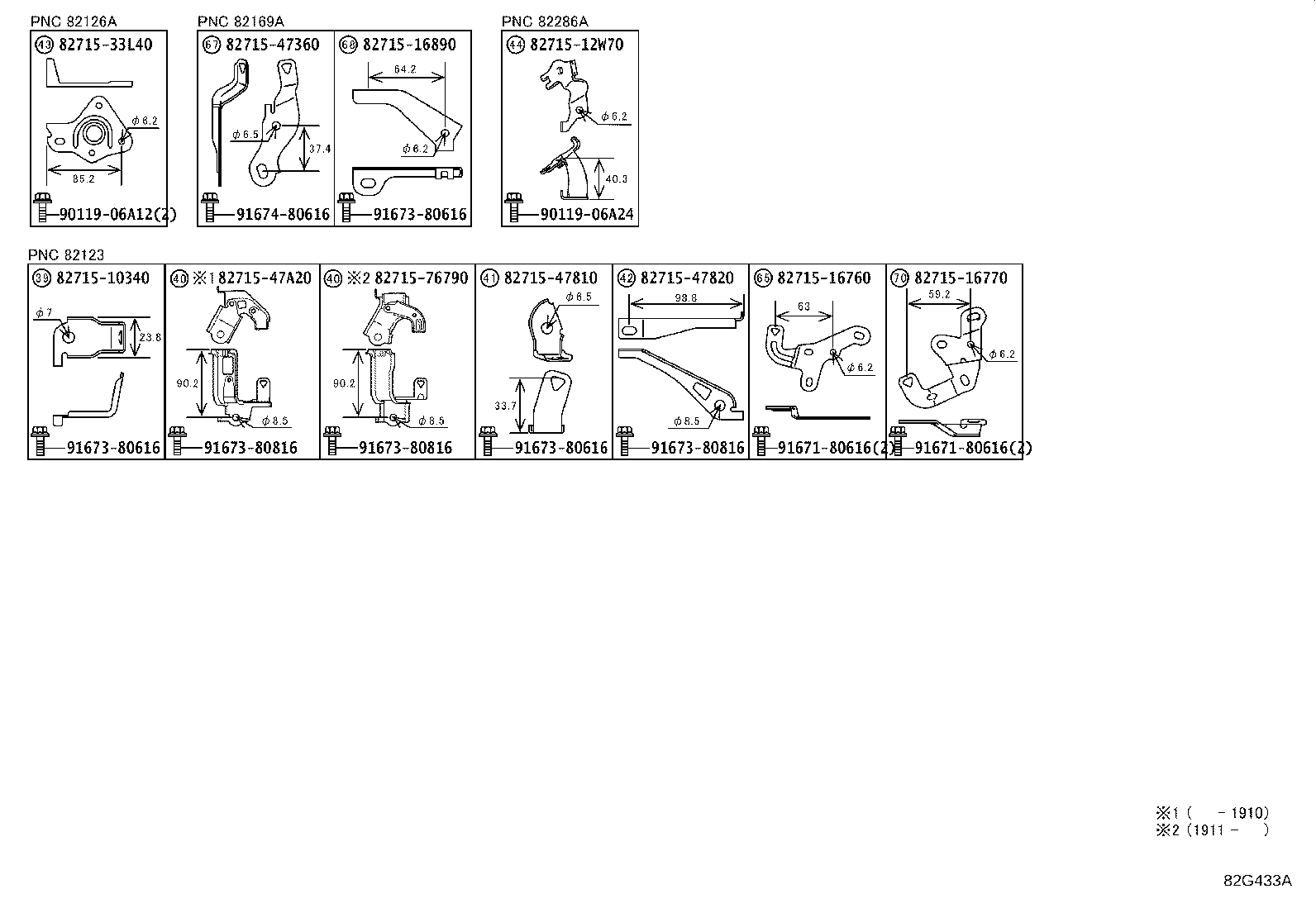

82G433A

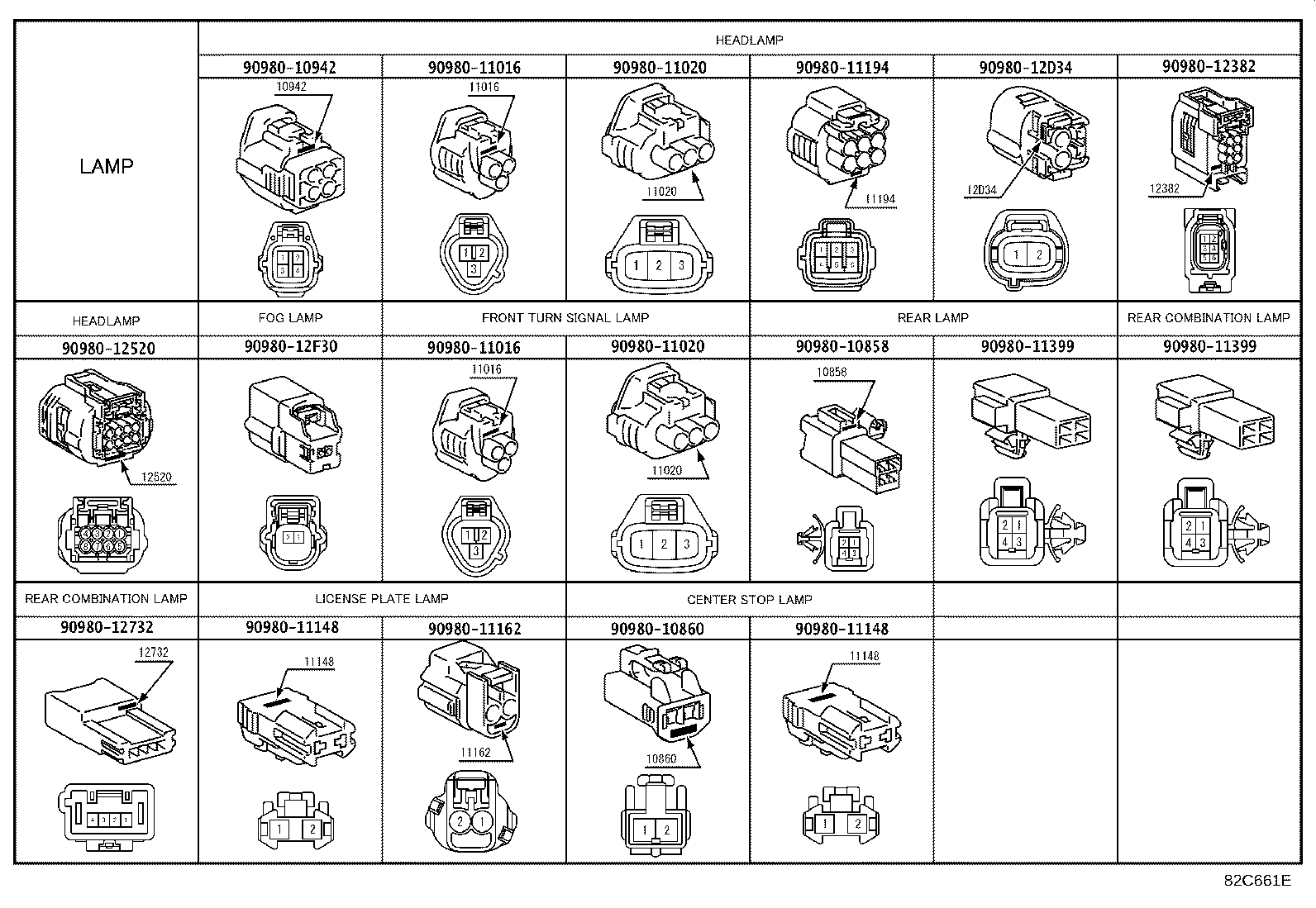

82C661E

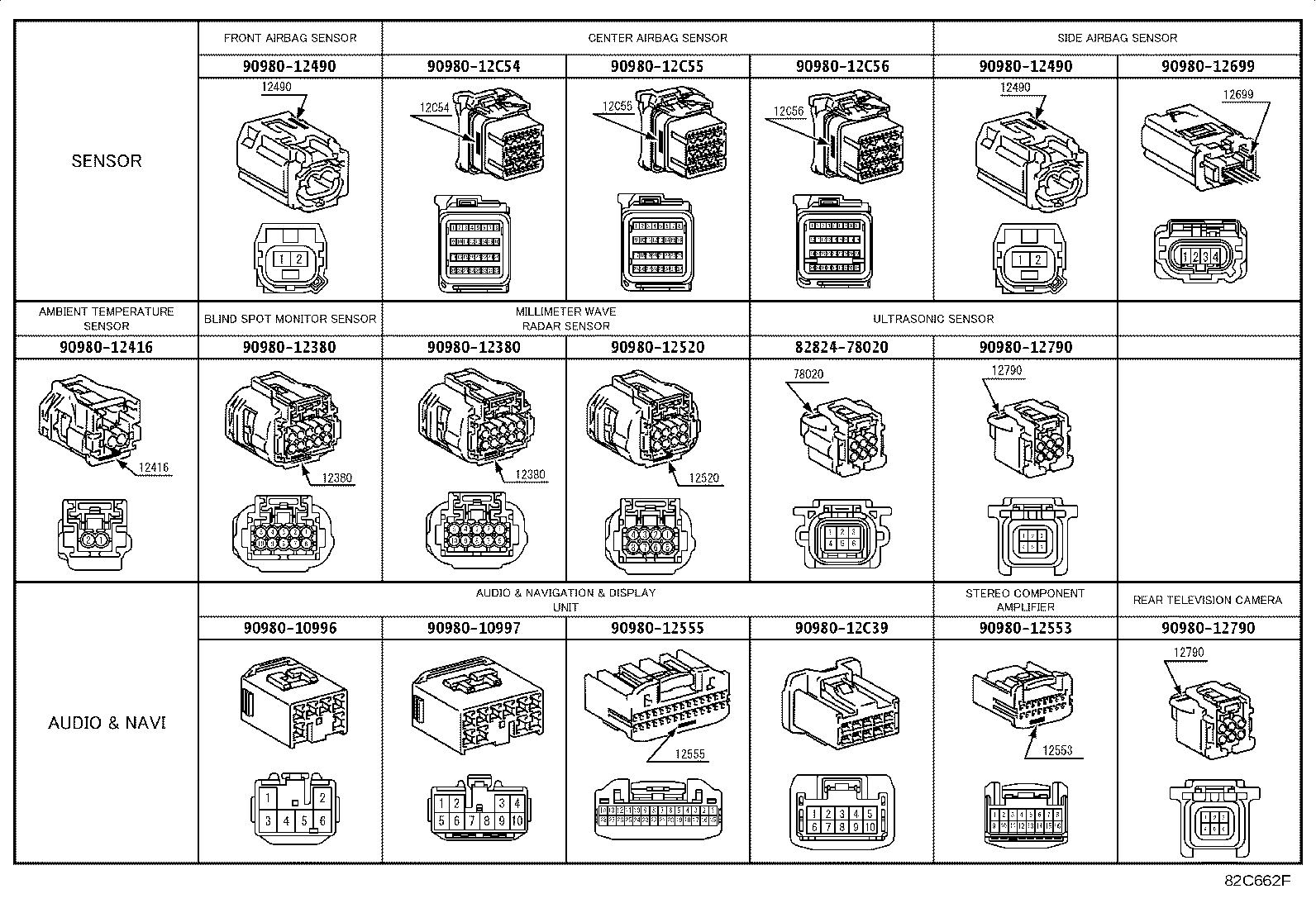

82C662F
82H54H
Part groups
| PNC | Description |
|---|---|
| 82090A | Wire Assy, Extension |
| 82111 | Wire, Engine Room Main |
| 82121 | Wire, Engine |
| 82123 | Wire, Engine, NO.3 |
| 82124 | Wire, Engine, NO.4 |
| 82125N | Wire, Engine, NO.5 |
| 82126A | Wire, Engine, NO.6 |
| 82127D | Wire, Engine, NO.7 |
| 82141 | Wire, Instrument Panel |
| 82142 | Wire, Instrument Panel, NO.2 |
| 82142A | Wire, Instrument Panel, NO.2 |
| 82143C | Wire, Instrument Panel, NO.3 |
| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153 | Wire, Rear Door, NO.1 |
| 82154 | Wire, Rear Door, NO.2 |
| 82161 | Wire, Floor |
| 82169A | Wire, Floor, NO.6 |
| 82171 | Wire, Roof, NO.1 |
| 82187 | Wire, Rear Window, NO.2 |
| 82191 | Wire, Front Seat, RH |
| 82192 | Wire, Front Seat, LH |
| 82192B | Wire, Front Seat, LH NO.2 |
| 8219B | Wire, Front Seat, LH NO.2 |
| 821H1 | Wire, Floor Under |
| 821H2 | Wire, HV Air Conditioner |
| 82219C | Wire, Sensor |
| 82286A | Wire, Earth, NO.2 |
| 82412 | Wire, Fuel Gage |
| 82661H | Cover, Relay Block |
| 82666A | Holder, Connector NO.2 |
| 82666B | Holder, Connector NO.3 |
| 82666C | Holder, Connector NO.4 |
| 82666D | Holder, Connector NO.5 |
| 82666E | Holder, Connector NO.6 |
| 82666F | Holder, Connector NO.7 |
| 82666G | Holder, Connector NO.8 |
| 82666L | Holder, Connector NO.9 |
| 82712A | Support, Wiring Harness |
| 82815A | Cover, Wiring Harness Protector |
| 82815B | Cover, Wiring Harness Protector |
| 82815G | Cover, Wiring Harness Protector NO.5 |
| 82815H | Cover, Wiring Harness Protector NO.6 |
| 82815J | Cover, Wiring Harness Protector, NO.7 |
| 82815K | Cover, Wiring Harness Protector, NO.8 |
| 82815L | Cover, Wiring Harness Protector, NO.9 |
| 82815M | Cover, Wiring Harness Protector, NO.10 |
| 82815N | Cover, Wiring Harness Protector, NO.11 |
| 82815P | Cover, Wiring Harness Protector, NO.12 |
| 82815Q | Cover, Wiring Harness Protector, NO.13 |
| 82815R | Cover, Wiring Harness Protector, NO.14 |
| 82815S | Cover, Wiring Harness Protector, NO.15 |
| 82815T | Cover, Wiring Harness Protector, NO.16 |
| 82815U | Cover, Wiring Harness Protector, NO.17 |
| 82815V | Cover, Wiring Harness Protector, NO.1 |
| 82815W | Cover, Wiring Harness Protector, NO.2 |
| 82815X | Cover, Wiring Harness Protector, NO.3 |
| 82815Y | Cover, Wiring Harness Protector, NO.4 |
| 82815Z | Cover, Wiring Harness Protector, NO.18 |
| 82816B | Cover, Wiring Harness Protector, NO.1 |
| 82816C | Cover, Wiring Harness Protector, NO.2 |
| 82816D | Cover, Wiring Harness Protector, NO.3 |
| 82816F | Cover, Wiring Harness Protector, NO.4 |
| 82816G | Cover, Wiring Harness Protector, NO.5 |
| 82816H | Cover, Wiring Harness Protector, NO.6 |
| 82816J | Cover, Wiring Harness Protector, NO.7 |
| 82816K | Cover, Wiring Harness Protector, NO.8 |
| 82816L | Cover, Wiring Harness Protector, NO.9 |
| 82816M | Cover, Wiring Harness Protector, NO.10 |
| 82816N | Cover, Wiring Harness Protector, NO.11 |
| 82816P | Cover, Wiring Harness Protector, NO.12 |
| 82816Q | Cover, Wiring Harness Protector, NO.13 |
| 82816R | Cover, Wiring Harness Protector, NO.14 |
| 82816S | Cover, Wiring Harness Protector, NO.15 |
| 82816T | Cover, Wiring Harness Protector, NO.16 |
| 82816U | Cover, Wiring Harness Protector, NO.17 |
| 82816V | Cover, Wiring Harness Protector, NO.18 |
| 82816W | Cover, Wiring Harness Protector, NO.19 |
| 82816X | Cover, Wiring Harness Protector, NO.20 |
| 82816Y | Cover, Wiring Harness Protector, NO.21 |
| 82816Z | Cover, Wiring Harness Protector, NO.22 |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82817A | Protector, Wiring Harness, NO.2 |
| 82817B | Protector, Wiring Harness, NO.3 |
| 82817C | Protector, Wiring Harness, NO.4 |
| 82817D | Protector, Wiring Harness, NO.5 |
| 82817E | Protector, Wiring Harness, NO.6 |
| 82817F | Protector, Wiring Harness, NO.7 |
| 82817G | Protector, Wiring Harness, NO.8 |
| 82817J | Protector, Wiring Harness, NO.9 |
| 82817K | Protector, Wiring Harness, NO.10 |
| 82817L | Protector, Wiring Harness, NO.11 |
| 82817M | Protector, Wiring Harness, NO.12 |
| 82817N | Protector, Wiring Harness, NO.13 |
| 82817P | Protector, Wiring Harness, NO.14 |
| 82817T | Protector, Wiring Harness, NO.15 |
| 82817U | Protector, Wiring Harness, NO.16 |
| 82817X | Protector, Wiring Harness, NO.17 |
| 82818 | Protector, Wiring Harness, NO.2 |
| 82818B | Protector, Wiring Harness, NO.3 |
| 82818C | Protector, Wiring Harness, NO.4 |
| 82818D | Protector, Wiring Harness, NO.5 |
| 82818E | Protector, Wiring Harness, NO.6 |
| 82818F | Protector, Wiring Harness, NO.7 |
| 82818G | Protector, Wiring Harness, NO.8 |
| 82818H | Protector, Wiring Harness, NO.9 |
| 82818J | Protector, Wiring Harness, NO.10 |
| 82818K | Protector, Wiring Harness, NO.11 |
| 82818L | Protector, Wiring Harness, NO.12 |
| 82818M | Protector, Wiring Harness, NO.13 |
| 82818N | Protector, Wiring Harness, NO.14 |
| 82818S | Protector, Wiring Harness, NO.15 |
| 82818T | Protector, Wiring Harness, NO.16 |
| 82818U | Protector, Wiring Harness, NO.17 |
| 82818V | Protector, Wiring Harness, NO.18 |
| 82818W | Protector, Wiring Harness, NO.19 |
| 82818X | Protector, Wiring Harness, NO.20 |
| 82818Y | Protector, Wiring Harness, NO.21 |
| 82818Z | Protector, Wiring Harness, NO.22 |
| 82819G | Protector, Wiring Harness, NO.23 |
| 82819H | Protector, Wiring Harness, NO.24 |
| 82819J | Protector, Wiring Harness, NO.25 |
| 82819K | Protector, Wiring Harness, NO.26 |
| 82819L | Protector, Wiring Harness, NO.27 |
| 82819M | Protector, Wiring Harness, NO.28 |
| 82819N | Protector, Wiring Harness, NO.29 |
| 82819P | Protector, Wiring Harness, NO.30 |
| 8281A | Protector, Wiring Harness, NO.1 |
| 8281AA | Protector, Wiring Harness, NO.2 |
| 8281AB | Protector, Wiring Harness, NO.3 |
| 8281AC | Protector, Wiring Harness, NO.4 |
| 8281AD | Protector, Wiring Harness, NO.5 |
| 8281AE | Protector, Wiring Harness, NO.6 |
| 82821E | Cover, Connector |
| 82821H | Cover, Connector |
| 82821M | Cover, Connector |
| 82821N | Cover, Connector |
| 82821P | Cover, Connector |
| 82821R | Cover, Connector |
| 82821U | Cover, Connector |
| 82821W | Cover, Connector |
| 82823 | Cap, Terminal, NO.1 |
| 82823S | Cap, Starter Terminal |
| 82823T | Cap, Alternator Terminal |
| 82824 | Connector, Wiring Harness |
| 86214A | Bracket, Radio Earth |
| 890C0 | Wire Assy, Parking Brake, NO.1 |
| 890C0A | Wire Assy, Parking Brake, NO.2 |
| G921D | Protector, Inverter Connector Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
