Toyota Corolla Sed (JPP)
2019-01 → present · chassis MZEA1#,ZRE212,ZWE21# · catalogue 153460 · United States
Supported model
Data version 2024-09

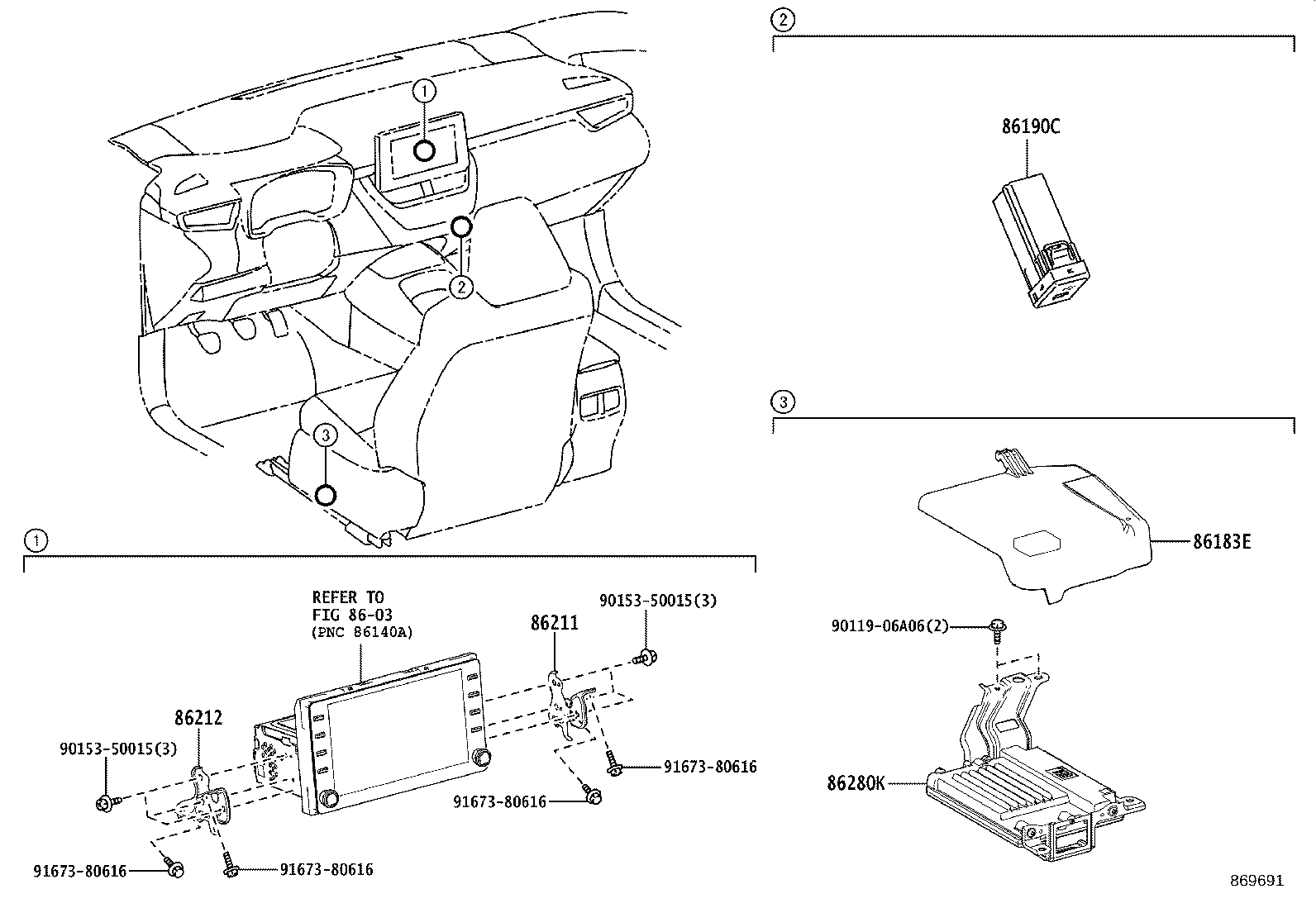

Radio Receiver & Amplifier & Condenser
6 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 86011A | Condenser, Radio Setting |
| 86183E | Cover, Audio Amplifier |
| 86190C | Adapter Assy, Stereo Jack, NO.1 |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86280K | Amplifier Assy, Stereo Component |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
