Toyota Scion XB
2007-03 → 2015-12 · chassis AZE151 · catalogue 154460 · United States
Supported model
Data version 2016-06

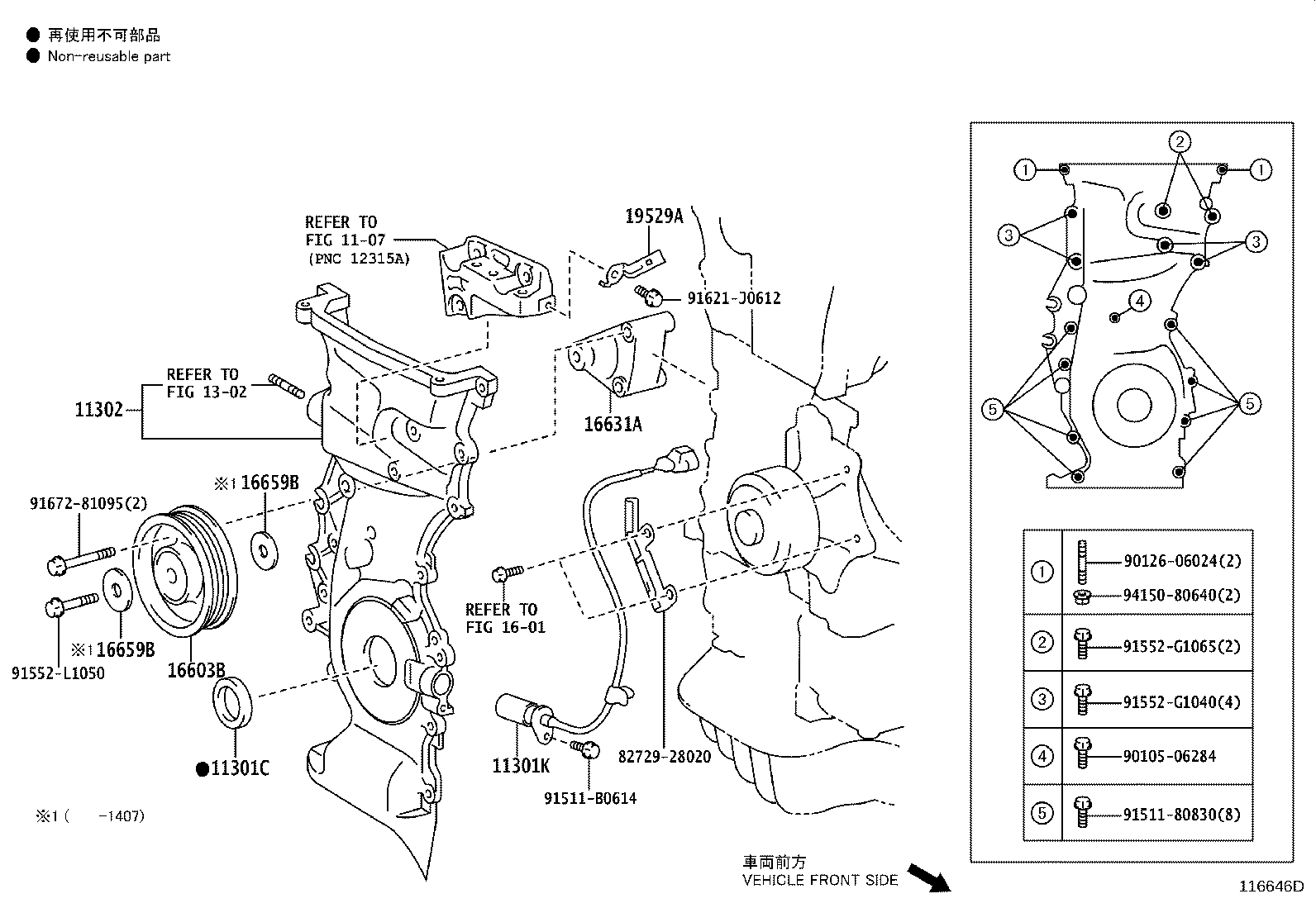

Timing Gear Cover & Rear End Plate
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11301C | Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) |
| 11301K | Sensor, Crank Position |
| 11302 | Cover Sub-assy, Timing Chain OR Belt |
| 16603B | Pulley Sub-assy, Idler |
| 16631A | Bracket, Idler Pulley |
| 16659B | Plate, Idler Pulley Cover, NO.2 |
| 19529A | Clamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
