Toyota Scion XB

2007-03 → 2015-12 · chassis AZE151 · catalogue 154460 · United States

Supported model Data version 2016-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

4 part groups · 3 illustrations

Illustrations

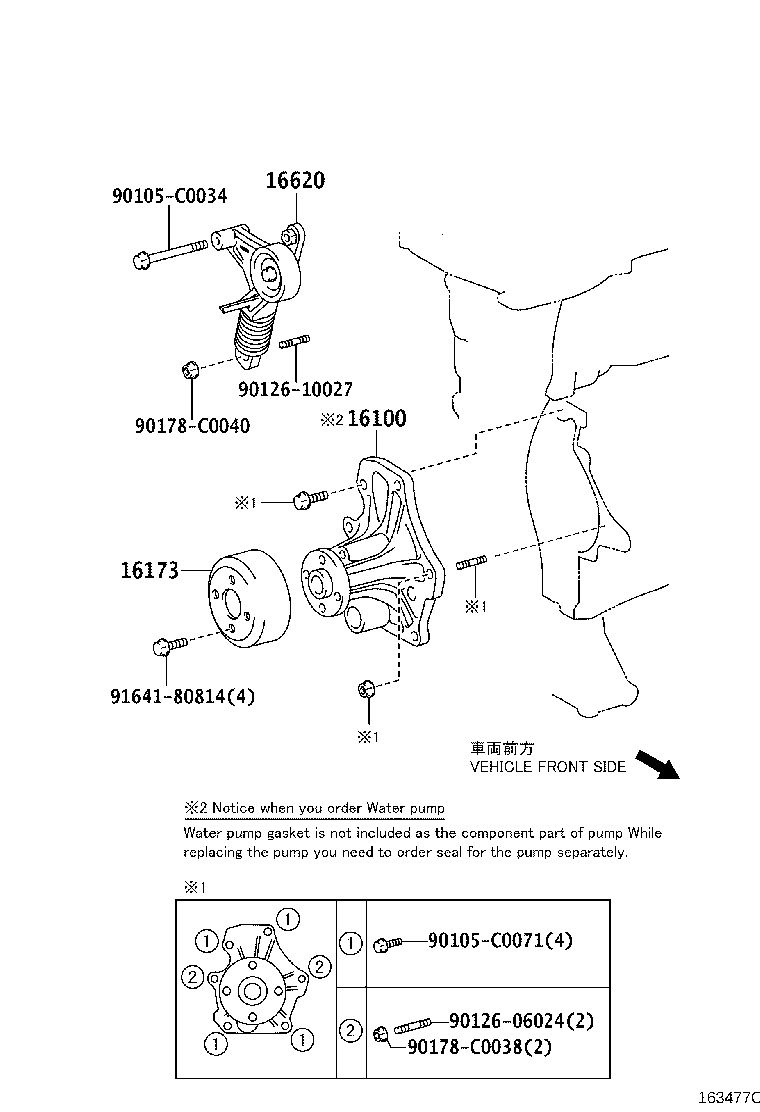

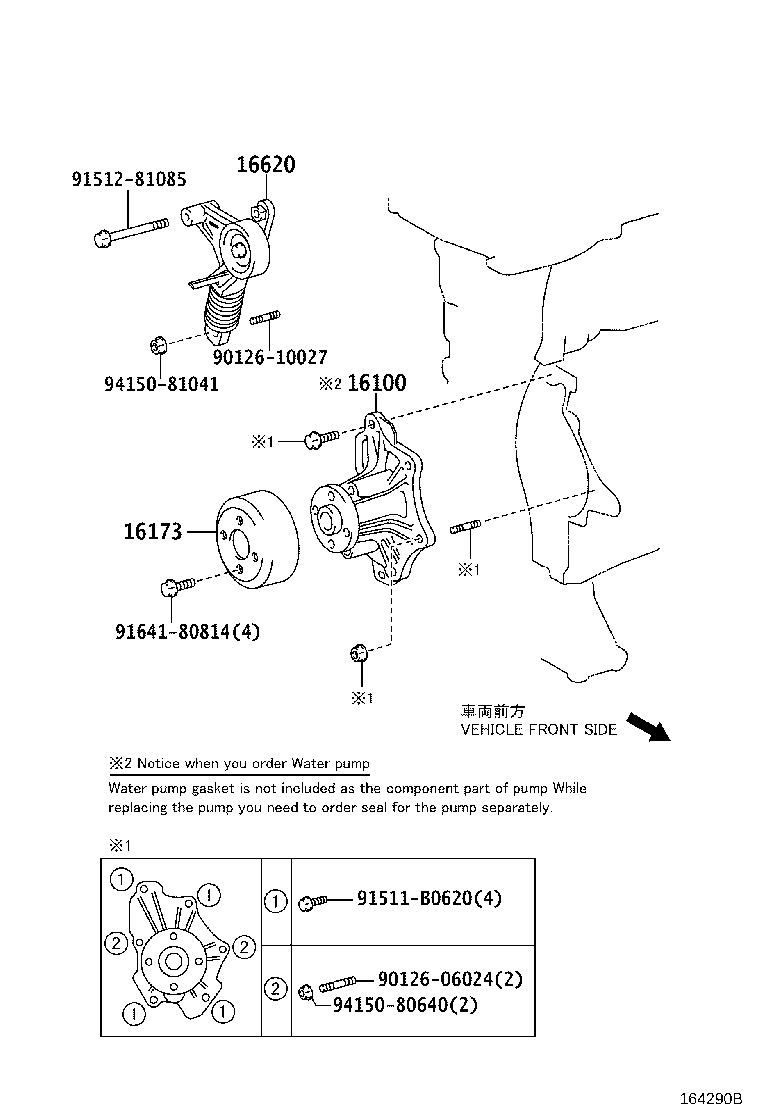

Figure 163084B 163084B 2007-03 → 2008-05 Figure 163477C 163477C 2008-05 → — Figure 164290B 164290B 2010-11 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16173 Pulley, Water Pump
16601 Tensioner Sub-assy, V-ribbed Belt
16620 Tensioner Assy, V-ribbed Belt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
