Toyota Scion XB

2007-03 → 2015-12 · chassis AZE151 · catalogue 154460 · United States

Supported model Data version 2016-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

19 part groups · 2 illustrations

Illustrations

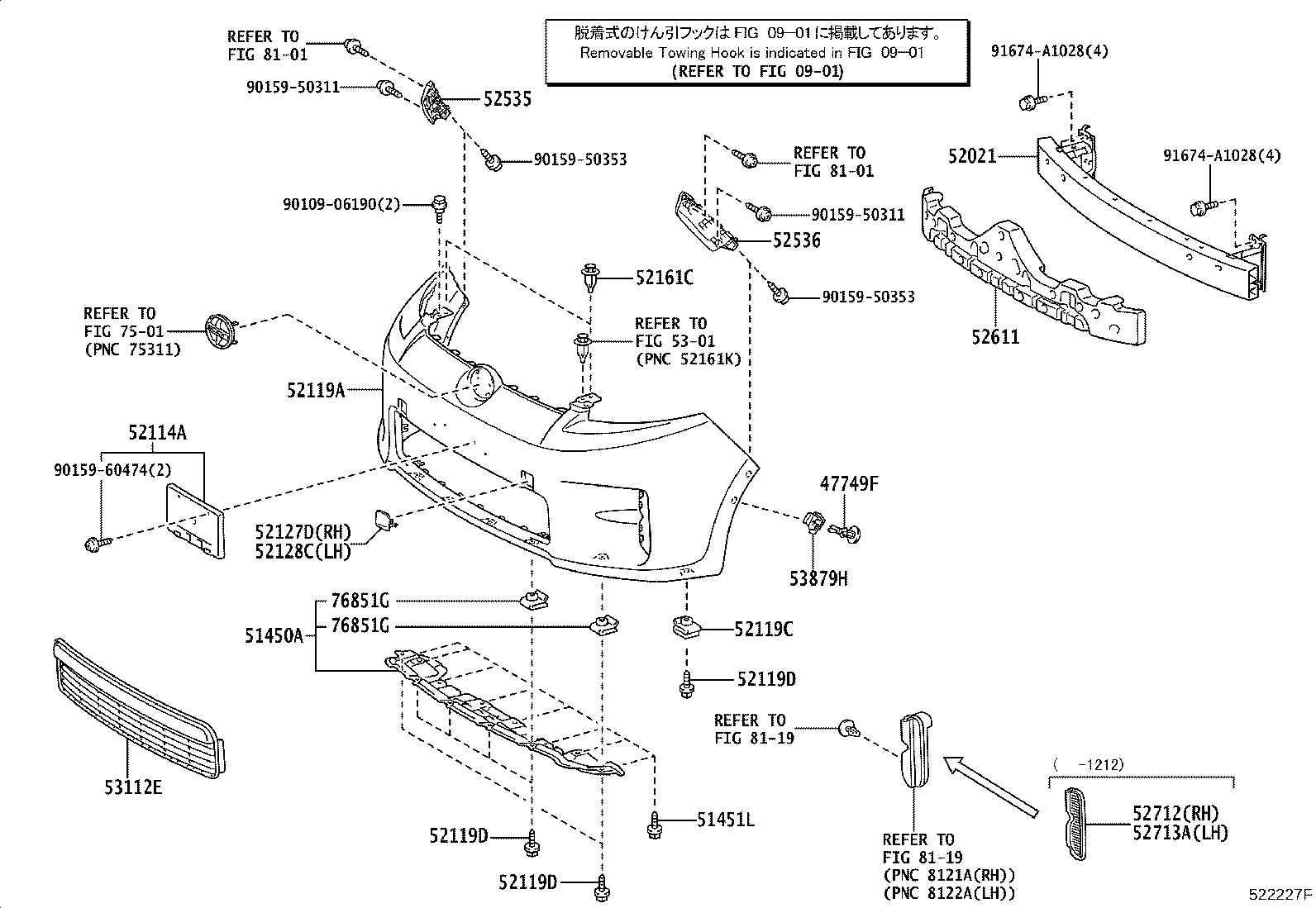

Figure 521733H 521733H 2007-03 → 2010-03 Figure 522227F 522227F 2010-03 → —

Part groups

PNCDescription
47749F Clip, Pin Hold
51450A Cover Assy, Transmission Under, Center
51451L Bolt, NO.1
52021 Reinforcement Sub-assy, Front Bumper
52114A Bracket, Front Bumper Extension Mounting
52119A Cover, Front Bumper
52119C Clip, Front Bumper Cover
52119D Screw, NO.1
52127D Cover, Front Bumper Hole, RH
52128C Cover, Front Bumper Hole, LH
52161C Piece, Front Bumper
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
52712 Moulding, Front Bumper Side, RH
52713A Moulding, Front Bumper Side, LH
53112E Grille, Radiator, Lower NO.1
53879H Retainer, Front Fender Liner
76851G Grommet, Screw, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
