Toyota Scion XB
2007-03 → 2015-12 · chassis AZE151 · catalogue 154460 · United States
Supported model
Data version 2016-06

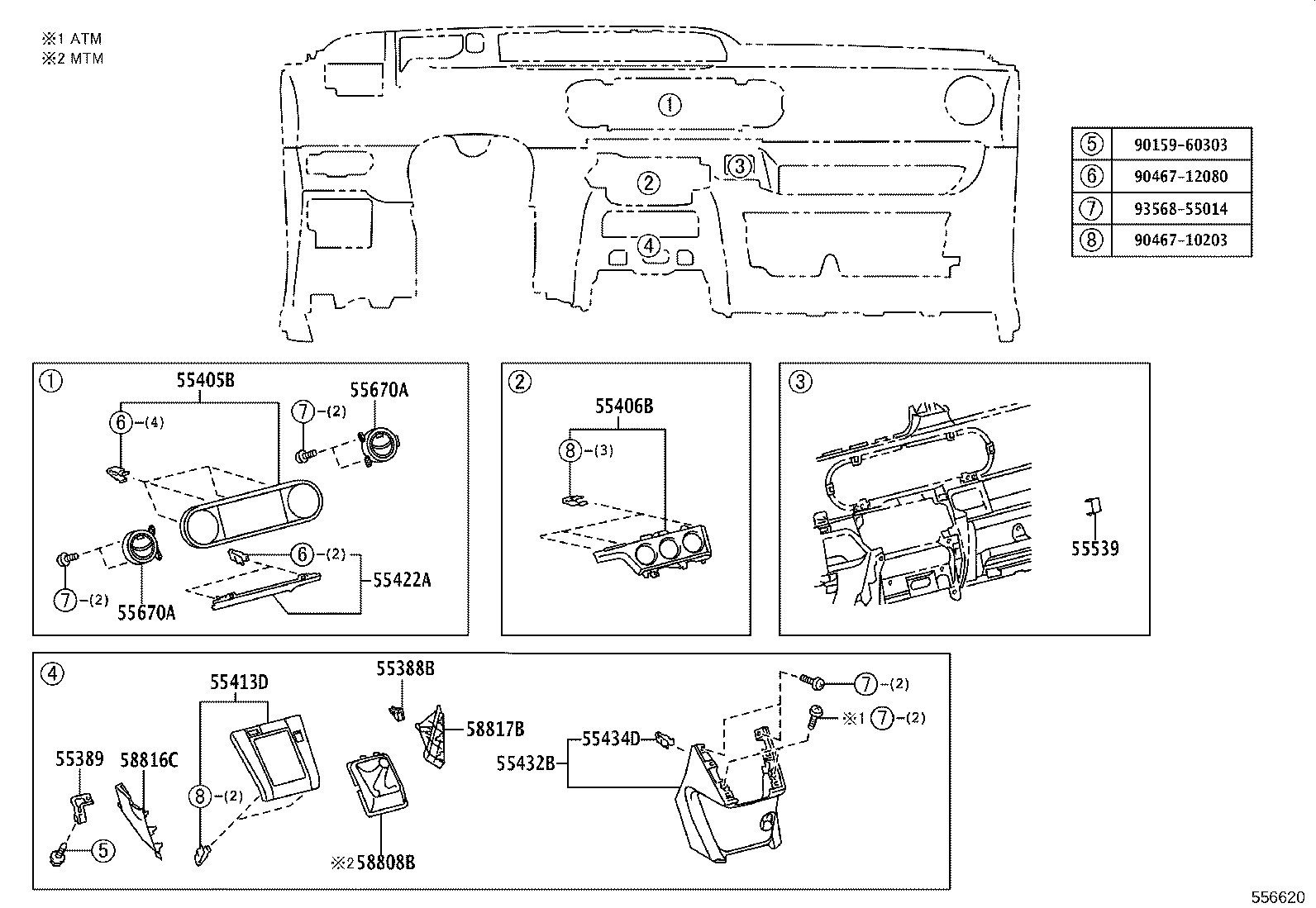

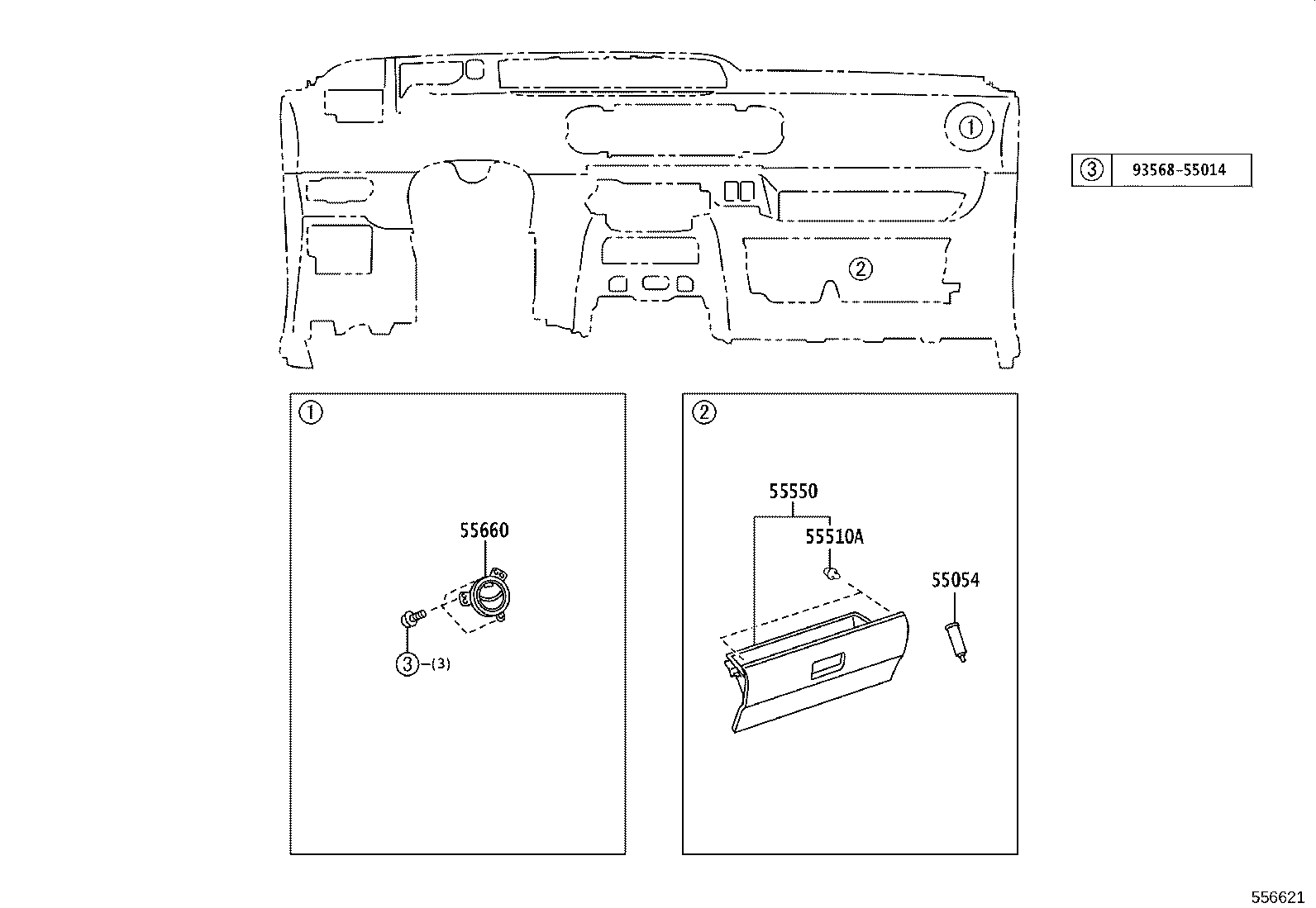

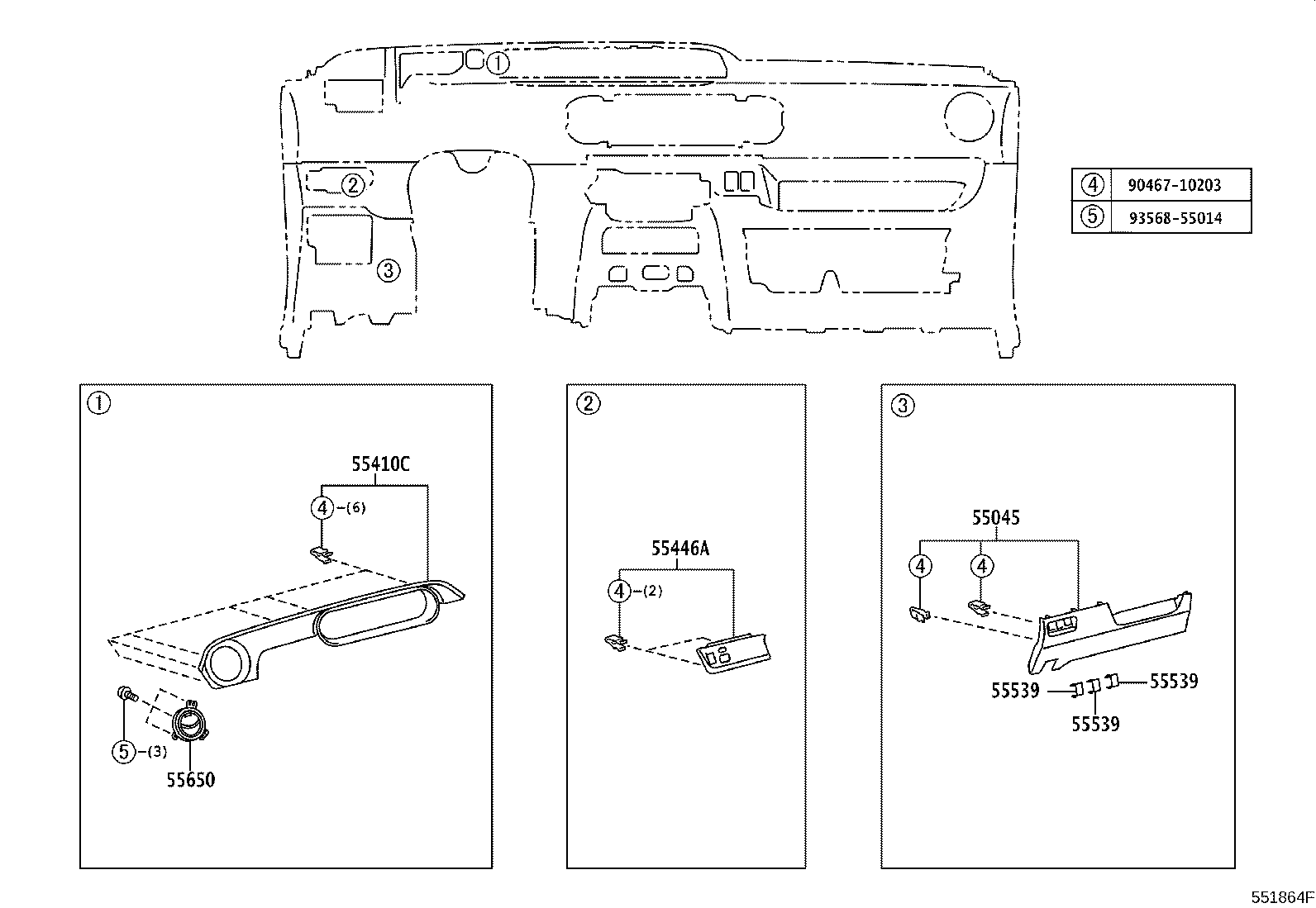

Instrument Panel & Glove Compartment
38 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55045 | Panel Sub-assy, Instrument Panel Finish, Lower |
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55302A | Panel Sub-assy, Instrument, Upper |
| 55303B | Panel Sub-assy, Instrument, Lower |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55337 | Reinforcement, Instrument Panel Sub |
| 55343B | Brace, Instrument Panel TO Cowl, Center |
| 55349E | Bracket, Instrument Panel Brace Mounting, Lower |
| 55355 | Cushion, Instrument Panel, NO.1 |
| 55356C | Cushion, Instrument Panel, NO.2 |
| 55357B | Cushion, Instrument Panel, NO.3 |
| 55358K | Cushion, Instrument Panel, NO.4 |
| 55388B | Bracket, Console Mounting, RH |
| 55389 | Bracket, Console Mounting, LH |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55406B | Panel Sub-assy, Instrument Cluster Finish, Lower Center |
| 55410C | Panel Assy, Instrument Cluster Finish |
| 55413D | Panel, Instrument Cluster Finish, Center Lower |
| 55422A | Panel, Instrument Cluster Finish, Lower |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55434D | Clip, Instrument Panel Finish, Lower Center |
| 55446A | Base, Switch Hole, NO.1 |
| 55451C | Box, Instrument Panel, NO.1 |
| 55452A | Box, Instrument Panel, NO.2 |
| 55468C | Seal, Instrument Cluster Finish Panel, NO.1 |
| 55510A | Cushion(FOR GLOVE COMPARTMENT DOOR) |
| 55539 | Cover, Spare Switch Hole |
| 55550 | Door Assy, Glove Compartment |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670A | Register Assy, Instrument Panel, Center |
| 58808B | Cover, Shifting Hole |
| 58816C | Insert, Console Box, Front NO.1 |
| 58817B | Insert, Console Box, Front NO.2 |
| 73970A | Airbag Assy, Instrument Panel Passenger |
| 82140 | Wire Assy, Instrument Panel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
