Toyota Scion XB

2007-03 → 2015-12 · chassis AZE151 · catalogue 154460 · United States

Supported model Data version 2016-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

15 part groups · 3 illustrations

Illustrations

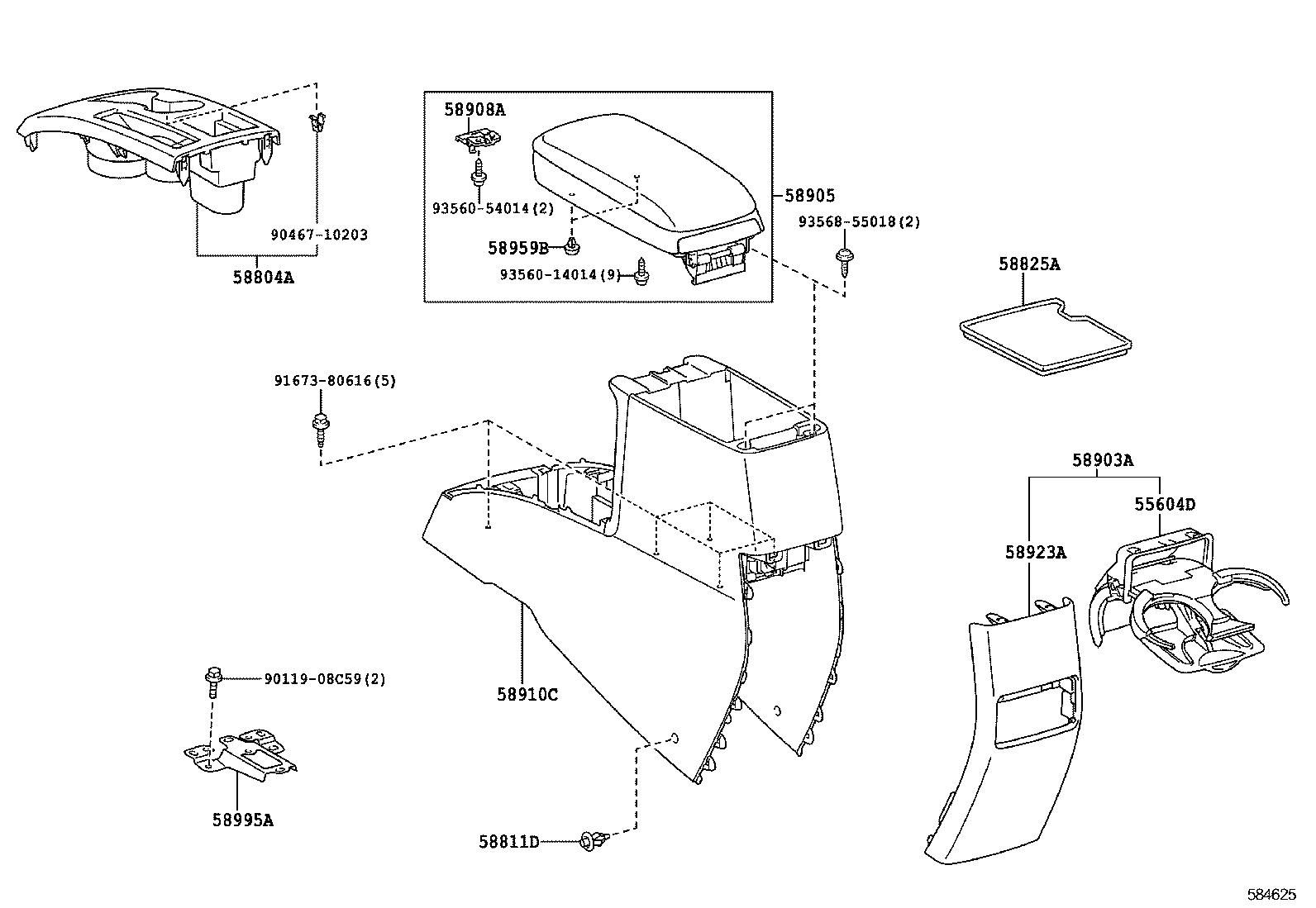

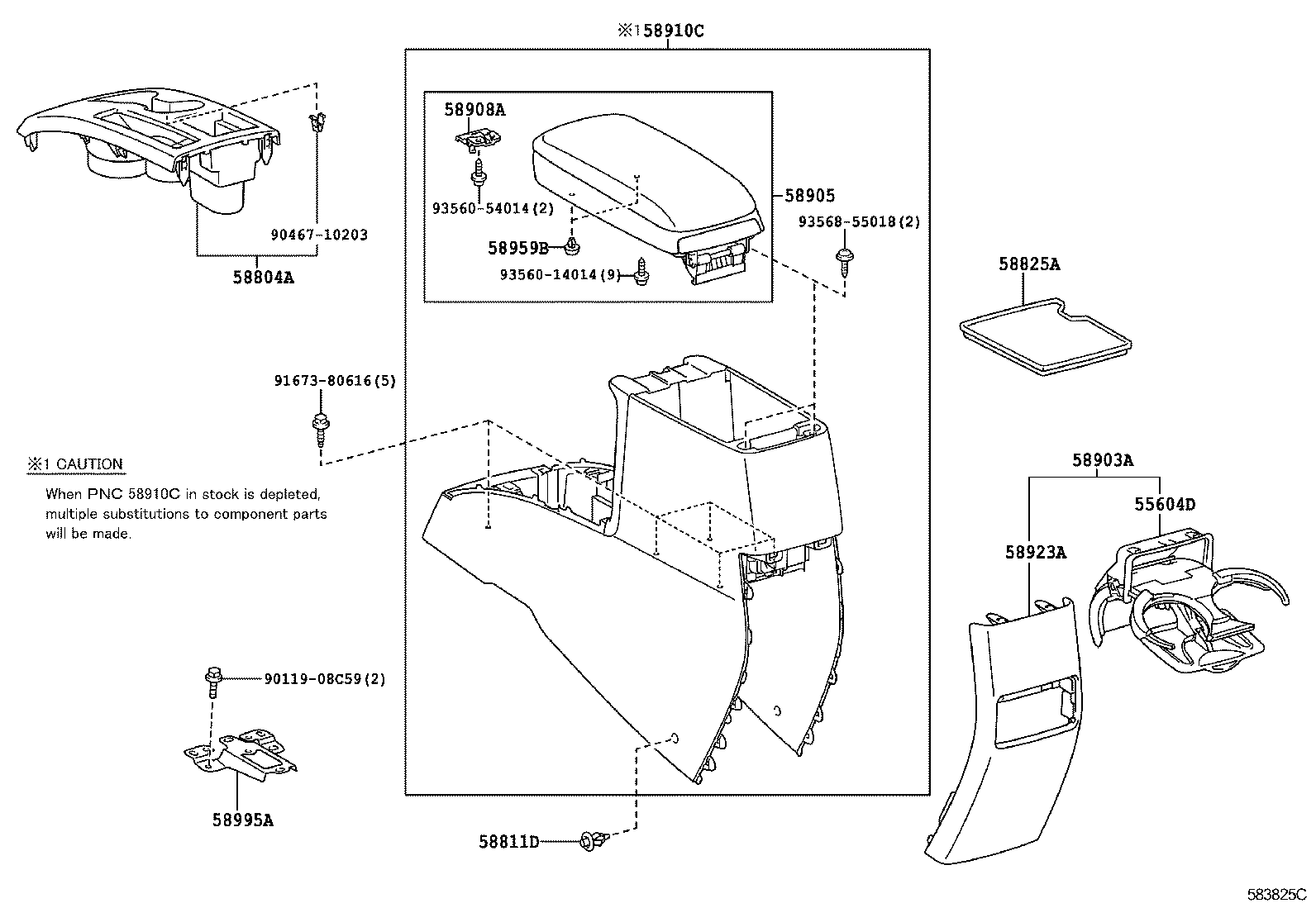

Figure 582967B 582967B 2007-03 → 2010-03 Figure 583825C 583825C 2010-03 → 2011-07 Figure 584625 584625 2011-08 → —

Part groups

PNCDescription
55604D Holder Sub-assy, Instrument Panel Cup
58804A Panel Sub-assy, Console, Upper
58811D Clip(FOR CONSOLE BOX)
58815A Carpet, Console Box
58825A Pocket, Console Box
58903A Panel Sub-assy, Console Rear End
58905 Door Sub-assy, Console Compartment
58908A Lock Sub-assy, Console Compartment Door
58910C Box Assy, Console, Rear
58919B Plate, Console Box
58923A Panel, Console Rear End
58959B Cushion, Console Compartment Door
58964 Stopper, Console Compartment Door, NO.1
58965A Stopper, Console Compartment Door, NO.2
58995A Bracket, Console Box Mounting, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
