Toyota Scion XB

2007-03 → 2015-12 · chassis AZE151 · catalogue 154460 · United States

Supported model Data version 2016-06

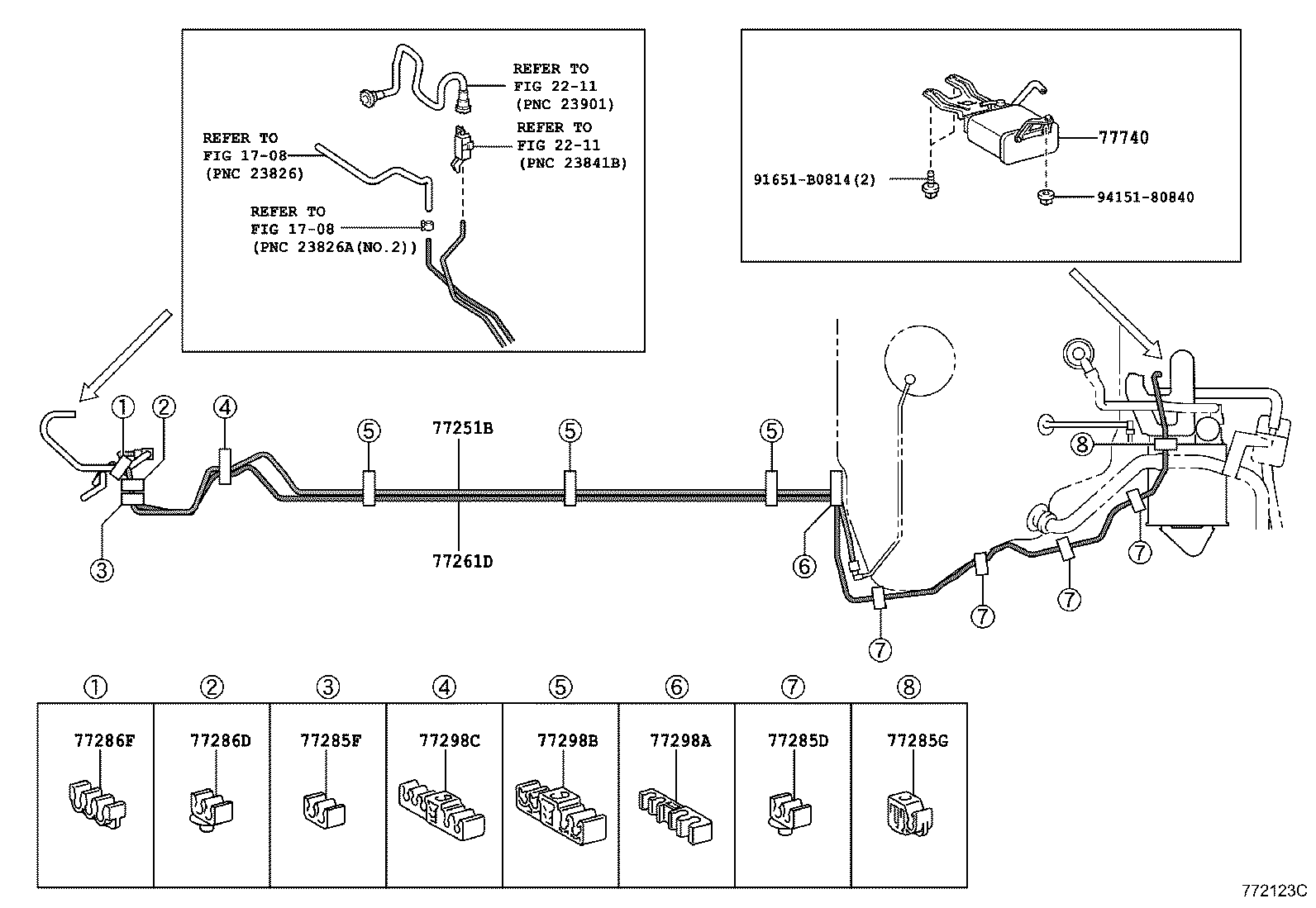

Fuel Tank & Tube

43 part groups · 2 illustrations

PNC	Description
23220A	Pump Assy, Fuel W/Filter
23280J	Regulator Assy, Fuel Pressure
23280K	Ring, O(FOR FUEL PRESSURE REGULATOR)
64648A	Grommet, Luggage Door Lock Opener
77020A	Tube Assy, Fuel Suction W/Pump & Gage
77024A	Plate Sub-assy, Fuel Suction
77035	Cable Sub-assy, Fuel Lid Lock Control
77100	Tank Assy, Fuel
77169A	Gasket, Fuel Suction Tube Set
77174	Support, Fuel Suction, NO.1
77197F	Clamp, Evaporation Vent Tube, NO.2
77201E	Pipe Sub-assy, Fuel Tank Filler
77209F	Tube Sub-assy, Fuel Tank Main
77213E	Hose, Fuel Tank TO Filler Pipe
77226A	Tube, Fuel Tank Breather, NO.6
77229C	Clamp, Breather Tube
77241W	Clip, Tube Joint
77251B	Tube, Fuel Main
77261D	Tube, Fuel Tank TO Canister
77277R	Protector, Fuel Tank Filler Pipe
77285D	Clamp, Fuel Tube, NO.1
77285F	Clamp, Fuel Tube, NO.1
77285G	Clamp, Fuel Tube, NO.1
77286D	Clamp, Fuel Tube, NO.2
77286F	Clamp, Fuel Tube, NO.2
77291A	Shield, Fuel Tank Filler Pipe
77296B	Support, Fuel Tube Protector, NO.1
77298A	Clamp, Fuel Tube, NO.4
77298B	Clamp, Fuel Tube, NO.4
77298C	Clamp, Fuel Tube, NO.4
77306	Lever Sub-assy, Fuel Lid Lock Open
77310A	Cap Assy, Fuel Tank
77316	Gasket, Fuel Tank Cap
77350	Lid Assy, Fuel Filler Opening
77366	Spring, Fuel Filler Opening Lid Hinge
77377	Retainer, Fuel Filler Opening Lid Lock
77391A	Ring, Fuel Inlet Box
77606	Protector Sub-assy, Fuel Tank, NO.1
77651A	Cushion, Fuel Tank, NO.1
77652A	Cushion, Fuel Tank, NO.2
77706	Filter Sub-assy, Charcoal Canister
77740	Canister Assy, Charcoal
77785	Harness, Fuel Pump

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
