Toyota Scion XB

2007-03 → 2015-12 · chassis AZE151 · catalogue 154460 · United States

Supported model Data version 2016-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

11 part groups · 2 illustrations

Illustrations

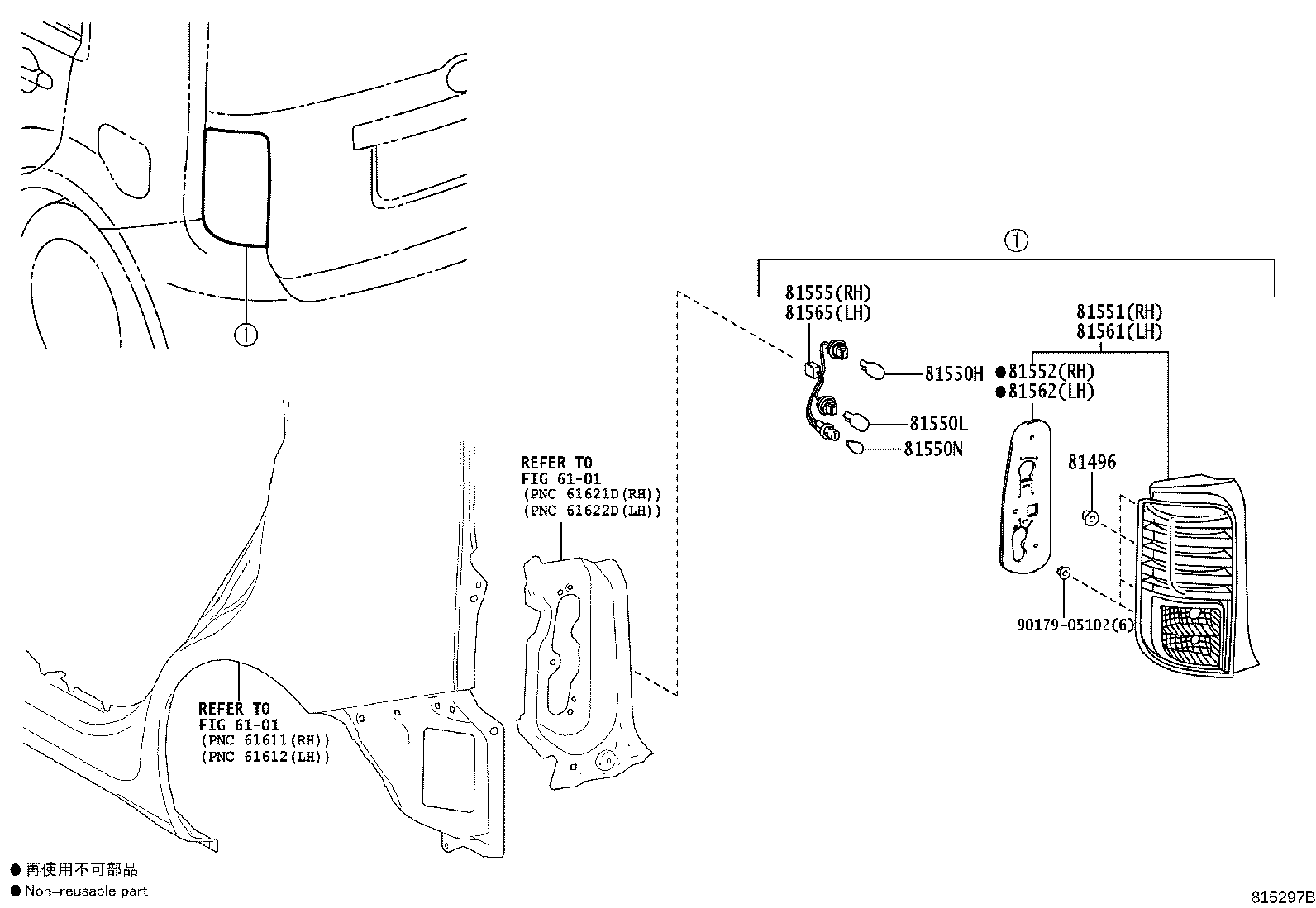

Figure 814138C 814138C 2007-03 → 2010-03 Figure 815297B 815297B 2010-03 → —

Part groups

PNCDescription
81496 Guide, Rear Combination Lamp
81550B Bulb(FOR REAR COMBINATION LAMP)
81550H Bulb, Tail & Stop Lamp
81550L Bulb, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81551 Lens, Rear Combination Lamp, RH
81552 Gasket, Rear Combination Lamp Lens, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81561 Lens, Rear Combination Lamp, LH
81562 Gasket, Rear Combination Lamp Lens, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
