Toyota Scion XB
2007-03 → 2015-12 · chassis AZE151 · catalogue 154460 · United States
Supported model
Data version 2016-06
Wiring & Clamp
40 part groups · 9 illustrations
Part groups
| PNC | Description |
|---|---|
| 82111 | Wire, Engine Room Main |

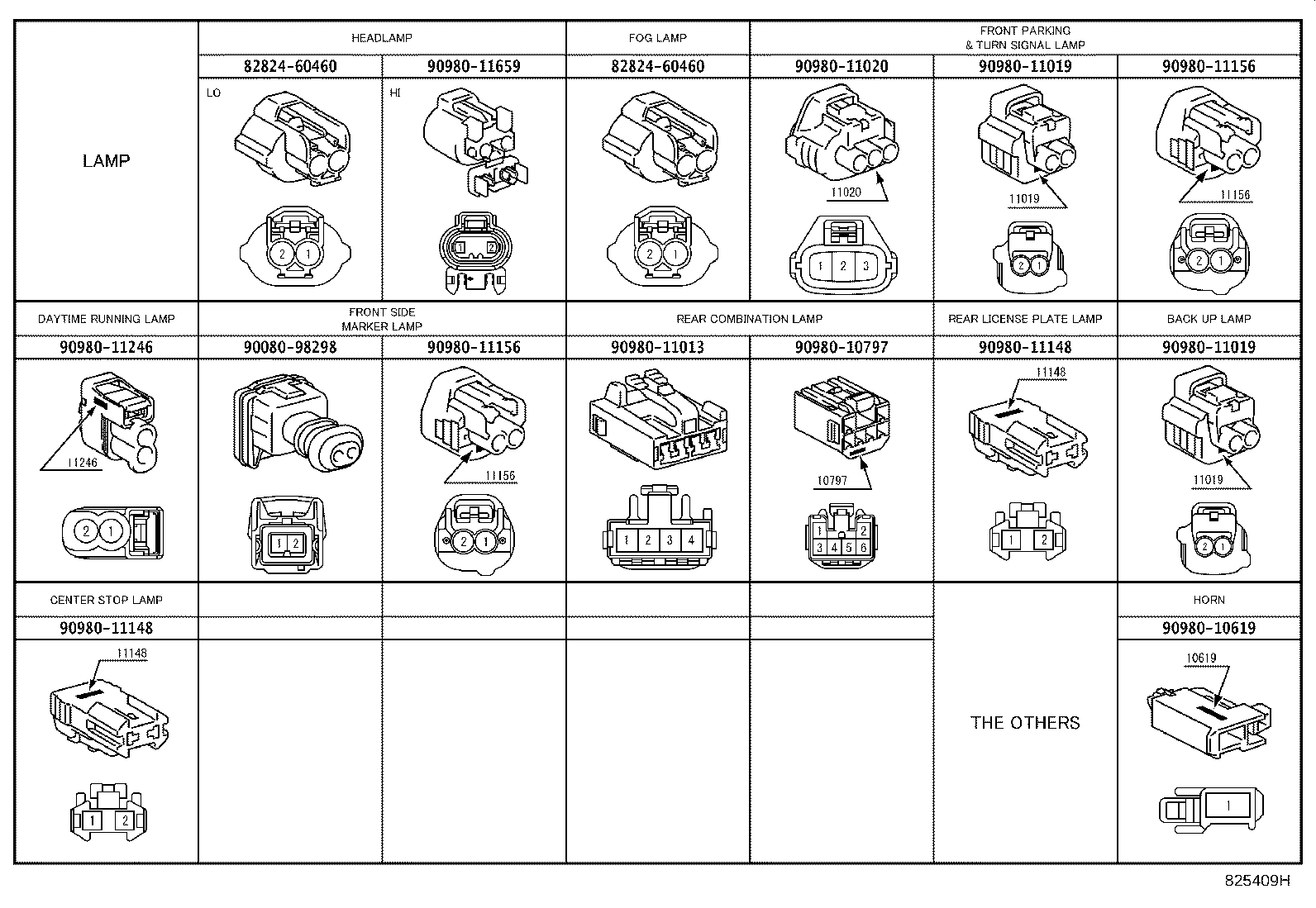

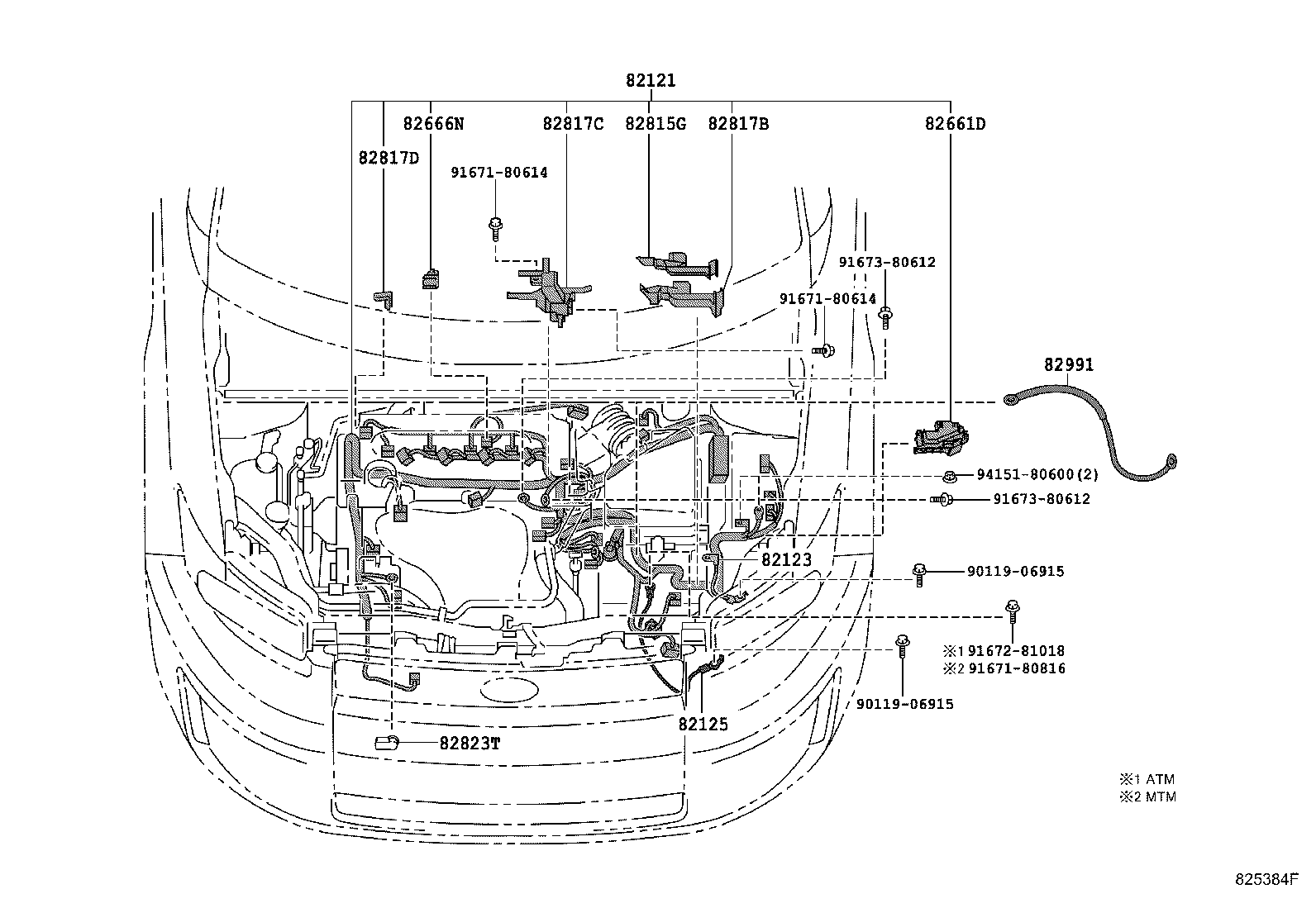

| 82121 | Wire, Engine |
| 82123 | Wire, Engine, NO.3 |
| 82125 | Wire, Transmission |

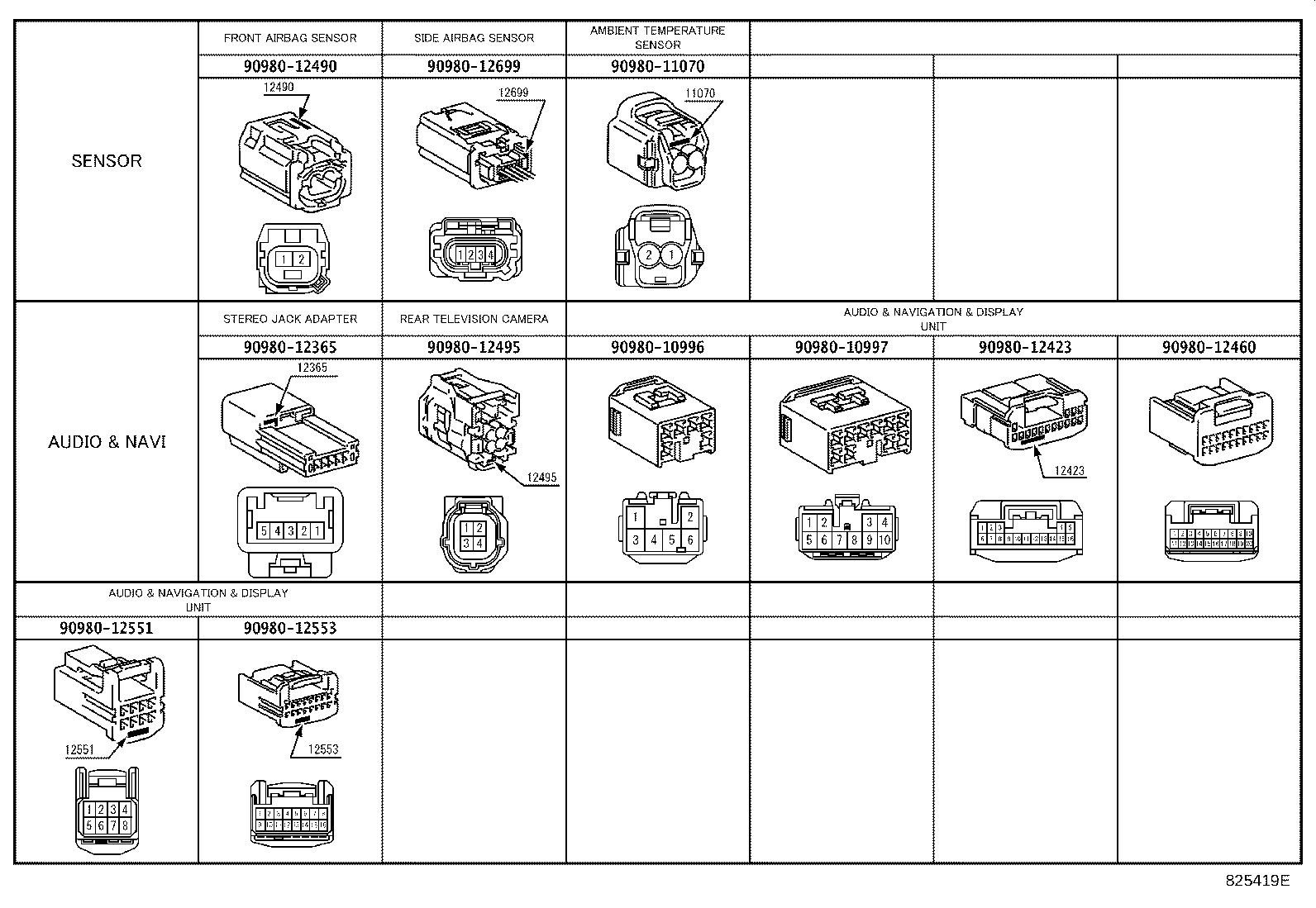

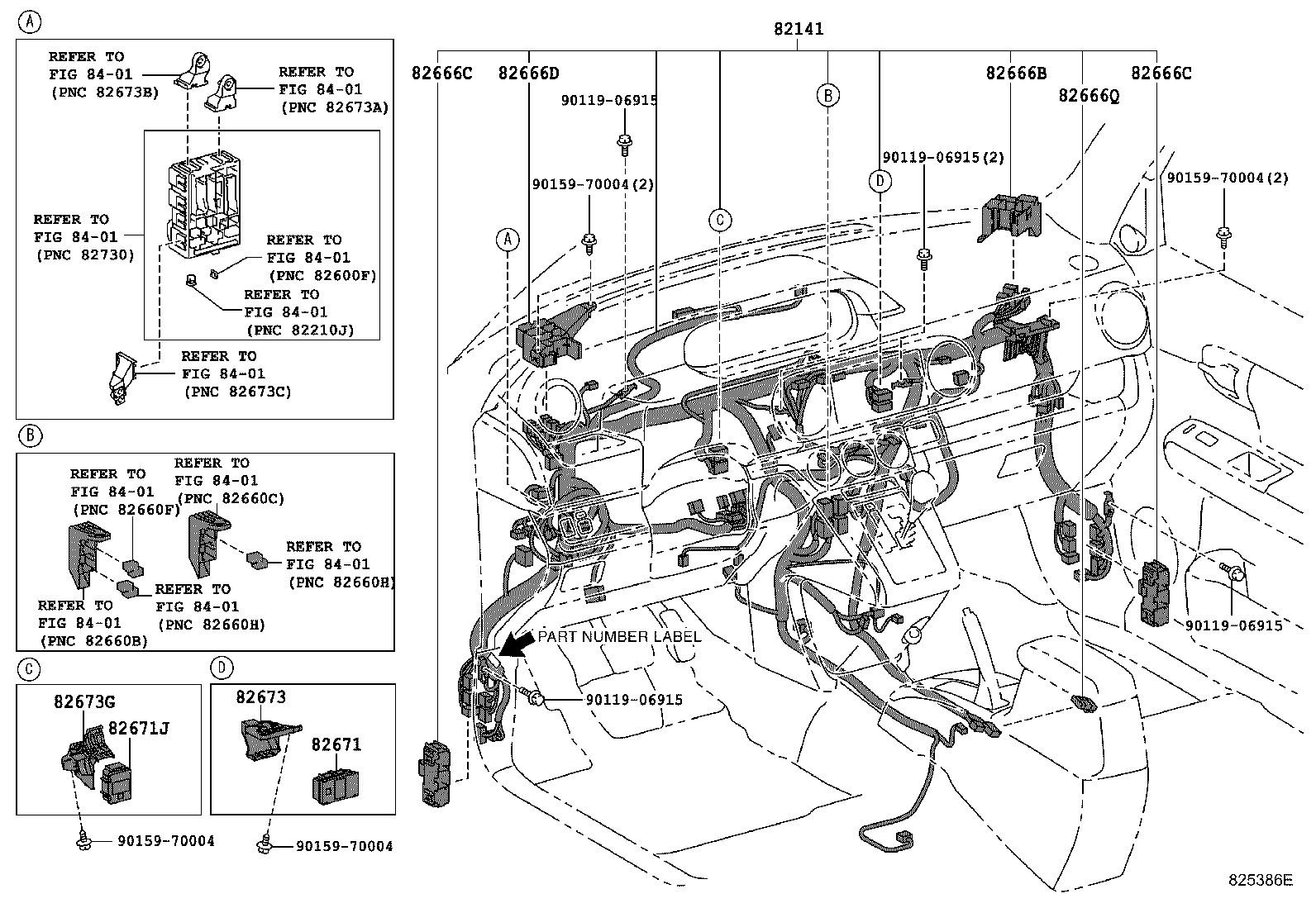

| 82141 | Wire, Instrument Panel |

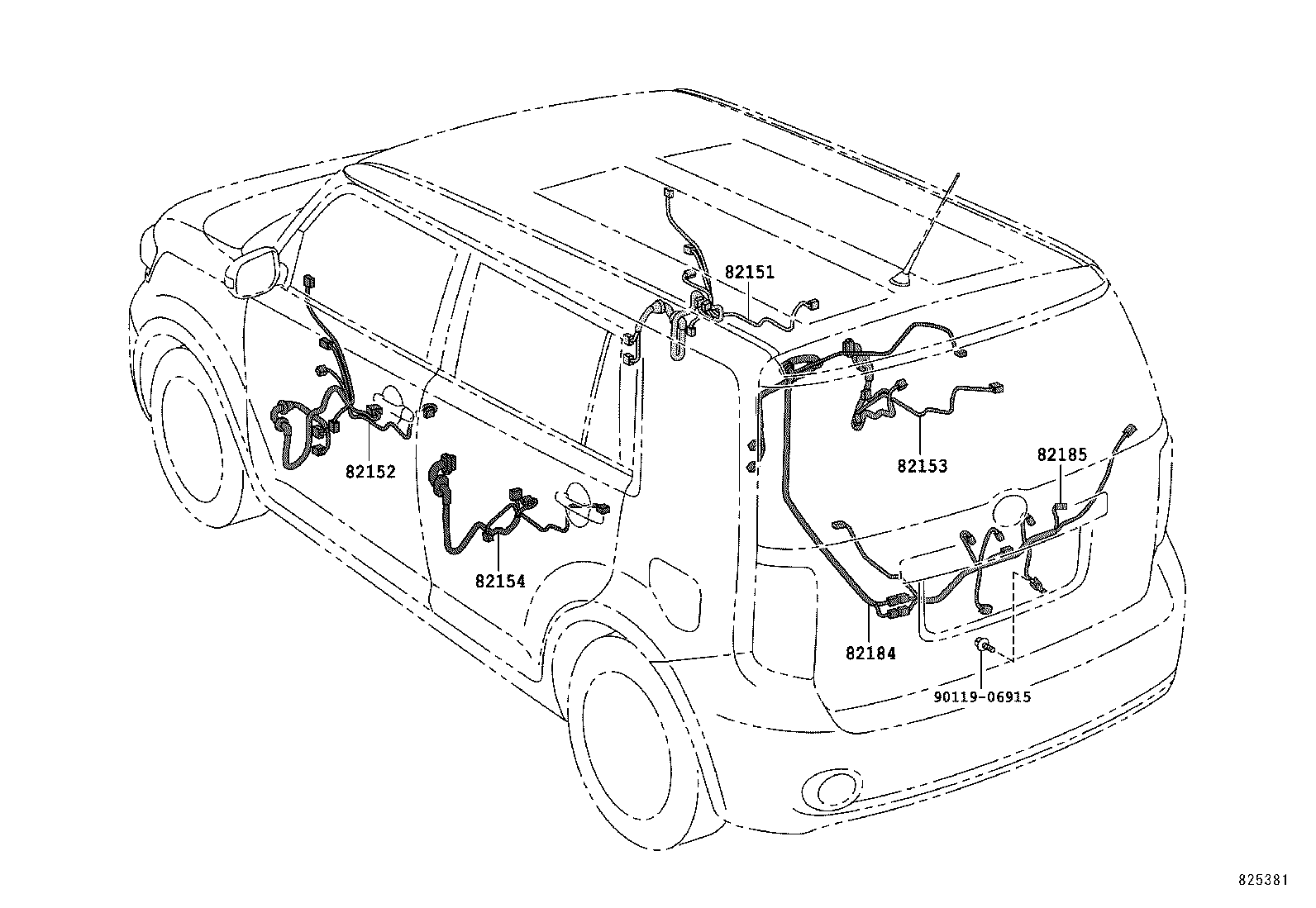

| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153 | Wire, Rear Door, NO.1 |
| 82154 | Wire, Rear Door, NO.2 |

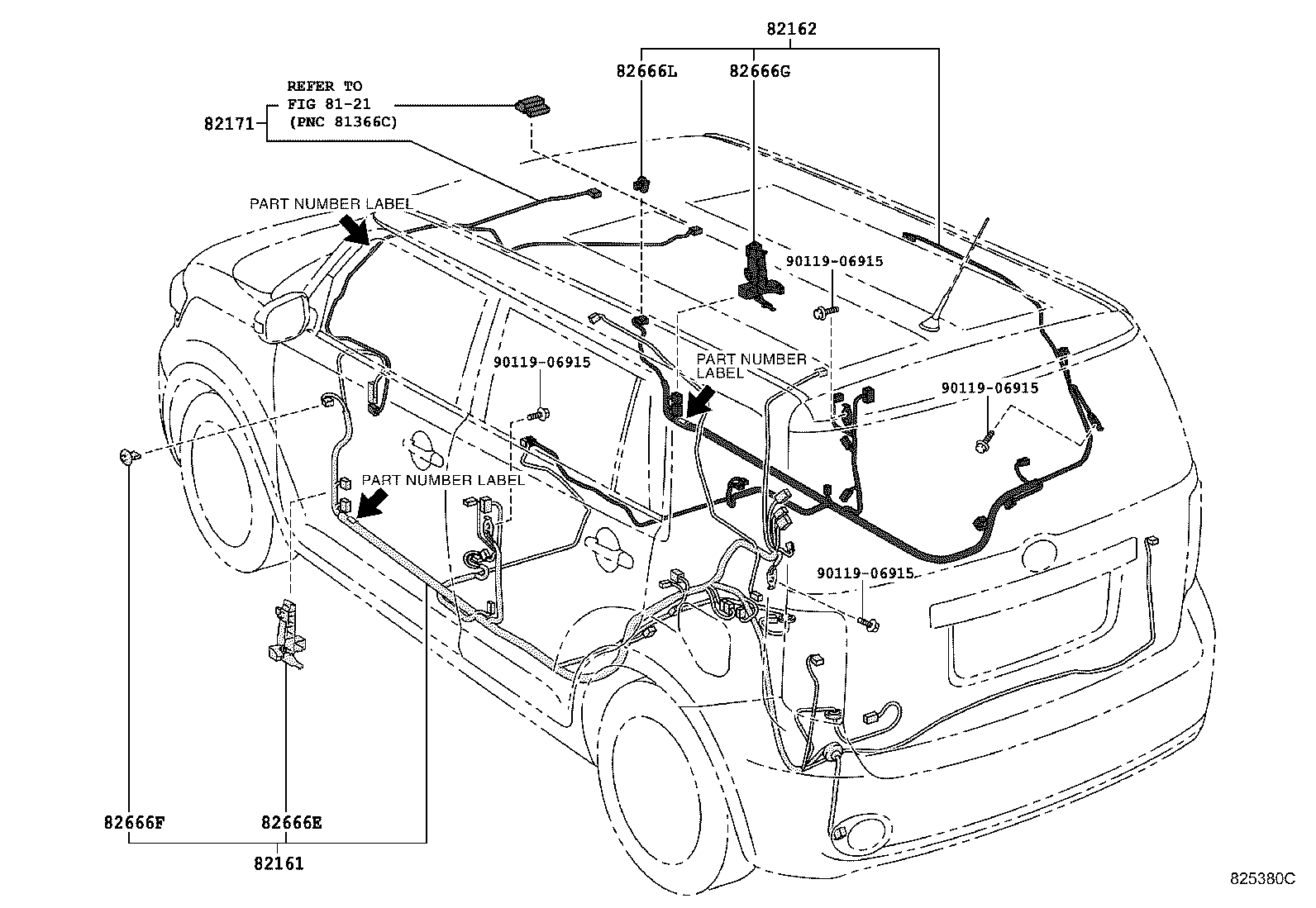

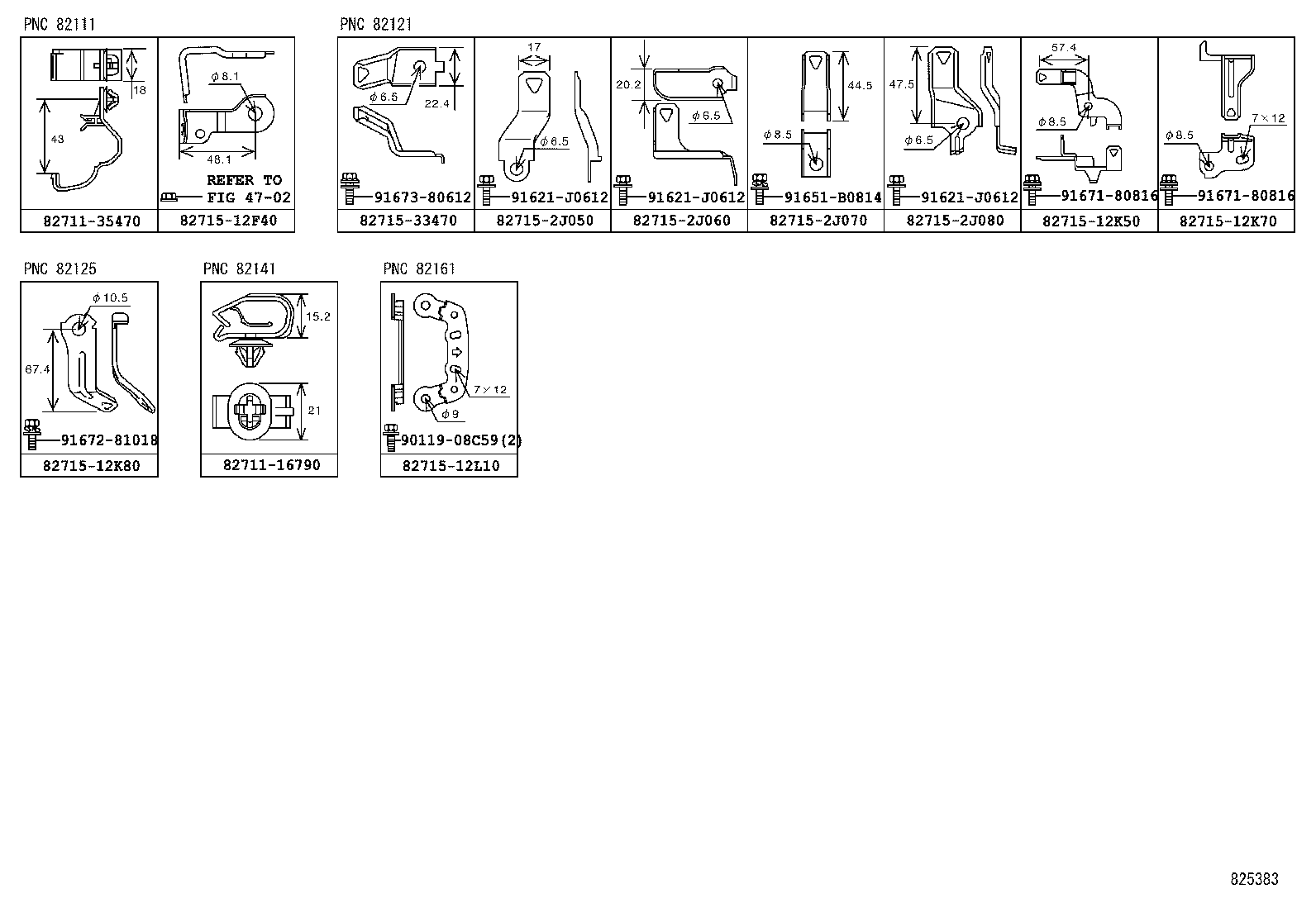

| 82161 | Wire, Floor |
| 82162 | Wire, Floor, NO.2 |
| 82171 | Wire, Roof, NO.1 |
| 82184 | Wire, Back Door, NO.1 |
| 82185 | Wire, Back Door, NO.2 |
| 82191 | Wire, Front Seat, RH |
| 82661D | Cover, Relay Block, Side NO.1 |
| 82666A | Holder, Connector NO.2 |
| 82666B | Holder, Connector NO.3 |
| 82666C | Holder, Connector NO.4 |
| 82666D | Holder, Connector NO.5 |
| 82666E | Holder, Connector NO.6 |
| 82666F | Holder, Connector NO.7 |
| 82666G | Holder, Connector NO.8 |
| 82666L | Holder, Connector NO.9 |
| 82666N | Holder, Connector NO.10 |
| 82666Q | Holder, Connector NO.12 |
| 82671 | Block, Junction |
| 82671J | Block, Junction, NO.2 |
| 82673 | Bracket, Junction Block |
| 82673G | Bracket, Junction Block |
| 82815A | Cover, Wiring Harness Protector |
| 82815B | Cover, Wiring Harness Protector |
| 82815G | Cover, Wiring Harness Protector NO.5 |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82817A | Protector, Wiring Harness, NO.2 |
| 82817B | Protector, Wiring Harness, NO.3 |
| 82817C | Protector, Wiring Harness, NO.4 |
| 82817D | Protector, Wiring Harness, NO.5 |
| 82823T | Cap, Alternator Terminal |
| 82991 | Wire, Fusible Link Repair |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
