Toyota Scion XB
2007-03 → 2015-12 · chassis AZE151 · catalogue 154460 · United States
Supported model
Data version 2016-06
Radio Receiver & Amplifier & Condenser
8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 82223L | Wire, Switch |
| 82223M | Wire, Switch |

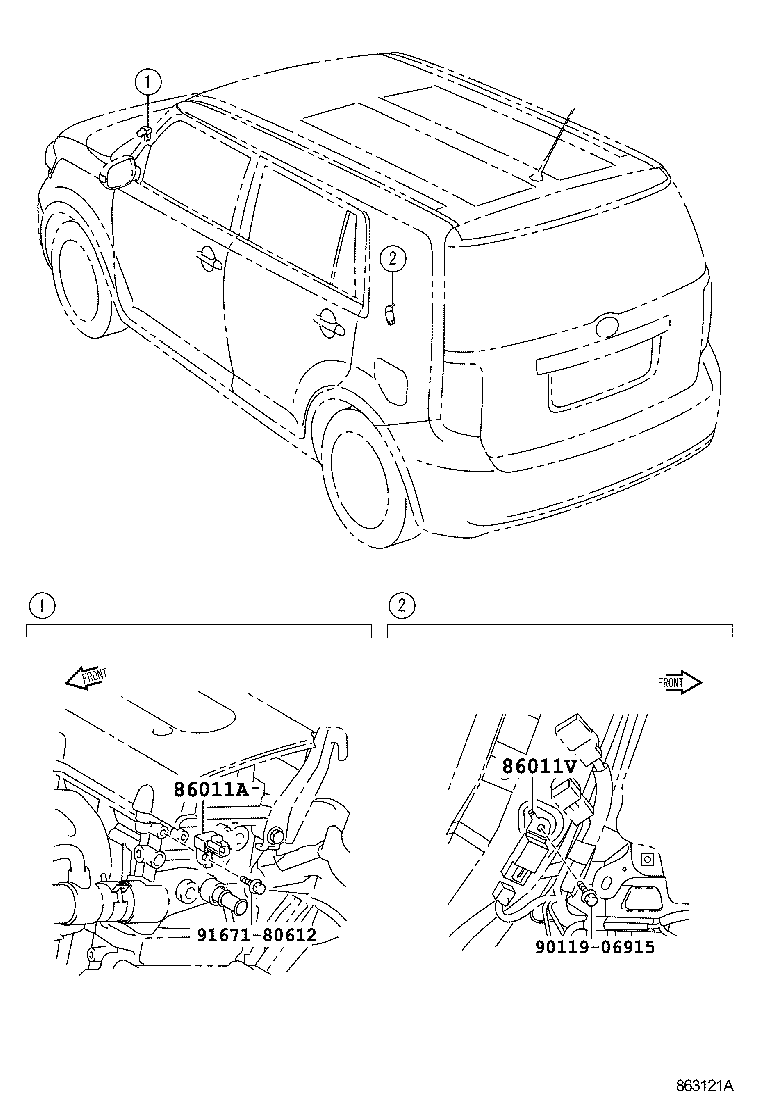

| 86011A | Condenser, Radio Setting |
| 86011V | Condenser, Radio Setting |

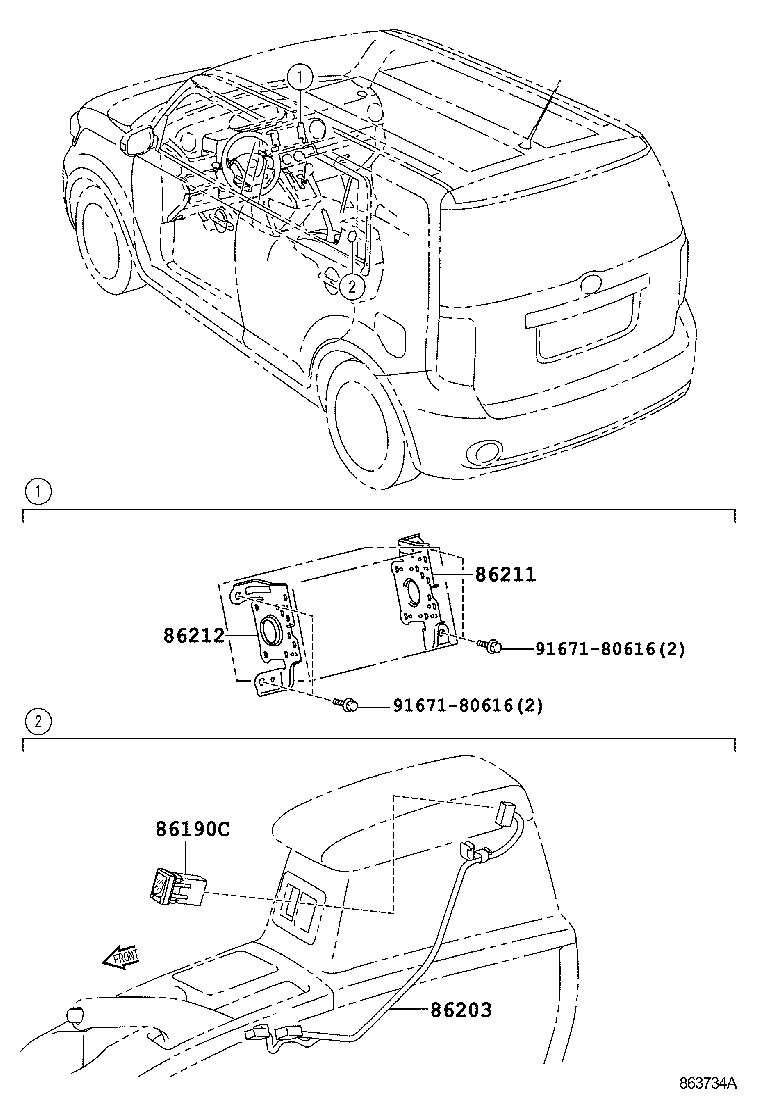

| 86190C | Adapter Assy, Stereo Jack, NO.1 |
| 86203 | Wire, Radio |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
