Toyota Scion XB

2007-03 → 2015-12 · chassis AZE151 · catalogue 154460 · United States

Supported model Data version 2016-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

18 part groups · 3 illustrations

Illustrations

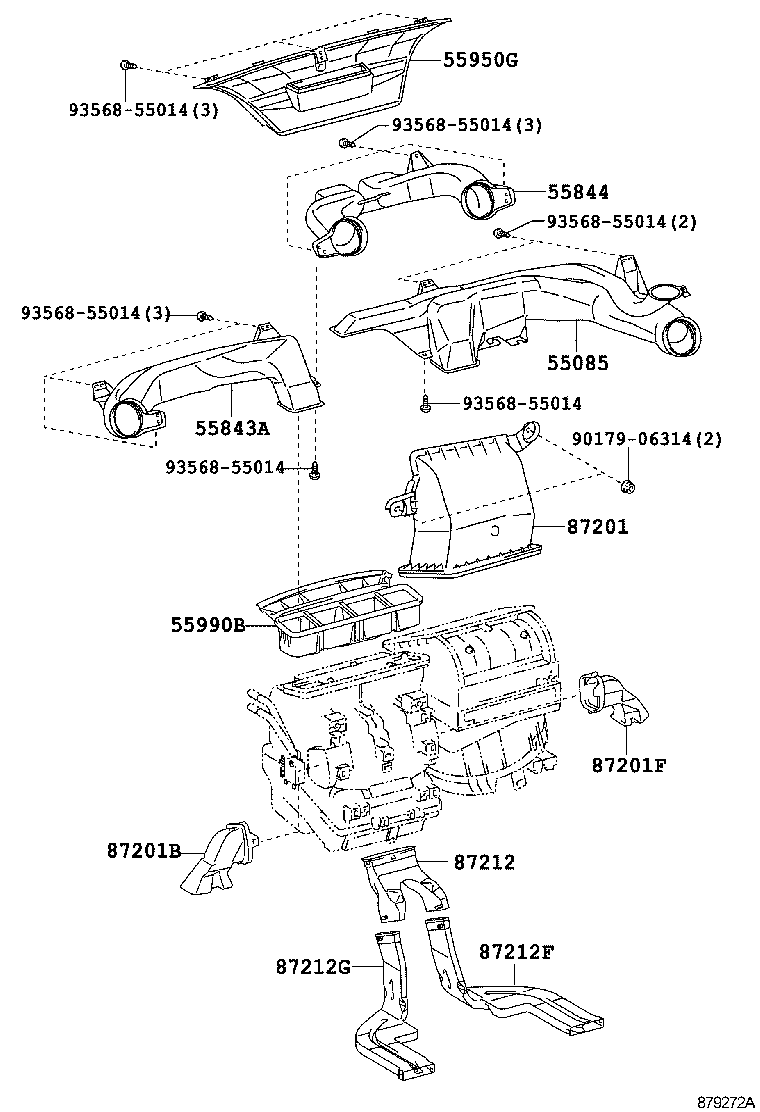

Figure 879259C 879259C 2007-03 → — Figure 879272A 879272A 2007-03 → — Figure 879279B 879279B 2007-03 → —

Part groups

PNCDescription
55085 Duct Sub-assy, Heater TO Register, NO.2
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55901 Base Sub-assy, Heater Control
55902B Control Sub-assy, Heater
55903A Control Sub-assy, Heater, NO.3
55906D Cable Sub-assy, Heater Control, NO.2
55909C Cable Sub-assy, Airmix Damper Control
55910B Bulb, Heater Control
55950G Nozzle Assy, Defroster
55990B Nozzle Assy, Defroster, Lower
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3
87212 Duct, Air, Rear NO.1
87212F Duct, Air, Rear NO.2
87212G Duct, Air, Rear NO.3
88790B Thermistor Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
