Toyota Corolla Nap/Sed
1987-08 → 1992-09 · chassis AE92 · catalogue 155420 · United States
Discontinued model
Data version 1993-06
Radiator & Water Outlet
37 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

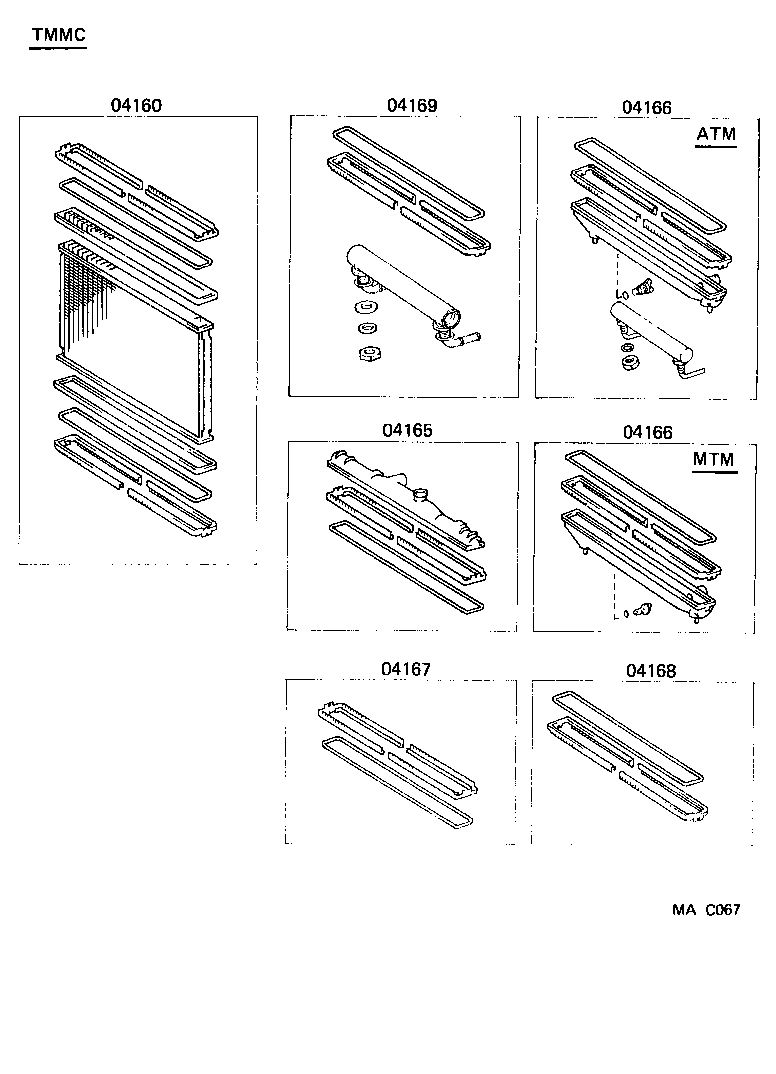

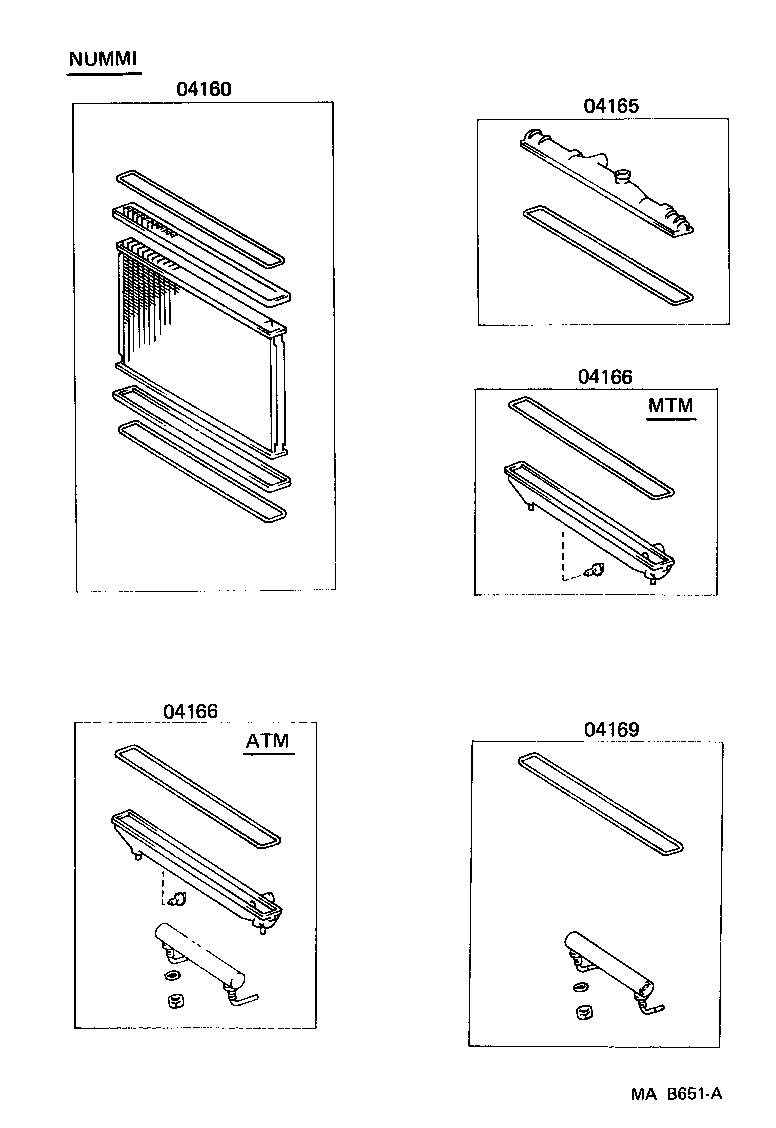

| 04160 | Core Kit, Radiator |
| 04165 | Tank Kit, Radiator, Upper |
| 04166 | Tank Kit, Radiator, Lower |
| 04167 | Ring & Plate Kit, Radiator, Upper |
| 04168 | Ring & Plate Kit, Radiator, Lower |
| 04169 | Cooler Kit, Oil(FOR ATM) |

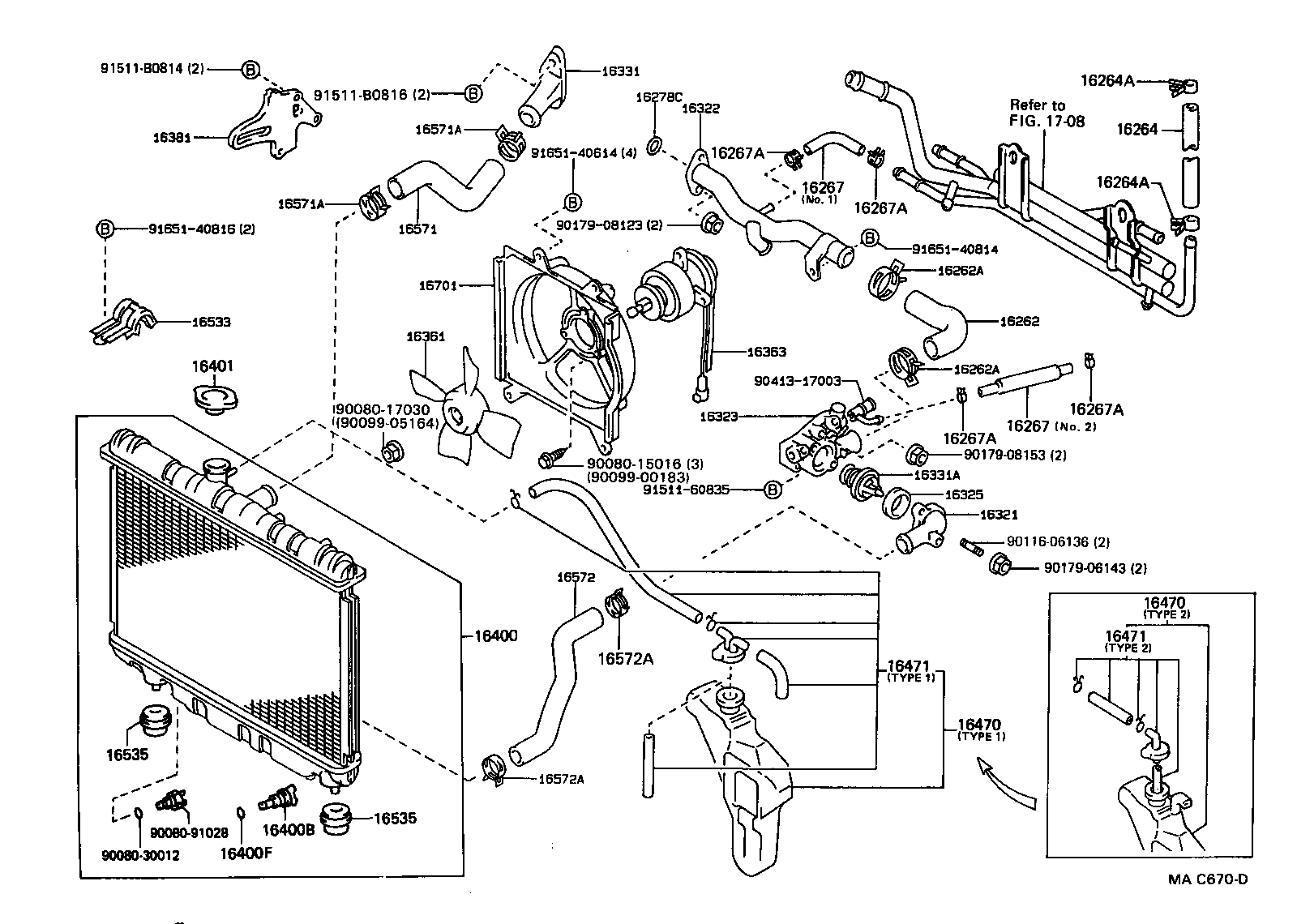

| 16261 | Hose, Water By-pass |
| 16261A | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16262 | Hose, Water Inlet |
| 16262A | Clip(FOR WATER INLET HOSE) |
| 16264 | Hose, Water By-pass, NO.2 |
| 16264A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16267 | Hose, Water By-pass, NO.3 |
| 16267A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3) |
| 16278C | Ring, O(FOR WATER BY-PASS PIPE NO.2) |
| 16321 | Inlet, Water |
| 16322 | Pipe, Water Inlet |
| 16323 | Housing, Water Inlet |
| 16325 | Gasket, Water Inlet Housing, NO.1 |
| 16331 | Outlet, Water |
| 16331A | Thermostat |
| 16361 | Fan |
| 16363 | Motor, Cooling Fan |
| 16381 | Bar, Fan Belt Adjusting |
| 16400 | Radiator Assy |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16401 | Cap Sub-assy, Radiator |
| 16470 | Tank Assy, Radiator Reserve |
| 16471 | Cap Sub-assy, Reserve Tank |
| 16533 | Support, Radiator, Upper |
| 16535 | Support, Radiator, Lower |
| 16571 | Hose, Radiator, Inlet |
| 16571A | Clamp OR Clip, Hose(FOR RADIATOR INLET) |
| 16572 | Hose, Radiator, Outlet |
| 16572A | Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1) |
| 16701 | Shroud Sub-assy, Fan |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
