Toyota Corolla Nap/Sed
1987-08 → 1992-09 · chassis AE92 · catalogue 155420 · United States
Discontinued model
Data version 1993-06

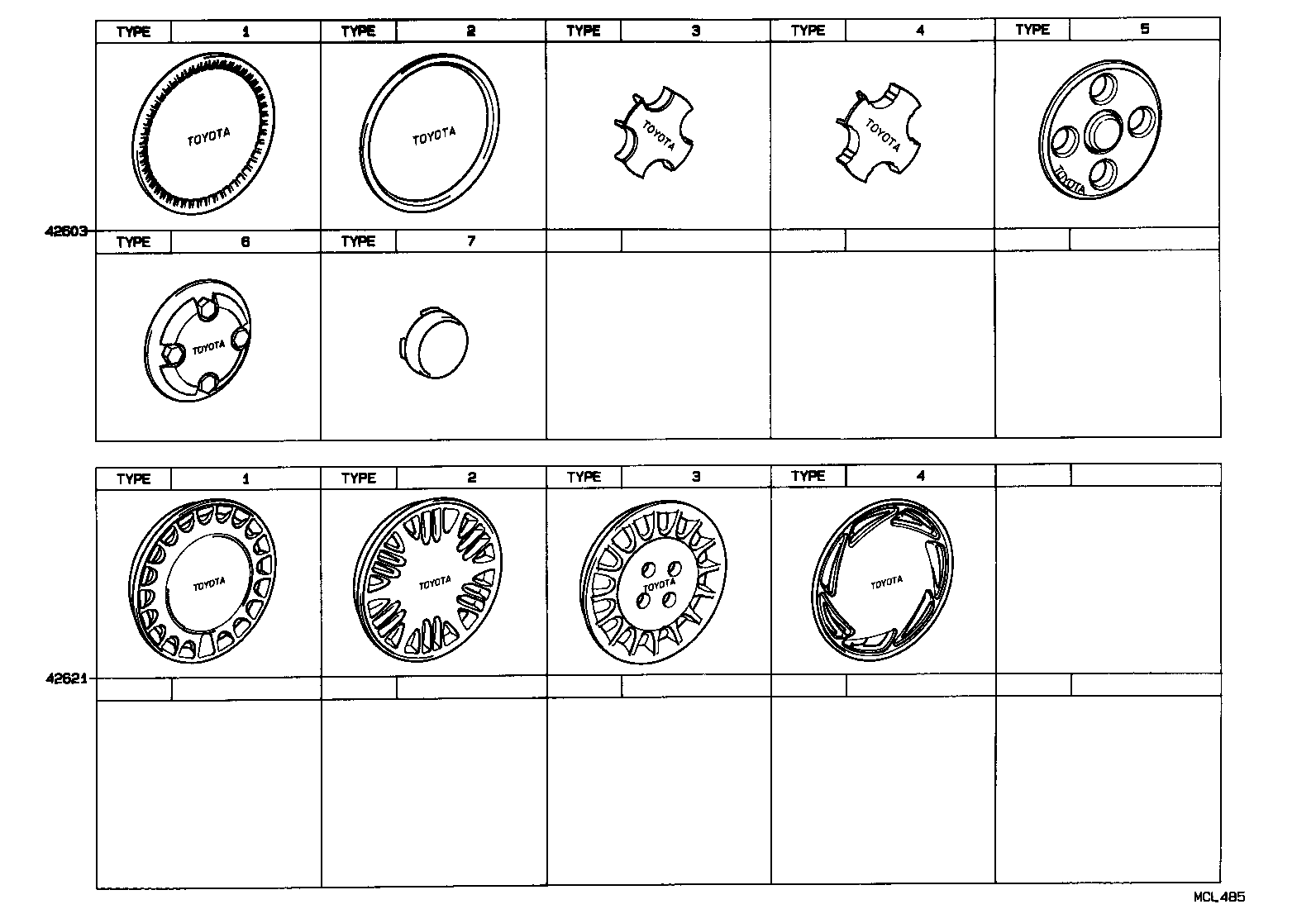

Disc Wheel & Wheel Cap
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 42601 | Wheel, Disc |
| 42601A | Wheel, Disc (FOR SPARE) |
| 42601C | Nut, Hub (FOR AXLE) |
| 42601D | Weight, Balance (FOR DISC WHEEL) |
| 42603 | Ornament Sub-assy, Wheel Hub |
| 42611G | Valve (FOR TUBELESS TIRE) |
| 42621 | Cap, Wheel |
| 42652 | Tire |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
