Toyota Corolla Nap/Sed

1987-08 → 1992-09 · chassis AE92 · catalogue 155420 · United States

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

28 part groups · 6 illustrations

Illustrations

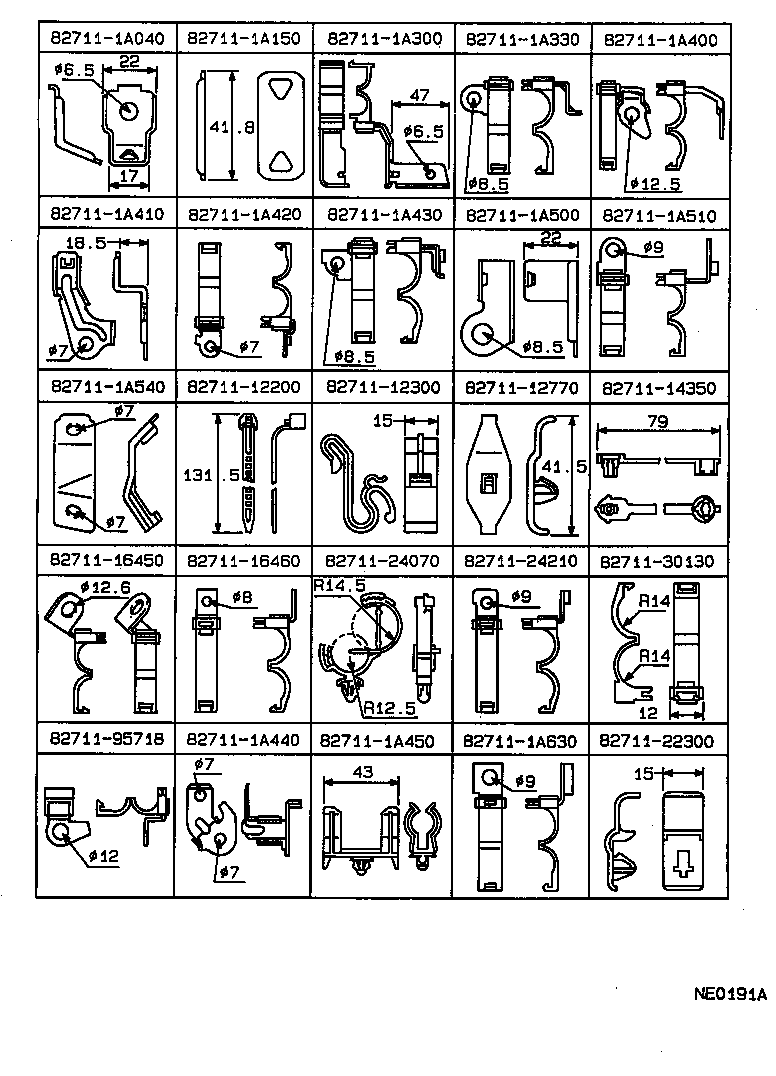

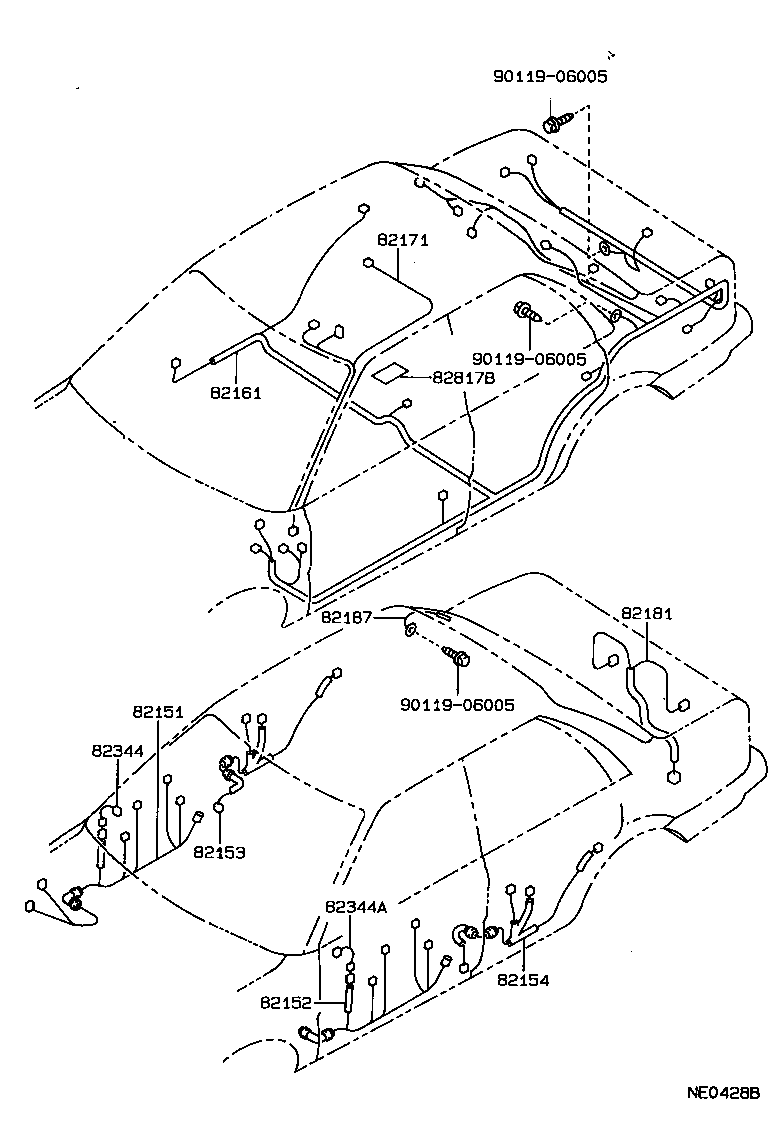

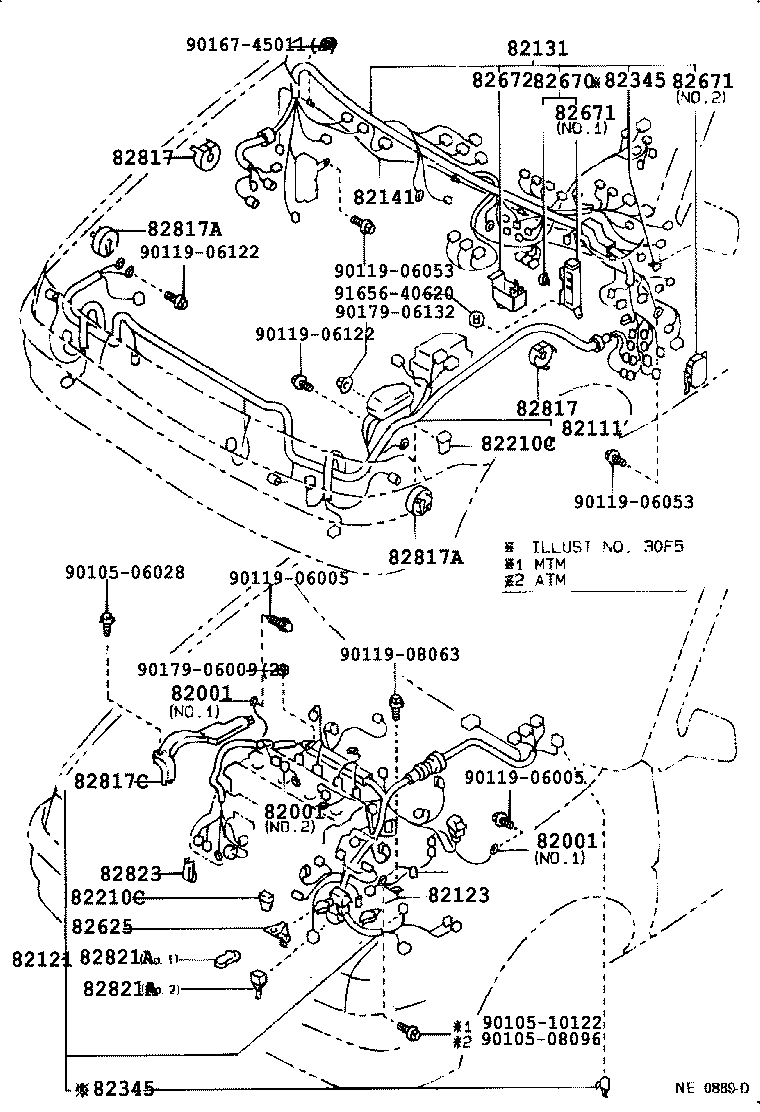

Figure 827430 827430 1987-08 → 1989-09 Figure 827431 827431 1988-02 → — Figure NE0428B NE0428B 1987-08 → — Figure MEM510A MEM510A 1987-08 → — Figure NE0191A NE0191A 1987-08 → — Figure NE0851E NE0851E 1987-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82131 Wire, Cowl
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82344 Wire, Mirror, RH
82344A Wire, Mirror, LH
82345 Diode
82625 Terminal, Fusible Link
82670 Block Assy, Junction, NO.1
82671 Block, Junction
82672 Cover, Junktion Block
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82821A Cover, Connector
82823 Cap, Terminal, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
