Toyota Corolla Nap/Sed

1987-08 → 1992-09 · chassis AE92 · catalogue 155420 · United States

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

8 part groups · 2 illustrations

Illustrations

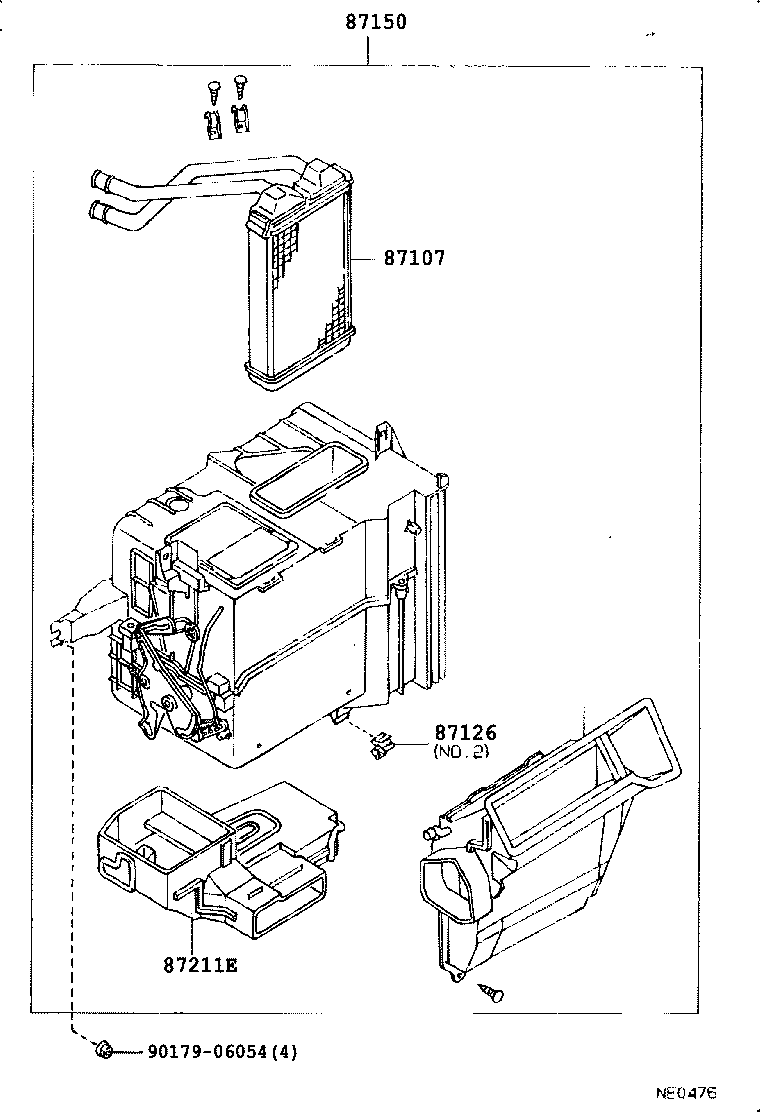

Figure NE0475 NE0475 1987-08 → — Figure 87B785 87B785 1987-08 → —

Part groups

PNCDescription
87103 Motor Sub-assy, Heater Blower, W/Fan
87105 Fan Sub-assy, Heater Blower
87107 Unit Sub-assy, Heater Radiator
87126 Clamp, Heater Control
87130 Blower Assy, Heater, Front
87138 Resistor, Heater Blower
87150 Radiator Assy, Heater
87211E Duct, Air
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
