Toyota Corolla Nap/Sed
1992-09 → 1997-08 · chassis AE10# · catalogue 155430 · United States
Discontinued model
Data version 1998-02

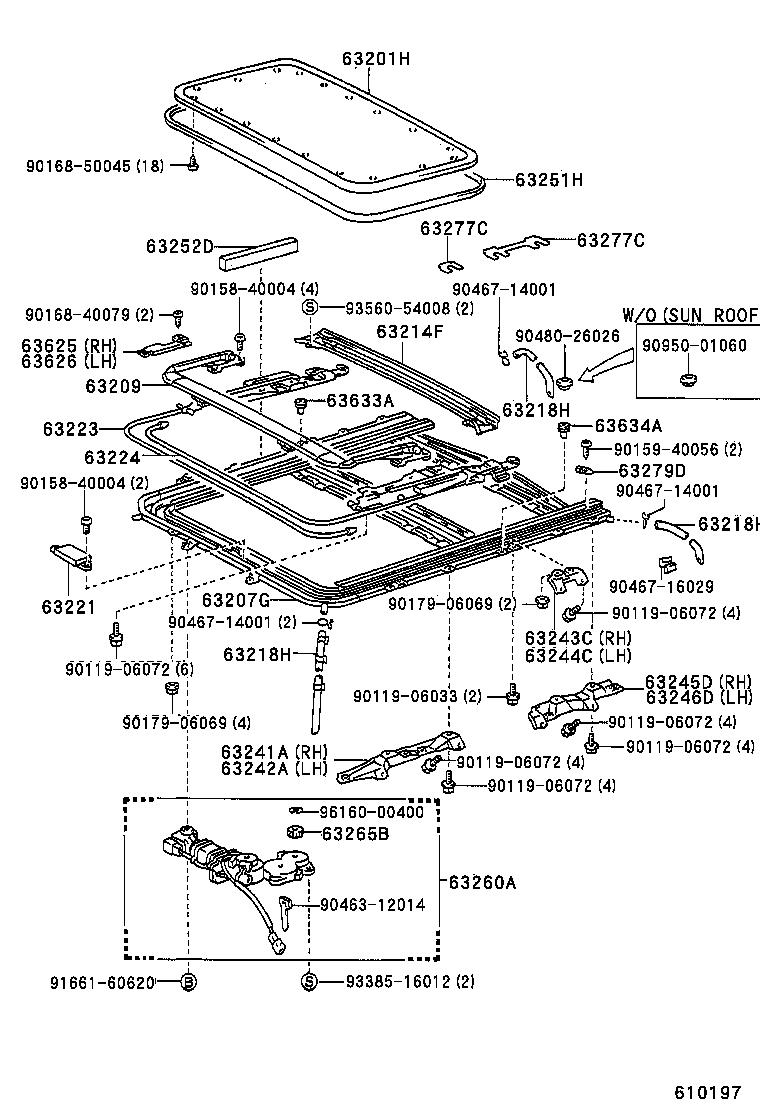

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 63201H — Panel Sub-assy, Slide Roof | ||||
| 63201-12190 |
Panel Sub-assy, Slide Roof
1995-08 → —
|
AE102 NAP N;AE101 NAP +2 | — | |
| 63201-12190 |
Panel Sub-assy, Slide Roof
1992-09 → 1995-08
ended
|
AE10# NAP (E,N) | — | |
| 63207G — Rail Sub-assy, Sliding Roof Guide | ||||
| 63207-12111 |
Rail Sub-assy, Sliding Roof Guide
1992-09 → 1994-01
ended
|
AE10# NAP (E,N) | — | |
| 63207-12112 |
Rail Sub-assy, Sliding Roof Guide
1994-01 → 1995-08
ended
|
AE10# NAP (E,N) | — | |
| 63207-12112 |
Rail Sub-assy, Sliding Roof Guide
1995-08 → —
|
AE102 NAP N;AE101 NAP +2 | — | |
| 63209 — Panel Sub-assy, Roof Wind Deflector | ||||
| 63209-12080 |
Panel Sub-assy, Roof Wind Deflector
1992-09 → 1995-08
ended
|
AE10# NAP (E,N) | — | |
| 63209-12080 |
Panel Sub-assy, Roof Wind Deflector
1995-08 → —
|
AE102 NAP N;AE101 NAP +2 | — | |
| 63214F — Channel, Roof Drip, Rear | ||||
| 63214-12040 |
Channel, Roof Drip, Rear
1992-09 → 1995-08
ended
|
AE10# NAP (E,N) | — | |
| 63214-12040 |
Channel, Roof Drip, Rear
1995-08 → —
|
AE102 NAP N;AE101 NAP +2 | — | |
| 63218H — Hose, Sliding Roof Drain | ||||
| 63249-12160 note |
Hose, Sliding Roof Drain
1992-09 → 1995-08
ended
|
AE10# NAP (E,N) | — | |
| 63249-12160 note |
Hose, Sliding Roof Drain
1995-08 → —
|
AE102 NAP N;AE101 NAP +2 | — | |
| 63249-12210 note |
Hose, Sliding Roof Drain
1992-09 → 1995-08
ended
|
AE10# NAP (E,N) | — | |
| 63249-12210 note |
Hose, Sliding Roof Drain
1995-08 → —
|
AE102 NAP N;AE101 NAP +2 | — | |
| 63221 — Casing, Sliding Roof Cable Guide | ||||
| 63221-12070 |
Casing, Sliding Roof Cable Guide
1992-09 → 1995-08
ended
|
AE10# NAP (E,N) | — | |
| 63221-12070 |
Casing, Sliding Roof Cable Guide
1995-08 → —
|
AE102 NAP N;AE101 NAP +2 | — | |
| 63223 — Cable, Sliding Roof Drive, RH | ||||
| 63223-12080 |
Cable, Sliding Roof Drive, RH
1992-09 → 1995-08
ended
|
AE10# NAP (E,N) | — | |
| 63223-12080 |
Cable, Sliding Roof Drive, RH
1995-08 → —
|
AE102 NAP N;AE101 NAP +2 | — | |
| 63224 — Cable, Sliding Roof Drive, LH | ||||
| 63224-12070 |
Cable, Sliding Roof Drive, LH
1992-09 → 1995-08
ended
|
AE10# NAP (E,N) | — | |
| 63224-12070 |
Cable, Sliding Roof Drive, LH
1995-08 → —
|
AE102 NAP N;AE101 NAP +2 | — | |
| 63241A — Bracket, Sliding Roof Housing Front Mounting, RH | ||||
| 63241-12040 |
Bracket, Sliding Roof Housing Front Mounting, RH
1992-09 → 1995-08
ended
|
AE10# NAP (E,N) | — | |
| 63241-12040 |
Bracket, Sliding Roof Housing Front Mounting, RH
1995-08 → —
|
AE102 NAP N;AE101 NAP +2 | — | |
| 63242A — Bracket, Sliding Roof Housing Front Mounting, LH | ||||
| 63242-12020 |
Bracket, Sliding Roof Housing Front Mounting, LH
1992-09 → 1995-08
ended
|
AE10# NAP (E,N) | — | |
| 63242-12020 |
Bracket, Sliding Roof Housing Front Mounting, LH
1995-08 → —
|
AE102 NAP N;AE101 NAP +2 | — | |
| 63243C — Bracket, Sliding Roof Housing Center Mounting, RH | ||||
| 63243-12060 |
Bracket, Sliding Roof Housing Center Mounting, RH
1992-09 → 1995-08
ended
|
AE10# NAP (E,N) | — | |
| 63243-12060 |
Bracket, Sliding Roof Housing Center Mounting, RH
1995-08 → —
|
AE102 NAP N;AE101 NAP +2 | — | |
| 63244C — Bracket, Sliding Roof Housing Center Mounting, LH | ||||
| 63244-12060 |
Bracket, Sliding Roof Housing Center Mounting, LH
1992-09 → 1995-08
ended
|
AE10# NAP (E,N) | — | |
| 63244-12060 |
Bracket, Sliding Roof Housing Center Mounting, LH
1995-08 → —
|
AE102 NAP N;AE101 NAP +2 | — | |
| 63245D — Bracket, Sliding Roof Housing Rear Mounting, RH | ||||
| 63245-12030 |
Bracket, Sliding Roof Housing Rear Mounting, RH
1995-08 → —
|
AE102 NAP N;AE101 NAP +2 | — | |
| 63245-12030 |
Bracket, Sliding Roof Housing Rear Mounting, RH
1992-09 → 1995-08
ended
|
AE10# NAP (E,N) | — | |
| 63246D — Bracket, Sliding Roof Housing Rear Mounting, LH | ||||
| 63246-12020 |
Bracket, Sliding Roof Housing Rear Mounting, LH
1992-09 → 1995-08
ended
|
AE10# NAP (E,N) | — | |
| 63246-12020 |
Bracket, Sliding Roof Housing Rear Mounting, LH
1995-08 → —
|
AE102 NAP N;AE101 NAP +2 | — | |
| 63251H — Weatherstrip, Sliding Roof | ||||
| 63250-12020 |
Weatherstrip, Sliding Roof
1992-09 → 1995-08
ended
|
AE10# NAP (E,N) | — | |
| 63250-12020 |
Weatherstrip, Sliding Roof
1995-08 → —
|
AE102 NAP N;AE101 NAP +2 | — | |
| 63252D — Weatherstrip, Sliding Roof Housing | ||||
| 63252-12030 |
Weatherstrip, Sliding Roof Housing
1992-09 → 1995-08
ended
|
AE10# NAP (E,N) | — | |
| 63252-12030 |
Weatherstrip, Sliding Roof Housing
1995-08 → —
|
AE102 NAP N;AE101 NAP +2 | — | |
| 63260A — Gear Sub-assy, Sliding Roof Drive | ||||
| 63260-12070 |
Gear Sub-assy, Sliding Roof Drive
1992-09 → 1995-08
ended
|
AE10# NAP (E,N) | — | |
| 63260-12070 |
Gear Sub-assy, Sliding Roof Drive
1995-08 → —
|
AE102 NAP N;AE101 NAP +2 | — | |
| 63265B — Gear, Sliding Roof Drive | ||||
| 63265-12020 |
Gear, Sliding Roof Drive
1992-09 → 1995-08
ended
|
AE10# NAP (E,N) | — | |
| 63265-12020 |
Gear, Sliding Roof Drive
1995-08 → —
|
AE102 NAP N;AE101 NAP +2 | — | |
| 63277C — Shim, Sliding Roof Panel | ||||
| 63277-20020 note |
Shim, Sliding Roof Panel
1992-09 → 1995-08
ended
|
AE10# NAP (E,N) | — | |
| 63277-20020 note |
Shim, Sliding Roof Panel
1995-08 → —
|
AE102 NAP N;AE101 NAP +2 | — | |
| 63277-20030 note |
Shim, Sliding Roof Panel
1992-09 → 1995-08
ended
|
AE10# NAP (E,N) | — | |
| 63277-20030 note |
Shim, Sliding Roof Panel
1995-08 → —
|
AE102 NAP N;AE101 NAP +2 | — | |
| 63277-20040 note |
Shim, Sliding Roof Panel
1992-09 → 1995-08
ended
|
AE10# NAP (E,N) | — | |
| 63277-20040 note |
Shim, Sliding Roof Panel
1995-08 → —
|
AE102 NAP N;AE101 NAP +2 | — | |
| 63277-20050 note |
Shim, Sliding Roof Panel
1992-09 → 1995-08
ended
|
AE10# NAP (E,N) | — | |
| 63277-20050 note |
Shim, Sliding Roof Panel
1995-08 → —
|
AE102 NAP N;AE101 NAP +2 | — | |
| 63279D — Stopper, Sliding Roof Guide Rail | ||||
| 63279-12020 |
Stopper, Sliding Roof Guide Rail
1992-09 → 1995-08
ended
|
AE10# NAP (E,N) | — | |
| 63279-12020 |
Stopper, Sliding Roof Guide Rail
1995-08 → —
|
AE102 NAP N;AE101 NAP +2 | — | |
| 63625 — Block, Sliding Roof Guide, RH | ||||
| 63625-12010 |
Block, Sliding Roof Guide, RH
1992-09 → 1995-08
ended
|
AE10# NAP (E,N) | — | |
| 63625-12010 |
Block, Sliding Roof Guide, RH
1995-08 → —
|
AE102 NAP N;AE101 NAP +2 | — | |
| 63626 — Block, Sliding Roof Guide, LH | ||||
| 63626-12010 |
Block, Sliding Roof Guide, LH
1992-09 → 1995-08
ended
|
AE10# NAP (E,N) | — | |
| 63626-12010 |
Block, Sliding Roof Guide, LH
1995-08 → —
|
AE102 NAP N;AE101 NAP +2 | — | |
| 63633A — Bush, Sliding Roof Housing, NO.1 | ||||
| 63633-12010 |
Bush, Sliding Roof Housing, NO.1
1992-09 → 1995-08
ended
|
AE10# NAP (E,N) | — | |
| 63633-12010 |
Bush, Sliding Roof Housing, NO.1
1995-08 → —
|
AE102 NAP N;AE101 NAP +2 | — | |
| 63634A — Bush, Sliding Roof Housing, NO.2 | ||||
| 63634-12010 |
Bush, Sliding Roof Housing, NO.2
1992-09 → 1995-08
ended
|
AE10# NAP (E,N) | — | |
| 63634-12010 |
Bush, Sliding Roof Housing, NO.2
1995-08 → —
|
AE102 NAP N;AE101 NAP +2 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
