Toyota Corolla Nap/Sed

1992-09 → 1997-08 · chassis AE10# · catalogue 155430 · United States

Discontinued model Data version 1998-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

11 part groups · 3 illustrations

Illustrations

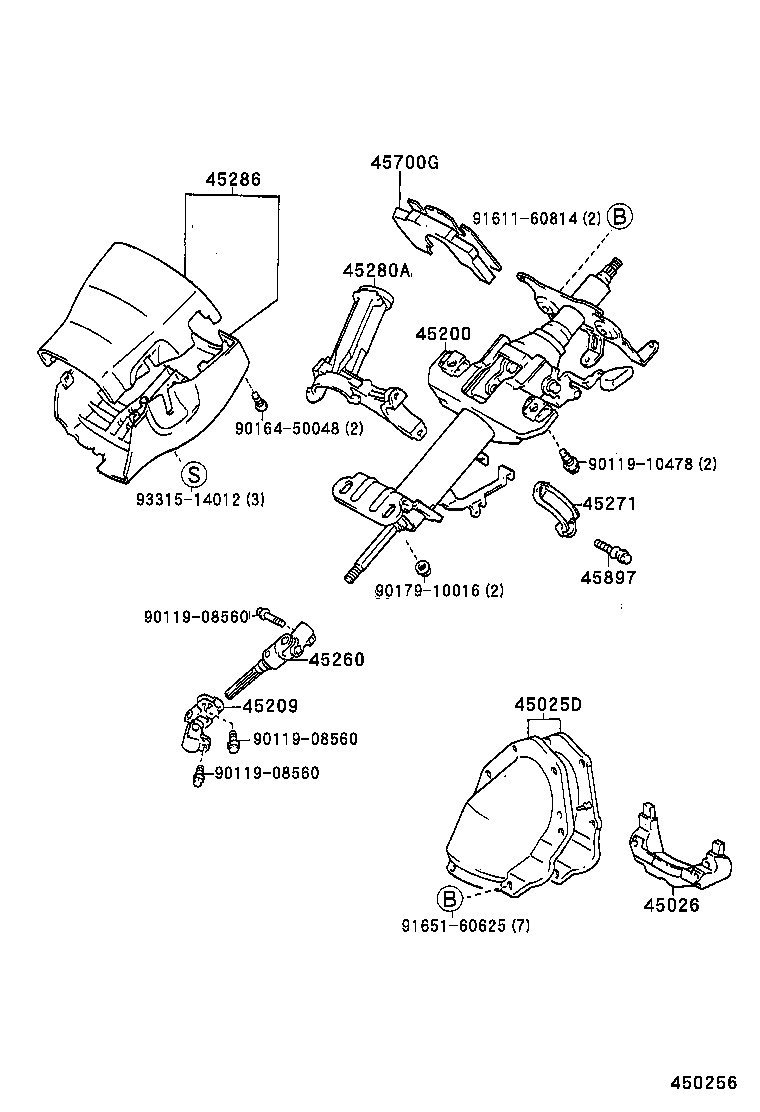

Figure 450255 450255 1992-09 → — Figure 450255 450255 1995-08 → — Figure 450256 450256 1992-09 → —

Part groups

PNCDescription
45025D Cover Sub-assy, Steering Column Hole, NO.1
45026 Cover Sub-assy, Steering Column Hole, NO.2
45200 Post Assy, Steering
45209 Yoke Sub-assy, Steering Sliding
45260 Shaft Assy, Steering Intermediate, NO.2
45271 Clamp, Steering Column, Upper
45280A Bracket Assy, Steering Column, Upper
45286 Cover, Steering Column
45288B Cover, Steering Column, Upper
45700G Damper Assy, Steering
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
