Toyota Corolla Nap/Sed

1992-09 → 1997-08 · chassis AE10# · catalogue 155430 · United States

Discontinued model Data version 1998-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

22 part groups · 9 illustrations

Illustrations

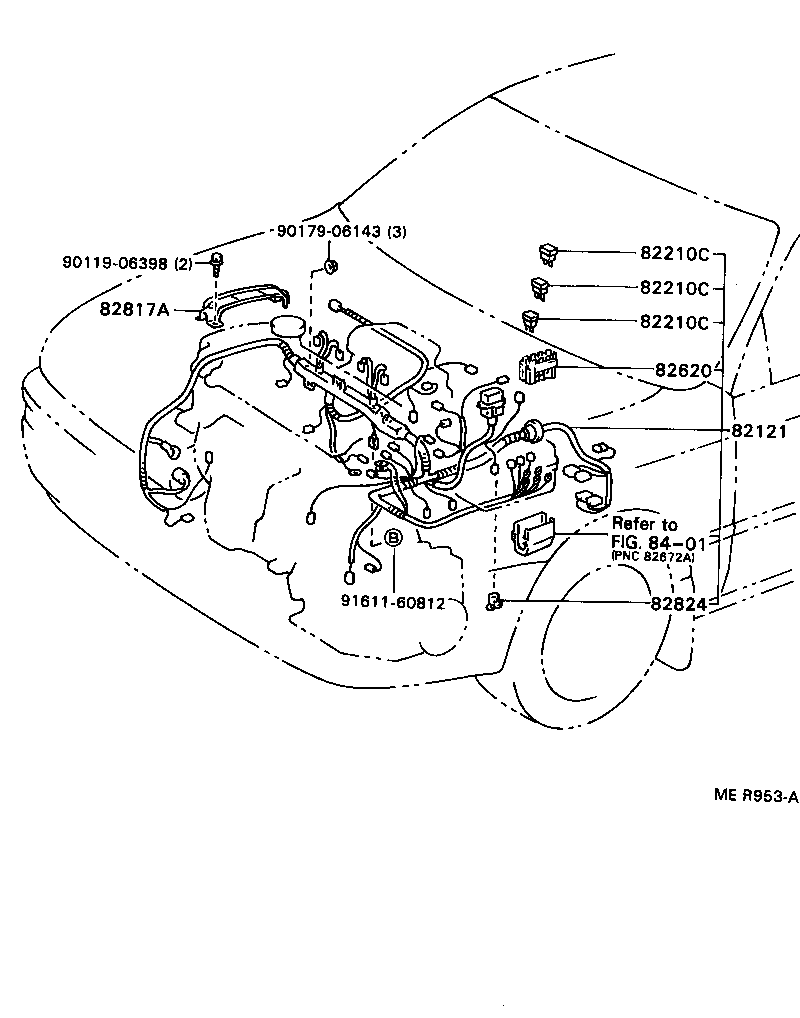

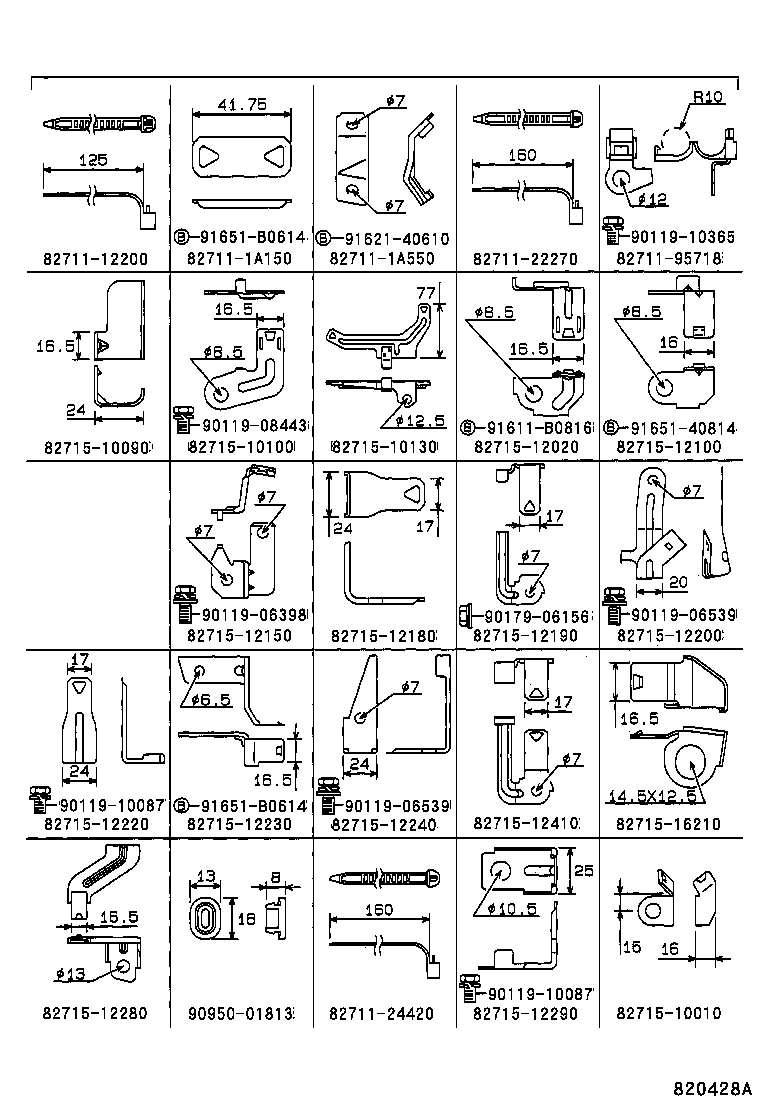

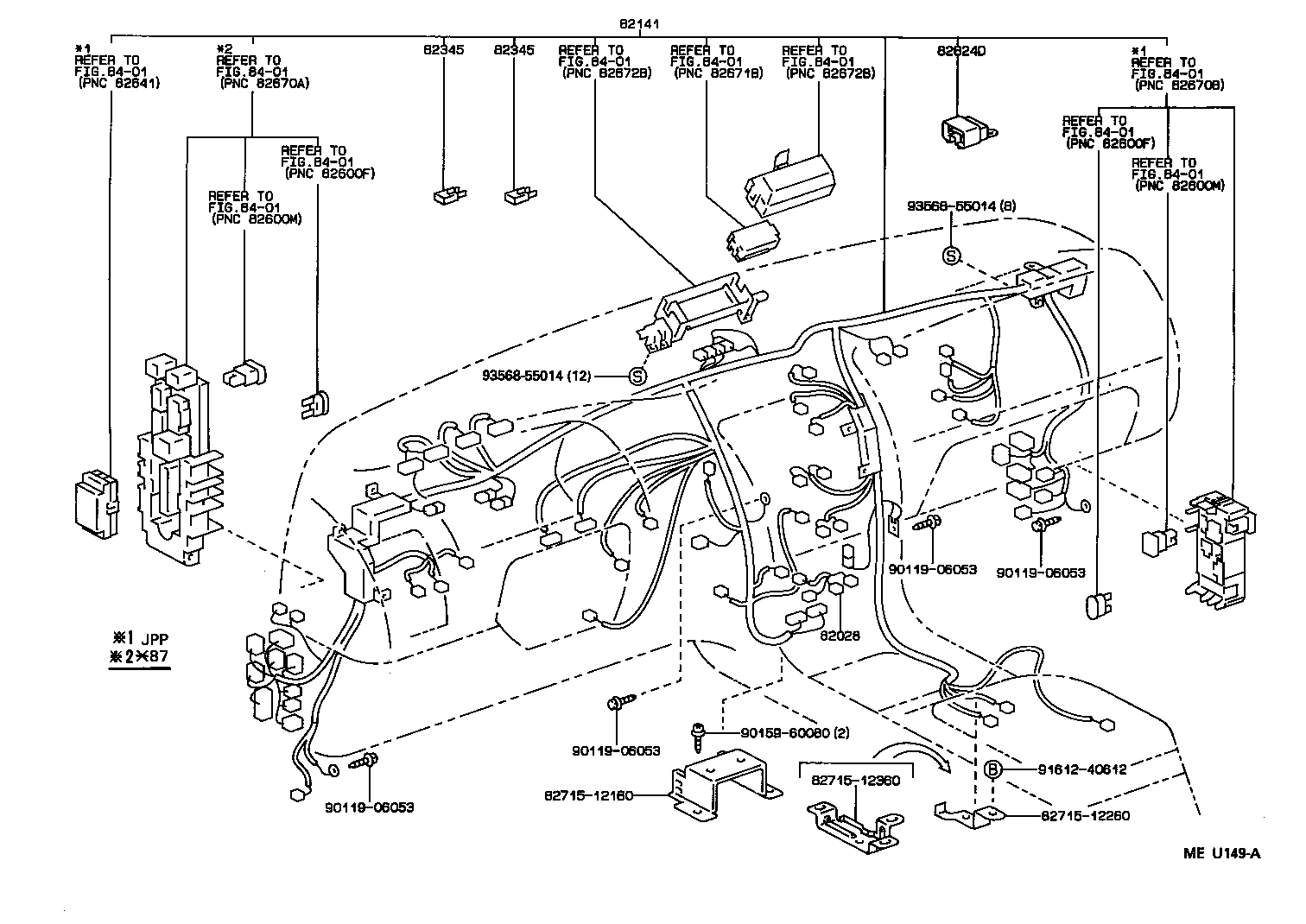

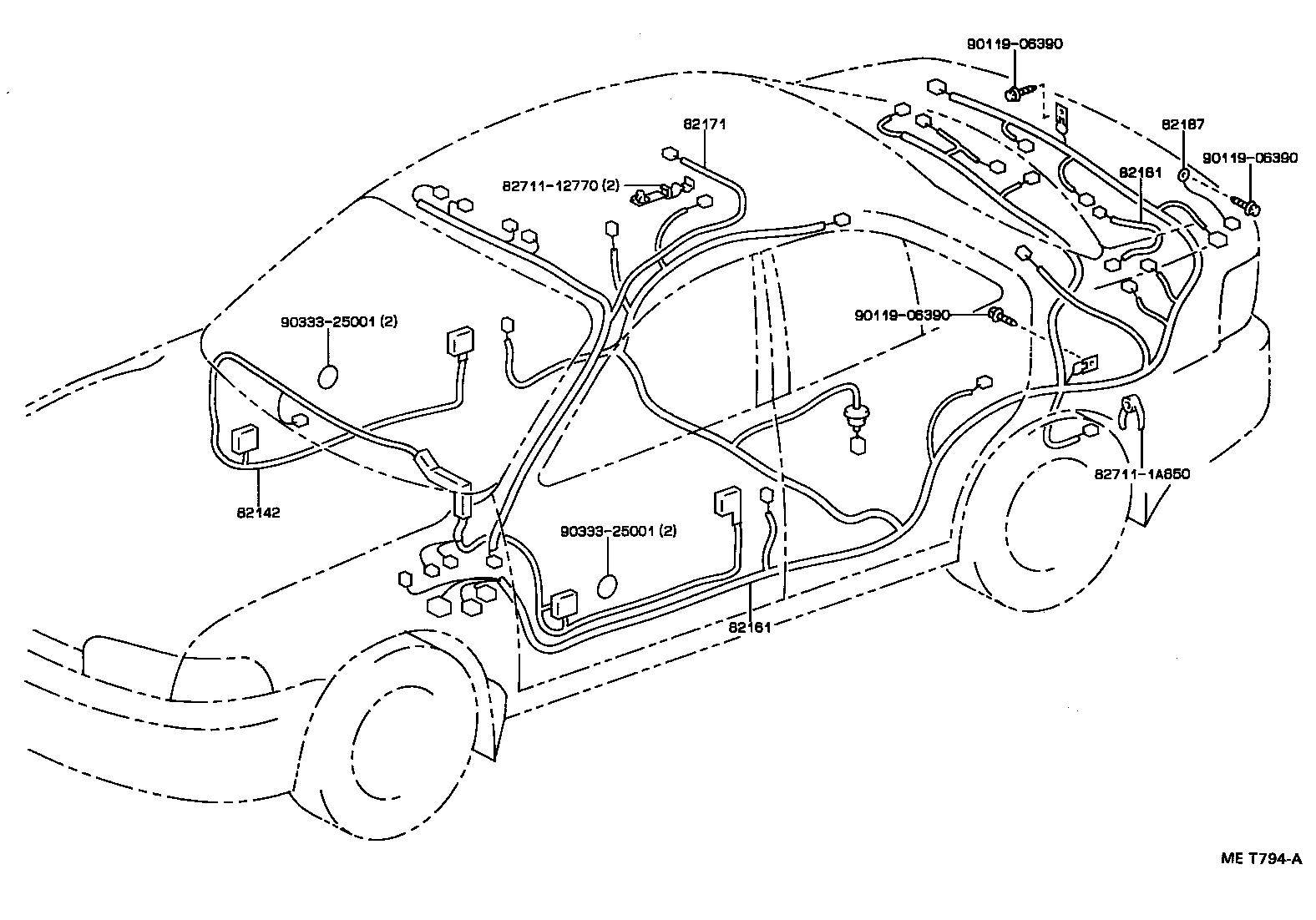

Figure MEU147A MEU147A 1992-09 → — Figure MER953A MER953A 1992-09 → — Figure 820428A 820428A 1992-09 → — Figure 820437 820437 1992-09 → — Figure MEU149A MEU149A 1992-09 → — Figure MES241 MES241 1992-09 → — Figure MET794A MET794A 1992-09 → — Figure 820429 820429 1992-09 → — Figure 820430 820430 1992-09 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82028 Wiring Sub-assy, Cowl
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82345 Diode
82620 Block Assy, Fusible Link
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82824 Connector, Wiring Harness
82824D Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
