Toyota Corolla Nap/Sed

1992-09 → 1997-08 · chassis AE10# · catalogue 155430 · United States

Discontinued model Data version 1998-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

5 part groups · 2 illustrations

Illustrations

Figure MET868

MET868 1992-09 → —

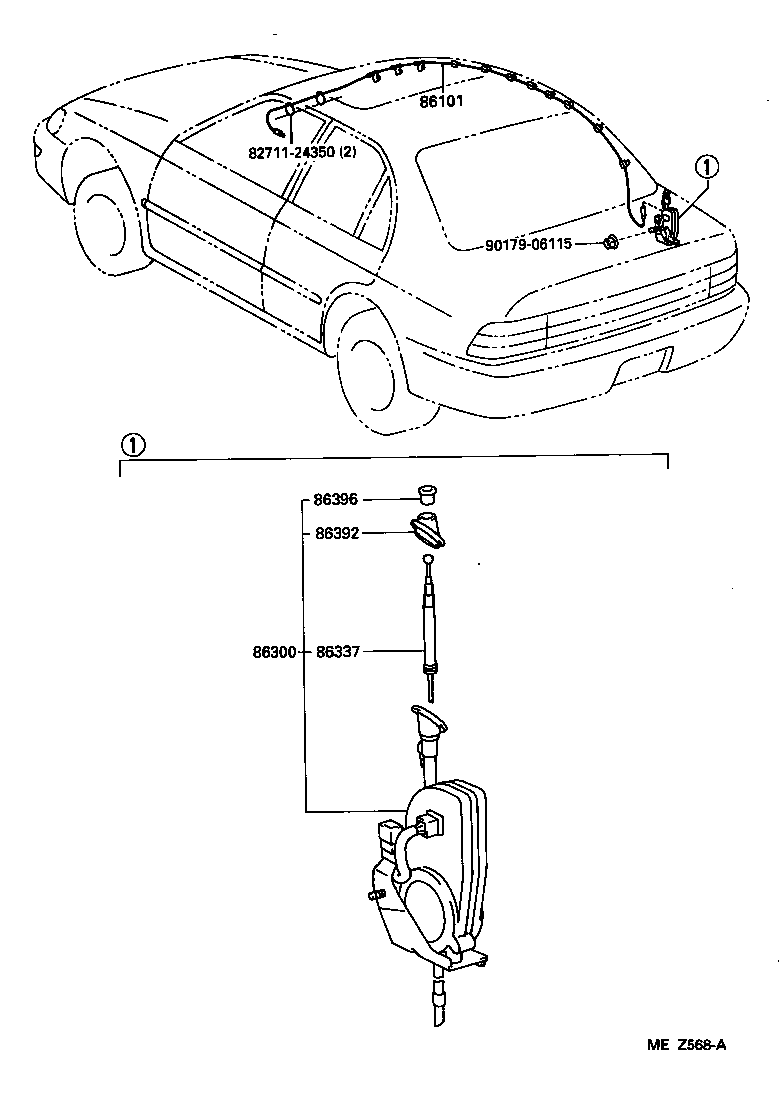

Figure MEZ568A

MEZ568A 1995-08 → —

Part groups

PNC	Description
86101	Cord Sub-assy, Antenna
86300	Antenna Assy, W/Holder
86337	Rod & Pipe, Sealed W/Cable
86392	Ornament, Antenna
86396	Nut, Antenna

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
