Toyota Corolla Nap/Sed
1992-09 → 1997-08 · chassis AE10# · catalogue 155430 · United States
Discontinued model
Data version 1998-02
Heating & Air Conditioning - Cooler Piping

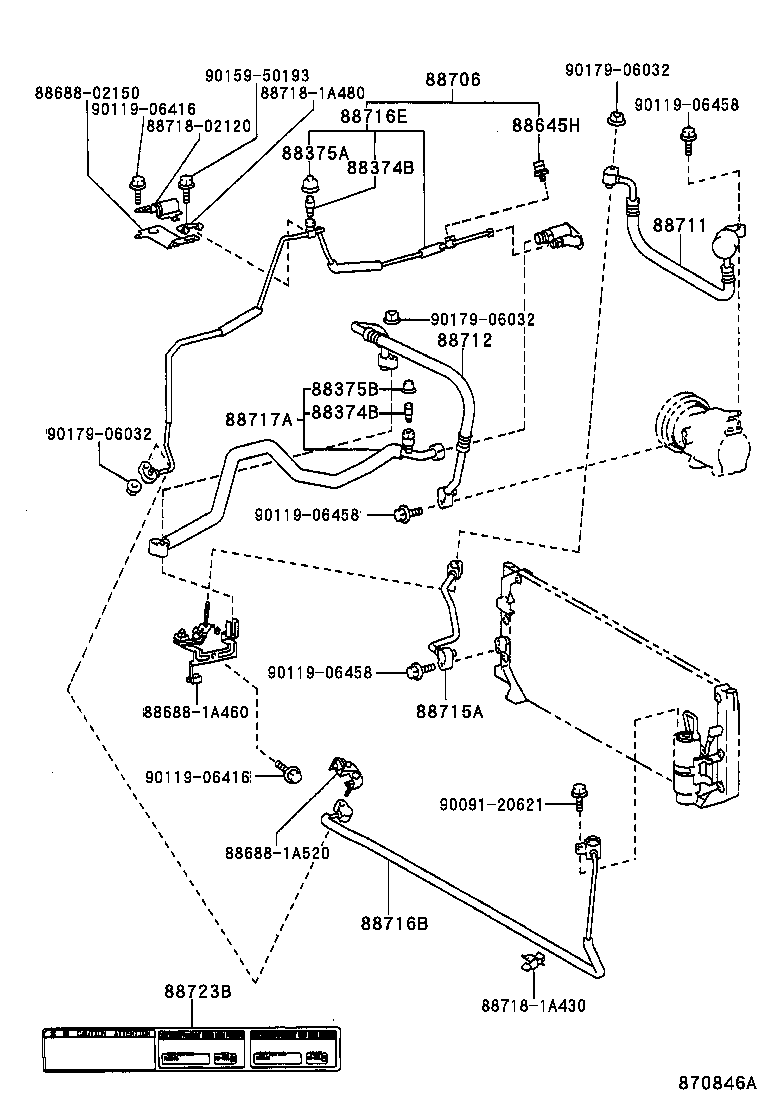

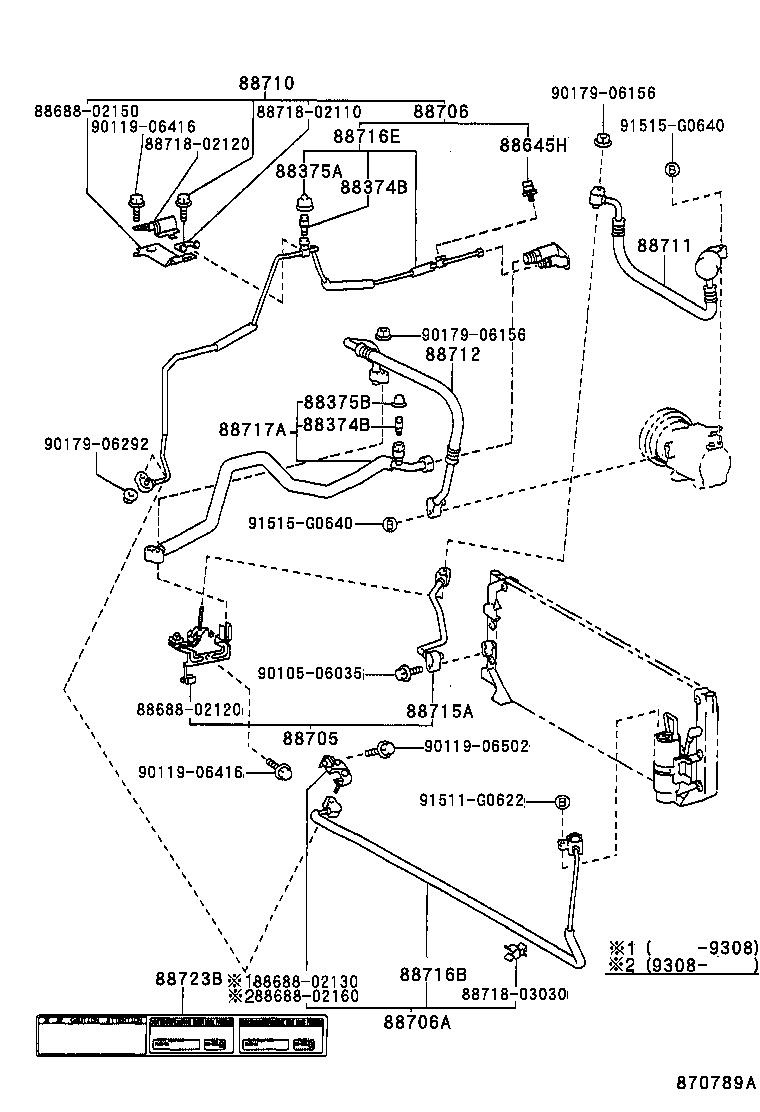

26 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 88374B | Valve, Service, NO.1 |
| 88375A | Cap, Service Valve (FOR COOLER PIPE) |
| 88375B | Cap, Service Valve, NO.1 |
| 88453A | Fan, Cooling |
| 88454A | Shroud, Fan |
| 88460 | Condenser Assy, Cooler |
| 88467 | Cushion, Cooler Condenser, NO.1 |
| 88467A | Cushion, Cooler Condenser, NO.2 |
| 88470 | Receiver & Dryer Assy, Cooler |
| 88472 | Bracket, Receiver Tank, NO.1 |
| 88550 | Motor Assy, Blower (FOR CONDENSER) |
| 88590 | Blower Assy, W/Shroud |
| 88645H | Switch, Pressure NO.1 |
| 88705 | Pipe Sub-assy, Discharge |
| 88706 | Pipe Sub-assy, Liquid |
| 88706A | Tube Sub-assy, Liquid, A |
| 88710 | Tube Assy, Air Conditioner |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88715A | Pipe, Cooler Refrigerant Discharge, A |
| 88716A | Pipe, Cooler Refrigerant Liquid, A |
| 88716B | Pipe, Cooler Refrigerant Liquid, B |
| 88716E | Pipe, Cooler Refrigerant Liquid, E |
| 88717A | Pipe, Cooler Refrigerant Suction, A |
| 88723B | Label, Cooler Service Caution |
| 88892P | Net, Fan Shroud |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
