Toyota Corolla Nap/Sed

1997-08 → 2002-01 · chassis ZZE110 · catalogue 155440 · United States

Discontinued model Data version 2002-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Head

20 part groups · 2 illustrations

Illustrations

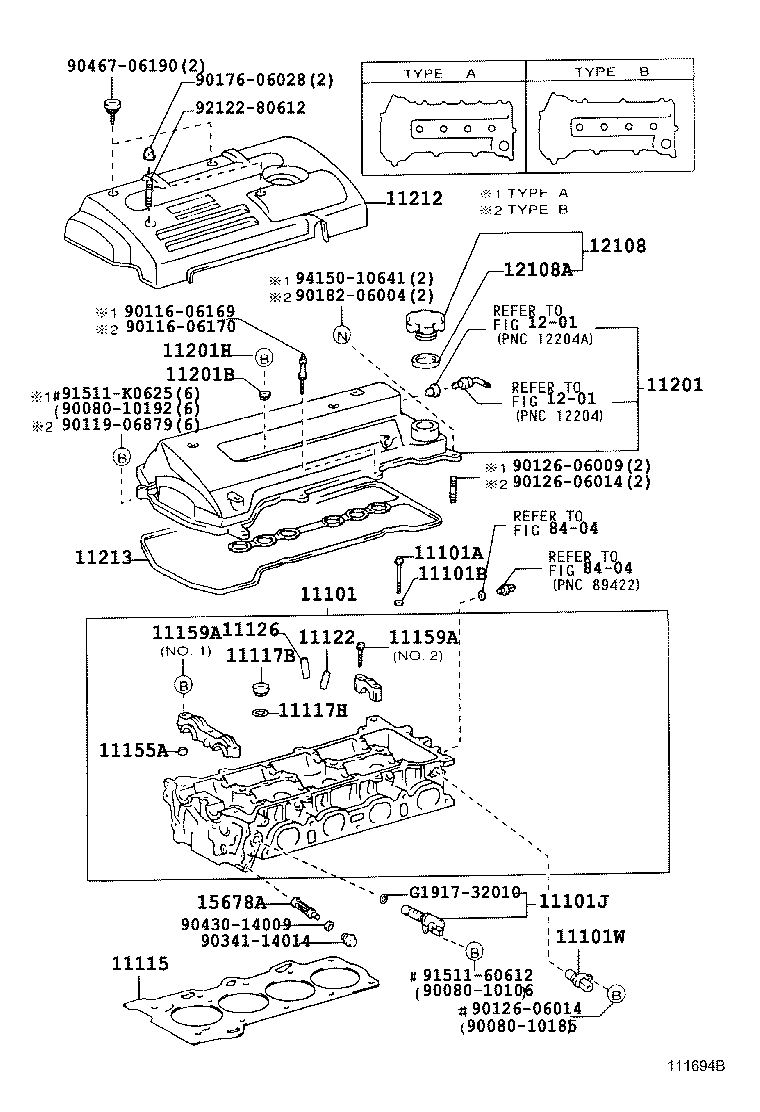

Figure 111696B 111696B 1997-08 → 1999-08 Figure 111694B 111694B 1999-08 → —

Part groups

PNCDescription
11101 Head Sub-assy, Cylinder
11101A Bolt(FOR CYLINDER HEAD SET)
11101B Washer, Plate(FOR CYLINDER HEAD SET)
11101J Valve Assy, Camshaft Timing Oil Control
11101W Sensor, Crank Position, NO.1
11115 Gasket, Cylinder Head
11117B Plug, W/Head Taper Screw, NO.2
11117H Gasket(FOR WATER HOLE)
11122 Bush, Intake Valve Guide
11126 Bush, Exhaust Valve Guide
11155A Pin, Ring W/Head
11159A Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
11201 Cover Sub-assy, Cylinder Head
11201B Washer, Seal(FOR CYLINDER HEAD COVER)
11201H Bolt(FOR CYLINDER HEAD COVER)
11212 Cover, Cylinder Head, NO.2
11213 Gasket, Cylinder Head Cover
12108 Cap Sub-assy, Oil Filler
12108A Gasket(FOR OIL FILLER CAP)
15678A Filter, Oil Control Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
